PR6423/012-100 CON011

/ 4.9
1001 reviews | Need a Specific Revision?
Emerson EPRO PR6423/012-100 with CON011 is an 8 mm eddy-current measurement chain using an armoured, M10 × 1 probe and a 4 m LEMO cable. The panel-mounted converter provides 8 V/mm sensitivity across a 2 mm range.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for PR6423/012-100 CON011
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for PR6423/012-100 CON011

  • Manufacturer:
    Emerson
  • Part Number:
    PR6423/012-100 CON011
  • Product Family:
    Epro
  • Product Type:
    8 mm Eddy Current Sensor and Signal Converter
  • Stock:
    1
  • Sensor family:
    PR6423
  • Converter:
    CON011
  • Probe thread:
    M10 x 1
  • Cable armour:
    Armoured
  • Sleeve configuration:
    45 mm sleeve
  • Cable length:
    4 m
  • Cable termination:
    LEMO
  • Nominal sensitivity:
    8 V/mm
  • Measuring range:
    2 mm
  • Minimum shaft diameter:
    25 mm
  • Converter mounting:
    panel mounting
  • Converter weight:
    120 g
  • Sensor protection:
    IP66
  • Measurement principle:
    Eddy current, non-contact
  • Weight:
    1.279 lbs (0.58 kg)
  • Estimated shipping dimensions:
    11.5 x 7.6 x 6.4 cm
  • Tariff Code:
    90318090
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Environmental Ratings Compatibility Standards

Features:

  • Uses an M10 × 1 armoured PR6423 probe with a 45 mm sleeve.
  • Connects through a fixed 4 m cable and LEMO termination.
  • Delivers a nominal 8 V/mm response over the stated 2 mm range.
The /012-100 suffix fixes the mechanical probe build and cable execution supplied with the CON011. It should be compared character by character when selecting a spare.

This system converts distance changes between the probe tip and a rotating conductive target into a conditioned signal for machinery monitoring and protection equipment.

Use a rigid bracket, preserve the minimum target size and route the armoured lead away from power wiring. Final gap and polarity checks must be made with the correct converter connected.

PR6423/012-100 and CON011 are sourced as the exact mechanical and electrical chain shown.
Verified resources for Emerson PR6423/012-100 CON011:Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Measure radial shaft vibration where an armoured probe lead needs physical protection.
  • Observe relative shaft position through a threaded machine-bearing bracket.
  • Feed an established panel-mounted CON011 channel in a turbine monitoring cabinet.
  • The probe assembly carries the documented IP66 protection rating at the sensor body.
  • Armour provides mechanical defense for the cable but does not replace correct gland sealing.
  • Oil, moisture and conductive debris must be kept away from exposed connector interfaces.
  • Pair the M10 × 1, 45 mm armoured probe only with the designated CON011 electronics.
  • Retain the four-metre LEMO cable execution because it contributes to chain calibration.
  • Confirm the minimum target diameter and material before approving a spare system.
  • Use the official sensitivity and range data for this suffix when documenting the monitoring channel.
  • Keep the complete chain identification in calibration and maintenance records.
  • Apply the plant machinery-protection test procedure before enabling alarm or trip logic.
Description

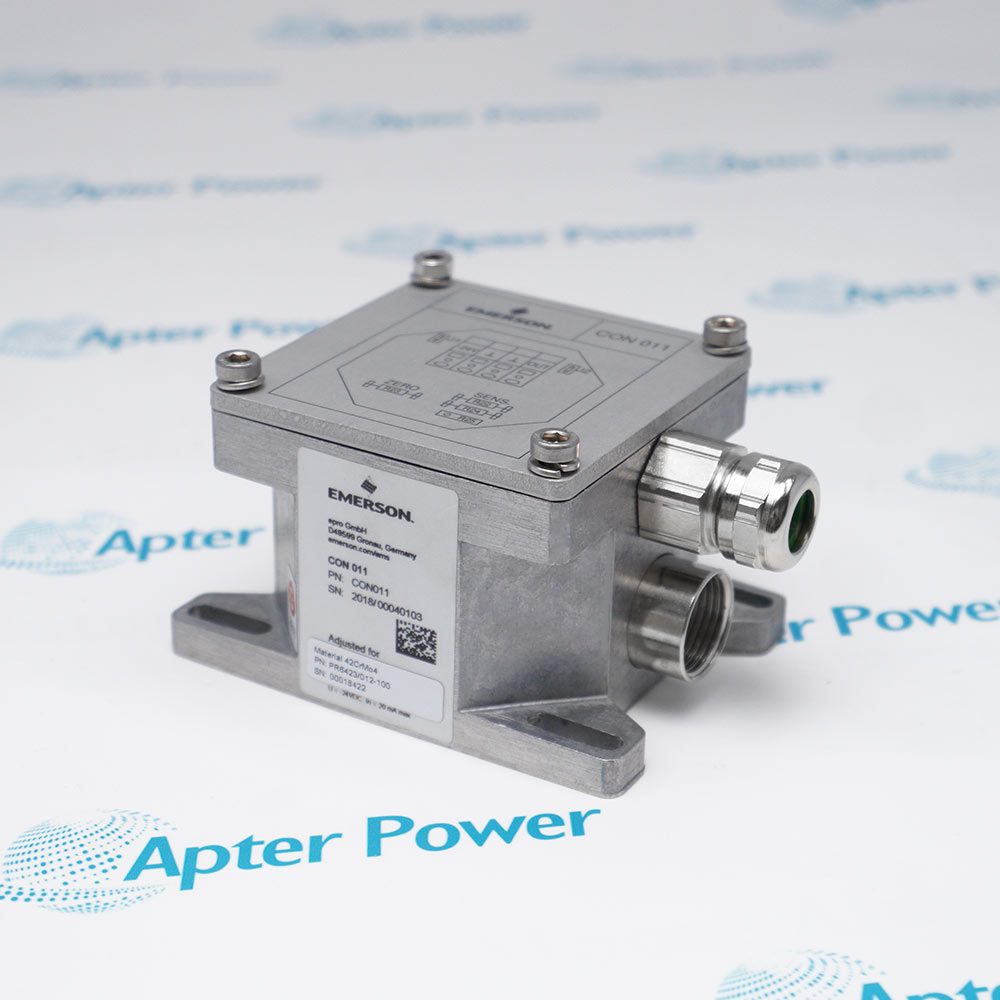

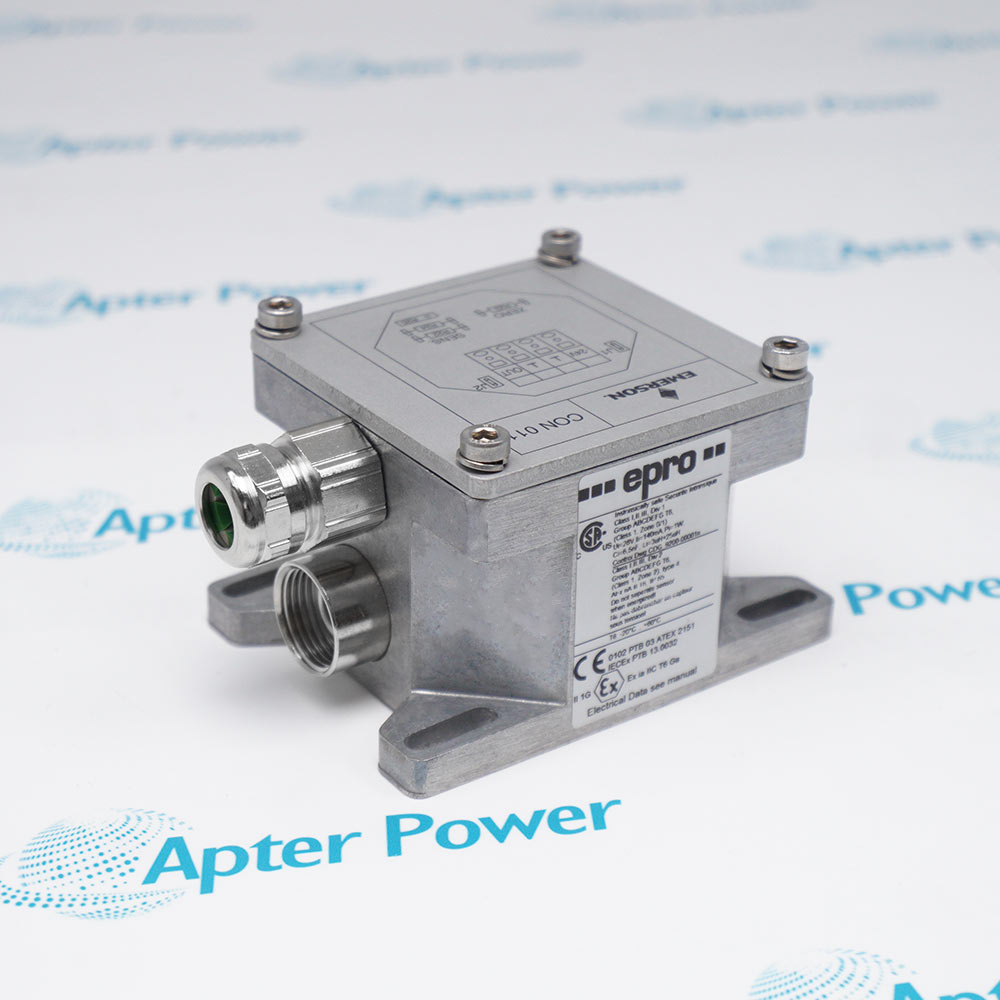

PR6423/012-100 CON011 pairs a PR6423 displacement sensor with the CON011 signal converter as one calibrated, non-contact measurement system. The /012-100 probe execution uses an M10 × 1 thread, a 45 mm sleeve, mechanical armour and a four-metre cable terminated by a LEMO connector for the matching panel-mounted electronics.

The 8 V/mm nominal sensitivity and 2 mm measuring span are intended for dynamic shaft observations such as radial vibration or relative movement on machines with a target diameter of at least 25 mm. Because the probe does not touch the shaft, it can follow rapid motion without mechanical wear at the sensing face.

Accuracy depends on preserving the sensor, its fixed cable and the CON011 as the documented chain. Mounting-bracket stiffness, target material, thread engagement, cable routing and initial gap all influence the final signal, so commissioning must establish a clean electrical baseline before any alarm value is accepted.
Alternative Names
PR6423/012-100 CON011 PR6423 012 100 CON011 PR6423-012-100-CON011 PR6423012100CON011 Emerson EPRO PR6423/012-100 CON011 PR6423/012-100 CON011 EPRO PR6423 Eddy Current Measurement Emerson EPRO 8 mm Eddy Current Sensor and Signal Converter PR6423/012-100 CON011 8 mm Eddy Current Sensor and Signal Converter
Technical notes
PR6423/012-100 CON011 is a calibrated chain with a fixed 4 m armoured cable; do not shorten, extend or mix its probe and converter without a complete metrology check.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why does the 45 mm sleeve matter on Emerson EPRO PR6423/012-100 CON011?
It defines the available threaded reach and probe-body geometry, which must suit the installed bracket and target clearance.
How should the LEMO connection on Emerson EPRO PR6423/012-100 CON011 be handled?
Keep it clean, fully seated and strain-free; contamination or partial engagement can disturb the low-level measurement path.
May the 4 m cable on Emerson EPRO PR6423/012-100 CON011 be shortened?
No uncontrolled alteration is appropriate because cable length is part of the matched measurement-chain response.
Where is the converter installed for Emerson EPRO PR6423/012-100 CON011?
It is the panel-mounted converter that conditions the connected PR6423 probe signal for the monitoring system.
Why is a 25 mm shaft diameter relevant to Emerson EPRO PR6423/012-100 CON011?
It is the documented minimum target diameter used to preserve the intended eddy-current field geometry.
Which identifiers belong on a request for Emerson EPRO PR6423/012-100 CON011?
Include both order codes, sleeve length, armour, cable length, connector style and photographs of the installed mounting.
