PR6424/013-140 CON021

/ 4.9
1001 reviews | Need a Specific Revision?

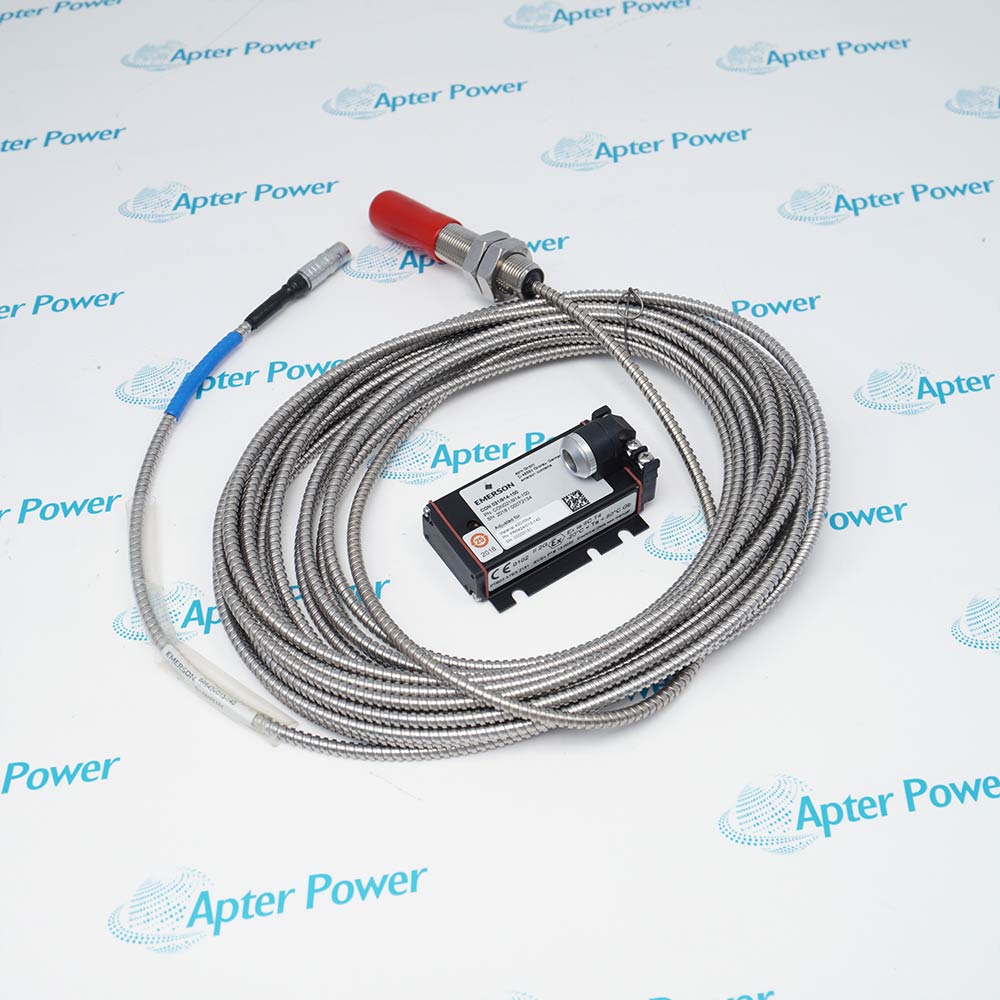

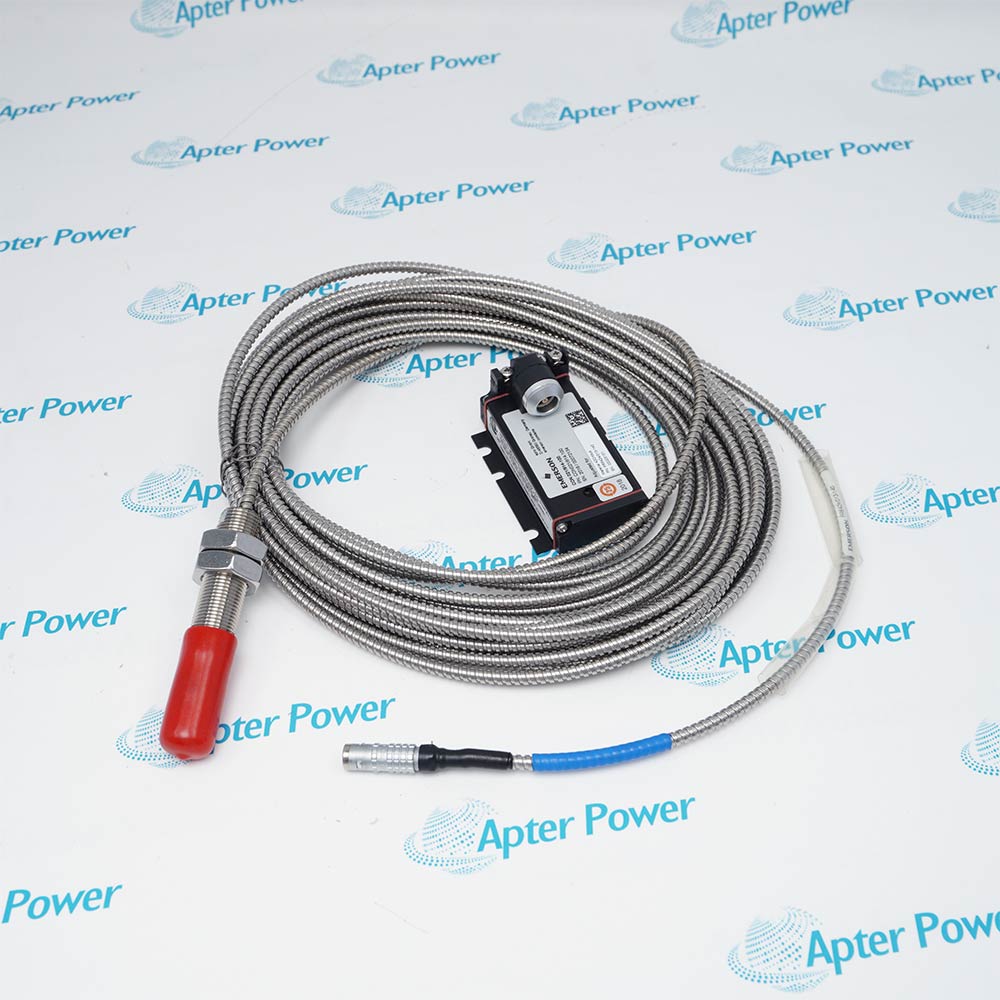

Emerson EPRO PR6424/013-140 CON021 targets large-shaft displacement measurements through an M18 × 1.5 armoured sensor, a remote panel converter and a 10 m LEMO lead. The chain is rated 4 V/mm over ±2 mm and requires an 80 mm minimum target diameter.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for PR6424/013-140 CON021
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for PR6424/013-140 CON021

  • Manufacturer:
    Emerson
  • Part Number:
    PR6424/013-140 CON021
  • Product Family:
    Epro
  • Product Type:
    16 mm Eddy Current Sensor and Signal Converter
  • Stock:
    1
  • Sensor family:
    PR6424
  • Converter:
    CON021
  • Probe thread:
    M18 x 1.5
  • Cable armour:
    Armoured
  • Sleeve configuration:
    70 mm overall length
  • Cable length:
    10 m
  • Cable termination:
    LEMO
  • Nominal sensitivity:
    4 V/mm
  • Measuring range:
    ±2 mm static
  • Minimum shaft diameter:
    80 mm
  • Converter mounting:
    panel mounting
  • Converter weight:
    120 g
  • Sensor protection:
    IP66
  • Measurement principle:
    Eddy current, non-contact
  • Weight:
    1.631 lbs (0.74 kg)
  • Estimated shipping dimensions:
    26 x 23 x 4 cm
  • Tariff Code:
    90318090
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Performance Compatibility Certifications

Features:

  • Employs a robust M18 × 1.5 PR6424 probe with armoured construction.
  • Includes a 10 m cable with LEMO connection to the CON021 converter.
  • Supports ±2 mm static displacement at 4 V/mm nominal sensitivity.
The /013-140 code fixes the 70 mm body geometry, armour and extended cable arrangement. These attributes make the chain mechanically distinct from nearby PR6424 variants.

Its non-contact field follows the distance to a sufficiently large conductive shaft or target, providing a conditioned signal for displacement and vibration supervision.

Plan the ten-metre cable route before tightening the probe. Maintain the 80 mm minimum target diameter and verify the converter identity prior to setting the operating point.

The PR6424/013-140 probe and CON021 converter are matched by suffix, cable and mounting execution.
Verified resources for Emerson PR6424/013-140 CON021:Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Track shaft displacement on large rotating-machine targets with an extended cable run.
  • Monitor relative movement where a heavier M18 threaded sensor is required.
  • Connect a field probe to remote panel electronics through a protected armoured lead.
  • The nominal conversion factor is 4 V/mm for the documented target conditions.
  • Static measurement covers ±2 mm around the established working point.
  • The minimum 80 mm shaft diameter supports the required sensing-field geometry.
  • Pair the /013-140 probe with the specified CON021 converter rather than a visually similar unit.
  • A converter calibrated for another lead arrangement cannot be assumed to preserve the 4 V/mm characteristic.
  • Confirm target material and diameter before accepting a replacement measurement chain.
  • Use the product markings and official documentation supplied for the exact suffix during compliance review.
  • The IP66 sensor rating applies to the probe assembly under its specified installation conditions.
  • Final machine certification remains dependent on the enclosure, cable entry and protection-system design.
Description
PR6424/013-140 CON021 combines the larger PR6424 sensor body with a CON021 panel converter for measurements that require more physical reach and a broader static displacement window. The /013-140 construction specifies M18 × 1.5 mounting, an armoured probe with 70 mm overall length and a ten-metre factory cable ending in a LEMO connector.

A nominal sensitivity of 4 V/mm and a documented ±2 mm static range suit relative shaft or position measurements on machinery with a target diameter of at least 80 mm. The larger sensing geometry distinguishes this chain from PR6423 arrangements designed around smaller shafts and different converter characteristics.

Installation quality is governed by bracket rigidity, thread alignment, target surface and the routing of the long armoured lead. The complete probe and CON021 must be treated as a matched system; after mechanical work, the channel should be gapped, scaled and verified across the required travel before protection thresholds are restored.
Alternative Names
PR6424/013-140 CON021 PR6424 013 140 CON021 PR6424-013-140-CON021 PR6424013140CON021 Emerson EPRO PR6424/013-140 CON021 PR6424/013-140 CON021 EPRO PR6424 Eddy Current Measurement Emerson EPRO 16 mm Eddy Current Sensor and Signal Converter PR6424/013-140 CON021 16 mm Eddy Current Sensor and Signal Converter
Technical notes
PR6424/013-140 CON021 uses a long 10 m calibrated lead; avoid tight bends, armour damage and converter interchange, then prove linear travel before reconnecting any trip channel.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What mounting thread is required by Emerson EPRO PR6424/013-140 CON021?
The probe uses an M18 × 1.5 thread and its bracket must accommodate the documented 70 mm body geometry.
How does the ±2 mm span of Emerson EPRO PR6424/013-140 CON021 apply?
It is the stated static movement range around a correctly established operating gap, not a substitute for installation clearance.
Why does Emerson EPRO PR6424/013-140 CON021 use this converter execution?
CON021 is the designated panel converter for this large-probe chain and provides the required signal conditioning.
What routing precautions apply to the 10 m lead of Emerson EPRO PR6424/013-140 CON021?
Protect the armour from crushing, avoid sharp bends and separate the cable from high-energy conductors.
Can Emerson EPRO PR6424/013-140 CON021 measure a small shaft?
The official data calls for an 80 mm minimum shaft diameter, so a smaller target is outside the stated geometry.
Does IP66 make the complete Emerson EPRO PR6424/013-140 CON021 installation weatherproof?
No. The probe rating does not automatically cover the connector, panel converter, cable entry or surrounding enclosure.
