5X00300G01

/ 4.9
1001 reviews | Need a Specific Revision?

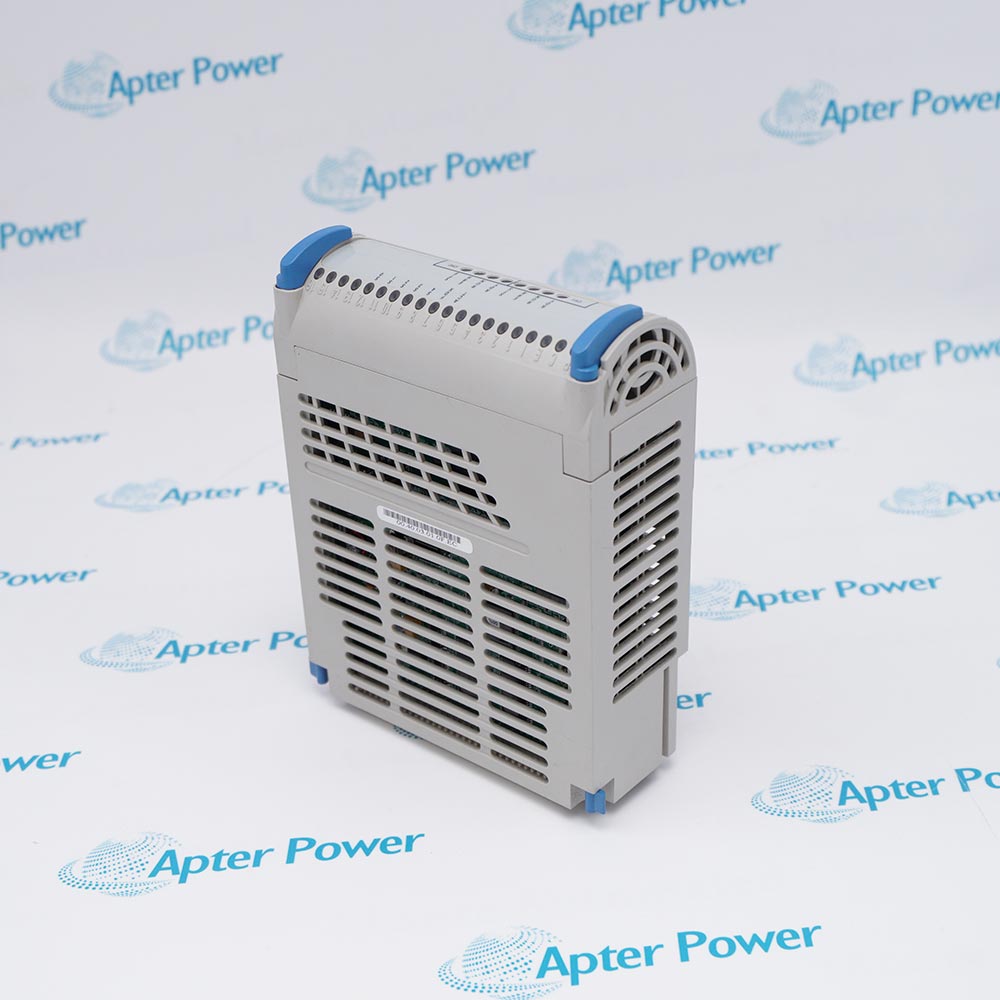

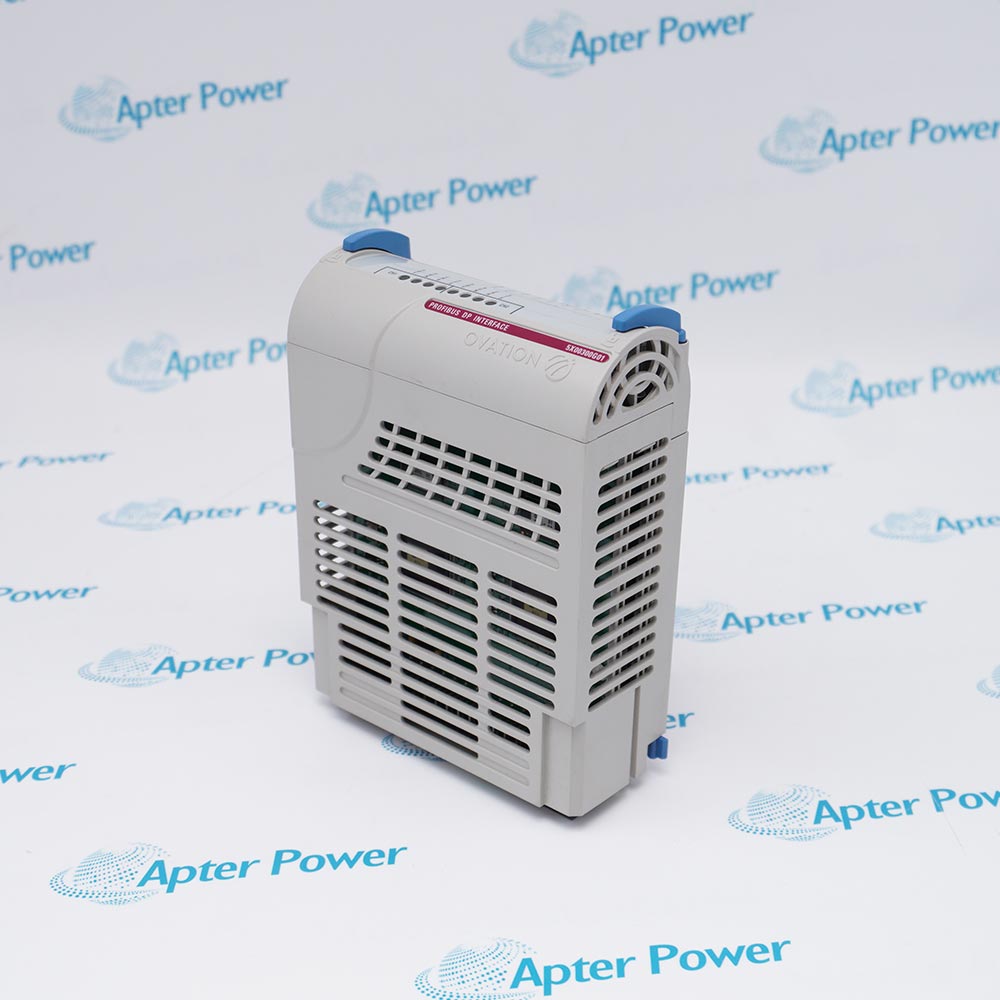

Emerson 5X00300G01 is an Ovation two-channel Profibus DP electronics module for integrating supported Profibus field networks.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 5X00300G01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 5X00300G01

  • Manufacturer:
    Emerson
  • Part Number:
    5X00300G01
  • Product Family:
    Ovation
  • Product Type:
    Profibus DP Interface Module
  • Stock:
    1
  • Communication Protocol:
    Profibus DP
  • Fieldbus Channels:
    2
  • Companion Personality Module:
    5X00321G01
  • Main Power:
    5.1 W/VA
  • Heat Dissipation:
    17.3 BTU/h
  • System Platform:
    Ovation
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Communication DP Interoperability DP Configuration

Features:

  • Provides two Profibus DP communication channels for supported Ovation field devices.
  • Pairs with the 5X00321G01 personality module for fieldbus termination.
  • Uses 5.1 W/VA of main power with documented heat dissipation of 17.3 BTU/h.
The current ordering configuration is 5X00300G01, the standard two-channel Ovation Profibus DP module for 5X00321G01 termination.

It exchanges deterministic process and status data between Ovation and compatible Profibus DP field devices through two independent fieldbus channels.

Before installation, confirm 5X00321G01 hardware, device addresses, bus termination, shielding and the Ovation project configuration.

Availability is subject to Apter Power inventory and sourcing confirmation.
Verified resources for Emerson 5X00300G01:

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Integrates compatible Profibus DP instruments and remote devices with an Ovation control system.
  • Supports dual-channel fieldbus segmentation where two independently configured Profibus links are required.
  • Provides controller-to-field data exchange for Ovation projects using documented Profibus DP hardware.
  • Two Profibus DP channels carry cyclic process data between Ovation and compatible field devices.
  • The matched personality module provides the documented physical connection for both fieldbus channels.
  • Bus baud rate, node addressing and cable topology must follow the Profibus configuration used by the Ovation project.
  • The electronics module is designed for operation with the 5X00321G01 Profibus DP personality module.
  • Connected slaves must support the Profibus DP profiles and data exchange configured in the host Ovation system.
  • Replacement requires the exact electronics-module variant so channel timing and project mappings remain aligned.
  • Each fieldbus channel is configured through the Ovation engineering environment for the attached Profibus network.
  • Device addresses and cyclic data lengths must match the configuration loaded for each connected slave.
  • Commissioning includes checking bus termination, cable shielding and the operating state of both channels.
Description
The current ordering configuration is 5X00300G01, the Emerson Ovation Profibus DP Interface Module. Retain the complete model and suffix when preparing maintenance records, spare-part requests, and replacement checks.

This configuration provides two-channel Profibus DP electronics module that connects supported fieldbus devices through the 5X00321G01 personality module. The documented product data identifies communication protocol Profibus DP, fieldbus channels 2 for the selected hardware.

Before installation or substitution, verify the network cabling and termination, addressing or project communication settings, and power, grounding, and supported topology. Compare the nameplate and project documentation with the exact 5X00300G01 configuration before the equipment is energized.
Alternative Names
5X00300G01 Emerson 5X00300G01 Ovation 5X00300G01 EMR 5X00300G01 5X00300G01 Module 5X00300G01 E-Module
Technical notes
5X00300G01 must use the documented 5X00321G01 personality module and Profibus termination; do not substitute the G02 timing variant without a network review.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What communication role is assigned to 5X00300G01?
5X00300G01 provides two Profibus DP fieldbus channels for the documented Ovation interface assembly.
Which field-termination hardware belongs with 5X00300G01?
Use the documented 5X00321G01 personality module and verify the connector and bus wiring before installation.
Where does 5X00300G01 fit in an Ovation fieldbus architecture?
It connects supported Profibus DP devices to the Ovation I/O environment through the configured interface channels.
Which detail distinguishes available 5X00300G01 stock?
The offered unit must carry the complete G01 order suffix and the standard Profibus DP designation, not a time-enabled variant.
Can 5X00300G01 be substituted because another card also supports Profibus DP?
No. Channel count, timing function, personality module, firmware and project database must match the installed interface.
What data should accompany a 5X00300G01 quotation request?
Provide the full part number, two-channel requirement, installed personality module, system revision, condition and quantity.
