2MBI1000VXB-170E-50

/ 4.9
1001 reviews | Need a Specific Revision?
2MBI1000VXB-170E-50 is a Fuji Electric 1700 V, 1000 A V-series 2-in-1 IGBT module for high-power industrial converters.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 2MBI1000VXB-170E-50
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 2MBI1000VXB-170E-50

  • Manufacturer:
    Fuji Electric
  • Part Number:
    2MBI1000VXB-170E-50
  • Product Family:
    Fuji Electric
  • Product Type:
    1700 V class 1000 A 2 in 1 IGBT module
  • Stock:
    1
  • Configuration:
    2 in 1
  • Series:
    V series, sixth generation
  • Collector emitter voltage:
    1700 V
  • Gate emitter voltage:
    plus or minus 20 V
  • Collector current:
    1400 A continuous at case 25 degrees C; 1000 A at case 100 degrees C
  • Collector current pulse:
    2000 A for 1 ms
  • Collector power dissipation:
    6250 W per device
  • Junction temperature:
    175 degrees C
  • Operating junction temperature:
    150 degrees C
  • Isolation voltage:
    4000 VAC for 1 minute
  • Thermal resistance:
    0.024 degrees C/W IGBT and 0.048 degrees C/W free wheel diode
  • Dimensions:
    25.0 × 8.9 × 3.8 cm
  • Weight:
    1.25 kg
  • Tariff Code:
    8541290000
  • Country of origin:
    Japan
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Switching integration Thermal installation Application fit Application
  • Fuji identifies 2MBI1000VXB-170E-50 as a V-series 2-Pack IGBT module.
  • The 1700 V, 1000 A PrimePACK module uses screw terminals and low-inductance construction.
  • Fuji lists inverter, NC-servo, UPS, wind-power and solar-conversion applications.

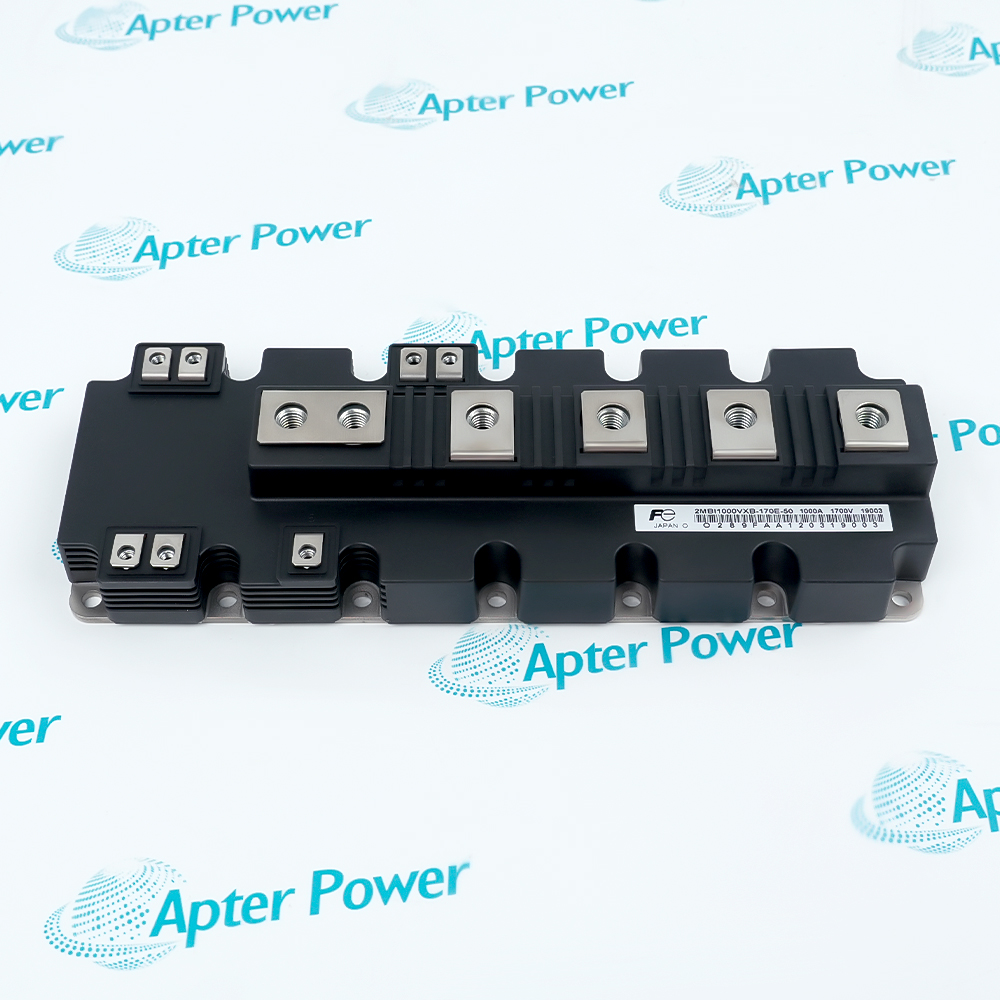

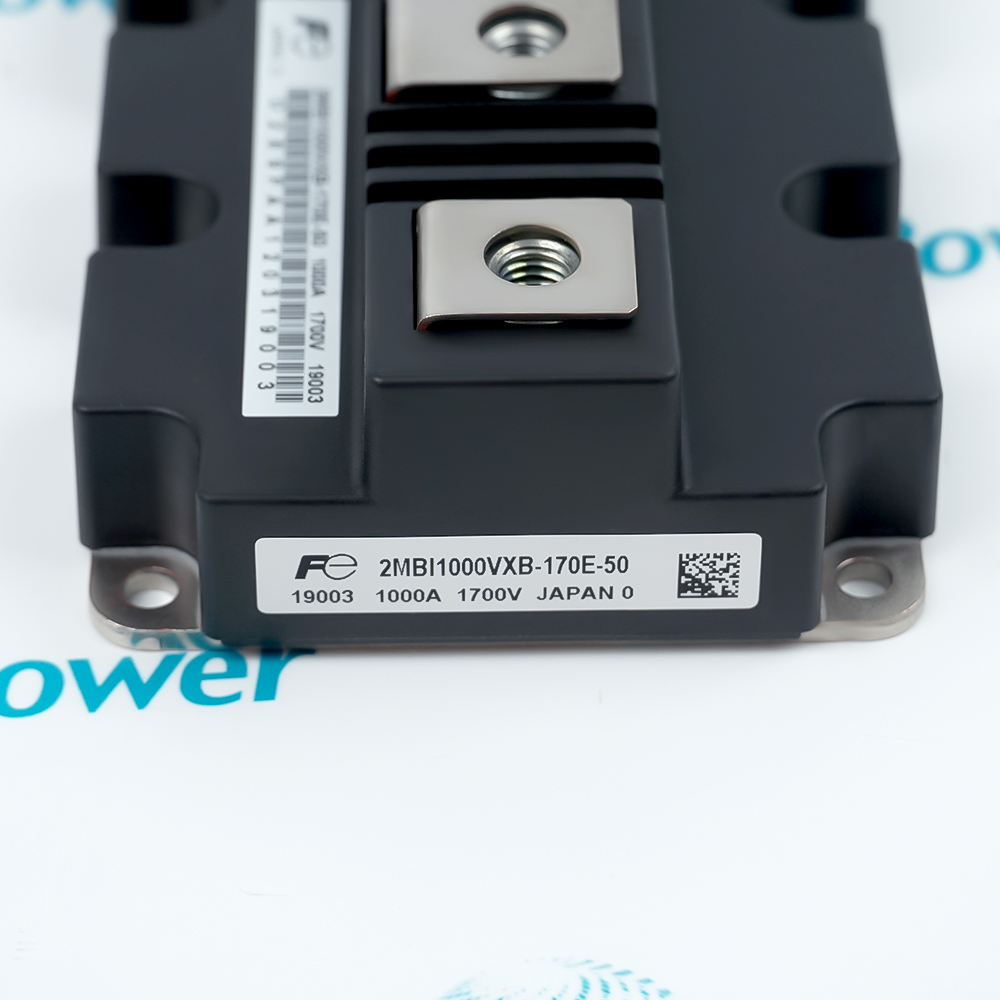

2MBI1000VXB-170E-50 is a Fuji Electric V-series high-power IGBT module in the M272 PrimePACK package.

It combines two switching devices with freewheel-diode paths and an internal thermistor interface; the maximum virtual junction temperature is 175 °C and net mass is 1250 g.

Use Fuji’s mounting instructions to verify heatsink flatness, thermal interface material, terminal torque, insulation clearance and cooling before energizing the converter.

Availability, condition, price, and shipping time for 2MBI1000VXB-170E-50 are confirmed during quotation.

2MBI1000VXB-170E-50 Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, and related items are not included unless listed in the stock item description. All prices are shown in USD.

  • The datasheet separates inverter IGBT and thermistor terminals.
  • Gate supply, resistance, and loop inductance must follow Fuji switching conditions.
  • Main, sense, and thermistor terminals use separate screw connections.
  • Fuji specifies separate junction to case thermal resistance for IGBT and free wheel diode paths.
  • Use the documented mounting and terminal torque ranges.
  • Use the specified thermal compound condition at the cooling interface.
  • Motor drive inverters are listed as an intended application.
  • AC and DC servo drive amplifiers are listed.
  • UPS and industrial welding machines are listed.
  • Motor drive inverter power stages.
  • AC and DC servo drive amplifiers.
  • UPS and industrial welding equipment.
Description
2MBI1000VXB-170E-50 is a Fuji Electric V series 2 in 1 IGBT module for high power conversion.

The module provides a 1700 V class inverter stage with high current capability, low inductance construction, screw terminals, FWD paths, and a thermistor interface.

Before replacement, confirm gate drive, cooling interface, terminal torque, busbar layout, parallel conditions, and the exact Fuji order code.
Alternative Names
2MBI1000VXB-170E-50 Fuji Electric 2MBI1000VXB-170E-50 FUJI 2MBI1000VXB170E50 2MBI1000VXB 170E 50 2MBI1000VXB-170E-50 IGBT Module
Technical notes
Before replacing 2MBI1000VXB-170E-50, verify the Fuji V-series 1700 V, 1000 A module, heatsink flatness, thermal interface, screw-terminal torque, gate-drive connections, and cooling.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How do I confirm Fuji Electric 2MBI1000VXB-170E-50 is the correct replacement?
Match the complete order code, package, terminal layout, circuit arrangement, generation, and thermistor connection before installation.
What gate driver conditions matter for Fuji Electric 2MBI1000VXB-170E-50?
Check gate supply, gate resistance, commutation inductance, driver current, and protection timing against the converter design.
How should the thermistor connection on Fuji Electric 2MBI1000VXB-170E-50 be used?
Verify the thermistor path in the control schematic and confirm that the monitoring circuit interprets the sensor correctly.
What cooling checks are important for Fuji Electric 2MBI1000VXB-170E-50?
Confirm heatsink flatness, thermal compound, isolation, clamping or screw arrangement, and the specified torque.
Is Fuji Electric 2MBI1000VXB-170E-50 suitable for a parallel converter leg?
Parallel use requires engineering checks for current sharing, gate timing, stray inductance, thermal balance, and protection coordination.
Which wiring must be preserved when replacing Fuji Electric 2MBI1000VXB-170E-50?
Preserve main power, sense, gate, and thermistor wiring as shown in the equivalent circuit and cabinet drawings.
What records should be retained after installing Fuji Electric 2MBI1000VXB-170E-50?
Retain the order code, torque record, thermal interface condition, gate resistance, insulation test, thermistor reading, and converter test results.
