    Apter Power supports GE Fanuc A03B-0815-C003 with manuals, model matching and I/O selection.

A03B-0815-C003

/ 4.9
1001 reviews | Need a Specific Revision?

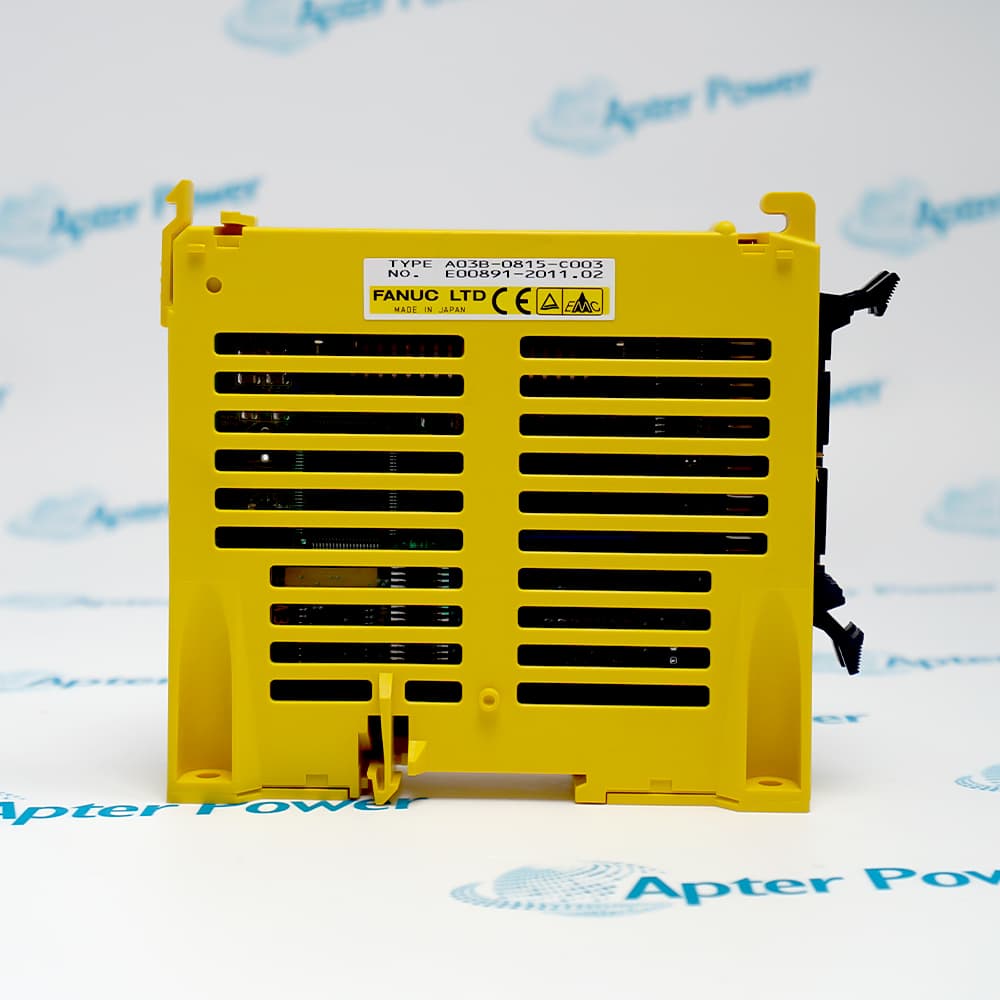

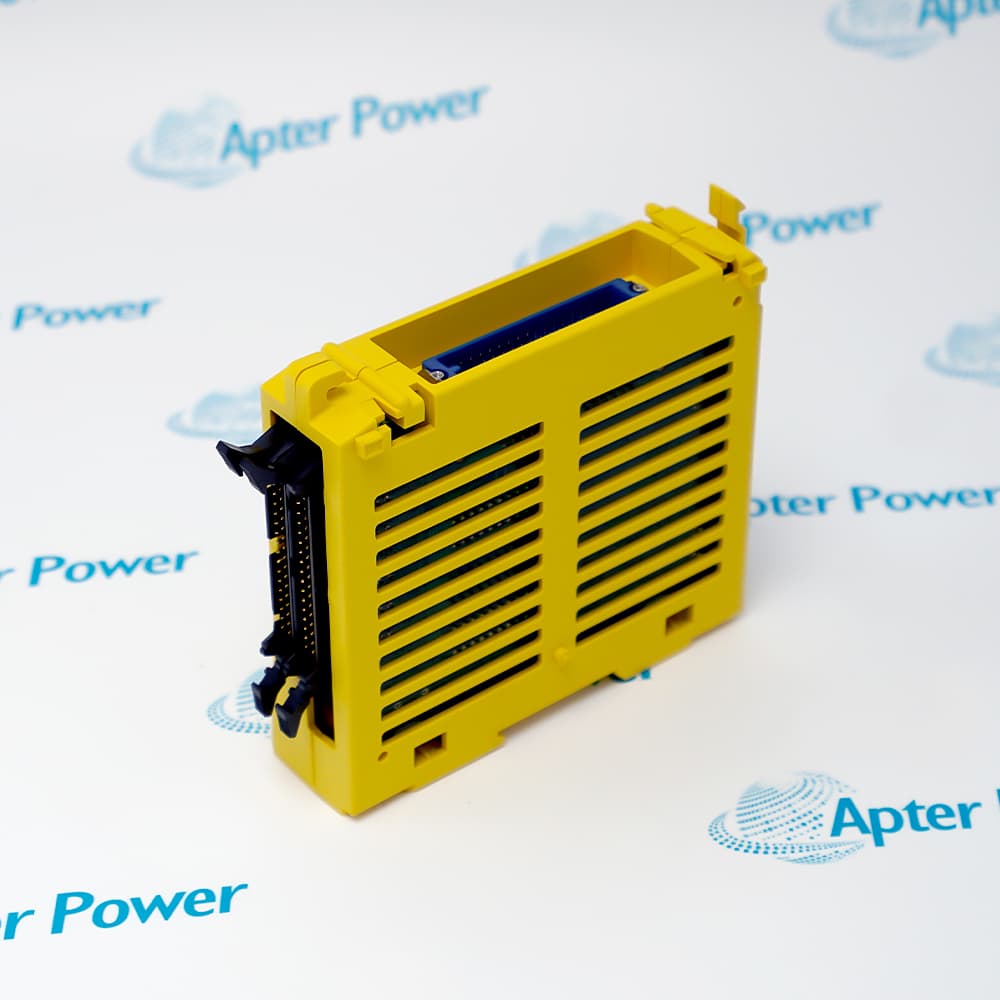

GE Fanuc A03B-0815-C003 is a 24-input/16-output connector-panel I/O Expansion Module B that extends machine signals within a FANUC I/O Link group.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for A03B-0815-C003
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for A03B-0815-C003

  • Manufacturer:
    General Electric
  • Part Number:
    A03B-0815-C003
  • Product Family:
    Fanuc CNC
  • Product Type:
    Connector Panel I/O Expansion Module
  • Stock:
    1
  • I/O Capacity:
    24 digital inputs / 16 digital outputs
  • MPG Interface:
    Not incorporated
  • Local Extension Capacity:
    Up to 3 extended units per basic unit
  • I/O Link Arrangement:
    Basic and extended units form one FANUC I/O Link group
  • Operating Temperature:
    0 to 55°C
  • Storage Temperature:
    -20 to 60°C
  • Relative Humidity:
    30 to 95% RH, non-condensing
  • Operating Vibration:
    0.5 G or less
  • DO Load Current:
    200 mA maximum per point, including momentary current
  • DO Saturation Voltage:
    1 V maximum at 200 mA
  • DO Withstand Voltage:
    24 V +20% maximum, including momentary values
  • DO Off-State Leakage:
    20 µA maximum
  • Driver Delay:
    50 µs maximum, plus I/O Link transfer and ladder scan
  • Unit Cable:
    A03B-0815-K100, 20 mm for 32 mm unit spacing
  • Cabinet Requirement:
    Fully enclosed cabinet
  • Weight:
    0.4 lbs (0.18 kg)
  • Estimated shipping dimensions:
    13.8x3.4x11.4cm
  • Tariff Code:
    8543709990
  • Country of origin:
    Japan
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals I/O Group Signal Limits Installation Module Selection

Features:

  • Adds 24 digital inputs and 16 digital outputs to a connector-panel I/O Link group.
  • Uses the Expansion B configuration without a manual pulse generator interface.
  • Works as one of as many as three local extensions behind a connector-panel basic unit.
The module expands machine-side signal capacity without creating a separate I/O Link group.

Its role and position are defined by the basic-unit connection, flat cable and extension selector.

Cabinet layout must keep wiring and ventilation clear while respecting the documented output limits.

The GE Fanuc A03B-0815-C003 Connector Panel I/O Expansion Module B may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE Fanuc A03B-0815-C003 Connector Panel I/O Expansion Module B Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Basic and Extension Relationship

  • Basic Unit: A03B-0815-C001 begins the local connector-panel I/O group.
  • Expansion Capacity: One basic unit accepts as many as three local extensions.
  • Expansion Role: A03B-0815-C003 contributes 24 inputs and 16 outputs without an MPG interface.
  • Address Position: The rotary selector follows the occupied extension position, including gaps.

Digital Output Boundaries

  • Point Load: Each output supports up to 200 mA including momentary current.
  • Saturation: The on-state saturation voltage is 1 V maximum at 200 mA.
  • Off State: Leakage current is limited to 20 µA maximum.
  • Response Path: The 50 µs driver delay is added to I/O Link transfer and ladder-scan time.

Cabinet and Cable Practices

  • Enclosure: Install the connector-panel modules in a fully enclosed cabinet.
  • Clearance: Keep at least 100 mm above and below the module group for wiring and ventilation.
  • Ventilation: Do not place heat-generating equipment below the I/O modules or cover basic-unit vents.
  • Inter-Unit Cable: A03B-0815-K100 provides the 20 mm flat connection for 32 mm module spacing.

Connector-Panel Variants

  • A03B-0815-C001: Basic unit with 24 inputs and 16 outputs.
  • A03B-0815-C002: Expansion A with 24 inputs, 16 outputs and an MPG interface.
  • A03B-0815-C003: Expansion B with 24 inputs and 16 outputs but no MPG interface.
  • A03B-0815-C004: Expansion C with sixteen 2 A outputs.
  • A03B-0815-C005: Expansion D for analog input signals.
Description
GE Fanuc A03B-0815-C003 is a connector-panel I/O Expansion Module B that adds 24 digital inputs and 16 digital outputs to a local FANUC I/O Link group; this version does not incorporate a manual pulse generator interface.

A connector-panel basic unit and as many as three local extensions form one I/O Link group, so A03B-0815-C003 is selected and positioned as an extension rather than used as a stand-alone basic module.

For dependable cabinet integration, A03B-0815-C003 is installed in a fully enclosed enclosure with ventilation space kept clear; its documented digital outputs support up to 200 mA per point and include the I/O Link transfer plus ladder-scan time in the response path.
Alternative Names
GE Fanuc A03B-0815-C003 A03B 0815 C003 A03B0815C003 A03B-0815-C003 Expansion Module B GE Fanuc Connector Panel I/O Module C003 A03B-0815-C003 I/O Unit GE Fanuc I/O Link Expansion B A03B-0815-C003 A03B-0815-C003 24DI 16DO Module
Technical notes
GE Fanuc A03B-0815-C003 is Expansion Module B with 24 digital inputs, 16 digital outputs and no manual pulse generator interface. It operates as an extension within a connector-panel I/O Link group.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why does GE Fanuc A03B-0815-C003 fail to join the expected local I/O group?
Check that GE Fanuc A03B-0815-C003 is connected behind the connector-panel basic unit, that the flat cable is seated correctly, and that the extension position selector matches the occupied position.
Can GE Fanuc A03B-0815-C003 replace an extension that needs a manual pulse generator interface?
No. GE Fanuc A03B-0815-C003 is the Expansion B version without an MPG interface; verify whether the installation instead requires the documented Expansion A variant.
What should be checked when a GE Fanuc A03B-0815-C003 output will not drive its load?
For GE Fanuc A03B-0815-C003, confirm the 24 V output circuit, common wiring and load current; each documented output is limited to 200 mA including momentary current.
How is GE Fanuc A03B-0815-C003 positioned when an earlier extension slot is unused?
Set the GE Fanuc A03B-0815-C003 extension selector for the actual occupied position described in the connector-panel I/O manual, rather than assuming that physical order alone defines its address.
Why must GE Fanuc A03B-0815-C003 be installed inside a closed cabinet?
GE Fanuc A03B-0815-C003 requires a fully enclosed cabinet to limit contamination and must retain ventilation and wiring clearance above and below the module.
Which inter-unit cable is documented for GE Fanuc A03B-0815-C003?
GE Fanuc A03B-0815-C003 uses the A03B-0815-K100 flat cable; the manual specifies a 20 mm cable when adjacent units are spaced 32 mm apart.
