DSQC 604 3HAC12928-1

/ 4.9
1001 reviews | Need a Specific Revision?
ABB DSQC 604 3HAC12928-1 is the control power supply documented for IRC5 controller assemblies, including the Panel Mounted Controller service procedure.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for DSQC 604 3HAC12928-1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DSQC 604 3HAC12928-1

  • Manufacturer:
    ABB
  • Part Number:
    DSQC 604 3HAC12928-1
  • Product Family:
    ABB Robots
  • Product Type:
    IRC5 Control Power Supply
  • Stock:
    1
  • Controller platform:
    ABB IRC5
  • Controller implementation:
    Panel Mounted Controller
  • Where used product:
    3HAC020536-014 IRC5 Controller
  • Robotics part category:
    Controller Module
  • Robot design year:
    IRC5 M2004
  • Service connectors:
    X1 to X4
  • Mounting retention:
    Cap nut and attachment screw
  • Service reference:
    3HAC047137-001, Replacement of control power supply
  • Dimensions:
    8.2 × 15.65 × 20 cm
  • Weight:
    2.64 kg
  • Tariff Code:
    8504409999
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Connector Mapping Cabinet Removal Refit Verification Application
  • Control power supply mapped by ABB to spare part 3HAC12928-1
  • Documented inside the IRC5 Panel Mounted Controller control module

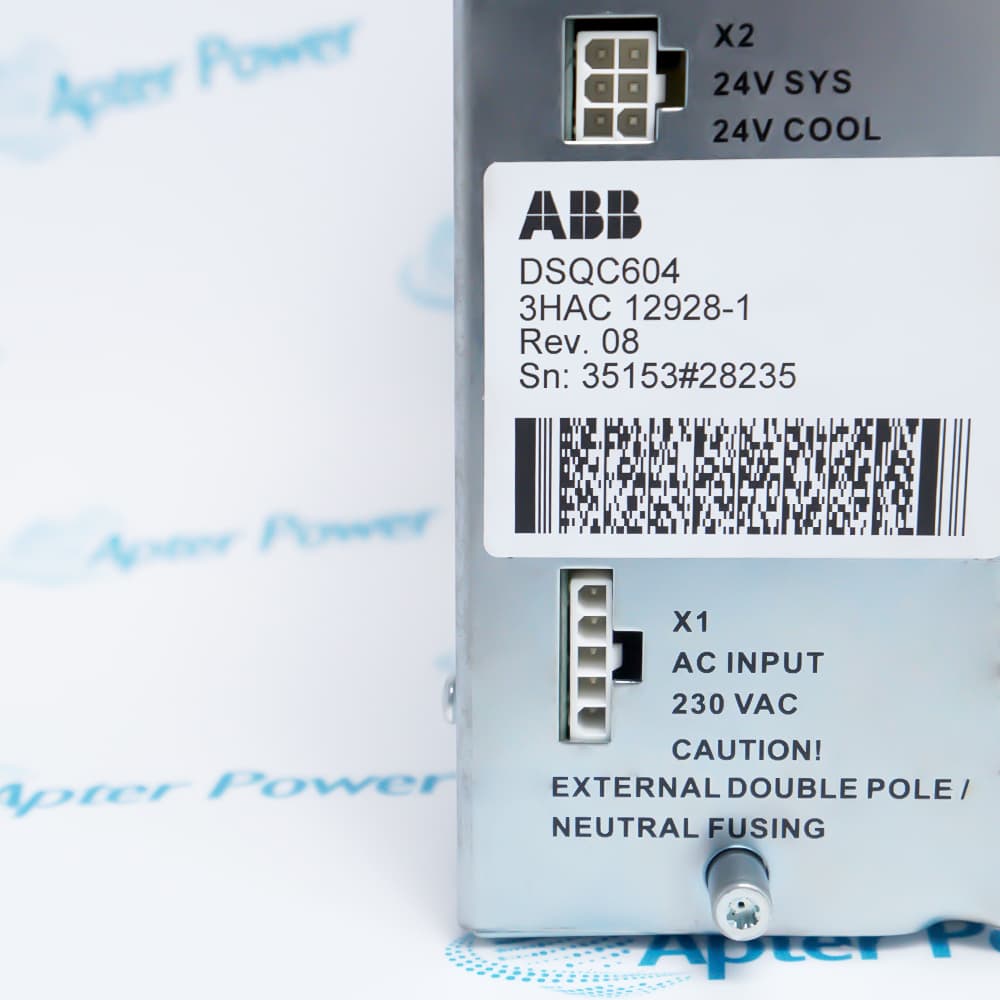

  • Service connection set identified as X1 through X4

DSQC 604 3HAC12928-1 is the control power supply used in documented ABB IRC5 controller hardware.

The official procedure identifies its cabinet location, mounting points and four service connectors, providing direct checks for the replacement unit.

Before exchange, isolate mains power, label X1 through X4, support the unit while releasing its fixings and retain the controller-specific function-test sequence.

Availability, condition, price, and shipping time for DSQC 604 3HAC12928-1 are confirmed during quotation.

ABB DSQC 604 3HAC12928-1 IRC5 Control Power Supply Manuals, Product Family, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Identify and label X1, X2, X3 and X4 before any connector is released.
  • Keep each harness aligned with its original socket and cable route.
  • Inspect connector locking and strain relief before restoring cabinet power.
  • Disconnect mains power before beginning work inside the controller cabinet.
  • Release the cap nut and attachment screw while supporting the power supply.
  • Withdraw the unit without contacting adjacent controller assemblies.
  • Seat the supply against the original mounting points before tightening fixings.
  • Reconnect all four documented connectors in their recorded positions.
  • Complete the ABB controller function tests after power is restored.
  • Control-power section of ABB IRC5 Panel Mounted Controllers
  • ABB IRC5 Single controller assemblies associated with product 3HAC020536-014
  • Controller-module power integration in IRC5 M2004 hardware
Description
DSQC 604 3HAC12928-1 is the ABB control power supply identified in IRC5 controller documentation and the Panel Mounted Controller spare-parts structure.

ABB locates the unit inside the controller cabinet and identifies connectors X1 through X4, a cap nut and an attachment screw in the replacement procedure.

Confirm the complete 3HAC number, controller implementation, connector mapping, mounting hardware and required function tests before returning the controller to operation.
Alternative Names
DSQC 604 3HAC12928-1 DSQC604 3HAC12928-1 3HAC12928-1 DSQC 604 3HAC129281 DSQC604 ABB DSQC 604 3HAC12928-1 ABB 3HAC12928-1 DSQC 604
Technical notes
DSQC 604 3HAC12928-1 requires verification of the IRC5 controller variant, X1–X4 mapping, mounting hardware and complete spare-part identity before replacement to prevent cabinet incompatibility.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How can ABB DSQC 604 3HAC12928-1 be distinguished from another IRC5 power-supply function?
Confirm the official pairing of DSQC 604 with spare part 3HAC12928-1 and its control-power role. ABB's service procedure also identifies its X1–X4 connector set and cabinet mounting arrangement.
Which controller context should be checked before ordering ABB DSQC 604 3HAC12928-1?
Confirm the installed IRC5 variant and full spare-part number. ABB documents this supply in the IRC5 Panel Mounted Controller and associates it with IRC5 controller product 3HAC020536-014.
Which connectors must be preserved when replacing ABB DSQC 604 3HAC12928-1?
ABB identifies connectors X1 through X4. Label their positions and orientation before disconnection so each harness returns to its original socket.
Why must mains power be isolated before servicing ABB DSQC 604 3HAC12928-1?
ABB places a danger instruction before cabinet work and requires the mains supply to be disconnected because hazardous power remains present inside the controller.
How is ABB DSQC 604 3HAC12928-1 retained in the Panel Mounted Controller?
The documented procedure uses a cap nut and an attachment screw. Support the unit while releasing these fixings and avoid contact with adjacent assemblies.
What must be tested after refitting ABB DSQC 604 3HAC12928-1?
Reconnect X1 through X4, inspect mounting and cable routing, restore power under the ABB procedure and perform the controller function tests referenced by the manual.
Can another DSQC power supply replace ABB DSQC 604 3HAC12928-1 without comparison?
No. Match the complete 3HAC number, IRC5 implementation, connector set and mounting arrangement; another DSQC supply may serve a different controller power function.
