    Apter Power supports GE Fanuc SPM-45 A06B-6102-H245#H520 with documentation and configuration matching.

SPM-45 A06B-6102-H245#H520

/ 4.9
1001 reviews | Need a Specific Revision?

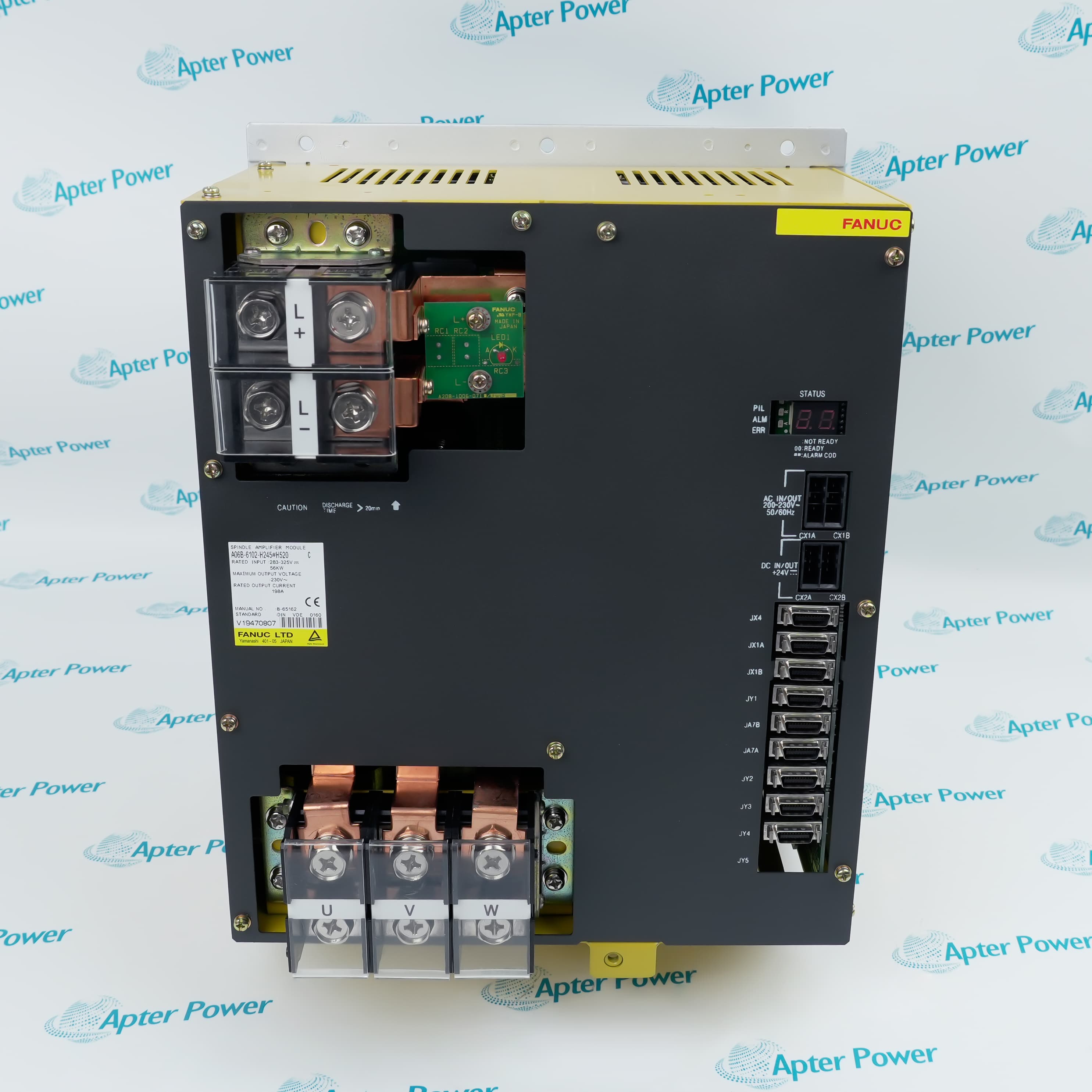

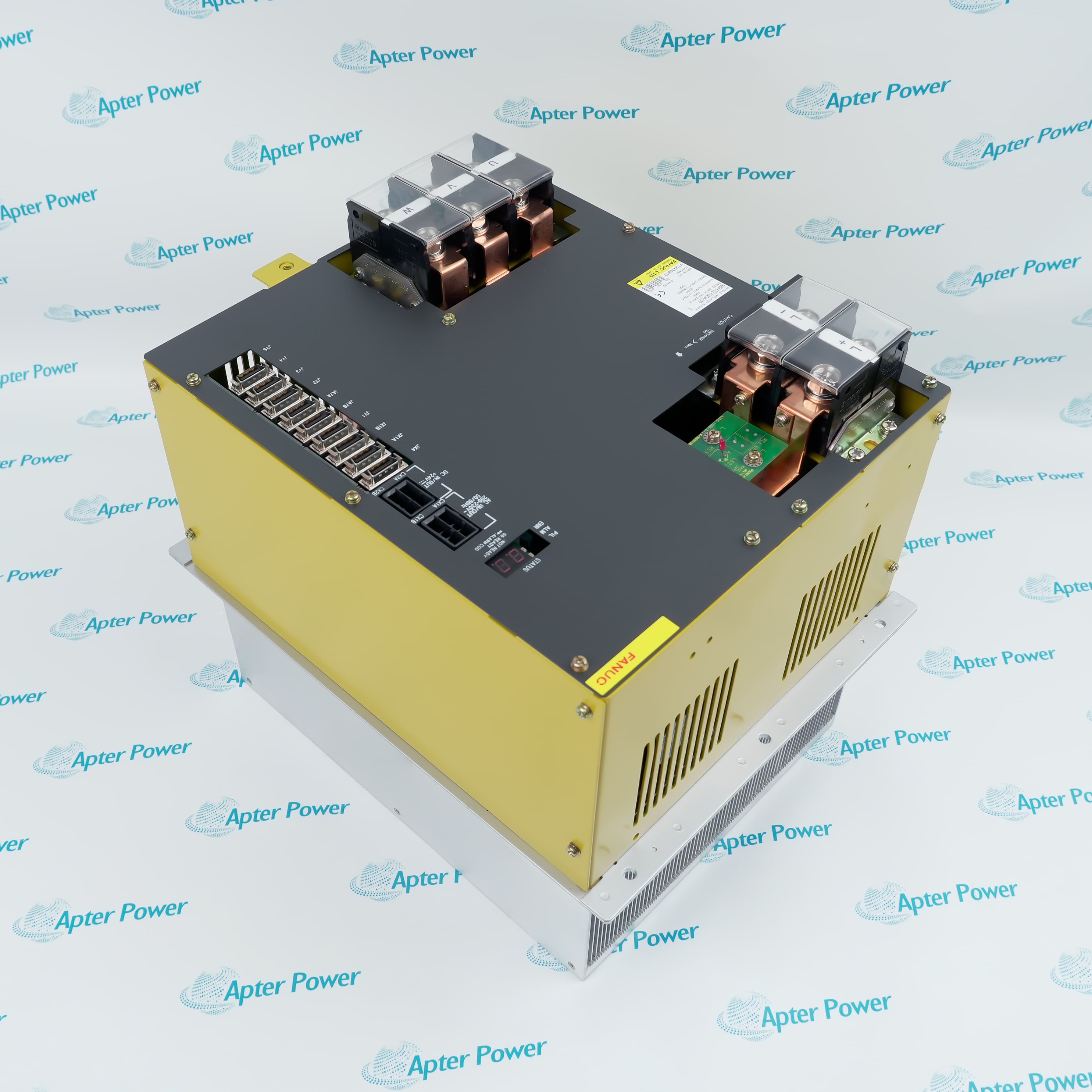

GE Fanuc SPM-45 A06B-6102-H245#H520 is an Alpha Series Type 1 spindle amplifier that supports spindle HRV control.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for SPM-45 A06B-6102-H245#H520
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SPM-45 A06B-6102-H245#H520

  • Manufacturer:
    General Electric
  • Part Number:
    SPM-45 A06B-6102-H245#H520
  • Product Family:
    Fanuc CNC
  • Product Type:
    Alpha Series SPM-45 Spindle Amplifier Module
  • Stock:
    1
  • ROM Series:
    A06B-6102-H520 (9D20)
  • Wiring Board:
    A20B-1007-0591
  • Printed Circuit Board:
    A20B-2002-0080
  • Amplifier Group:
    Alpha Series Type 1 standard specification
  • Control Revision:
    Spindle HRV control support
  • Tariff Code:
    8537101190
  • Country of origin:
    Japan
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Order Structure Board Mapping Control Revision Maintenance Scope

Features:

  • Identified as the SPM-45 Alpha Series Type 1 spindle amplifier
  • Combines unit specification A06B-6102-H245 with H520 ROM series
  • Maps to A20B-1007-0591 and A20B-2002-0080 board specifications
The SPM-45 designation places this unit in the standard Type 1 Alpha spindle-amplifier group.

Its complete order structure retains the H520 ROM-series identifier after the A06B-6102-H245 unit specification.

The paired A20B numbers connect the order code to the documented wiring and printed-circuit boards.

The GE Fanuc SPM-45 A06B-6102-H245#H520 Spindle Amplifier Module is listed as Active / Available from OEM.
GE Fanuc SPM-45 A06B-6102-H245#H520 Spindle Amplifier Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

How the order code is organized

  • Model position: SPM-45 identifies the amplifier rating within the Alpha spindle range.
  • Unit position: A06B-6102-H245 names the hardware unit beneath the complete order specification.
  • ROM position: #H520 links the order code to A06B-6102-H520 (9D20).
  • Identity boundary: All three positions belong together when this build is matched.

Relationship between the documented boards

  • Wiring section: A20B-1007-0591 is the wiring-board specification paired with the SPM-45 unit.
  • Control section: A20B-2002-0080 is the printed-circuit-board specification in the same row.
  • Assembly link: The two A20B references map one hardware build to A06B-6102-H245#H520.
  • Variant separation: Neighboring SPM ratings carry different board combinations.

Position of the H520 revision

  • Table group: The unit appears under Alpha Series Type 1 standard specifications.
  • Control scope: This specification group supports spindle HRV control.
  • ROM relationship: H520 is retained as part of the complete order identity.
  • Compliance context: The listed configuration belongs to the CE-marked product group.

How service procedures are grouped

  • Case work: SPM-45 and SPM-55 Type 1 and Type 4 units share the documented case-replacement section.
  • Fuse work: Fuse replacement is separated from case replacement in the service sequence.
  • ROM and sensor: ROM-and-sensor replacement has its own procedure within the same maintenance chapter.
  • Scope boundary: The grouping is defined by amplifier type and rating rather than by the base A06B code alone.
Description
GE Fanuc SPM-45 A06B-6102-H245#H520 is an Alpha Series Type 1 spindle amplifier identified by the SPM-45 model designation and the A06B-6102-H245#H520 order specification. The order code combines unit specification A06B-6102-H245 with the H520 ROM series used for the spindle HRV specification.

The internal assembly documented for GE Fanuc SPM-45 A06B-6102-H245#H520 uses wiring board A20B-1007-0591 and printed circuit board A20B-2002-0080. These board references distinguish the SPM-45 configuration from other Alpha spindle amplifier ratings.

With a rated 283–325 V DC input, 56.0 kW input power and maximum 198 A output current, GE Fanuc SPM-45 A06B-6102-H245#H520 supplies controlled three-phase output for compatible FANUC spindle motors. Its 7-segment display reports operating status and alarm codes from the amplifier.
Alternative Names
A06B-6102-H245#H520 FANUC SPM-45 A06B-6102-H245#H520 A06B 6102 H245 H520 A06B6102H245H520 GE Fanuc A06B-6102-H245#H520 FANUC SPM-45 H520 A06B-6102-H245 H520 A06B-6102-H24S#H520
Technical notes
The complete GE Fanuc SPM-45 A06B-6102-H245#H520 order identity combines the SPM-45 model, A06B-6102-H245 unit and H520 ROM series.
