IC697MDL740

/ 4.9
1001 reviews | Need a Specific Revision?

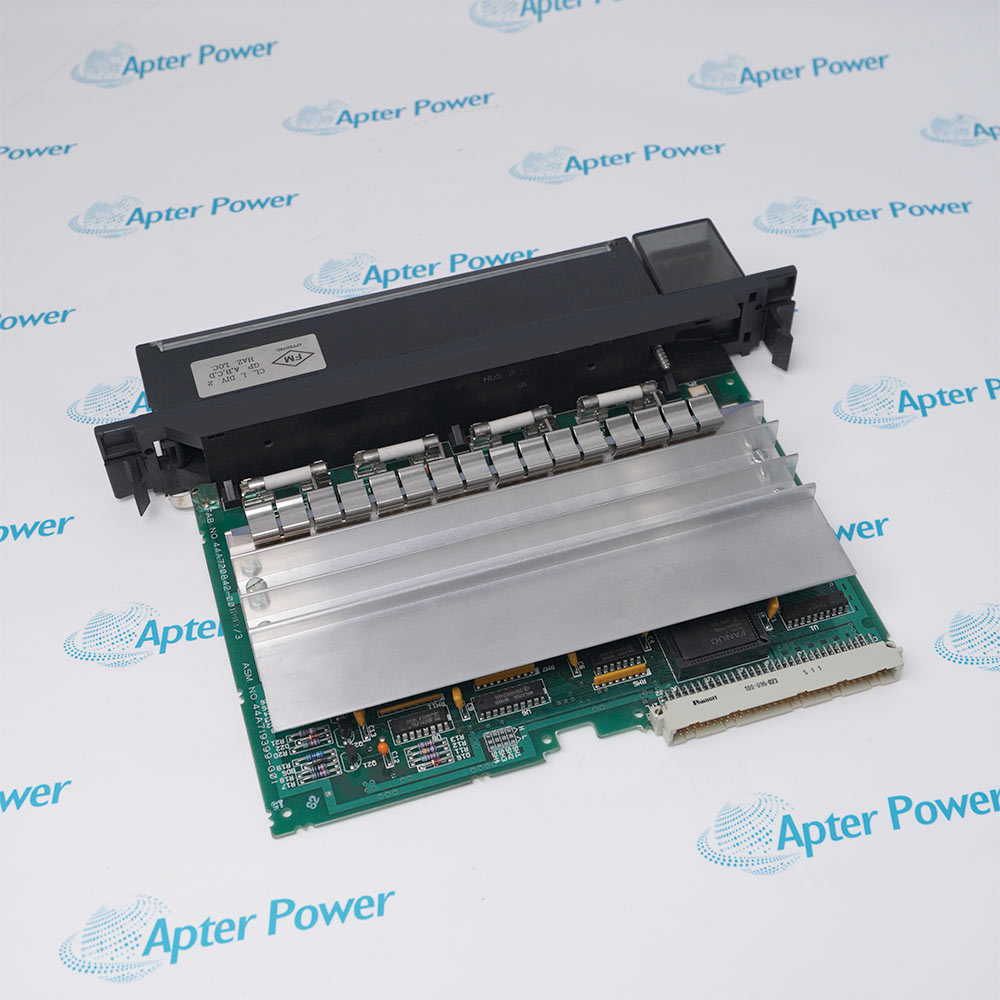

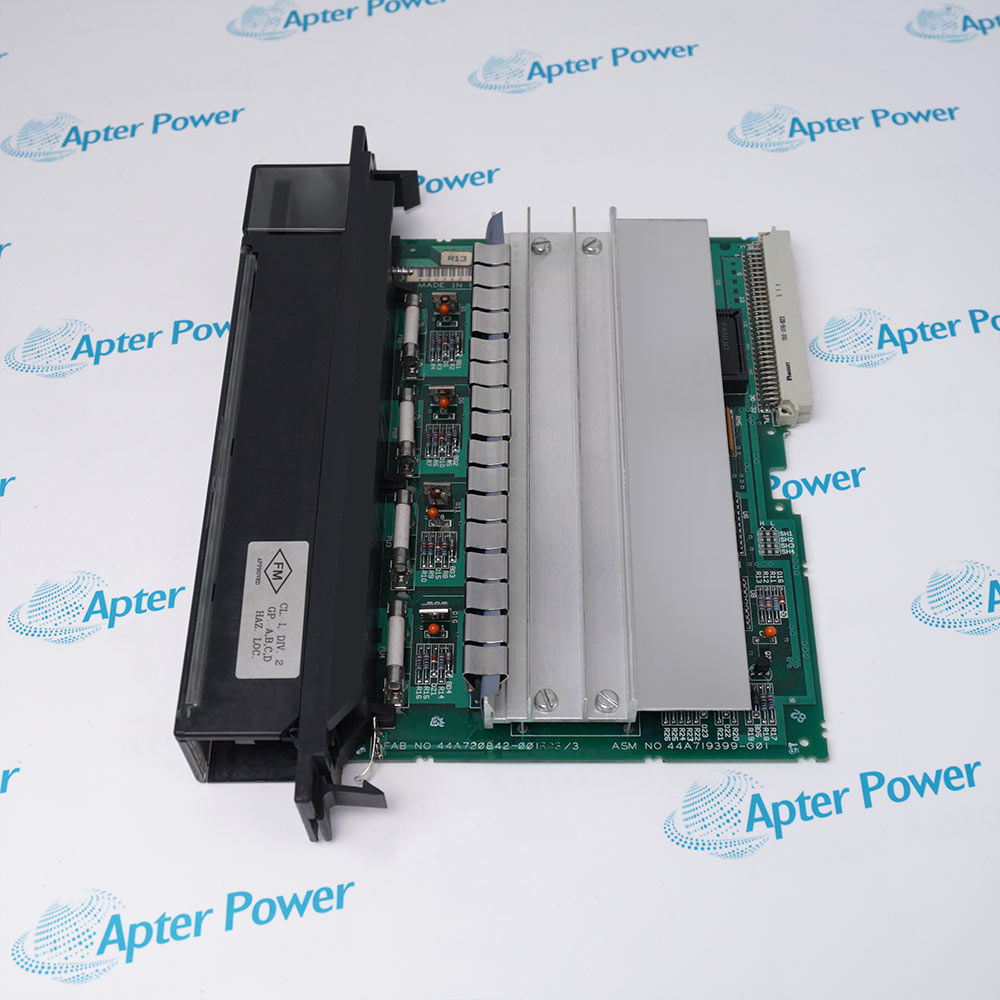

The GE IC697MDL740 is a 16-point discrete output module for controlling solenoids, motors, and indicators, providing 24–48V DC outputs with surge protection for industrial automation.
Get a quick price for IC697MDL740
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IC697MDL740

  • Manufacturer:
    General Electric
  • Part Number:
    IC697MDL740
  • Product Family:
    GE 90-70 Series PLC
  • Series:
    Series 90-70
  • Required current:
    0.15 Amps
  • Number of outputs:
    16
  • Isolation voltage:
    1500 Volts
  • Rated voltage:
    24 to 48 Volts DC
  • Output current:
    2 Amps per point, 4 Amps per group
  • Output voltage range:
    20 to 60 Volts DC
  • Inrush current:
    20 Amps (maximum) for 20 milliseconds
  • Response time-off:
    2 milliseconds (maximum)
  • Output voltage drop:
    0.8 Volts/0.4 Ohms (maximum)
  • Weight:
    0.88 kg
  • Estimated shipping dimensions:
    4x22x29.1cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.
Description
The GE IC697MDL740 is a discrete output module. This module can be paired with solenoids, LED indicators, industrial motor starters, and other applications. These loads can be linked to one of the sixteen (16) outlet points on the module, which are organized into four-point clusters. Each of these points receives a direct current output of twenty-four (24) to forty-eight (48) volts at a rate of two (2) amperes per point of long-term current. The IC697MDL740's input surge conduction capacity, however, is greater than two (2) amperes.

A ten (10)-ampere fuse is shared by all of the output point clusters. The module's face has a number of LED indicators that show the state of the circuit and fuse at various points. The IC697MDL740's configuration does not require any DIP or jump switches. The user can combine this module with software to help configure the system. The SNP port or Ethernet TCP/IP are used for this process lot.
Revisions

Revision Part #

Also known as

IC697MDL740 E
IC697MDL740-E, Series E, Rev E
IC697MDL740B
IC697MDL740-B, Series B, Rev B
IC697MDL740C
IC697MDL740-C, Series C, Rev C
IC697MDL740D
IC697MDL740-D, Series D, Rev D
IC697MDL740E
IC697MDL740-E, Series E, Rev E
IC697MDL740F
IC697MDL740-F, Series F, Rev F
Alternative Names
IC697MDL740 1C697MDL74O
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the Series?
Series 90-70.
What is the Required current?
0.15 Amps.
What is the Number of outputs?
16
What is the Rated voltage?
24 to 48 Volts DC.
Does the 24 to 48 Volts DC with a warranty?
Yes, the24 to 48 Volts DC includes a free 1-year Apter Power warranty.
