IC697CPU782

/ 4.9
1001 reviews | Need a Specific Revision?

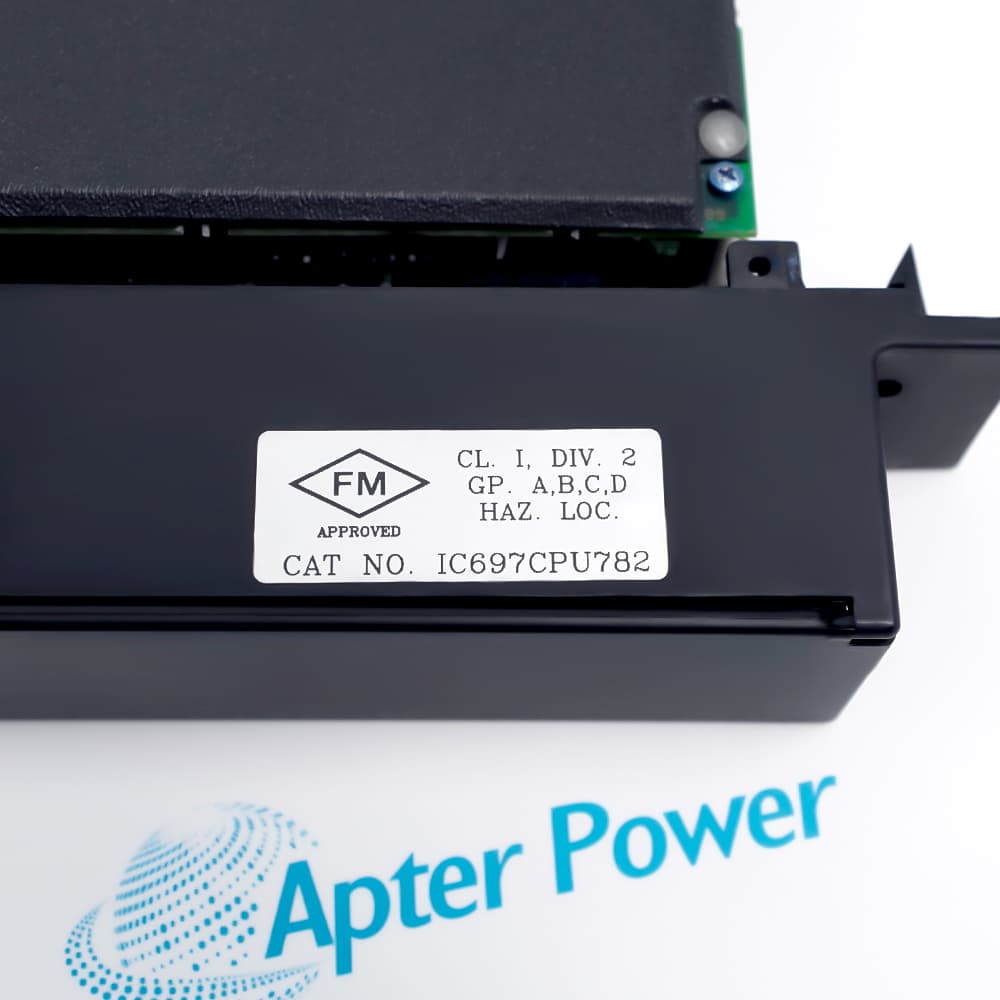

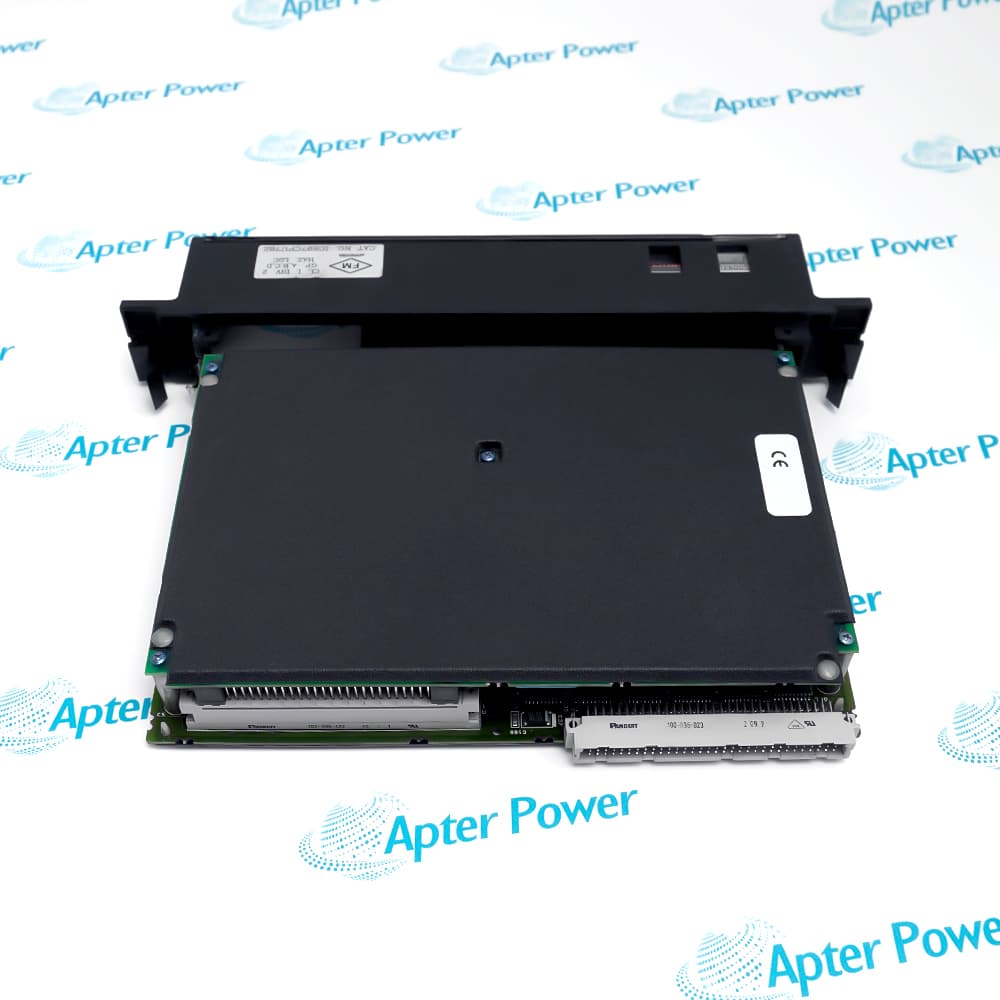

General Electric IC697CPU782 is a single-slot Series 90-70 CPU for real-time machine, process, and material-handling control.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for IC697CPU782
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IC697CPU782

  • Manufacturer:
    General Electric
  • Part Number:
    IC697CPU782
  • Product Family:
    GE 90-70 Series PLC
  • Product Type:
    16 MHz Expandable Floating-Point CPU
  • Stock:
    1
  • Processor:
    16 MHz 80386DX
  • Floating-Point Processor:
    80387DX
  • Boolean Execution:
    0.4 microseconds per function
  • Discrete I/O Capacity:
    12K inputs and outputs, any mix
  • Analog I/O Capacity:
    Up to 8K
  • Expansion Memory:
    Up to 512 KB battery-backed
  • Programmer Port:
    RS-422/RS-485 compatible
  • Backplane Current:
    1.6 A at 5 VDC
  • VME Compatibility:
    VME C.1
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Retained Memory Rack Compatibility Program Control Applications

Features:

  • A 16 MHz 80386DX CPU and 80387DX coprocessor execute control and floating-point logic.
  • The controller addresses 12K discrete points and as many as 8K analog points.
  • Expandable battery-backed memory shares the same rack slot as the processor.
IC697CPU782 performs a typical Boolean function in 0.4 microseconds while coordinating real-time rack I/O.

The processor validates configured modules against the hardware present on the Series 90-70 backplane.

Front-panel controls combine mode selection, memory protection, status indication, and serial programmer access.

The General Electric IC697CPU782 16 MHz Expandable Floating-Point CPU may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric IC697CPU782 16 MHz Expandable Floating-Point CPU Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Program Storage Options

  • Board capacities: Supported expansion boards provide 128 KB, 256 KB, or 512 KB of storage.
  • Retention source: A lithium battery preserves CMOS program and data memory when rack power is absent.
  • Memory allocation: Configuration software divides available storage between program and data areas.
  • Battery handover: Dual connectors permit a fresh battery to be attached before the old one is disconnected.

Backplane and I/O Support

  • CPU position: The processor occupies one slot in the main Series 90-70 rack.
  • Rack interface: Communications with I/O and smart option modules use the VME C.1 backplane.
  • Native modules: IC697 discrete, analog, communication, and coprocessor modules are supported.
  • Genius I/O: IC660 and IC661 devices connect through the applicable Series 90-70 interface modules.

Operator and Software Access

  • Mode selection: A three-position front switch selects controller operating states.
  • Memory lock: The keyswitch blocks unauthorized program changes when protection is enabled.
  • Password access: Software-level security restricts controller operations and project access.
  • Serial path: The front RS-422/RS-485-compatible port carries programmer communications.

Real-Time Control Scope

  • Machine sequences: The CPU executes discrete logic and calculations for automated machinery.
  • Process control: Analog capacity and floating-point hardware support continuous process variables.
  • Material handling: Rack I/O coordinates conveyors, transfers, and other handling equipment.
  • Mixed I/O: Discrete and analog point capacity can be allocated around the installed control architecture.
Description
General Electric IC697CPU782 is a Series 90-70 single-slot controller built around a 16 MHz 80386DX processor and a dedicated 80387DX floating-point coprocessor.

Across the rack backplane, General Electric IC697CPU782 coordinates IC697 modules and supported IC660 or IC661 I/O. Its capacity covers as many as 12K discrete inputs and outputs in any mix plus up to 8K analog points.

Program and data storage for General Electric IC697CPU782 resides on an in-slot expansion-memory board with battery backup. Available memory boards extend the retained capacity to 512 KB, while the front battery connectors allow a new battery to be connected before the active one is removed.

Operator access on General Electric IC697CPU782 combines a three-position mode switch, keyswitch memory protection, password control, four status LEDs, and an RS-422/RS-485-compatible programmer port. Hardware settings are defined in software without DIP switches or address jumpers.
Revisions

Revision Part #

Also known as

IC697CPU782JE
IC697CPU782-JE, Series JE, Rev JE
IC697CPU782JD
IC697CPU782-JD, Series JD, Rev JD
IC697CPU782JC
IC697CPU782-JC, Series JC, Rev JC
IC697CPU782HC
IC697CPU782-HC, Series HC, Rev HC
IC697CPU782HB
IC697CPU782-HB, Series HB, Rev HB
IC697CPU782HA
IC697CPU782-HA, Series HA, Rev HA
IC697CPU782H
IC697CPU782-H, Series H, Rev H
IC697CPU782G
IC697CPU782-G, Series G, Rev G
IC697CPU782F
IC697CPU782-F, Series F, Rev F
IC697CPU782E
IC697CPU782-E, Series E, Rev E
IC697CPU782D
IC697CPU782-D, Series D, Rev D
IC697CPU782C
IC697CPU782-C, Series C, Rev C
IC697CPU782B
IC697CPU782-B, Series B, Rev B
Alternative Names
IC697 CPU782 GE IC697CPU782 Series 90-70 IC697CPU782 CPU 1C697CPU782 General Electric IC697CPU782 IC697-CPU782 GE Fanuc IC697CPU782 IC697CPU 782
Technical notes
General Electric IC697CPU782 executes a typical Boolean function in 0.4 microseconds and accepts up to 512 KB of in-slot expansion memory.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What calculation hardware is built into IC697CPU782?
IC697CPU782 pairs a 16 MHz 80386DX processor with an 80387DX coprocessor so floating-point operations execute within the controller.
How much I/O can IC697CPU782 address?
IC697CPU782 supports as many as 12K discrete inputs and outputs in any mix and up to 8K analog I/O points.
Which racks communicate with IC697CPU782 over the backplane?
IC697CPU782 uses the VME C.1 interface in documented IC697 racks, including IC697CHS750, IC697CHS782, IC697CHS783, IC697CHS790, and IC697CHS791.
Where does IC697CPU782 store its application?
An expansion board in the IC697CPU782 slot provides configurable program and data memory, with supported capacities up to 512 KB and battery retention.
Can IC697CPU782 communicate with IC660 or IC661 I/O?
IC697CPU782 supports IC660 and IC661 Genius I/O as well as the IC697 family through the applicable bus and option modules.
How is IC697CPU782 configured without hardware switches?
IC697CPU782 receives rack, slot, memory, and I/O-reference settings from Series 90-70 programming software; no DIP-switch setup is required.
What does the serial connector on IC697CPU782 provide?
The front connector on IC697CPU782 is an RS-422/RS-485-compatible programmer interface used for the documented SNP programming path.
