GE Vernova 151X1202YE03SA04 IS200STAIH2ADC is a Mark VIe simplex analog-input terminal board for landing field current, voltage, RTD and thermocouple signals before they reach the associated I/O pack.
In Stock
Ships by Thursday, October 29
Get a quick price for 151X1202YE03SA04 IS200STAIH2ADC
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 151X1202YE03SA04 IS200STAIH2ADC

  • Manufacturer:
    General Electric
  • Part Number:
    151X1202YE03SA04 IS200STAIH2ADC
  • Product Family:
    GE Mark VI Gas Turbine Control
  • Product Type:
    Simplex Analog Input Terminal Board
  • Stock:
    1
  • Assembly number:
    151X1202YE03SA04
  • Board number:
    IS200STAIH2ADC
  • Board revision:
    H2A / ADC revision
  • System platform:
    Mark VIe
  • Topology:
    Simplex
  • Primary function:
    Analog field termination
  • Supported signal classes:
    Current, voltage, RTD and thermocouple
  • I/O-pack interface:
    PAIC-family analog I/O pack
  • Field connection:
    Removable screw-terminal blocks
  • I/O-pack connection:
    Multi-pin board connector
  • Mounting:
    Panel-mounted metal carrier
  • Circuit role:
    Passive signal routing
  • Field shielding:
    Cabinet-design dependent
  • Control application:
    Gas turbine and plant control
  • Safety reference:
    GEH-6721 / GEH-6725
  • EU conformity family:
    Mark VIe components
  • Country shown on supplied hardware:
    Verify nameplate
  • Replacement identifier:
    Both assembly and board numbers required
  • Weight:
    1.543 lbs (0.7 kg)
  • Estimated shipping dimensions:
    16.8 × 14.8 × 8.5 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Installation Integration Protection

Features:

  • Provides a simplex field-termination path for Mark VIe analog inputs.
  • Accepts the documented mix of current, voltage, RTD and thermocouple wiring.
  • Connects field terminals to the compatible PAIC analog I/O pack interface.
The current ordering identity combines assembly number 151X1202YE03SA04 with board revision IS200STAIH2ADC.

It organizes field analog wiring and routes conditioned channel connections toward Mark VIe acquisition electronics.

Board revision, I/O-pack compatibility, terminal polarity, sensor type and shield practice must all match the existing panel.

Availability is subject to Apter Power inventory and sourcing confirmation.
Verified resources for GE Vernova 151X1202YE03SA04 IS200STAIH2ADC:Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Terminates 4–20 mA transmitters and supported voltage inputs in gas-turbine control panels.
  • Provides RTD and thermocouple landing points for temperature measurements handled by the associated I/O pack.
  • Serves as a service replacement where a Mark VIe simplex analog field interface must be restored.
  • The metal carrier supports panel mounting with the terminal strip exposed for field wiring.
  • The I/O-pack connector must be aligned without stressing the board or its retaining hardware.
  • Channel labels and cable shields should be transferred one circuit at a time during replacement.
  • The terminal board forms the passive interface between analog field devices and a compatible PAIC I/O pack.
  • Current, voltage, RTD and thermocouple circuits must use the channel arrangement defined for the H2A revision.
  • The complete assembly number is used to confirm fit with the cabinet drawing and installed Mark VIe hardware.
  • Field circuits must be isolated before conductors are removed from the terminal block.
  • Shield and ground connections should follow the cabinet design to limit noise on low-level inputs.
  • Hazardous-location use depends on the approved Mark VIe component combination rather than the terminal board alone.
Description

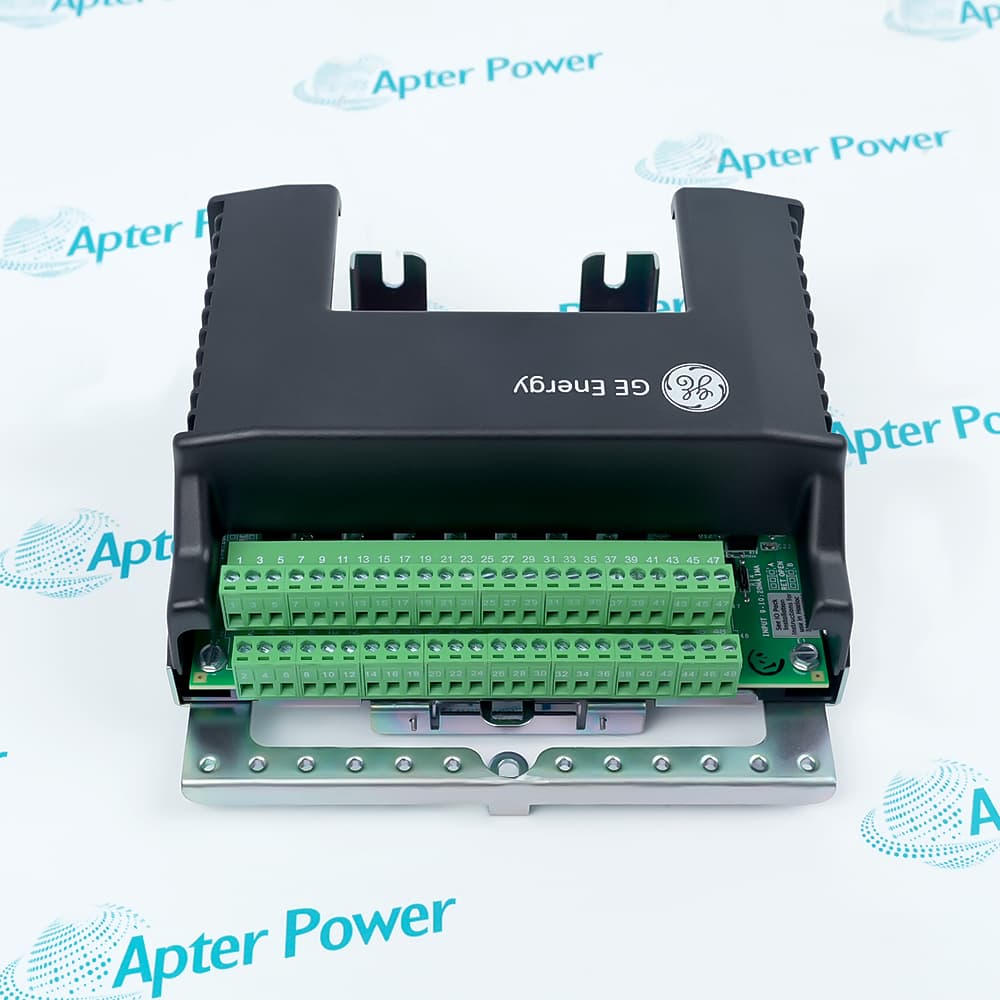

GE Vernova 151X1202YE03SA04 IS200STAIH2ADC is the H2A revision of the STAI simplex analog-input terminal board used in Mark VIe control hardware. The board provides field terminals, passive signal routing and the I/O-pack connection for low-level process inputs. The assembly places removable field terminal blocks and the I/O-pack connector on a rigid panel carrier so plant wiring remains organized around the simplex interface.

Its terminal architecture brings multiple analog measurement types into a compact panel-mounted assembly while keeping field wiring accessible for commissioning and service. The board forms the passive interface between sensors and the matching PAIC-family acquisition electronics. Because signal routing is passive, current, voltage, RTD and thermocouple circuits retain their conditioning and conversion in the associated PAIC hardware.

Replacement requires an exact match of both 151X1202YE03SA04 and IS200STAIH2ADC, connector orientation and terminal assignment. Shielding, grounding and hazardous-area approval must be reviewed against the installed Mark VIe cabinet design. Both 151X1202YE03SA04 and IS200STAIH2ADC must agree with the installed drawing, since the assembly number and board revision define the physical replacement.
Alternative Names
151X1202YE03SA04 IS200STAIH2ADC 151X1202YE03SA04IS200STAIH2ADC GE Vernova 151X1202YE03SA04 IS200STAIH2ADC 151X1202YE03SA04 IS200STAIH2ADC Simplex Analog Input Terminal Board GE Vernova 151X1202YE03SA04IS200STAIH2ADC 151X1202YE03SA04 IS200STAIH2ADC GE Mark VIe Control GE Vernova 151X1202YE03SA04 IS200STAIH2ADC Mark VIe Simplex Analog Input Terminal Board
Technical notes
151X1202YE03SA04 IS200STAIH2ADC is a passive termination assembly; de-energize field circuits and prove every terminal-to-channel mapping before reconnecting the I/O pack.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What ordering detail identifies the intended configuration of 151X1202YE03SA04 IS200STAIH2ADC?
The full assembly number 151X1202YE03SA04 together with board code IS200STAIH2ADC identifies the exact supplied terminal-board configuration.
Which companion hardware defines compatibility for 151X1202YE03SA04 IS200STAIH2ADC?
Verify the Mark VIe cabinet drawing, compatible PAIC I/O pack, connector orientation and field-signal assignment.
Where does 151X1202YE03SA04 IS200STAIH2ADC sit in the documented control architecture?
It terminates process analog wiring in turbine-control and balance-of-plant panels before signals enter the I/O pack.
Who can verify condition and lead time for 151X1202YE03SA04 IS200STAIH2ADC?
Apter Power can confirm the labeled revision, physical condition, quantity and delivery for a current inquiry.
What must remain unchanged during an exchange of 151X1202YE03SA04 IS200STAIH2ADC?
Photograph and document every terminal, shield, jumper and pack connection, then conduct loop checks after installation.
What information lets Apter Power quote 151X1202YE03SA04 IS200STAIH2ADC accurately?
Provide both nameplate numbers, I/O-pack number, existing panel drawing, channel mix, quantity and shipping destination.
