IS200TRTDH1CCC

/ 4.9
1001 reviews | Need a Specific Revision?

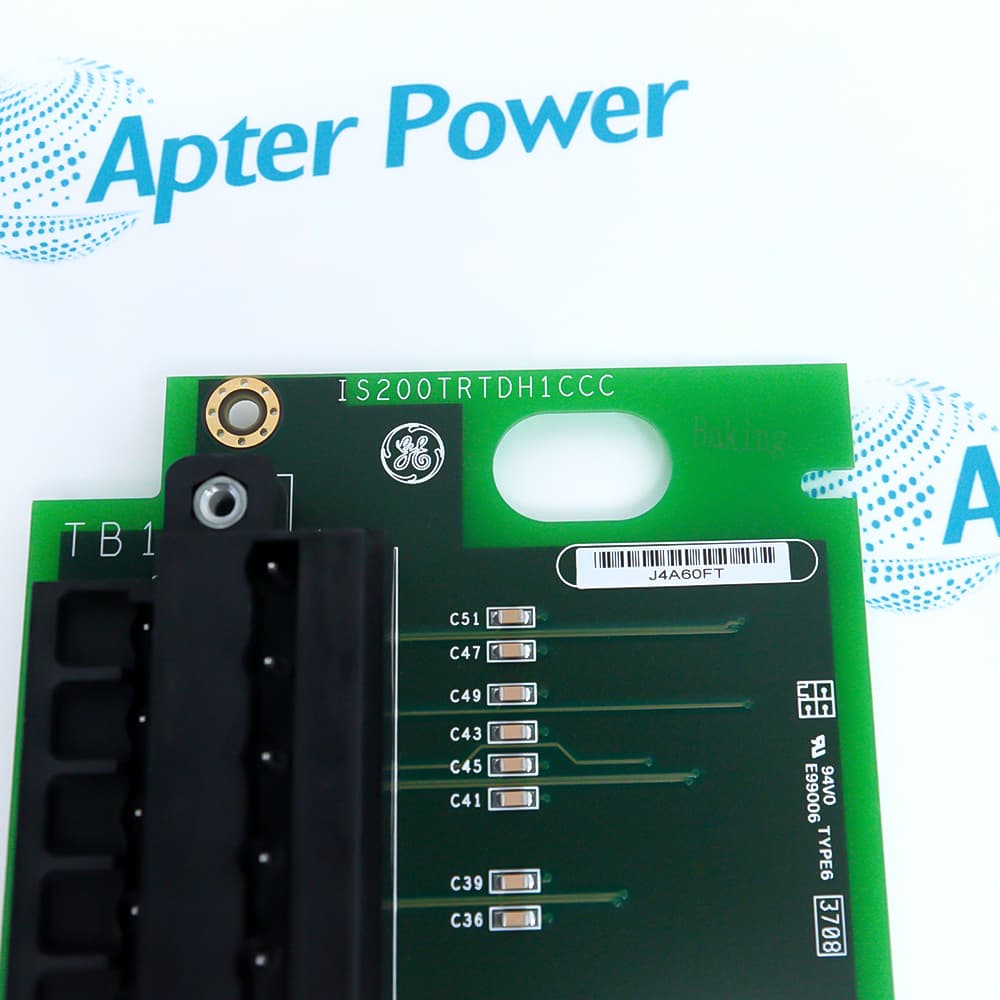

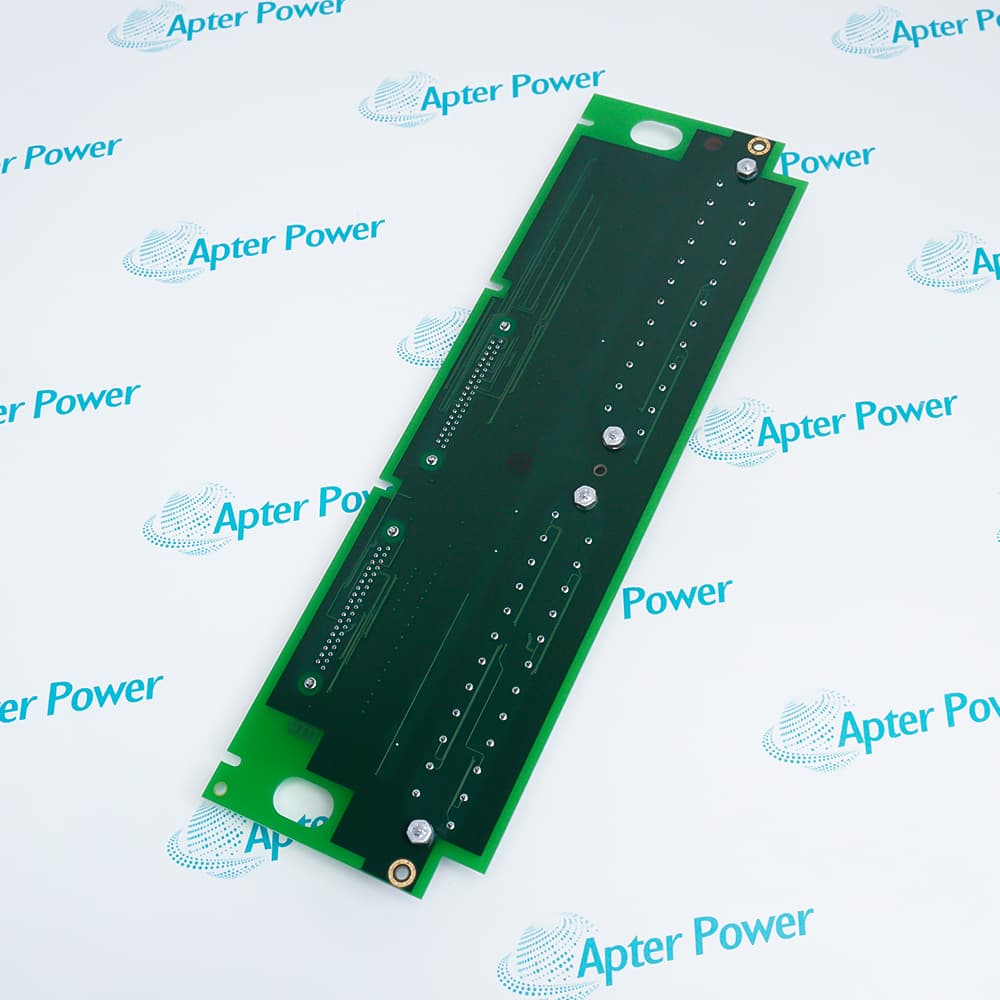

The IS200TRTDH1CCC is a GE MarkVI/VIe resistance temperature detector (RTD) input terminal block that supports up to 16 three-wire RTD channels.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for IS200TRTDH1CCC
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IS200TRTDH1CCC

  • Manufacturer:
    General Electric
  • Part Number:
    IS200TRTDH1CCC
  • Product Family:
    GE Mark VI Gas Turbine Control
  • Product Type:
    RTD Input Terminal Board
  • Stock:
    1
  • RTD Input Channels:
    16 channels (3-wire)
  • Voltage Span:
    0.3532 ~ 4.054V
  • Maximum Wire Resistance:
    ≤ 15Ω
  • Connector Type:
    Three 37-pin female connectors
  • Operating Temperature:
    −30°C to +65°C
  • Storage Temperature:
    −40°C to +85°C
  • Weight:
    1.5 kg
  • Estimated shipping dimensions:
    43.3x28x3.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Environmental Ratings Certifications & Standards Applications

Features:

  • High-Density 16-Channel RTD Conditioning
  • Factory-Applied Conformal Coating (CCC Revision)
  • Direct Interface with VRTD Processors
The IS200TRTDH1CCC supports up to 16 independent three-wire RTD inputs on a single board. This high channel density reduces the number of required terminal blocks in a 21-slot rack, saving critical backplane space for additional protection or servo I/O modules.

Unlike base revisions (H1A/H1B), the "CCC" suffix indicates a robust conformal coating applied to the PCB assembly. This layer protects sensitive copper traces and solder joints from airborne contaminants, moisture, and corrosive gases (e.g., H₂S) common in paper mills or chemical plants, significantly extending mean time between failures (MTBF).

The board uses three 37-pin D-sub connectors to create a dedicated analog highway directly to the VRTD VME card. This architecture offloads all analog filtering and lead resistance compensation from the main CPU, allowing the Mark VI controller to focus on turbine governing logic while the I/O subsystem handles raw sensor data.

The IS200TRTDH1CCC General Electric Input Terminal Board may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric IS200TRTDH1CCC RTD Input Terminal Board Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
General Electric IS200TRTDH1CCC RTD Input Terminal Board

General

  • Manufacturer General Electric
  • Model IS200TRTDH1CCC
  • Condition New Original ready stock
  • Product Family IS200TBAIH1CCC,IS200VCRCH1BBB,IS200HSLAH1ADE
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Temperature Range (Operational): -30°C to +65°C (-22°F to +149°F). Cold start capable down to -30°C without heater blankets.
  • Temperature Range (Storage): -40°C to +85°C (with desiccant bag recommended to prevent coating sweat).
  • Humidity: 5% to 95% non-condensing (CCC revision prevents dendritic growth on pins under high humidity).
  • Pollution Degree: Designed for Pollution Degree 2 (non-conductive pollution, typically dry plant interiors). Not rated for conductive dust (e.g., coal dust) without external IP54 enclosure.
  • Mark VI/VIe Compliance: Factory tested per GE specification GEI-100473 for direct integration into Speedtronic racks.
  • Hazardous Location Rating: Suitable for Class I, Division 2, Groups A, B, C, D (Non-incendive for gas turbines).
  • Environmental Protection: Conformal coating qualified per MIL-I-46058C (silicone-based, humidity resistance for CCC revision).
  • EMC Immunity: Verified to IEC 61000-6-2 (Industrial heavy-duty electromagnetic environment) for 3.2kHz LVDT interference rejection.
  • Steam Turbine Bearing Temperature Monitoring: Provides redundant 3-wire RTD inputs for journal and thrust bearings, complying with API 670 vibration/temperature monitoring standards.
  • Gas Turbine Exhaust Temperature Spread (SPLIT): Installed in combined cycle plants to detect flame instability by monitoring 16 individual thermocouple inputs (converted via external transmitters to RTD signals).
  • Generator Stator RTD Monitoring: Monitors copper temperature in high-voltage stators, protecting insulation breakdown under full load (0-4.054V range optimized for low-resistance outputs).
  • Hydroelectric Thrust Bearing Protection: Used in remote dam sites where the conformal coating ("CCC") protects against the humid, non-condensing environments typical of underground power houses.
Description
The IS200TRTDH1CCC is a temperature resistance (RTD) input terminal block module designed by General Electric (GE) for MarkVI/MarkVIe industrial control systems. Installed in a designated I/O terminal slot of the MarkVI/VIe rack, this module receives resistance temperature detection (RTD) signals from field temperature sensors and transmits them to the control system for digitization and temperature monitoring. The module employs a three-wire RTD input structure, features noise suppression circuitry and high-precision measurement capabilities, and is suitable for temperature measurement applications in various industrial automation systems.

The module is powered by an external backplane power supply or the control system power supply to ensure stable acquisition and conversion of RTD signals. The IS200TRTDH1CCC supports various types of RTD sensors, including platinum resistance (10Ω, 100Ω, 200Ω), copper resistance (10Ω), and nickel resistance (120Ω), and can simultaneously connect three-wire RTD inputs to up to 16 channels, with a voltage range of 0.3532~4.054V.

This IS200TRTDH1CCC employs two removable barrier terminal blocks, each with 24 threaded terminals, and communicates with the VRTD processor via multiple 37-pin connectors to transmit RTD signals to the controller. Built-in noise suppression and overload protection effectively reduce the impact of high-frequency interference and voltage pulses on measurement results.

The IS200TRTDH1CCC supports harsh industrial environments and operates stably within a temperature range of -30°C to +65°C. It requires proper insertion into the designated slot on the control system backplane and completion of the corresponding I/O hardware configuration and software mapping to ensure seamless integration with MarkVI/VIe systems.
Revisions

Revision Part #

Also known as

IS200TRTDH1CCC
IS200TRTDH1C-CC, Series -CC, Rev -CC
Alternative Names
IS200DSPXH1DBD IS200SHRAH2A IS200TBTCH1BBB IS200ECTBG1A DS200TCDAF1BCM IS200TBAIH1CCC IS200HSLAH1ADE IS200TPROH1BBB
Technical notes
The IS200TRTDH1CCC functions strictly as a passive signal conditioning terminal board. It does not execute control logic but relies on a compatible VME RTD processor (e.g., IS200VRTDH1D) connected via 37-pin D-sub cables to digitize the 16 analog inputs. The "CCC" revision explicitly includes a conformal coating on the PCB, which is critical for preventing galvanic corrosion in humid power plant environments or near coastal installations.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What are the main functions of the IS200TRTDH1CCC?
It is an RTD input terminal block used to receive three-wire temperature signals from field RTD sensors and transmit them to the controller for digital processing.
How many RTD input channels does this IS200TRTDH1CCC support?
It supports up to 16 three-wire RTD input channels.
What is theIS200TRTDH1CCC's voltage range?
The voltage measurement range is 0.3532~4.054V.
Does the IS200TRTDH1CCC have noise suppression capabilities?
Yes, this module has built-in noise suppression circuitry to reduce the impact of high-frequency interference on the input signal.
What temperatures can the IS200TRTDH1CCC withstand in the field environment?
The operating temperature range of this module is −30°C to +65°C.
How does the IS200TRTDH1CCC communicate with the control system?
Communication with the VRTD processor and I/O processor is established via multiple pin connectors on the rack backplane.
Can this IS200TRTDH1CCC replace other RTD modules?
It can replace similar RTD input boards within the GE MarkVI/VIe system, but it is recommended to confirm system architecture compatibility before making a replacement.
Are there any protective measures to prevent excessively high lead resistance from affecting measurements?
Yes, the IS200TRTDH1CCC specifies a maximum lead resistance of ≤ 15Ω to ensure measurement accuracy.
