IS200TPROH1BBB

/ 4.9
1001 reviews | Need a Specific Revision?

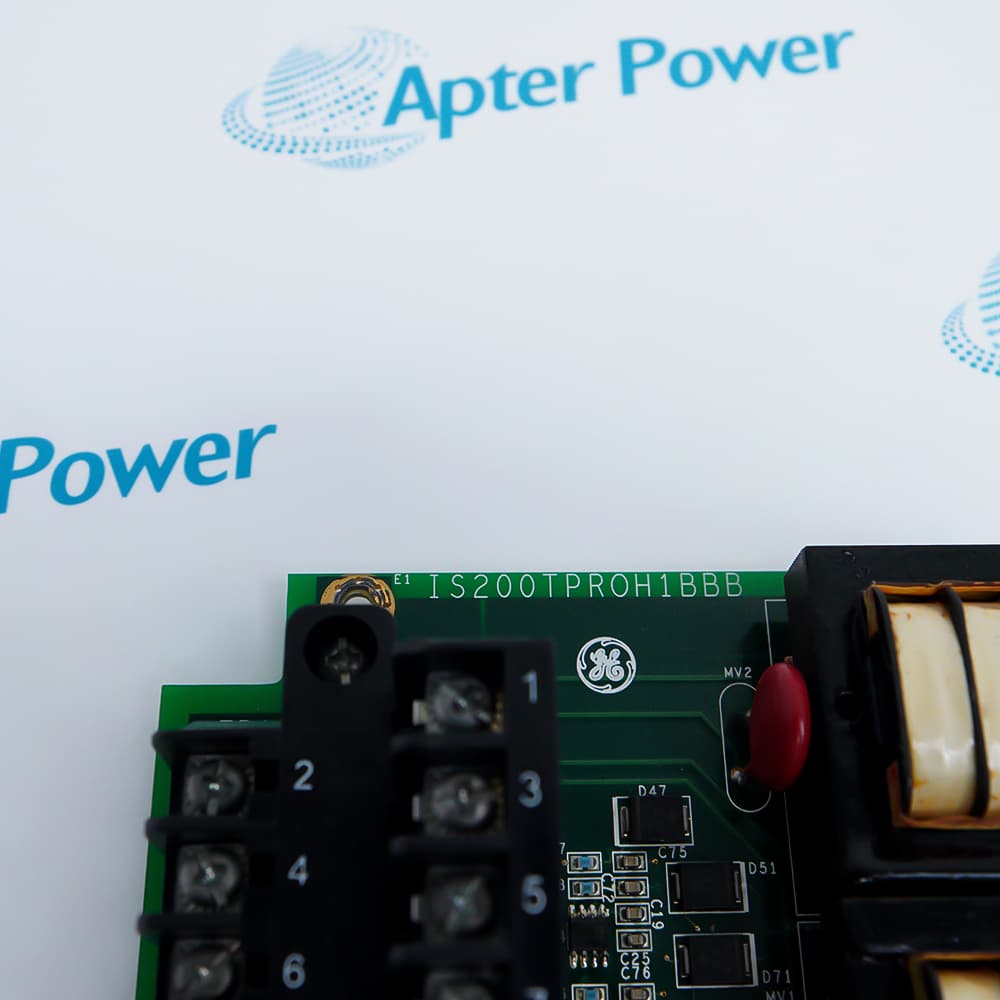

General Electric IS200TPROH1BBB is a protective termination board used to interface and condition multiple field signals within industrial control systems.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for IS200TPROH1BBB
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IS200TPROH1BBB

  • Manufacturer:
    General Electric
  • Part Number:
    IS200TPROH1BBB
  • Product Family:
    GE Mark VI Gas Turbine Control
  • Product Type:
    Protective Termination Board
  • Stock:
    1
  • Operating Voltage:
    28 V DC
  • Speed ​​Frequency:
    2 Hz to 20 kHz
  • Current Input:
    3 channels 4-20 mA
  • Temperature Input:
    9 channels thermocouples
  • Synchronization Detection:
    Max 115 V rms AC
  • Signal Isolation:
    Max 1500 V rms
  • Wiring Capacity:
    Max #12 AWG / 3.0 mm² wire
  • Operating Temperature:
    -40°C to +75°C
  • Storage Temperature:
    -40°C to +85°C
  • Operating Humidity:
    5% to 95% RH (non-condensing)
  • Cooling Method:
    Convection/natural air cooling (rack-mounted)
  • Weight:
    0.9 kg
  • Estimated shipping dimensions:
    33x17.7x5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Use Cases Diagnostics Safety

Features:

  • Multi-signal integration supporting current measurement, temperature sensing, and synchronization detection within a single board.
  • High electrical protection through signal isolation up to 1500 V rms for improved system reliability.
  • Wide environmental tolerance with operation from -40°C to +75°C and natural convection cooling.
General Electric IS200TPROH1BBB is intended for industrial systems that require reliable field signal termination and distribution. By supporting both analog current signals and thermocouple inputs, the board helps consolidate process monitoring functions within a compact rack-mounted architecture. The combination of multiple input types simplifies signal management in complex control environments.

A key advantage of IS200TPROH1BBB is its ability to accommodate diverse operating requirements. The board processes speed-related signals from 2 Hz to 20 kHz while also supporting synchronization detection up to 115 V rms AC. This flexibility makes it suitable for applications where multiple measurement and monitoring functions must coexist within the same control platform.

Industrial facilities often require equipment capable of operating under challenging environmental conditions. IS200TPROH1BBB addresses these requirements with a broad operating temperature range, high humidity tolerance, and maintenance-friendly natural air cooling. Combined with support for larger field wiring sizes and a 28 V DC operating supply, the board provides dependable performance for long-term industrial service.

The IS200TPROH1BBB General Electric Protective Termination Board may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric IS200TPROH1BBB Protective Termination Board Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
General Electric IS200TPROH1BBB Protective Termination Board Specs

General

  • Manufacturer General Electric
  • Model IS200TPROH1BBB
  • Condition New Original ready stock
  • Product Family IS200TPROH1B,IS200TRLYH1B,IS200TREGH1B
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Turbine Overspeed Protection: Connects to a speed sensor to directly trigger the emergency shutdown valve in case of overspeed.
  • Generator Emergency Shutdown: Enables rapid and safe disconnection from generator electrical fault signals.
  • Boiler Safety Interlock: Serves as the core terminal block of the FSSS system, providing boiler fire suppression protection.
  • Process Emergency Shutdown: Used in ESD systems for large compressors or critical units in chemical plants.
  • Diagnostic Status Monitoring: Onboard LEDs allow real-time observation of input channel signal status.
  • Loop Verification: Supports online channel loop testing via Mark VI control system software.
  • Open Wire Detection: Automatically identifies and reports open wire faults between external protection contacts and the terminal board.
  • Voting Comparison: Diagnoses faulty hardware channels through a triple redundancy (TMR) system comparison.
  • Electrical Isolation: Provides high-voltage transient surge protection to protect the processor within the core control cabinet.
  • Triple Redundancy: Supports independent configuration of R, S, and T channels to prevent shutdown due to a single failure.
  • False Trigger Protection: Employs hardware voting logic to ensure highly reliable execution of emergency stop commands without false tripping.
  • Hot-Swap Procedure: Before replacing this board, ensure the corresponding protection circuit has been safely isolated and disconnected.
Description
General Electric IS200TPROH1BBB serves as a protective termination board that manages various field connections and signal inputs for industrial automation applications. The board accommodates three 4–20 mA current input channels and nine thermocouple temperature input channels, allowing accurate collection of process measurements from multiple sources.

Designed for dependable signal handling, IS200TPROH1BBB supports synchronization detection up to 115 V rms AC and operates across a speed frequency range from 2 Hz to 20 kHz. A maximum signal isolation rating of 1500 V rms helps protect connected equipment and contributes to stable signal transmission in electrically demanding installations.

IS200TPROH1BBB operates from a 28 V DC supply and is suitable for installation in challenging industrial environments. The board supports wiring up to #12 AWG (3.0 mm²) conductors and uses convection-based natural air cooling in rack-mounted systems. With an operating temperature range of -40°C to +75°C, storage capability from -40°C to +85°C, and humidity tolerance of 5% to 95% RH non-condensing, IS200TPROH1BBB is well suited for long-term operation in process control and power generation facilities.
Revisions

Revision Part #

Also known as

IS200TPROH1BAA
IS200TPROH1B-AA, Series AA, Rev AA
IS200TPROH1BCB
IS200TPROH1B-CB, Series CB, Rev CB
Alternative Names
IS2OOTPROH1BBB IS200TPROHIBBB IS200TPROH1B IS200TPROH1BAA IS200TPROH1BCB IS200TREGH1B IS200TRLYH1B IS200TRPGH1B
Technical notes
The General Electric IS200TPROH1BBB is a heavy-duty turbine protective termination board engineered for Mark VI systems, delivering reliable triple modular redundancy (TMR) across 12 discrete inputs to ensure fail-safe emergency trip execution.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How many analog input channels are available on IS200TPROH1BBB?
IS200TPROH1BBB supports three 4–20 mA current input channels and nine thermocouple temperature input channels.
Can IS200TPROH1BBB operate in high-temperature industrial environments?
Yes. IS200TPROH1BBB is designed for operation from -40°C to +75°C, making it suitable for a wide range of industrial installations.
How does IS200TPROH1BBB handle cooling requirements?
Cooling is achieved through convection and natural air circulation in rack-mounted configurations, eliminating the need for dedicated onboard cooling devices.
