        • Lifecycle status

          Discontinued / Obsolete by OEM
          Apter Power supplies factory-fresh Yokogawa SDV541-S53 S3 functional modules, providing process engineers with a dependable, current-generation hardware source to maintain reliable field device triggering and uninterrupted plant automation loops.

        SDV541-S53 S3

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

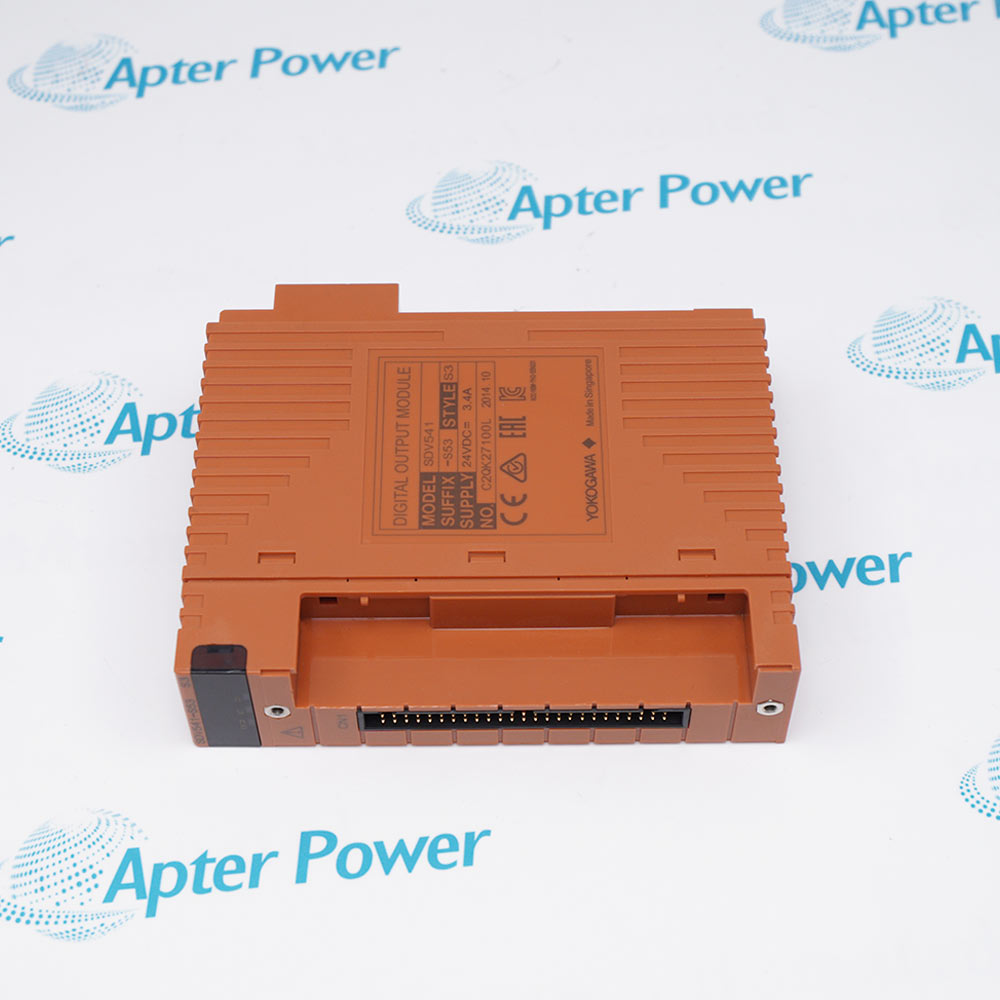

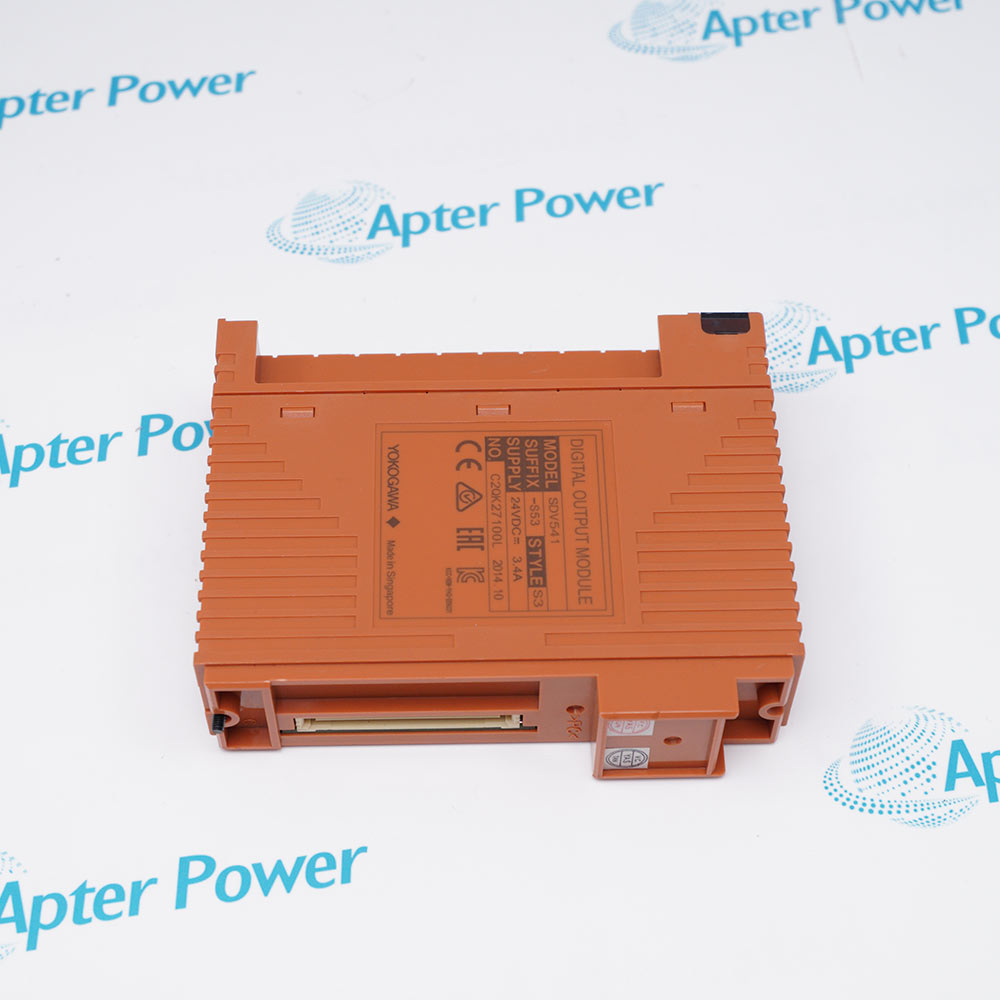

        The YOKOGAWA SDV541-S53 S3 is a 16-channel digital output module engineered for the ProSafe-RS Safety Instrumented System (SIS), fully certified to meet strict IEC 61508 SIL3 safety standards.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for SDV541-S53 S3
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for SDV541-S53 S3

        • Manufacturer:
          Yokogawa
        • Part Number:
          SDV541-S53 S3
        • Product Family:
          Centum CS-Centum VP
        • Product Type:
          Digital Output Module
        • Stock:
          2
        • Number of Channels:
          16-channel, module isolation
        • Output Format:
          Current source
        • Rated Output Voltage:
          24 V DC (with max 1 V internal voltage drop)
        • Max Load Current:
          0.2 A per output line (3.2 A total for the module)
        • Min Load Current:
          35 mA
        • Load Resistance Range:
          120 Ω to 685 Ω
        • Max Leak Current (OFF):
          1.6 mA
        • External Power Supply:
          24 V DC +20% / -10% (Style S3)
        • Current Capacity Req.:
          3.4 A minimum
        • Internal Consumption:
          300 mA max @ 5 V DC; 150 mA max @ 24 V DC
        • Output Response Time:
          30 ms maximum
        • Withstand Voltage:
          2 kV AC (between output signals and system for 1 min)
        • Operating Temperature:
          -20°C to +70°C (Wide-range industrial operation)
        • Storage Temperature:
          -40°C to +85°C
        • Relative Humidity:
          5% to 95% RH (Non-condensing)
        • Corrosive Gas Class:
          ANSI/ISA S71.04 G3 Standard compliant
        • Weight:
          0.24 kg
        • Estimated shipping dimensions:
          3.2x10.6x13cm
        • Tariff Code:
          8537101190
        • Country of origin:
          Japan
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Applications Monitoring & Control Safety & Compliance

        Features:

        • TÜV SIL3 Safety Certified for Mission-Critical Protection
        • Onboard Line Monitoring with Integrated Micro-Pulse Diagnostics
        • Rugged G3-Level Protection and High-Density Isolation Architecture
        The module complies natively with IEC 61508 / IEC 61511 standards, providing a solid foundation for Safety Instrumented Systems (SIS) up to SIL3 requirements. This means process plants can run safely with highly dependable shutdown capabilities during emergencies.

        Equipped with proactive field-wiring diagnostics, the module detects open loops, short circuits, and line faults in real time. It checks field wiring continuously without tripping the process, saving costs on external diagnostic components and maximizing plant availability.

        Featuring 16 module-isolated channels and compliance with the ANSI/ISA S71.04 G3 corrosive environment standard, the hardware handles tough, corrosive conditions while isolating electrical noise to protect the core control layer.

        The SDV541-S53 S3 YOKOGAWA Digital Output Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        YOKOGAWA SDV541-S53 S3 Digital Output Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        YOKOGAWA SDV541-S53 S3 Digital Output Module

        General

        • Manufacturer YOKOGAWA
        • Model SDV541-S53 S3
        • Condition New Original ready stock
        • Product Family SDV541-S33 S2,SDV531-L63 S4,SDV531-L33 S4,SDV531-S23 S4
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Emergency Shutdown Systems (ESD): Acts as the critical physical execution layer to isolate valves and trip hazardous machinery instantly during an incident.
        • Fire and Gas Systems (F&G): Drives visual/audible alarms, flame indicators, and fire suppression solenoids across risky chemical areas.
        • Burner Management Systems (BMS): Manages fuel-gas shutoff valves safely in utility boilers and industrial furnaces to prevent hazardous fuel buildup.
        • Critical Process Interlocking: Runs safety interlocks for oil refineries, chemical reactors, and offshore drilling platforms.
        • Dual-Redundant Availability: Supports side-by-side redundant placement on ProSafe-RS safety nodes, letting a backup module take over smoothly if a hardware failure happens.
        • Sequence of Events (SOE) Time Stamping: Captures fast status transitions down to the millisecond, helping operators analyze unexpected plant trips quickly.
        • Vnet/IP Upstream Network Diagnostics: Sends health status, line alerts, and channel failures back to central engineering dashboards over Vnet/IP.
        • Direct PRM Tool Integration: Works closely with Yokogawa's Plant Resource Manager (PRM), giving maintenance teams a clear window into field health for smart asset management.
        • IEC 61508 & 61511 Functional Safety: Certified by TÜV Rheinland for functional safety systems up to SIL3.
        • G3 Corrosive Gas Protection: Built to pass ANSI/ISA S71.04 G3 testing, protecting interior circuits from sulfur and chlorine moisture in industrial air.
        • Enhanced Overvoltage Isolation: Offers a 2 kV AC electrical isolation rating to protect main systems against heavy lightning or inductive field surges.
        • ATEX / IECEx Explosion Safety: Approved for deployment in classified hazardous areas when installed in appropriate flameproof enclosures.
        Description
        Built as a core element of Yokogawa's premier ProSafe-RS platform, the YOKOGAWA SDV541-S53 S3 plays a vital role in Emergency Shutdown (ESD) and Fire and Gas (F&G) systems. It complies flawlessly with international safety regulations including IEC 61508 and IEC 61511, granting end-users the highest levels of risk reduction. Its hardware architecture is meticulously tested and certified by TÜV Rheinland, making it an ideal choice for high-hazard environments like oil and gas refineries, petrochemical plants, and power generation facilities.

        The YOKOGAWA SDV541-S53 S3 stands out through its sophisticated, onboard field wiring diagnostic technology. It continuously tests for open circuits, short circuits, and stuck-at faults without interrupting the process, using an advanced micro-pulse diagnostic mechanism. This integrated technology completely eliminates the need for external, bulky wiring diagnosis elements, drastically minimizing panel space requirements, lowering overall installation costs, and increasing system uptime.

        Equipped with 16 dedicated output channels, the YOKOGAWA SDV541-S53 S3 provides complete module-level electrical isolation. This design choice effectively walls off the sensitive controller logic from harsh external field disturbances, voltage spikes, and ground loops. Delivering a steady current-source output format of 24 V DC at up to 0.2 A per channel, this module effortlessly drives intermediate relays, solenoids, and indicators while preventing any localized field faults from propagating back to the safety node unit.

        Engineered to withstand the demanding conditions of complex industrial infrastructure, the YOKOGAWA SDV541-S53 S3 fully supports a dual-redundant configuration on the safety node unit. This means operations can continue smoothly even during an individual hardware failure. The module integrates natively with the ProSafe-RS Safety Engineering PC (SENG) and can be easily monitored via the Vnet/IP control network, allowing instrument engineers to execute deep diagnostics, analyze sequence-of-events (SOE) data, and maintain a unified control layer.
        Alternative Names
        SDV541 SDV541 S53 S3 SDV54I-S53 S3 SDV531-L63 S4 SDV531-L33 S4 SDV531-S23 S4 SDV541-S33 S2
        Technical notes
        The YOKOGAWA SDV541-S53 S3 requires an optimized external 24 V DC field power supply capable of providing at least 3.4 A to sustain its 16 current-source outputs. When designing system loops, engineers must account for the specific diagnostic pulse parameters of the YOKOGAWA SDV541-S53 S3 (Style Code S3 uses an approx. 0.5 s interval with a 400 µs pulse width) to ensure total compatibility with field-connected fast-response loads.
