IS200VRTDH1DAC

/ 4.9
1001 reviews | Need a Specific Revision?

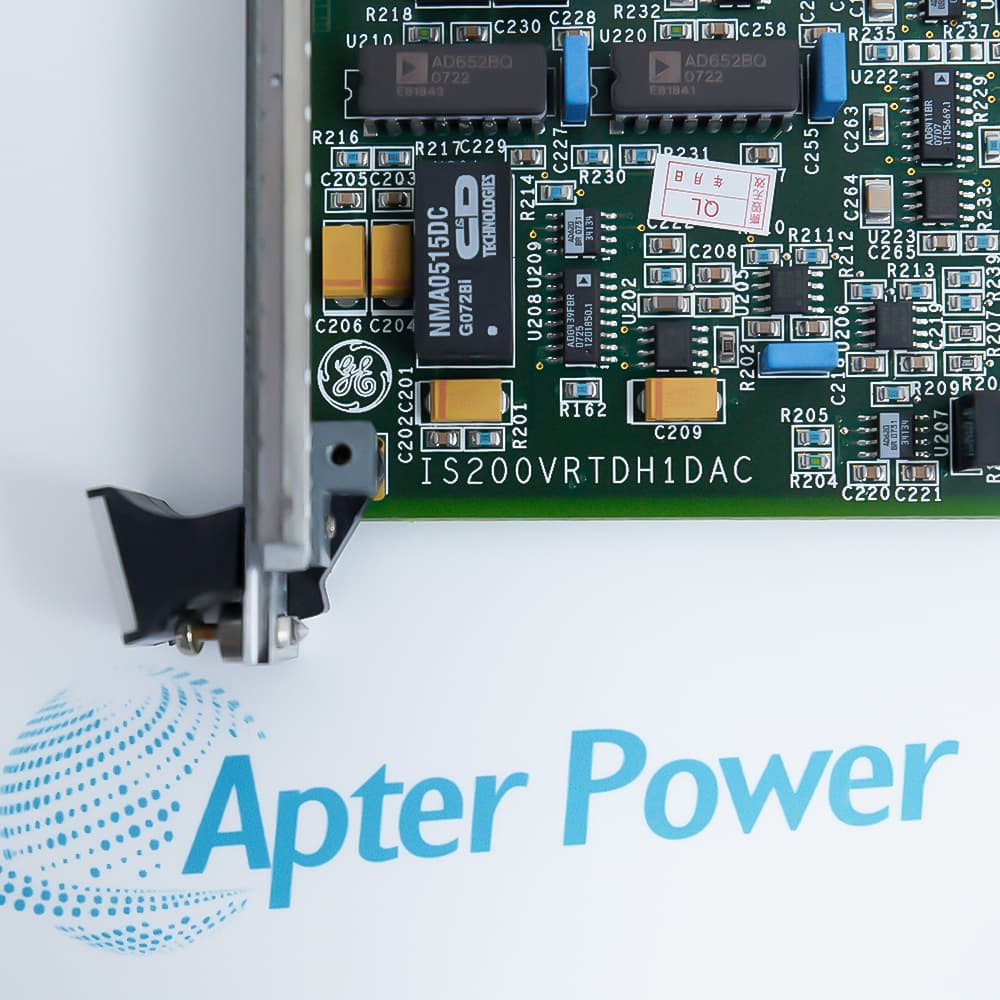

General Electric IS200VRTDH1DAC is a VME RTD card with 16 input channels for temperature measurement. It supports Pt100 platinum and 10 Ω copper probes for accurate signal conversion and monitoring.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for IS200VRTDH1DAC
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IS200VRTDH1DAC

  • Manufacturer:
    General Electric
  • Part Number:
    IS200VRTDH1DAC
  • Product Family:
    GE Mark VI Gas Turbine Control
  • Product Type:
    VME RTD Card
  • Stock:
    1
  • Power Supply:
    +5 V, ±15 V
  • Channels:
    16 inputs
  • Wiring:
    3-wire
  • Probe:
    Pt100 (Platinum) / 10 Ω (Copper)
  • Accuracy:
    14-bit A/D conversion
  • Refresh:
    10 ms (100 Hz)
  • Protection:
    With Conformal Coating
  • Isolation:
    1 500 V RMS
  • Operating Temp:
    –20 °C to +70 °C
  • Storage Temp:
    –40 °C to +85 °C
  • Humidity:
    5 – 95 % RH non-condensing
  • Weight:
    0.3 kg
  • Estimated shipping dimensions:
    2x18.5x26.1cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Scenarios Environment Control

Features:

  • Support for Pt100 platinum and 10 Ω copper probes allows flexible integration with various temperature sensing devices.
  • A 14-bit converter combined with a 100 Hz refresh rate provides accurate and responsive measurement performance.
  • Conformal coating and 1 500 V RMS isolation improve resistance to interference and harsh operating conditions.
General Electric IS200VRTDH1DAC is designed to collect temperature data from multiple sensing points with high accuracy. Sixteen input channels enable centralized monitoring and simplify system wiring. Compatibility with Pt100 and 10 Ω RTD probes provides additional application flexibility. Rapid 10 ms refreshing supports real-time process observation.

Electrical reliability is an important characteristic of General Electric IS200VRTDH1DAC. The module incorporates 1 500 V RMS isolation to minimize the effects of noise and signal disturbances. Conformal coating adds another layer of protection against moisture and contaminants. Such features contribute to dependable long-term operation in industrial environments.

General Electric IS200VRTDH1DAC supports operating temperatures from –20 °C to +70 °C and storage temperatures between –40 °C and +85 °C. Relative humidity levels from 5% to 95% RH without condensation are also supported. Combined with +5 V and ±15 V power requirements, the card offers stable performance for temperature monitoring applications across a wide range of industrial installations.

The IS200VRTDH1DAC General Electric VME RTD Card may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric IS200VRTDH1DAC VME RTD Card Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
General Electric IS200VRTDH1DAC VME RTD Card Specs

General

  • Manufacturer General Electric
  • Model IS200VRTDH1DAC
  • Condition New Original ready stock
  • Product Family IS200VRTDH1D,IS200VRTDH1DAB
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Turbine Bearing Monitoring: Real-time acquisition of the friction temperature of the turbine main shaft bearings.
  • Generator Set Protection: Close monitoring of the temperature rise of the generator stator and rotor windings.
  • Lubricating Oil System: Measurement of the oil temperature at the turbine oil tank and cooler inlet and outlet.
  • Exhaust pipe measurement: Use RTD in the medium and low temperature range to monitor gas temperature changes.
  • Operating Temperature: The operating environment for the board must be maintained between 0 and 60 degrees Celsius.
  • Humidity Control: Non-condensing relative humidity should be strictly limited to 5% to 95%.
  • Vibration-Resistant Housing: The frame must have a rigid structure to resist industrial-grade low-frequency resonance.
  • Special Protection: The surface is coated with an anti-corrosion coating to resist salt spray and chemical gases.
  • Bus Communication: Data exchange with the main controller is conducted via the standard VME protocol.
  • Disconnection Isolation: Automatically locks and isolates the channel when a sensor disconnection is detected.
  • Dynamic Retry: Automatically attempts to reactivate the scan every 20 seconds after a channel failure.
  • Digital Filtering: Built-in software algorithms automatically filter out power frequency electromagnetic interference in industrial environments.
Description
General Electric IS200VRTDH1DAC offers 16 RTD input channels and supports 3-wire wiring configurations for accurate temperature acquisition. The module accepts both Pt100 platinum sensors and 10 Ω copper probes, providing flexibility for different sensing requirements. A 14-bit A/D converter ensures precise signal processing, while the refresh rate of 10 ms enables fast updates for process supervision.

Reliable operation under demanding conditions is enhanced by conformal coating protection and 1 500 V RMS isolation. Such characteristics help reduce the impact of electrical interference and environmental contaminants commonly found in industrial facilities. Humidity tolerance from 5% to 95% RH without condensation further contributes to stable performance over extended operating periods.

General Electric IS200VRTDH1DAC operates with +5 V and ±15 V power supplies and is suitable for environments with temperatures ranging from –20 °C to +70 °C. Storage conditions can reach from –40 °C to +85 °C, allowing the module to withstand transportation and warehouse conditions. Combining high-speed refreshing with robust electrical protection, General Electric IS200VRTDH1DAC provides dependable temperature monitoring capability for critical automation systems.
Revisions

Revision Part #

Also known as

IS200VRTDH1DAB
IS200VRTDH1D-AB, Series AB, Rev AB
Alternative Names
IS200VRTDH1D IS200VRTDH1DAB IS200VSVOH1B IS200VTCCH1C IS200VTURH1B IS200VVIBH1C IS2OOVRTDH1DAC IS200VRTDHIDAC
Technical notes
General Electric IS200VRTDH1DAC VME RTD card features 16 input channels, 14-bit A/D conversion, and a 10 ms refresh rate for accurate and high-speed temperature measurement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What types of sensors can General Electric IS200VRTDH1DAC support?
General Electric IS200VRTDH1DAC is compatible with Pt100 platinum probes and 10 Ω copper probes for temperature measurement applications.
How many input channels are available on General Electric IS200VRTDH1DAC?
Users can connect up to 16 temperature inputs through General Electric IS200VRTDH1DAC.
Can General Electric IS200VRTDH1DAC operate in harsh industrial environments?
Yes. Conformal coating and 1 500 V RMS isolation allow the module to perform reliably in environments with electrical noise and contamination.
How fast does General Electric IS200VRTDH1DAC update measurement data?
Temperature values are refreshed every 10 ms, corresponding to a frequency of 100 Hz.
