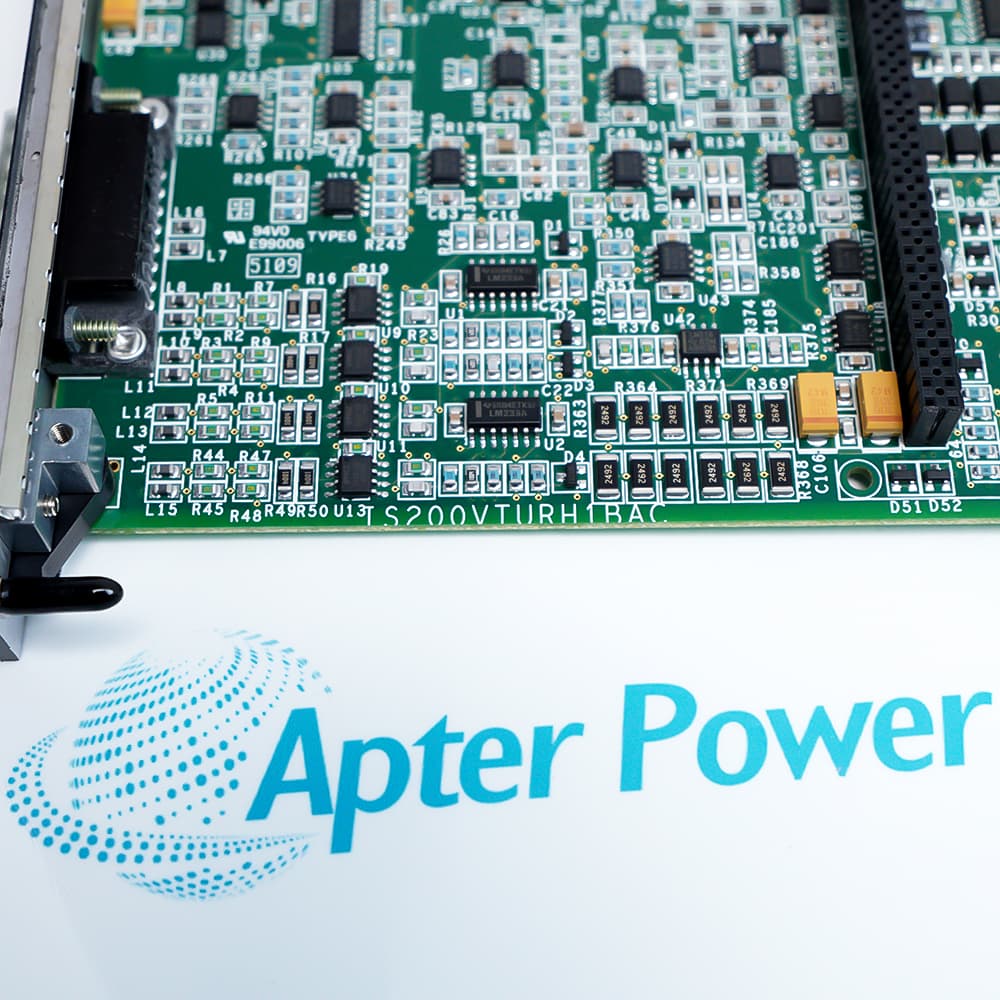

General Electric IS200VTURH1BAC VME turbine card is a key element of the turbine protection system, providing overspeed trip control and emergency shutdown functions to protect rotating equipment from severe faults.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for IS200VTURH1BAC
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IS200VTURH1BAC

  • Manufacturer:
    General Electric
  • Part Number:
    IS200VTURH1BAC
  • Product Family:
    GE Mark VI Gas Turbine Control
  • Product Type:
    VME Turbine Card
  • Stock:
    1
  • Bus:
    VMEbus standard
  • Logic:
    2-out-of-3 voting
  • Voltage:
    24 V DC
  • Current:
    1.5 A max
  • Temperature:
    0 to 60 °C
  • Humidity:
    5% to 95% (non-condensing)
  • Protection:
    With anti-corrosion coating
  • Weight:
    0.3 kg
  • Estimated shipping dimensions:
    2x18.6x26.1cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Connection Safety Application Scenarios

Features:

  • Direct operation of three trip relays enables fast emergency shutdown to protect turbine equipment from excessive speed conditions.
  • Compatibility with simplex and TMR configurations improves fault tolerance and increases protection availability.
  • High-voltage alarms and automatic continuity testing help maintain the integrity of critical trip circuits.
General Electric IS200VTURH1BAC VME turbine card serves as a critical component in turbine safety systems where dependable shutdown capability is essential. Based on the VMEbus standard, the card operates from a 24 V DC supply with a maximum current requirement of 1.5 A. Environmental specifications allow operation between 0 and 60 °C and humidity levels up to 95% non-condensing. Anti-corrosion coating provides additional resistance for industrial environments.

Protection performance is enhanced through advanced trip logic and redundant design. IS200VTURH1BAC employs a 2-out-of-3 voting mechanism that reduces the possibility of unwanted shutdown events while maintaining dependable fault response. Support for simplex and triple modular redundant arrangements enables flexible integration into different turbine control architectures. Cooperation with VPRO boards further strengthens protection management.

Another important capability of General Electric IS200VTURH1BAC is signal processing and diagnostic supervision. Pulse frequencies from speed sensors are converted into digital signals for system analysis and control. Automatic continuity and integrity testing continuously verify trip circuit status, while high-voltage alarms provide additional diagnostic information. These functions contribute to improved safety and long-term operational reliability in turbine applications.

The IS200VTURH1BAC General Electric VME Turbine Card may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric IS200VTURH1BAC VME Turbine Card Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
General Electric IS200VTURH1BAC VME Turbine Card Specs

General

  • Manufacturer General Electric
  • Model IS200VTURH1BAC
  • Condition New Original ready stock
  • Product Family IS200VTURH1B,IS200VTURH1BAB,IS200VTURH1BAA
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Slot Installation: Align the card with the dedicated control slot on the VME rack.
  • Terminal Crimping: Use shielded twisted-pair cable to connect the signal cable to the terminal block.
  • Fiber Optic Interface: Connect a high-speed serial fiber optic cable for communication between controllers.
  • Grounding: Tighten the panel fastening screws to ensure proper grounding of the metal casing.
  • Power-Off Operation: The VME rack power must be completely disconnected before inserting or removing the card.
  • Anti-static Protection: Operators must wear anti-static wrist straps when handling the cards.
  • Voltage Verification: Verify the power supply voltage to the backplane before powering on.
  • Redundancy Testing: Verify the dual or triple redundancy switching function before putting the system into operation.
  • Speed ​​Monitoring: Used for overspeed protection systems of gas turbines and steam turbines.
  • Synchronization Control: Used for automatic generator synchronization control when generator sets are connected to the grid.
  • Valve Actuation: Used to adjust the opening degree of the turbine intake valve and fuel control valve.
  • Condition Monitoring: Used to collect vibration data of turbine bearings and temperature data of key components.
Description
General Electric IS200VTURH1BAC VME turbine card plays an important role in the core safety protection architecture of turbine units. Operating with a VMEbus standard interface, the card works with 24 V DC power and draws up to 1.5 A. IS200VTURH1BAC is designed for environments with temperatures from 0 to 60 °C and humidity levels ranging from 5% to 95% without condensation. Anti-corrosion coating enhances durability in demanding industrial applications.

A major function of IS200VTURH1BAC is overspeed trip control. During abnormal operating conditions, the card monitors turbine speed and responds to trip commands generated by the controller. When emergency overspeed conditions are detected, IS200VTURH1BAC directly operates three primary overspeed trip relays located on terminal boards such as TRPX and TRPG. The relay action removes power from emergency solenoid valves, allowing the turbine to shut down safely and preventing mechanical damage.

Protection reliability is strengthened through redundant design. General Electric IS200VTURH1BAC VME turbine card supports both simplex and triple modular redundant configurations. Trip logic management can be shared with protection boards such as VPRO, while the 2-out-of-3 voting architecture minimizes the possibility of false trips or failure to trip when a single hardware channel experiences a fault. Such redundancy is essential for critical turbine applications where uninterrupted protection is required.

Besides emergency shutdown functions, IS200VTURH1BAC performs pulse rate conversion by translating speed sensor pulse frequencies into digital signals for system processing. Diagnostic capabilities include high-voltage alarm functions together with automatic continuity and integrity testing of trip circuits. Continuous monitoring helps maintain the health of protection loops and ensures that emergency shutdown paths remain available whenever needed. Combined with corrosion resistance and reliable environmental specifications, IS200VTURH1BAC provides dependable performance in turbine control systems.
