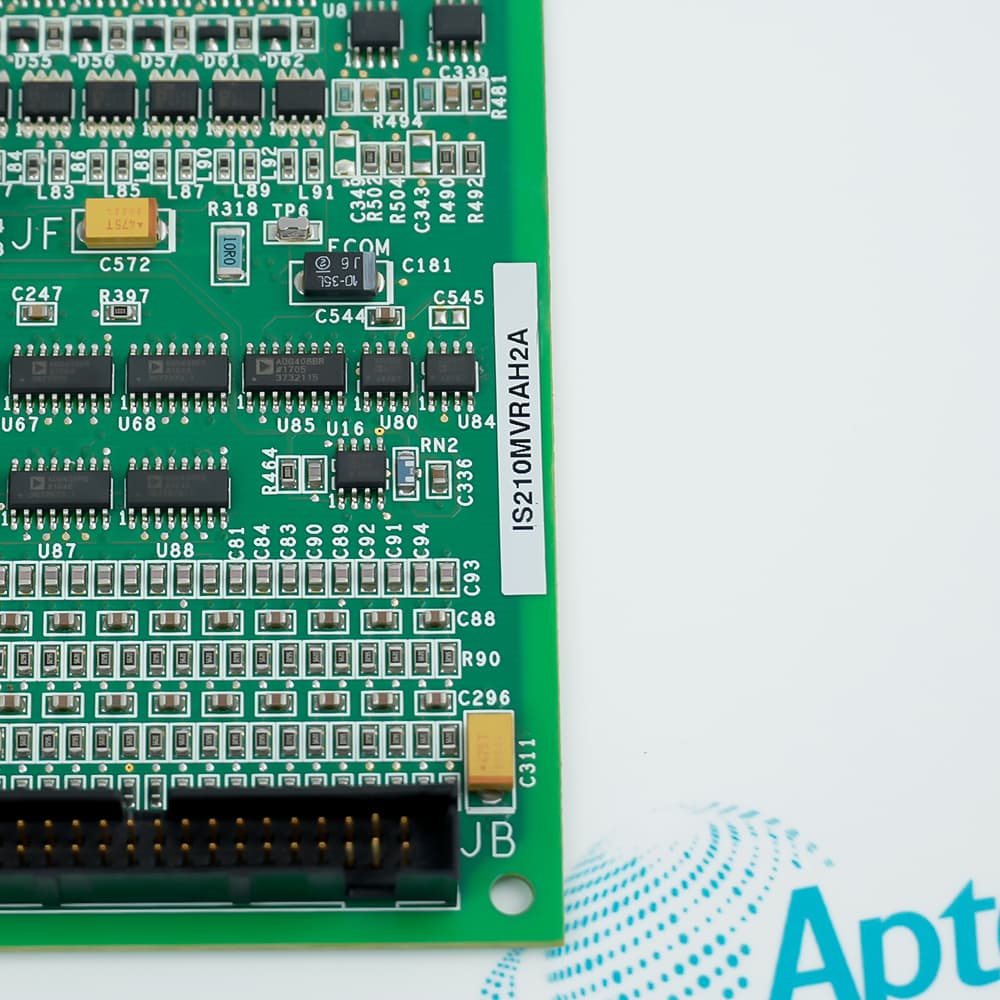

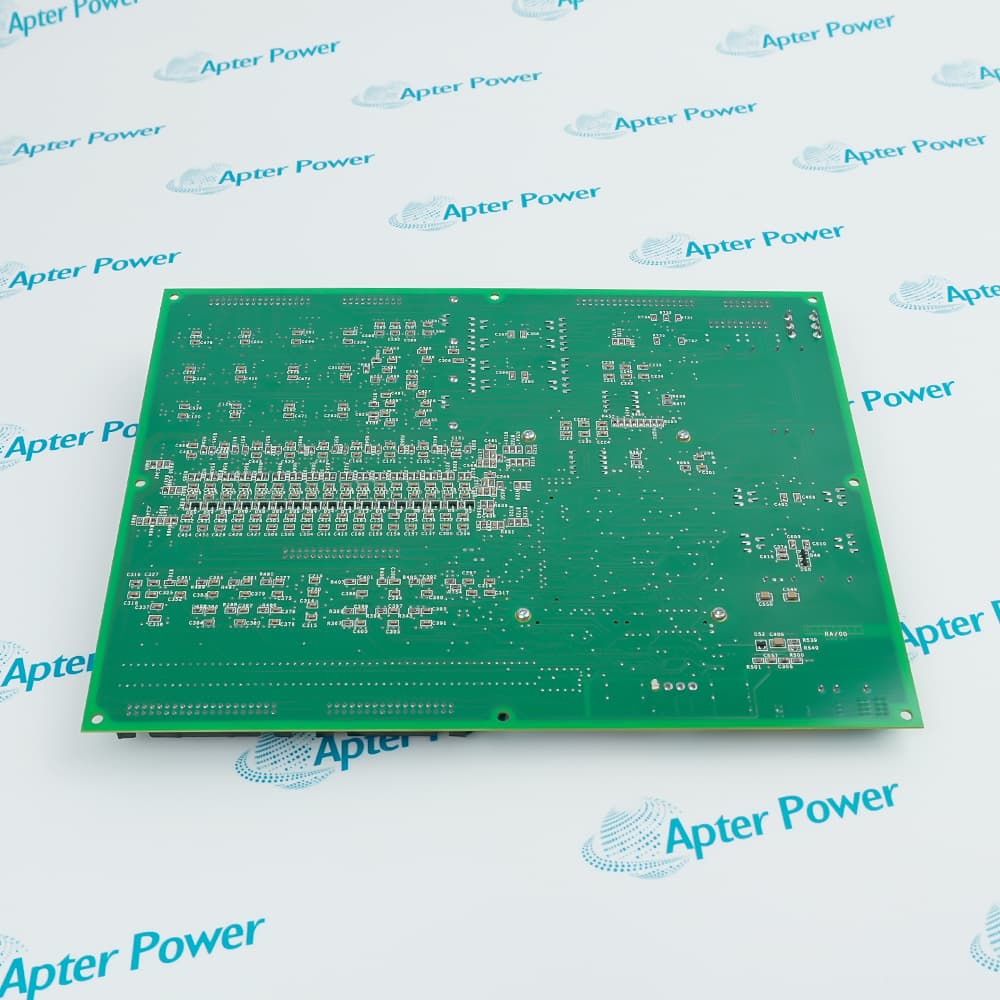

GE IS210MVRAH2A/IS200MVRAH2AFC is an MVRA printed wiring assembly used in Mark V to Mark Ve steam-control retrofit core hardware.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for IS210MVRAH2A/IS200MVRAH2AFC
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IS210MVRAH2A/IS200MVRAH2AFC

  • Manufacturer:
    General Electric
  • Part Number:
    IS210MVRAH2A/IS200MVRAH2AFC
  • Product Family:
    GE Mark VI Gas Turbine Control
  • Product Type:
    MVRA Printed Wiring Assembly
  • Stock:
    1
  • Assembly designation:
    MVRA PWA assembly
  • Documented system:
    Mark V to Mark Ve Control Steam Retrofit
  • R-core use:
    Included in redundant and single ARCNET material sets
  • TMR core use:
    Included in S-core and T-core material sets
  • Installation control:
    Project material list, core assignment, cable routing, and connector orientation must be verified
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Retrofit Role Core Placement Installation

Features:

  • MVRA PWA assembly listed in GEH-6731E
  • Used in documented R, S, and T retrofit core material sets
  • Installed under project-specific cable and core procedures
IS210MVRAH2A is supplied within defined Mark V to Mark Ve retrofit material packages rather than as an unrestricted general-purpose I/O module.

The official material tables place the MVRA assembly in R-core packages and, for TMR installations, corresponding S and T core rebuilds.

Correct selection depends on both assembly markings, the control-module catalog number, ARCNET arrangement, core location, connector mapping, and the site-specific GE material list.

The GE IS210MVRAH2A/IS200MVRAH2AFC MVRA Printed Wiring Assembly is listed as Active / Available from OEM. Apter Power can review retrofit identification details.
GE IS210MVRAH2A/IS200MVRAH2AFC MVRA Printed Wiring Assembly Manuals, Datasheets, Links Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
GE IS210MVRAH2A/IS200MVRAH2AFC MVRA Printed Wiring Assembly Specs

General

  • ManufacturerGE
  • ModelIS210MVRAH2A/IS200MVRAH2AFC
  • ConditionNew Original
  • Product FamilyMark V to Mark Ve Control Steam Retrofit
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Documented package function

  • Assembly: GEH-6731E identifies IS210MVRAH2A as a PWA assembly.
  • Purpose: The assembly supports conversion of Mark V steam-control cores to Mark Ve hardware.
  • Field wiring: The retrofit approach retains established field-wiring terminations and turbine devices.
  • Material control: Use the exact GE package and site material list for procurement.

Location-specific material sets

  • R core: The MVRA assembly appears in both redundant and single ARCNET R-core packages.
  • S core: TMR retrofit materials include an MVRA assembly for the S core.
  • T core: TMR retrofit materials include an MVRA assembly for the T core.
  • C core: The C-core material set uses MVRC rather than the MVRA assembly.

Retrofit handling requirements

  • Sequence: Rebuild each core according to the documented retrofit sequence.
  • Connectors: Confirm ribbon-cable orientation because the relevant connectors are not keyed.
  • Routing: Preserve required cable paths to maintain core thermal integrity.
  • Verification: Record barcodes, module numbers, grounding, and cable locations before disassembly.
Description
The IS210MVRAH2A/IS200MVRAH2AFC designation identifies an MVRA printed wiring assembly documented in GE instruction guide GEH-6731E for Mark V to Mark Ve steam-control retrofits. The IS210MVRAH2A assembly is included in the material sets used to rebuild existing control cores while retaining the established field terminations.

For redundant and single-ARCNET R-core packages, IS210MVRAH2A/IS200MVRAH2AFC appears with the associated MVRB assembly, power supply, brackets, and defined interconnection cables. The same MVRA assembly is also listed for the S and T core material sets used in TMR installations.

GE retrofit procedures require IS210MVRAH2A/IS200MVRAH2AFC to be installed only after the original core hardware and cable locations have been recorded. Ribbon-cable orientation, retained cable routing, grounding, connector placement, and the exact R, S, or T core material package must be followed to preserve thermal and electrical integrity.

Before ordering IS210MVRAH2A/IS200MVRAH2AFC, compare both markings with the site material list, control-module catalog number, ARCNET configuration, and core assignment. Similar MVRA, MVRB, and MVRC assemblies are not interchangeable without project-specific GE documentation.
Revisions

Revision Part #

Also known as

IS200MVRAH2AFC
IS200MVRAH2A-FC, Series FC, Rev FC
Alternative Names
IS2IOMVRAH2A/IS2OOMVRAH2AFC IS210MVRAH2A IS200MVRAH2AFC IS210MVRAH2A-IS200MVRAH2AFC IS210MVRAH2AIS200MVRAH2AFC GE IS210MVRAH2A/IS200MVRAH2AFC General Electric IS210MVRAH2A/IS200MVRAH2AFC Mark Ve IS210MVRAH2A/IS200MVRAH2AFC MVRA PWA IS210MVRAH2A/IS200MVRAH2AFC
Technical notes
GE IS210MVRAH2A/IS200MVRAH2AFC is an MVRA PWA assembly listed in GEH-6731E for Mark V to Mark Ve steam-control retrofit R, S, and T core material sets.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is GE IS210MVRAH2A/IS200MVRAH2AFC?
GE IS210MVRAH2A/IS200MVRAH2AFC is an MVRA printed wiring assembly documented for Mark V to Mark Ve steam-control retrofit hardware.
Where is GE IS210MVRAH2A/IS200MVRAH2AFC used?
GE IS210MVRAH2A/IS200MVRAH2AFC is listed in R-core material sets and in S and T cores for applicable TMR retrofit packages.
Does GE IS210MVRAH2A/IS200MVRAH2AFC identify a generic I/O board?
GE IS210MVRAH2A/IS200MVRAH2AFC must be matched to the exact GE retrofit material list and is not a generic interchangeable I/O board.
What should be recorded before removing GE IS210MVRAH2A/IS200MVRAH2AFC?
Before removing GE IS210MVRAH2A/IS200MVRAH2AFC, record core location, connector positions, cable routing, grounding, labels, and control-module catalog numbers.
How should GE IS210MVRAH2A/IS200MVRAH2AFC ribbon cables be installed?
GE IS210MVRAH2A/IS200MVRAH2AFC ribbon-cable orientation must follow GEH-6731E because the relevant connectors are not keyed.
How are GE IS210MVRAH2A/IS200MVRAH2AFC faults investigated?
For GE IS210MVRAH2A/IS200MVRAH2AFC, inspect seating, cable orientation, retained routing, grounding, connected assemblies, and the project retrofit procedure.
What is required to quote GE IS210MVRAH2A/IS200MVRAH2AFC?
A GE IS210MVRAH2A/IS200MVRAH2AFC quotation should include both markings, core assignment, ARCNET configuration, control-module number, and available nameplate details.
