531X305NTBAPG1

/ 4.9
1001 reviews | Need a Specific Revision?

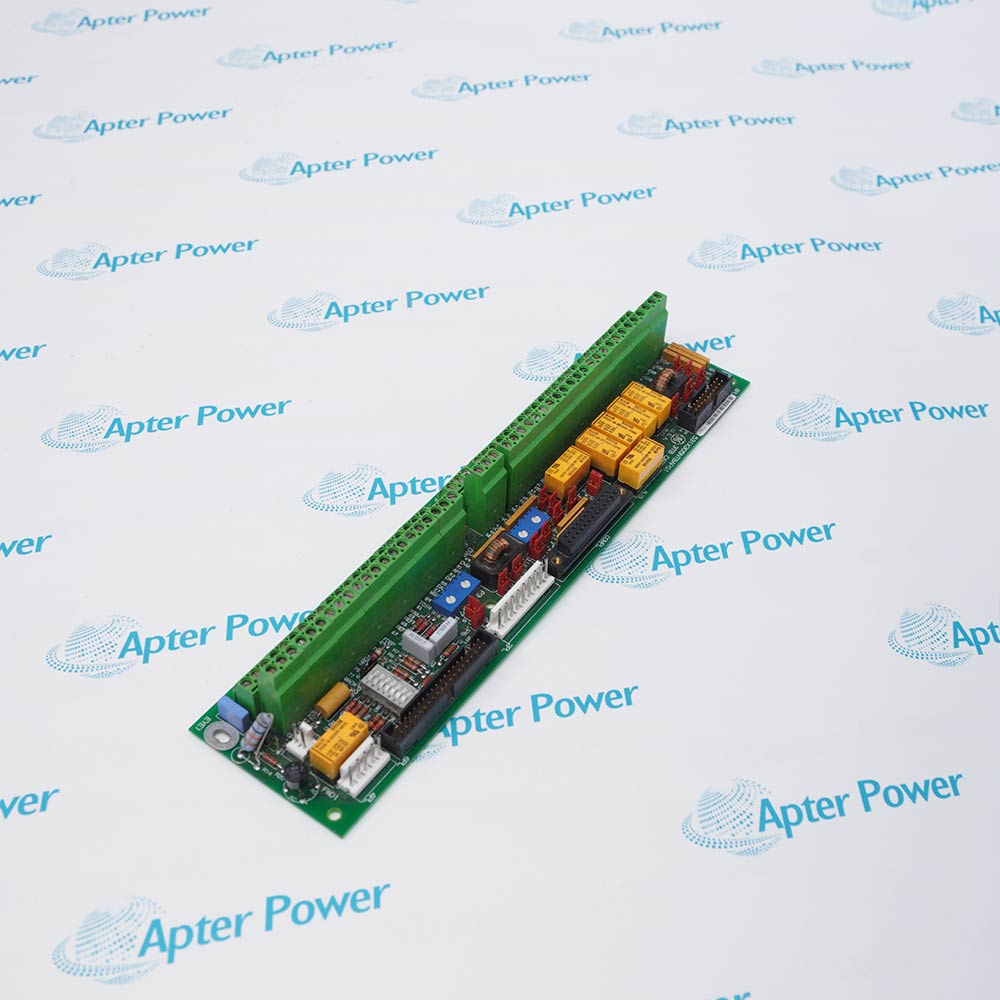

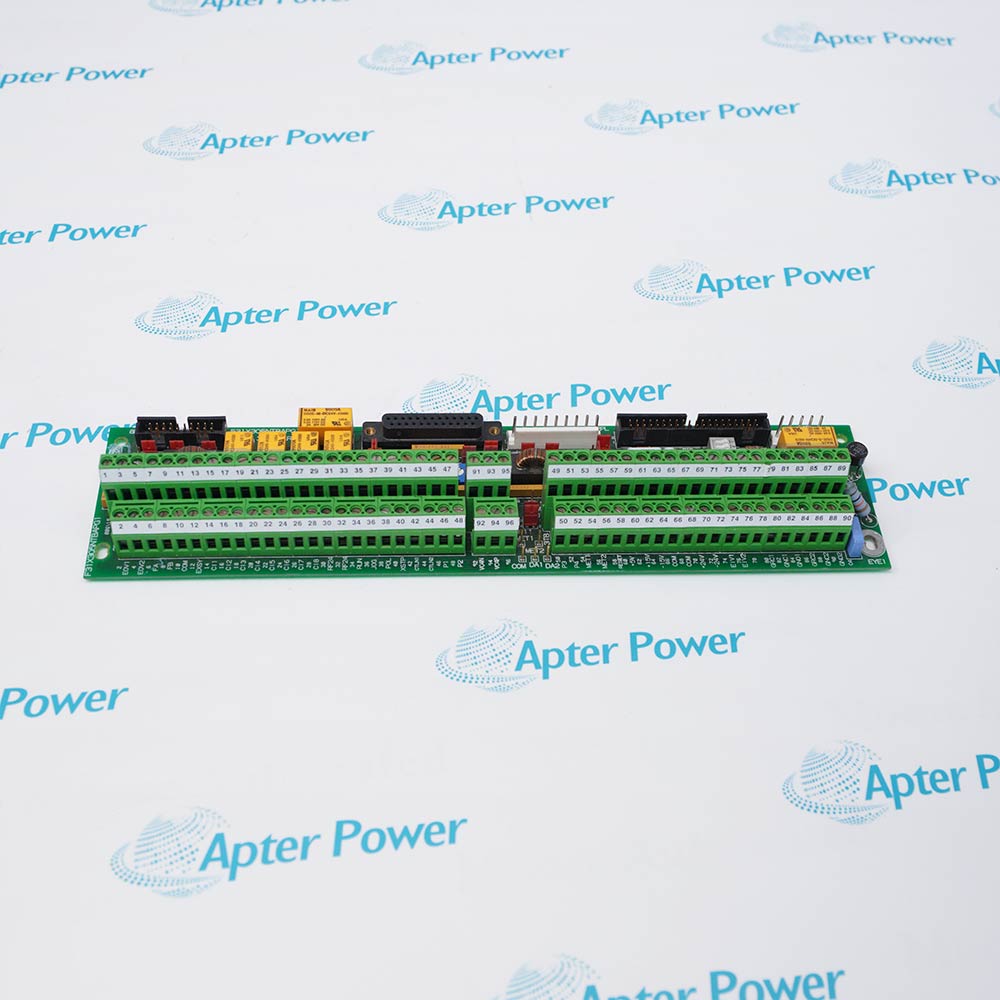

The 531X305NTBAPG1 is an NTB/3TB Terminal Board for the GE EX2000 excitation system. It serves as the primary I/O interface hub in the drive cabinet, providing multiple regulated/unregulated power outputs,digital inputs, relay outputs, and an A-quad-B encoder interface for external equipment connectivity and control.
Get a quick price for 531X305NTBAPG1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 531X305NTBAPG1

  • Manufacturer:
    General Electric
  • Part Number:
    531X305NTBAPG1
  • Product Family:
    GE Mark VIe Distributed I/O
  • Product Type:
    NTB/3TB Terminal Board
  • Regulated DC Output:
    +5 V DC, 300 mA
  • Unregulated DC Output:
    24 V DC, 500 mA
  • AC Output:
    120 V AC, 0.5 A
  • Configurable Voltage:
    Selectable for +5 V or ±15 V encoders via jumpers
  • General-Purpose Inputs:
    12 inputs, accepting up to 24 V DC
  • Input Bias:
    Configurable to +24 V or -24 V DC via jumpers
  • Contact Rating:
    120 V AC
  • Weight:
    0.38 kg
  • Estimated shipping dimensions:
    28.6x7x3.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.
Description
The 531X305NTBAPG1 is a comprehensive NTB/3TB Terminal Board designed as the central signal and power interface for the EX2000 Excitation system. A core function of the 531X305NTBAPG1 is to generate and distribute multiple power rails for the system and external devices. It provides regulated voltages of +5 V DC and ±15 V DC, each with a 300 mA current capacity, alongside an unregulated 24 V DC supply rated at 500 mA and a 120 V AC output at 0.5 A.

The board also features a configurable differential A-quad-B encoder interface with a marker channel, which includes jumpers to select compatibility with +5 V or ±15 V encoders, catering to various feedback device requirements.For control and monitoring, the 531X305NTBAPG1 offers extensive digital and analog interfacing.

 It transmits 12 general-purpose control inputs (accepting up to 24 V DC) and special-purpose digital inputs like RESET to the drive control board. Hardware jumpers allow biasing of disconnected inputs to +24 V or -24 V DC based on positive or negative logic needs. Complementing these inputs are seven Form A and Form C relay outputs with contacts rated for 120 V AC, and four potentiometers for scaling low-level analog I/O signals.

The end,the 531X305NTBAPG1 is designed for integration within a larger control assembly. It connects via multiple plugs: 6PL and 8PL from the drive control board, 2PL and 4PL from the power supply board, COMPL from the 3TB terminal board, and 2PL/4PL from external equipment. This interconnectedness underscores its role as a nexus within the EX2000 system architecture.
Alternative Names
531X305NTBAPG1 531X121PCRALG1 531X305NTBAPG2 531X306NTBAPG1
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the primary role of the 531X305NTBAPG1 in the EX2000 system?
It acts as the central NTB/3TB Terminal Board, providing the main I/O interface, power distribution and encoder connectivity for the drive cabinet.
What power supply capabilities does this terminal board offer?
It provides regulated ±15 V DC at 300mA and +5 V DC at 300mA, an unregulated 24 V DC at 500mA, and a 120 V AC output at 0.5A for external use.
How is the encoder interface on the board configured?
The A-quad-B encoder interface is jumper-selectable to support either +5 V or ±15 V encoders, offering flexibility for different feedback devices.
What are the specifications for its digital inputs and relay outputs?
It features 12 general-purpose digital inputs (up to 24 V DC) and seven relay outputs (Form A/C) with 120 V AC contacts for control signaling.
