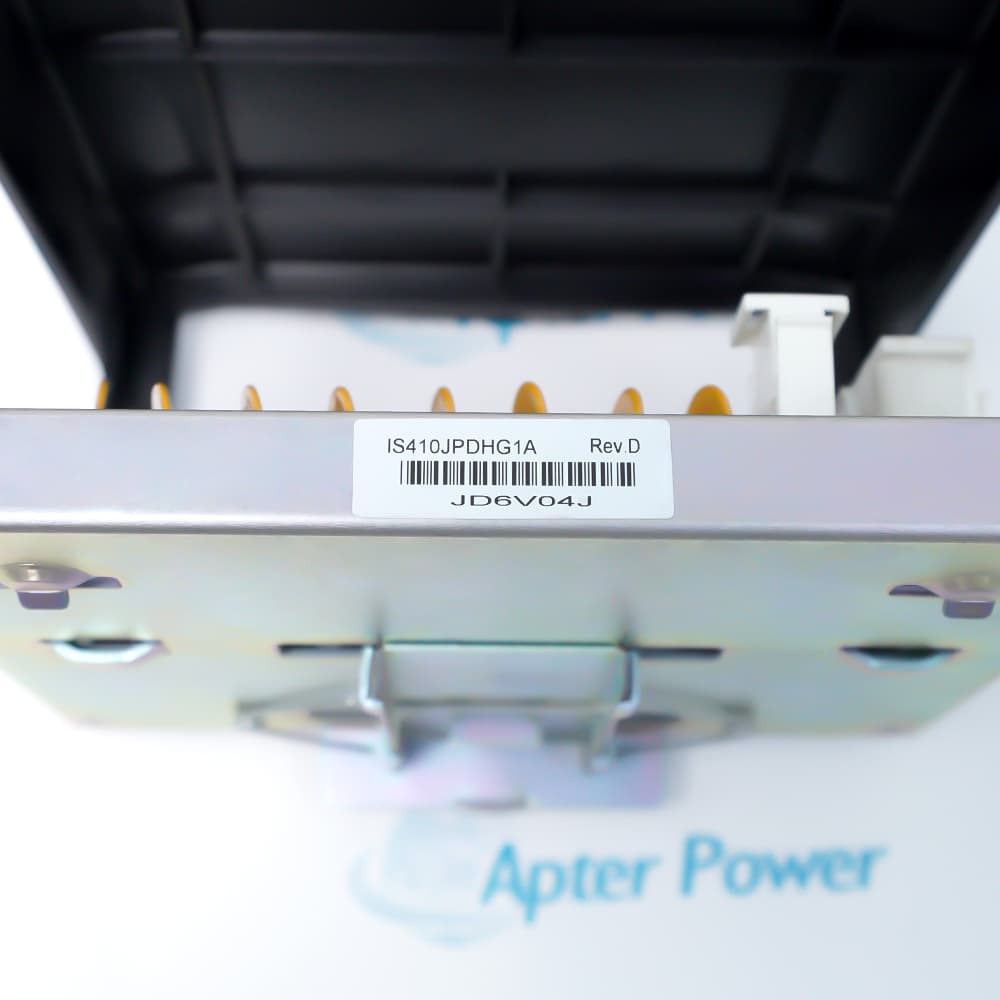

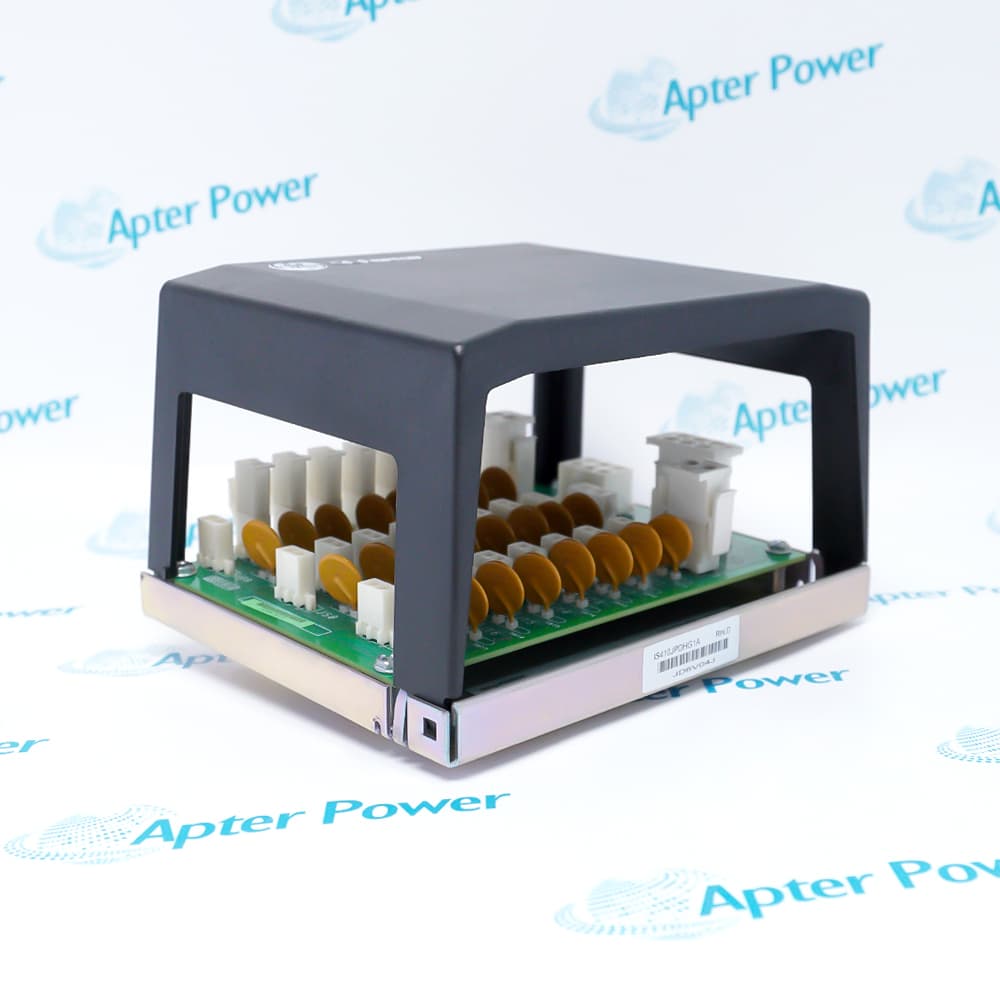

IS410JPDHG1A IS400JPDHG1ABB

/ 4.9
1001 reviews | Need a Specific Revision?
The General Electric IS410JPDHG1A IS400JPDHG1ABB are Power Distribution Modules, enabling safe and efficient 28 Vdc power allocation to I/O packs and controllers in hazardous turbine environments.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for IS410JPDHG1A IS400JPDHG1ABB
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IS410JPDHG1A IS400JPDHG1ABB

  • Manufacturer:
    General Electric
  • Part Number:
    IS410JPDHG1A IS400JPDHG1ABB
  • Product Family:
    GE Mark VIe Distributed I/O
  • Product Type:
    Power Distribution Board
  • Stock:
    2
  • Input Voltage (J1, J1X):
    22.5 to 28.6 Vdc (Nominal 24/28 Vdc)
  • Max Input Current:
    13 A at 60°C
  • Output Channels:
    8 channels per rail (JR1-8, JS1-8, JT1-8)
  • Output Voltage:
    Same as input (Pass-through)
  • Max Output Current per Channel:
    0.8 A
  • Connector Types:
    J1/J1X (Input), JR/JS/JT
  • Mounting:
    DIN-rail mount
  • Ambient Temperature:
    -40°C to +70°C (-40°F to 158°F)
  • Hazardous Certifications:
    Class I, Div 2, Groups A,B,C,D; ATEX Zone 2, Ex nA IIC T4 Gc
  • Weight:
    0.64 kg
  • Estimated shipping dimensions:
    16.5x15x11.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Monitoring & Control Operating Environment

Features:

  • High-Density Channel Partitioning
  • Hazardous Location Compliance (Zone 2 / Div 2)
  • Daisy-Chain Expansion Architecture
The General Electric IS410JPDHG1A provides eight independent 0.8A power rails, allowing each downstream I/O pack to be isolated. This segmentation prevents a single short circuit on a field device from cascading into a full system power failure, maintaining control over critical turbine shutdown paths.

Engineered for safety in explosive environments, the General Electric IS400JPDHG1ABB carries full ATEX Zone 2 and Class I Division 2 certifications. It integrates seamlessly into Ex nA (non-sparking) systems without requiring expensive intrinsic safety barriers, reducing total installation cost for petrochemical applications.

The built-in J1X passthrough connector allows the General Electric IS410JPDHG1A to cascade power to a secondary JPDH board without additional terminal blocks. This feature simplifies cabinet wiring for large-scale turbine control retrofits, maintaining clean bus routing and reducing voltage drop across long distances.

The IS410JPDHG1A IS400JPDHG1ABB General Electric Mark VIe Power Distribution Board may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric IS410JPDHG1A IS400JPDHG1ABB Mark VIe Power Distribution Board Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
General Electric IS410JPDHG1A IS400JPDHG1ABB Mark VIe Power Distribution Board

General

  • Manufacturer General Electric
  • Model IS410JPDHG1A IS400JPDHG1ABB
  • Condition New Original ready stock
  • Product Family IS400AEBMH1AJD,IS420YDOAS1B,IS420PPNGH1A
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Gas Turbine Control Retrofit: Directly powers I/O packs for fuel control valves and flame detectors in GE Frame 5/6/9 turbine upgrades, replacing obsolete IS200 power boards.
  • Compressor Station Anti-Surge Control: Provides isolated 24Vdc wetting power to discrete input modules monitoring pressure switches and emergency shutdown buttons in gas pipelines.
  • Offshore Platform ESD Systems: The conformal-coated IS400JPDHG1ABB version withstands salt-laden air, supplying control power to SIL-rated safety shutdown systems in Zone 2 classified drilling modules.
  • Combined Cycle Power Plant: Distributes 28Vdc to vibration monitor modules (PVIB) and core analog packs (PCLA) for steam turbine speed sensing and valve position feedback.
  • Passive Hardware Operation: The General Electric IS410JPDHG1A IS400JPDHG1ABB is a non-intelligent power distribution board. It does not include an onboard microprocessor, LED status indicators, or a communication backplane. Fault detection relies entirely on upstream PPDA (Power Distribution Feedback) modules or external field measurements.
  • Fault Containment via Passive Current Limiting: Each of the eight output channels is passively current-limited to 0.8A. In the event of an overload or short circuit on a downstream I/O pack, the specific channel drops voltage without latching, automatically restoring operation when the fault is cleared—preventing a single-point failure from taking down the entire control rail.
  • No Protocol Interference: As a pure power component, the module introduces zero latency or data packet interference across Profibus, Modbus TCP, HART, or any fieldbus protocols used by the Mark VIe system.
  • Extended Temperature Range: Engineered to start and operate reliably from -40°C cold starts (arctic pipelines) up to +70°C ambient without forced air cooling, avoiding derating until +60°C input current.
  • Chemical Resistance: The IS400 suffix version includes IPC-CC-830 conformal coating, protecting against H2S, ammonia, and chlorine corrosion typical in wastewater treatment and petrochemical cracking plants.
  • Altitude & Vibration: Designed for high-vibration environments (IEC 60068-2-6) up to 2.5g, suitable for turbine decks and compressor skids without shock mounts.
  • Pollution Degree 2: Rated for non-conductive pollution only; if conductive dust or moisture is present (e.g., coal handling), the unit requires an IP54 cabinet to prevent surface tracking on the PCB.
Description
The General Electric IS410JPDHG1A IS400JPDHG1ABB (JPDH) serves as a critical power backbone in GE’s Mark VIe distributed control architecture. Engineered specifically for high-availability applications, this module receives 28 Vdc bulk power from upstream JPDS or JPDG boards. It distributes power through 24 independent, PTC-protected output channels (8 each for R, S, and T branches) to support triple-redundant I/O packs, alongside 3 dedicated outputs for Ethernet switches. It is the standard high-density solution for fanning out control power in gas and steam turbine management.

Certified for Class I, Division 2 (Groups A-D) and ATEX Zone 2 (Group IIC), the General Electric IS410JPDHG1A guarantees safe operation in explosive atmospheres typical of oil refineries, pipeline compressor stations, and offshore platforms. The module supports a wide ambient temperature range (-40°C to +70°C) and is compatible with conformal-coated variants for high-humidity or corrosive gas environments (G3 rated), ensuring uninterrupted performance under extreme conditions.

Unlike standard fuse blocks, the General Electric IS400JPDHG1ABB integrates selective overcurrent protection on each output channel, preventing a single I/O pack failure from collapsing the entire control bus. It supports “daisy-chain” expansion via J1/J1X connectors, allowing multiple JPDH boards to be cascaded without additional external wiring. With a maximum input current rating of 13A and per-channel output limited to 0.8A, it provides precise power segmentation essential for SIL-capable safety systems.

As a direct functional replacement for older IS200/IS210 series power boards, the General Electric IS410JPDHG1A maintains backward compatibility with existing Mark VIe cabinet layouts and wiring harnesses (Type EG, EH, RD). For operators facing obsolescence in legacy turbine controls, this module offers a seamless upgrade path while retaining the original mechanical footprint and terminal assignments.
Revisions

Revision Part #

Also known as

IS200JPDHG1A
IS200JPDHG1A, Rev A, Legacy SeriesI
IS400JPDHG1A
IS400JPDHG1A, Rev A, Series A
IS400JPDHG1ABB
IS400JPDHG1A/BB, Series A, Rev BB
Alternative Names
IS410JPDHG1A IS400JPDHG1ABB 1S410JPDHG1A 1S400JPDHG1ABB IS4I0JPDHGIA IS400JPDHGIABB IS41OJPDHG1A IS4OOJPDHG1ABB IS400AEBMH1AJD IS420YDOAS1B
Technical notes
The General Electric IS410JPDHG1A IS400JPDHG1ABB does not provide AC-to-DC conversion; they require an external 24/28 Vdc SELV-rated power supply. The total combined output current across all eight channels must not exceed 13A input at 70°C ambient. For Ex nA (non-sparking) compliance, field wiring must use copper conductors rated at least 90°C and follow termination torques of 0.45 Nm (4 in-lb) as specified in GEH-6725R. The IS400JPDHG1ABB suffix denotes a conformal-coated version for aggressive chemical environments, electrically identical to the base IS410JPDHG1A.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the exact input voltage range and overcurrent behavior for the General Electric IS410JPDHG1A IS400JPDHG1ABB?
The General Electric IS410JPDHG1A accepts 22.5 to 28.6 Vdc (nominal 24/28V). It does not actively limit total input current but relies on upstream 13A fusing (at 60°C). Each output channel is passively limited to 0.8A; exceeding this will trip the channel without latching, automatically restoring when the overload is removed.
Is the General Electric IS410JPDHG1A IS400JPDHG1ABB compatible with third-party 24V power supplies?
Yes, provided the power supply is a SELV-rated, Class 2 limited voltage source. For ATEX installations, the power supply must be certified for Zone 2/Div 2 and have its output current limited to 20A (for JPDS upstream) or 40A (for JPDG upstream) as per GEH-6725 Section 1.2. Generic commercial power supplies without hazardous location ratings are not permitted.
Can I monitor the output current of individual channels via the Mark VIe controller?
No. The General Electric IS410JPDHG1A is a passive distribution board. It does not contain onboard diagnostics or a communication backplane. Current/voltage monitoring requires a PPDA (Power Distribution Feedback) module upstream on the JPDS/JPDG board.
Does the General Electric IS410JPDHG1A IS400JPDHG1ABB require an external enclosure for outdoor use?
Yes. While the module is rated for -40°C to +70°C operation, it is an “open-type” device. For outdoor or washdown areas, it must be installed in an IP54 (minimum) certified enclosure that requires a tool to open, complying with NEC/CEC requirements for Class I, Division 2 environments.
What is the difference between IS410JPDHG1A IS400JPDHG1ABB for harsh environments?
The IS410JPDHG1A is the standard unit. The General Electric IS400JPDHG1ABB includes a conformal coating (acrylic/parylene) that protects the PCB from corrosive gases (H2S, Cl2, salt fog) common in offshore or paper mill applications. The electrical specifications are identical.
