Features:
- High-Capacity Memory Storage for Logic and Register Operations
- Battery Backup Support for Data Integrity During Power Interruptions
- LED Indicators for Real-Time Status Monitoring and Diagnostics
- Wide Operating Temperature Range for Industrial Environments

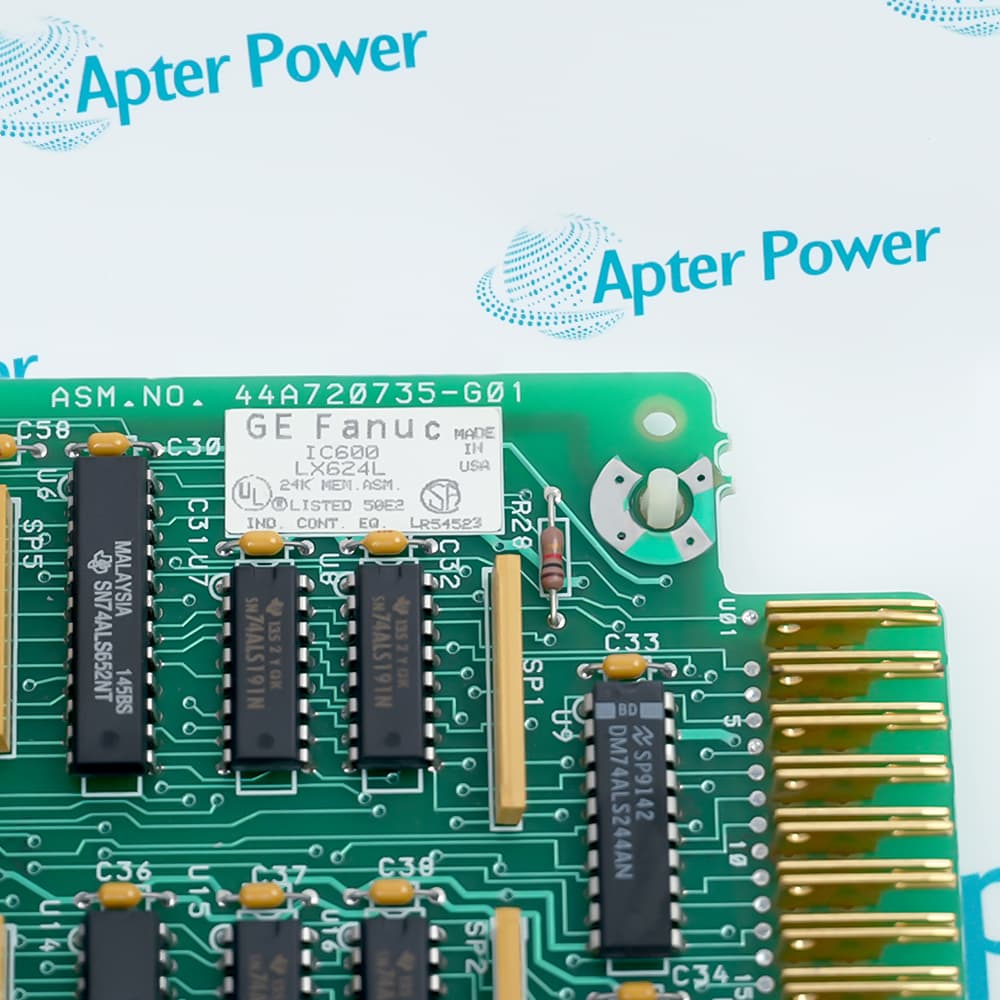

The IC600LX624 operates as a robust memory module within the Series Six Plus framework, providing reliable data storage and processing capabilities for industrial control systems. It delivers 16,000 words of logic memory and 8,000 words of register memory, ensuring ample capacity for complex automation programs and real-time data handling. The IC600LX624 utilizes lithium manganese dioxide battery cells to maintain memory contents during power outages, preventing critical data loss and program corruption. Seamless memory retention is standard with the IC600LX624, however proper battery maintenance is required to ensure long-term backup functionality. The IC600LX624 has made improvements in several areas over previous memory module designs in addition to incorporating enhanced environmental tolerance within the Series Six rack.
The IC600LX624 provides essential memory functions common to the entire control system, and is a critical component of the processing path, directly affecting the proper, normal operation of the overall PLC system. One IC600LX624 memory module is typically required per CPU rack depending on the memory expansion needs. The IC600LX624 occupies a dedicated slot position within the Series Six rack and integrates directly with the central processor unit.
For extended memory applications, the Series Six system may accommodate additional memory modules to expand total system capacity. In addition to standard memory operation, the IC600LX624 performs continuous self-monitoring. The IC600LX624 memory configuration executes data integrity checks using internal diagnostic circuitry specified in the module specifications. Using this method, the memory system continually monitors the health of stored data. If the system detects that battery voltage is no longer within acceptable levels (outside configured tolerance thresholds), it will alert operators through LED indicators and recommend battery replacement to prevent potential data loss.
The IC600LX624 GE Combined Memory Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC600LX624 Combined Memory Module Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
GE IC600LX624 Combined Memory Module Specs
General
- Manufacturer GE
- Model IC600LX624
- Condition New Original ready stock
- Product Family IC600LX616,IC600LX648,IC600LX680
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Industrial Automation: Serves as the primary storage for user-programmed logic and internal data registers in Series Six Plus PLC systems.
- Data Processing: Provides 16K logic and 8K register capacity to handle medium-to-large industrial control tasks.
- Legacy System Support: Often used in maintenance and repair of existing Series Six hardware environments.
- Battery Monitoring: A "Battery" LED remains lit when the backup battery has sufficient power. A "Battery Level Low" indicator alerts operators to replace the battery before data loss occurs.
- Memory Safeguard: A CMOS-powered RAM acts as backup memory during power failures. The module is designed with voltage level checking circuitry to ensure stable operation.
- Physical Protection: The bottom of the module must not contact metal surfaces to prevent short-circuiting and loss of memory contents.
- Operating Temperature: 0°C to 60°C (32°F to 140°F).
- Storage Temperature: -20°C to 70°C (-4°F to 158°F).
- Relative Humidity: 5% to 95% (non-condensing).
- Enclosure Rating: Open-type design; intended for indoor use only and must be housed in a protective enclosure to shield against dust, moisture, and contaminants.
