        HIMAX X-AI3201
        HIMAX X-AI3201
        HIMAX X-AI3201
        HIMAX X-AI3201
        HIMAX X-AI3201
        HIMAX X-AI3201
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle status

          Active / Available from OEM
          Apter Power provides original HIMA modules, securing continuous plant safety with SIL3-certified components.

        HIMAX X-AI3201

        / 4.9
        1001 reviews ｜ Need a Specific Revision?
        The HIMA HIMAX X-AI3201 is a high-performance analog input module in the HIMAX series, offering 32 independent input channels, supporting 0/4…20 mA current measurement, and providing safety-related functions.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for HIMAX X-AI3201
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for HIMAX X-AI3201

        • Manufacturer:
          HIMA
        • Part Number:
          HIMAX X-AI3201
        • Product Family:
          HIMA HIMatrix system
        • Product Type:
          Input Module
        • Stock:
          3
        • Number of inputs (number of channels):
          32 with common ground AI- (galvanic separation from the system bus and the 24 VDC supply voltage).
        • Nominal range:
          0/4...20 mA
        • Operating range:
          0...22.5 mA
        • Digital resolution:
          12-bit
        • Shunt for current measurement:
          200 Ω
        • Maximum permitted current via shunt:
          50 mA
        • Withstand voltage of the input:
          ≤ 10 VDC
        • Interference voltage suppression:
          > 60 dB (common mode 50/60 Hz)
        • Measured value renewal (in the user program):
          Cycle time of the user program
        • Sampling time:
          2 ms
        • Metrological accuracy on the entire temperature range (-10 °C...70 °C):
          ± 0.15 % of final value
        • Settling time to 99 % of the process value when the input signal changes:
          15 ms
        • Ambient temperature:
          0...+60 °C
        • Storage temperature:
          -40...+85 °C
        • Pollution:
          Pollution degree II in accordance with IEC/EN 61131-2
        • Altitude:
          < 2000 m
        • Housing:
          Standard: IP20
        • Number of transmitter supplies:
          32
        • Output voltage for transmitter supply:
          26.5 VDC +0/-15 %
        • Output current of transmitter supply:
          max. 30 mA
        • Weight:
          1.4 kg
        • Estimated shipping dimensions:
          23x2.92x31cm
        • Tariff Code:
          8537101190
        • Country of origin:
          Germany
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Deployment Debugging Application

        Features:

        • 32 Analog Inputs With Safety-Related Accuracy
        • Fast Response And High Measurement Precision Across Full Temperature Range
        • Galvanic Separation And Redundant System Bus For Reliable Data Transmission
        The HIMA HIMAX X-AI3201 is the core analog input module in the HIMAX series, providing 32 independent input channels. It supports two-wire or three-wire transmitter inputs and features safety-related functions to ensure high reliability and high-precision data acquisition for mission-critical automation systems. Internal functional units are electrically isolated to ensure interference immunity, while communication with the processor via a redundant system bus improves data transmission availability.

        Regarding safety, the X-AI3201 complies with SIL 3, Cat.4, and PL e standards. The module automatically enters a safe state when it detects an input fault and sends initial values ​​to the user program. Users can configure additional fault response logic in the program to ensure the entire automation system continues to operate safely under abnormal conditions. LED indicators display the real-time status of the module and each input channel, facilitating on-site monitoring and maintenance.

        The module offers flexible installation, fitting into any slot except the reserved slot for the system bus, and supports use with connection boards or FTAs. The X-AI3201's high-precision measurement, fast response, and safety and reliability make it a valuable addition to process industries, energy, and mission-critical automation systems, and it is an indispensable analog input unit in the HIMax series systems.

        The HIMAX X-AI3201 HIMA Analog Input Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        HIMA HIMAX X-AI3201 Analog Input Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        HIMA HIMAX X-AI3201 Analog Input Module Specs

        General

        • Manufacturer HIMA
        • Model HIMAX X-AI3201
        • Condition New Original ready stock
        • Product Family X-REL 24 01,X-COM 01,X-BASE
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Simple Layout: Single-module 32-channel design significantly reduces control cabinet physical space and wiring.
        • Online Maintenance: Supports hot-swapping; replacing faulty modules requires no downtime, ensuring production continuity.
        • Standardized Interface: Prefabricated base plate achieves physical isolation between precision components and field wiring.
        • Strong Adaptability: Equipped with anti-corrosion coating and anti-interference design, easily handling harsh industrial environments.
        • Intuitive Mapping: Channels and logic variables can be associated via graphical drag-and-drop within the software.
        • Simulation Forcing: Supports logic forcing of analog quantities, facilitating safety procedure verification even when instruments are not in place.
        • Unified Environment: Parameter settings and calibrations are completed on the same platform, eliminating the need to switch drivers or tools.
        • Version Verification: The system automatically compares hardware versions, completely eliminating safety hazards caused by incorrect selection.
        • Petrochemical Shutdown: Connects numerous pressure and level sensors to build an emergency shutdown (ESD) system for large factories.
        • Fire and Gas Monitoring: Processes signals from hundreds or thousands of toxic and combustible gas detectors, enabling plant-wide safety alarms.
        • Boiler Protection: Real-time monitoring of burner pressure and flow ensures the combustion system meets SIL 3 safety standards.
        • Rail Transit: Used for analog monitoring of critical station equipment, ensuring reliable operation of platform screen doors and signaling systems.
        Description
        The HIMA HIMAX X-AI3201 is a key analog input module in the HIMAX series, designed specifically for safety-related industrial applications. The module provides 32 input channels, each with independent measurement and functional testing capabilities, supporting two-wire or three-wire transmitters, with a maximum output current of 30 mA.

        In terms of safety, the HIMAX X-AI3201 is TÜV certified to meet SIL 3, Cat.4, and PL e standards. When the module detects a fault, it enters a safe state, sends the initial value of 0 to the user program for the input variables, and illuminates the error LED on the front panel. Users can further configure the fault response logic through the program to achieve system-wide safety protection.

        For installation, the HIMA X-AI3201 can be inserted into any non-system bus reserved slot. It requires a connection board (an additional system cable is needed if using an FTA) and must meet IP20 protection requirements.

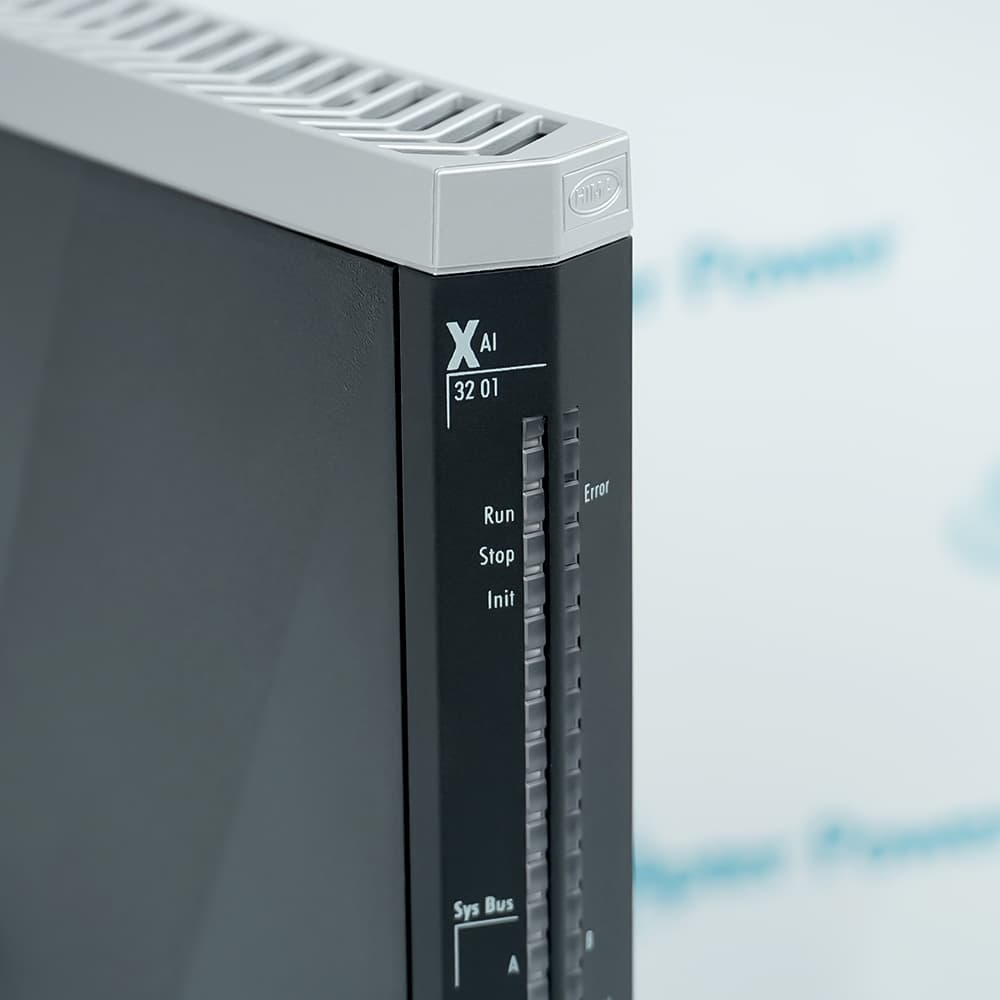

        The module is equipped with multiple status LEDs to indicate the module's running status (Run, Error, Stop, Init), system bus status (A, B), and the status of each input channel (AI1…32, Field). When power is supplied, the module performs an LED test to ensure the indicator lights function correctly.
        Alternative Names
        HIMAX X-AI32O1 HIMAX X-AI320I HIMAX X AI3201 X-AI 32 02 X-AI 32 51 X-HART 32 01 X-MIO 7/6 01 X-CB 008 01
        Technical notes
        The HIMAX X-AI3201 is a high-density analog input module for the HIMax safety-related programmable logic controller (PLC) platform, offering 32 analog input channels in a single module. It is certified for SIL 3 (IEC 61508) and PL e (ISO 13849-1) for safety-critical applications such as process shutdown, fire and gas detection, and burner management.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        How is the HIMAX X-AI3201 module installed in the HIMax system?
        It can be inserted into any base plate slot except those reserved for system bus modules, and requires a connector board. If using a Field Termination Assembly (FTA), a system cable is needed.
        Why is HIMAX X-AI3201 considered safety-related?
        The module is TÜV-certified for SIL 3, Cat.4, and PL e, and adopts a safe state on fault, transmitting initial values to the user program.
        How flexible is the HIMAX X-AI3201 in system configuration?
        The X-AI3201 can use 32 transmitter supplies and supports two-wire or three-wire transmitters, making it adaptable to various industrial sensors and safety transmitters.
        What happens if a fault occurs on an input?
        The module enters a safe state, sends initial values (0) to the user program, and activates the Error LED. Users can program additional fault reactions in their control logic.
