    Apter Power supplies top-grade HIMA Z7127 replacement hardware, offering industrial facilities a trusted source for critical automation components to maintain continuous and efficient plant operations.

Z7127

/ 4.9
1001 reviews | Need a Specific Revision?
The HIMA Z7127 module is built for reliability and performance, with a focus on enhancing the efficiency of industrial control systems.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for Z7127
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for Z7127

  • Manufacturer:
    HIMA
  • Part Number:
    Z7127
  • Product Family:
    HIMA HIMatrix system
  • Product Type:
    Front Cable Plug / Connector
  • Stock:
    4
  • Power Supply:
    Power Supply
  • Power Consumption:
    4.5W (max)
  • Input Channels:
    8 isolated channels
  • Input Signal:
    4-20mA, 0-10V (configurable)
  • Input Impedance:
    250Ω (current)
  • Accuracy:
    ±0.1% of full scale
  • Isolation:
    1500V AC between channels
  • Operating Temp:
    -40°C to +70°C
  • Storage Temp:
    -40°C to +85°C
  • Weight:
    0.12 kg
  • Estimated shipping dimensions:
    2x6x10.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Operating Environment Monitoring & Control

Features:

  • Precision Integrated Shunt Architecture
  • Robust Shielding & Grounding Integration
  • Foolproof Modular Harness Layout
The HIMA Z7127 comes equipped with factory-calibrated, high-precision 250 Ω shunts (0.05% tolerance, T < 10 ppm/K) that ensure accurate conversion and handling of 0/4... 20 mA current loops without introducing thermal drift or measurement errors.

Engineered with dedicated screening provisions—including a 120 mm yellow-green grounding lead (2.5 mm²) with a flat pin plug—the HIMA Z7127 directly terminates cable shields to the cabinet earth bar, effectively mitigating electromagnetic interference (EMI) in high-noise zones.

Featuring structured lead markings and pre-configured wiring configurations (such as LIYCY 20×0.25 mm² screened cables), the HIMA Z7127 simplifies complex multi-channel installations for both single and redundant safety instrumentation architectures.

The Z7127 HIMA Front Cable Plug / Connector may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
HIMA Z7127 Front Cable Plug / Connector Cable Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

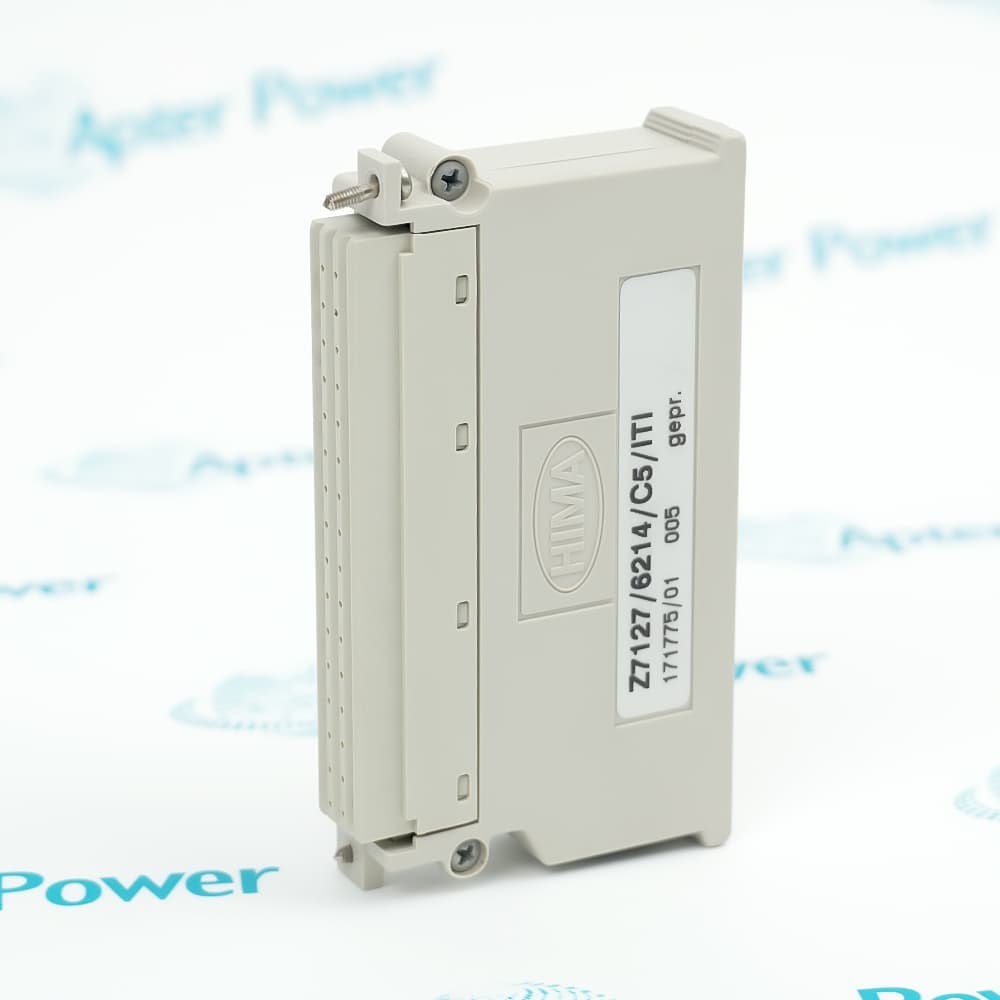

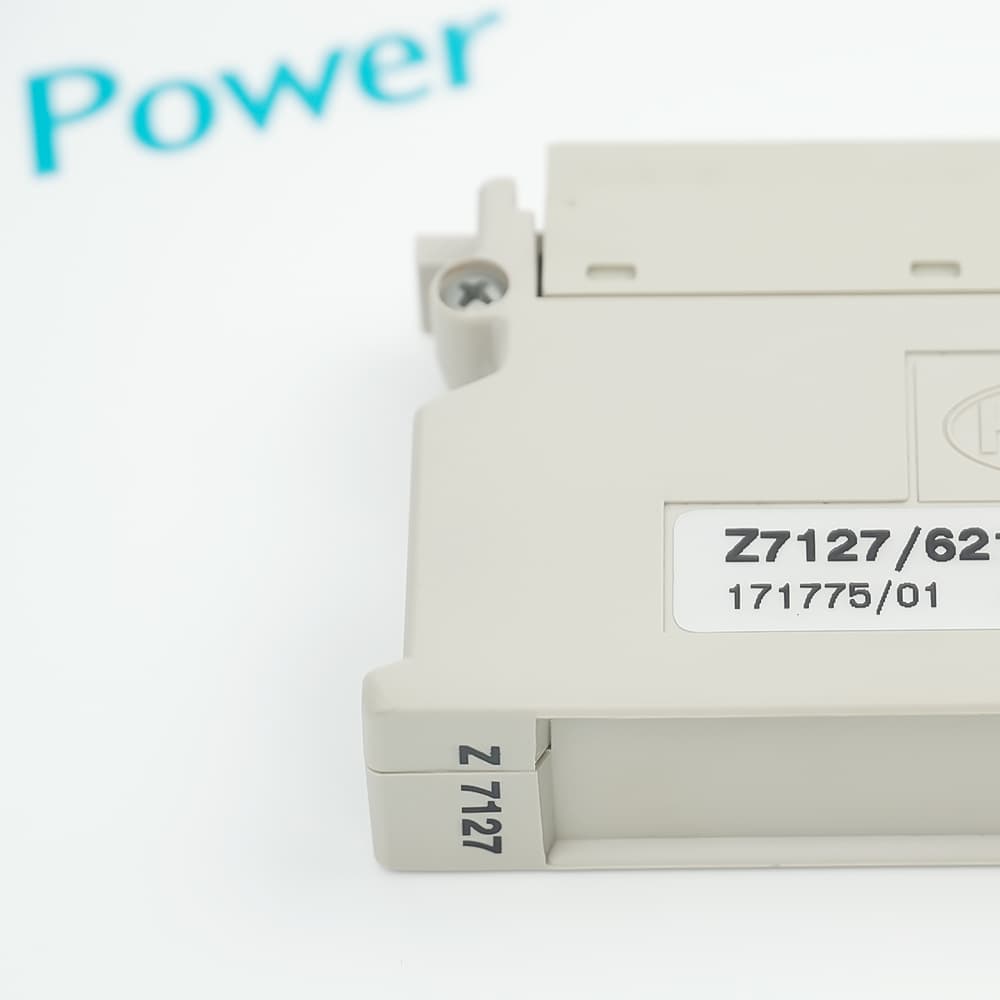

HIMA Z7127 Front Cable Plug / Connector

General

  • Manufacturer HIMA
  • Model Z7127
  • Condition New Original ready stock
  • Product Family Z7116,Z7126,Z7138
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Emergency Shutdown Systems (ESD): The HIMA Z7127 safely channels critical analog process variables (pressure, temperature, flow) into safety controllers to initiate reliable trip sequences when hazardous thresholds are breached.
  • Fire & Gas (F&G) Monitoring: Deployed in safety loops where continuous, fault-tolerant analog monitoring of toxic or flammable gas detectors is mandatory for plant-wide personnel protection.
  • Turbomachinery Control & Protection: Utilized in high-speed rotating equipment safety loops, leveraging the HIMA Z7127 to process vibration and speed feedback signals without latency or interference.
  • Chemical & Petrochemical Process Interlocks: Integrates smart transmitters and multi-channel field sensors into high-integrity safety instrumented systems (SIS) under harsh industrial conditions.
  • Industrial Temperature Range: Designed to operate reliably within standard industrial ambient temperatures spanning from 0℃ to +60.
  • Electromagnetic Interference (EMI) Resilience: Requires screened LIYCY cabling terminated via the HIMA Z7127 shielding framework to withstand severe electromagnetic noise typical of heavy switchyards and variable frequency drives.
  • Cabinet Installation Constraints: Built for secure rack mounting requiring a compact 4 TE space footprint, demanding proper local separation of power supply leads from signal wiring.
  • Electrical Isolation Standards: Provides robust operational insulation with a rated electric strength of up to 200V against system ground (GND).
  • Channel-Specific Fault Annunciation: Generates dedicated channel fault bits in the ELOP II engineering environment for every input linked via the HIMA Z7127, enabling immediate safety-related program reactions upon failure.
  • Redundant Signal Evaluation: Supports advanced dual-module redundant signal routing schemes, allowing user programs to cross-vote and evaluate inputs securely across paired channels.
  • Internal Hardware Self-Tests: Facilitates rigorous background self-monitoring executed by the host module, including A/D converter linearity checks and cross-talk evaluation across all connected channels.
  • Precision Signal Scaling: Maintains exact conversion tracking across 12-bit resolution architectures (0 mV = 0, 5.5 V = 4095), ensuring tight supervisory control over live process values.
Description
The HIMA Z7127 serves as an indispensable physical and electrical bridge between critical field instrumentation and HIMA's high-integrity safety systems. Designed to integrate flawlessly with the F6217 8-channel analog input module, this connector ensures that process variables—ranging from standard current loops to high-precision voltage inputs—are routed with uncompromising signal integrity and minimal noise interference.

Built for demanding process industries such as oil and gas, chemical refining, and power generation, the HIMA Z7127 incorporates robust mechanical latching and specialized internal shunts (such as precision 250Ω resistors). These engineering provisions allow engineers to transition between current and voltage inputs securely while maintaining rigorous safety classifications required for emergency shutdown systems (ESD) and burner management.

Furthermore, the HIMA Z7127 facilitates streamlined maintenance and rapid replacement cycles during plant turnarounds. Its pre-engineered wiring harness options, complete with dedicated shield grounding paths and clear lead markings, drastically reduce human error during installation, safeguarding plant availability and maximizing system uptime across its lifecycle.
