Features:
- Transfers 24 VDC from the PDB-0824P distribution board to individual cabinet devices.
- Uses a 2 m, two-core 1.31 mm2 (AWG 16) tri-rated cable with red and black conductors.
- Includes the keyed board-side housing and crimp contacts required for the documented connection.
The current ordering configuration is Honeywell

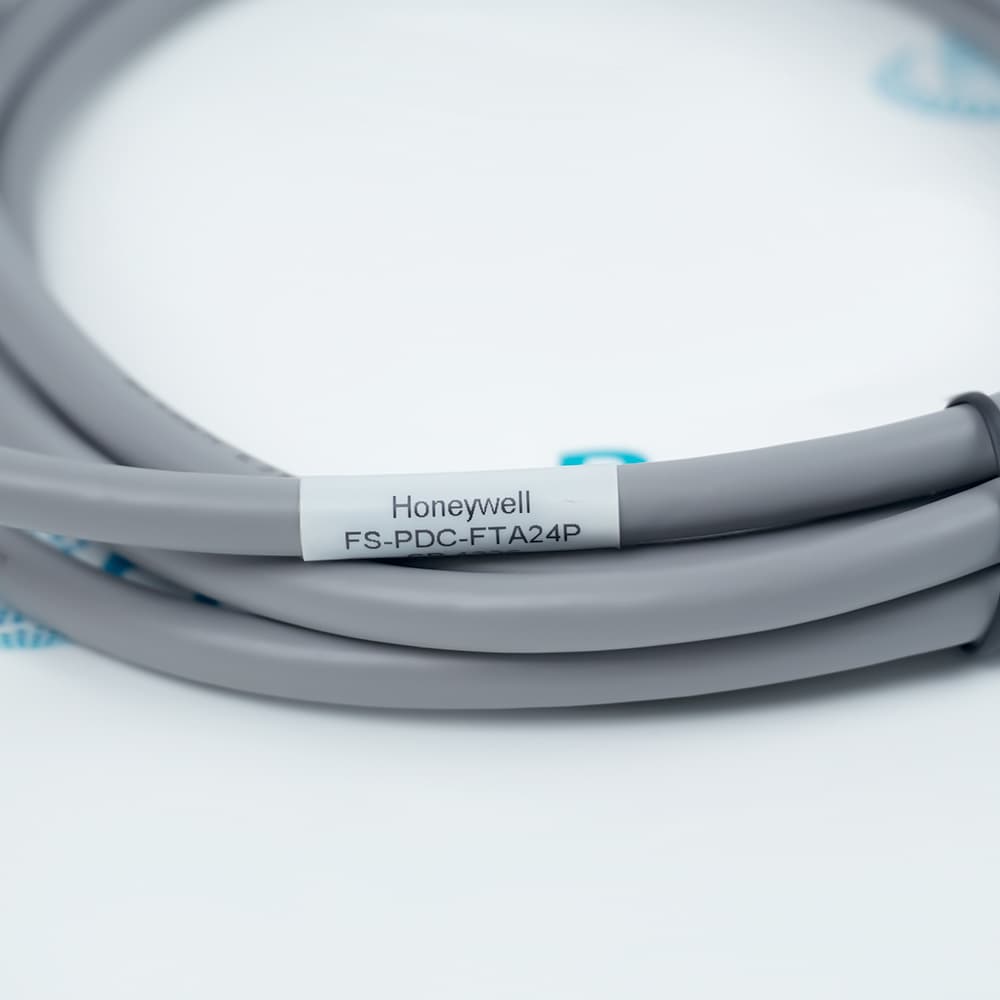

FS-PDC-FTA24P, a Safety Manager 24 VDC power-distribution cable supplied with connection screws.
It distributes cabinet power from the PDB-0824P to fan units, FTAs and other documented 24 VDC devices inside the enclosure.
Before installation, confirm PDB compatibility, observe the red +24 VDC and black 0 VDC polarity, then cut and terminate the device end for the intended load.
Availability is subject to Apter Power inventory and confirmation of the cabinet power-distribution arrangement.
Honeywell FS-PDC-FTA24P manuals and reference links:
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Honeywell FS-PDC-FTA24P General Specifications
General
- ManufacturerHoneywell
- ModelFS-PDC-FTA24P
- ConditionNew original ready stock
- Product FamilySafety Manager Power Distribution
- The cable is documented for the Honeywell PDB-0824P power-distribution board used inside Safety Manager cabinets.
- Honeywell states that it can also be used with the earlier PDB-0824 power-distribution board arrangement.
- FS-PDC-FTA24P is fully interchangeable with the obsolete PDC-FTA24 in the documented applications.

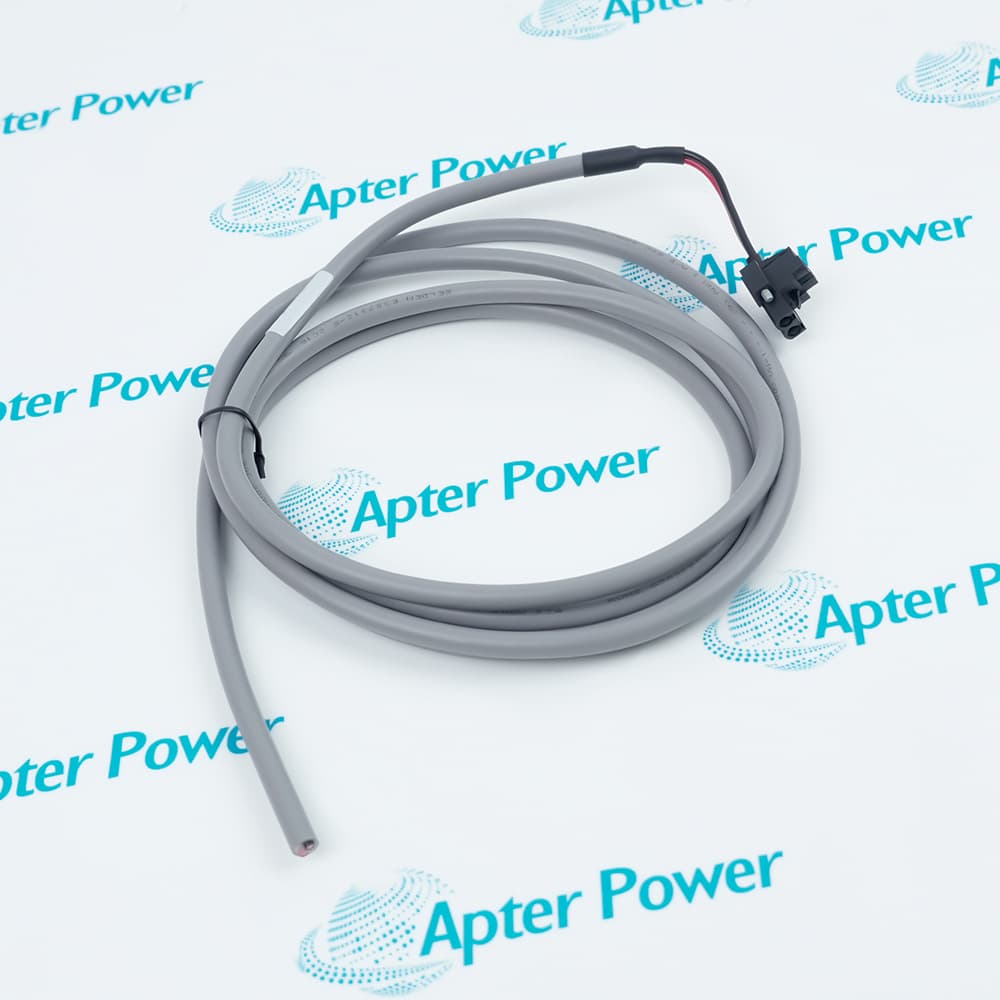

- The PDB side is supplied with the keyed connector and screws, while the device side is intentionally left without a connector.
- The loose device-end conductors must be cut to the required length and fitted with a connector suitable for the connected device.
- The red conductor is assigned to +24 VDC and the black conductor to 0 VDC, so polarity must be preserved during termination.
- The official cable specification is two-core 1.31 mm2, equivalent to AWG 16, with tri-rated conductor construction.
- The documented cable length is 2 m, equivalent to 78.74 in, before any device-end trimming is performed.
- The board-side termination uses a two-pole Weidmuller BLZ 5.08/2F housing with DFFC 1.5-2.5 SN E crimp contacts.
