        10024/I/F

        / 4.9
        1001 reviews ｜ Need a Specific Revision?
        The 10024/I/F is a Honeywell Fail Safe Control enhanced communication module with I‑interface (2 Mbaud, >6kV isolation) and F‑interface (38.4 Kbaud), supporting up to 16 interfaces per system.
        Get a quick price for 10024/I/F
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 10024/I/F

        • Manufacturer:
          Honeywell
        • Part Number:
          10024/I/F
        • Product Family:
          Honeywell Safety Systems
        • Product Type:
          Communication Module
        • Approvals:
          CE, UL, TUV
        • Software Version Required:
          ≥2.78f (configuration ≥530)
        • Space Requirements:
          8 TE, 3 HE (8 HP, 3U)
        • Max. I‑interfaces per System:
          16
        • I‑interface (A) Max Baud Rate:
          2 Mbaud
        • F‑interface (B) Max Baud Rate:
          38.4 Kbaud
        • Galvanic Isolation (I‑interface):
          >6 kV
        • I‑interface Cable Lengths:
          ≤100 Kbaud: 1.2 km; 125 Kbaud: 1 km; 1 Mbaud: 120 m; 2 Mbaud: 60 m
        • F‑interface Cable Lengths:
          ≤19.2 Kbaud: 15 m; 38.4 Kbaud: 10 m (with proper cable)
        • Power Requirement:
          5V DC, 650 mA
        • Ripple Content:
          <50 mV p‑p
        • Weight:
          0.28 kg
        • Estimated shipping dimensions:
          4x18.5x12.8cm
        • Tariff Code:
          8517795000
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Application Safety and Compliance Communication

        Features:

        • I‑interface (A) up to 2 Mbaud; F‑interface (B) up to 38.4 Kbaud; supports up to 16 I‑interfaces per system.
        • >6kV isolation on I‑interface; allows long cable runs (up to 1.2 km) and connection to hazardous area equipment.
        • 8 TE (8 HP, 3U) form factor; CE, UL, TUV approvals; 5V DC at 650 mA power requirement.
        The 10024/I/F enhanced communication module provides two independent communication channels. The I‑interface (A) operates at high speeds up to 2 Mbaud, making it suitable for real‑time data exchange between Fail Safe Control controllers and remote I/O. The F‑interface (B) operates at up to 38.4 Kbaud, ideal for connecting to legacy devices, diagnostic tools, or lower‑speed networks. The system supports up to 16 I‑interfaces, allowing large distributed architectures. The I‑interface uses a 9‑pin male connector, while the F‑interface uses a 9‑pin female connector, preventing accidental cross‑connection.

        The 10024/I/F features galvanic isolation of >6kV on the I‑interface (A). This exceptionally high isolation voltage is critical for Fail Safe Control applications where the module may be connected to equipment in hazardous areas (e.g., Zone 2) or exposed to voltage transients from lightning strikes or switching surges. The isolation protects the central controller from field wiring faults, eliminating ground loops and preventing damage to sensitive electronics. For long‑distance communication, the I‑interface supports cable lengths up to 1.2 km at baud rates ≤100 Kbaud, 1 km at 125 Kbaud, 120 m at 1 Mbaud, and 60 m at 2 Mbaud.

        The 10024/I/F is designed for space‑efficient installation in Fail Safe Control racks. Its 8 TE (8 HP, 3U) footprint – approximately 40 mm wide in a standard 19‑inch rack – allows high module density, essential for systems with many communication channels. The module requires software version ≥2.78f (configuration ≥530). Engineers should verify software compatibility before installation. Power requirement is 5V DC at 650 mA with a maximum ripple content of 50 mV p‑p. The module is approved by CE, UL, and TUV, making it suitable for use in safety‑related applications such as emergency shutdown (ESD), burner management (BMS), and fire & gas (F&G) systems.

        The 10024/I/F Honeywell Communication Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL)by the manufacturer (OEM).

        Honeywell 10024/I/F Communication Module Manuals, Datasheets,Drivers,Link Important Notice:Other accessories,manuals,cables,calibration data,software,etc.are not included with this equipment unless listed in the above stock item description.All prices are shown in USD.
        Honeywell 10024/I/F Communication Module Specs

        General

        • Manufacturer Honeywell
        • Model 10024/I/F
        • Condition New Original ready stock
        • Product Family 10024/I,10024/F,10024/I/F-X
        Important Notice:Other accessories,manuals,cables,calibration data,software,etc.are not included with this equipment unless listed in the above stock item description.All prices are shown in USD.
        • Emergency Shutdown System (ESD): Activates safety protection procedures when a hazard occurs.
        • Fire and Gas Monitoring (F&G): Used for sensor data acquisition and alarm triggering in critical areas.
        • Burn Management System (BMS): Monitors combustion safety in boilers and furnaces.
        • Critical Process Control: Such as process safety management in oil and gas extraction, refineries, and chemical plants.
        • Functional Safety Certification: The entire FSC system is SIL 3 (Safety Integrity Level 3) certified, complying with IEC 61508 safety standards.
        • Fault Tolerance and Redundancy: Supports dual-CPU redundancy configuration; in the event of a single component failure, the system can switch to a backup path to prevent communication interruption.
        • Wide Temperature Range Operation: Operates stably in extreme environments ranging from -40°C to +85°C.
        • Industrial-Grade Construction: Possesses strong anti-interference capabilities, suitable for installation in industrial cabinets with strong electromagnetic interference.
        • Physical Interface: Supports RS-232, RS-422, and RS-485 communication interfaces.
        • Transmission Distance: In RS-422/485 mode, the transmission distance can reach up to 1,200 meters.
        • Data Rate: Communication rate up to 19.2 kbps (higher speeds are supported in some configurations with RS-232).
        • Dual Protocol Support: The module supports simultaneous operation of RS-232 and RS-422/485 interfaces, enhancing system interoperability.
        Description
        The 10024/I/F is an enhanced communication module for Honeywell Fail Safe Control systems. It features two communication interfaces: I‑interface (A) for high‑speed data exchange up to 2 Mbaud, and F‑interface (B) for lower‑speed communication at 38.4 Kbaud. The module has CE, UL, and TUV approvals.

        When using the 10024/I/F, engineers benefit from >6kV galvanic isolation on the I‑interface, allowing connection to hazardous area equipment. The I‑interface supports cable lengths up to 1.2 km at lower baud rates, decreasing to 60 m at 2 Mbaud. The F‑interface supports up to 15 m (or 10 m with proper cables).

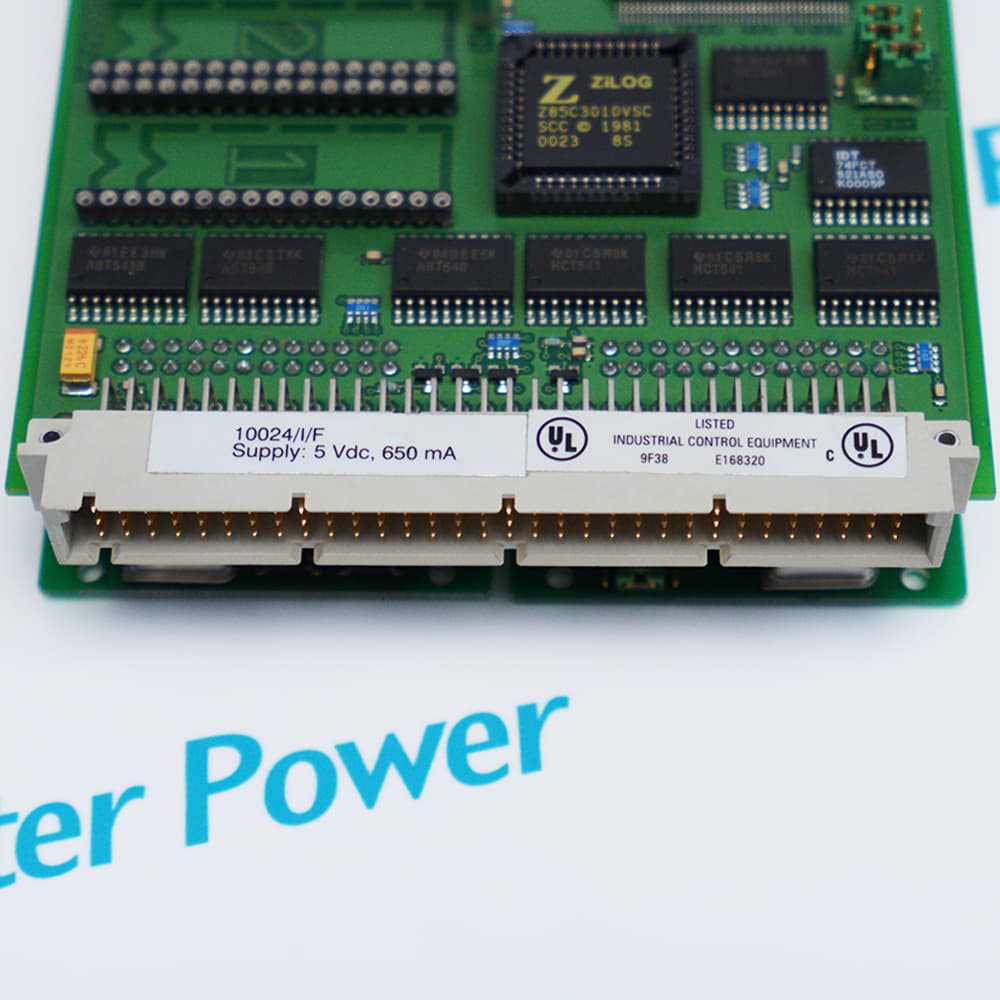

        The 10024/I/F has a 9‑pin male connector for the I‑interface and a 9‑pin female connector for the F‑interface. Power requirements are 5V DC at 650 mA with ripple content <50 mV p‑p. A maximum of 16 I‑interfaces can be installed in a single system.

        For legacy Fail Safe Control system expansions or repairs, the 10024/I/F provides critical communication enhancement. It is designed for safety‑related applications requiring high isolation and reliable data transfer over long distances.
        Alternative Names
        10024/I 10024/F 10024/I/F-X
        Technical notes
        The 10024/I/F requires software version ≥2.78f (configuration ≥530). Older system versions must be upgraded before installing this module. Always verify compatibility with your existing Fail Safe Control system.The I‑interface (A) provides >6kV galvanic isolation, but the F‑interface (B) does not have specified isolation.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        How far can the 10024/I/F communicate?
        The 10024/I/F I‑interface supports up to 1.2 km at ≤100 Kbaud, 1 km at 125 Kbaud, 120 m at 1 Mbaud, and 60 m at 2 Mbaud. The >6kV galvanic isolation allows safe connection to hazardous area equipment.
        Does the 10024/I/F provide isolation?
        Yes. The 10024/I/F provides >6kV galvanic isolation on the I‑interface. This protects the central controller from voltage spikes, ground loops, and lightning strikes, making it suitable for Fail Safe Control systems in power plants and chemical facilities.
        How many 10024/I/F modules can be used in one system?
        The 10024/I/F supports a maximum of 16 I‑interfaces per system. The module occupies 8 TE (8 HP, 3U) of rack space. Each module adds one I‑interface and one F‑interface to the Fail Safe Control system.
        What power does the 10024/I/F need?
        The 10024/I/F requires 5V DC at 650 mA with a ripple content of <50 mV p‑p. Always ensure the power supply meets these specifications. Do not remove or replace the module while the Central Part is powered.
