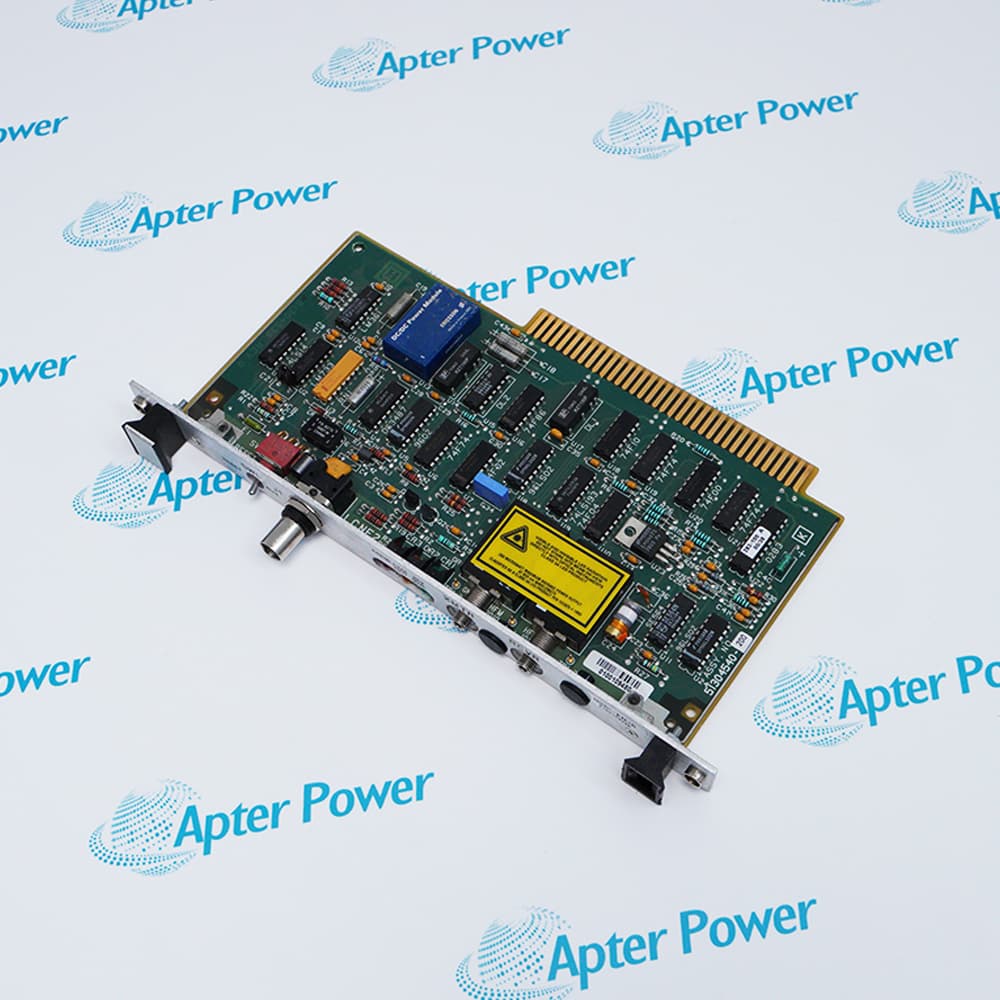

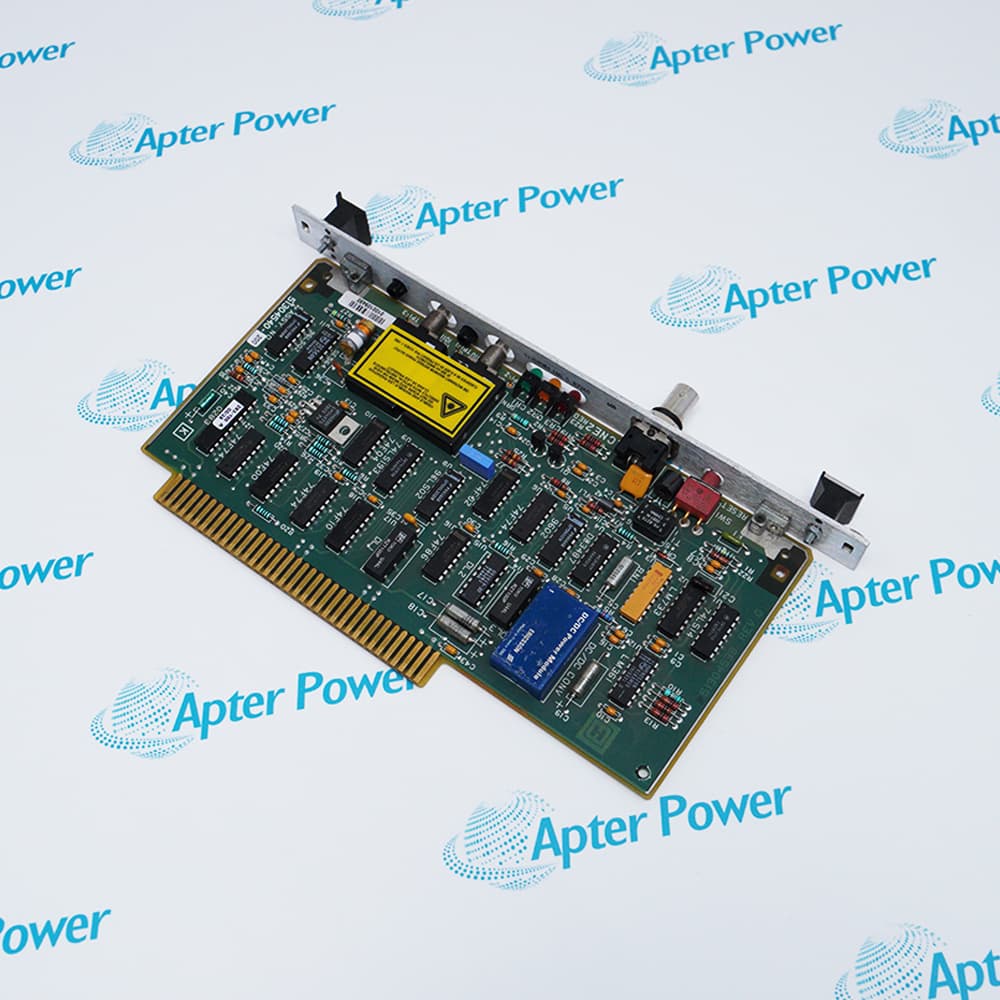

The Honeywell 51304540-200 is an LCNE2 Paddle Board for TDC 3000 systems, used as an LCN Extender to connect remote cabinets via fiber optic cable with SMA connectors.
Get a quick price for 51304540-200
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 51304540-200

  • Manufacturer:
    Honeywell
  • Part Number:
    51304540-200
  • Product Family:
    Honeywell TPS Series
  • Product Type:
    LCNE2 Paddle Board
  • Connector Type:
    SMA Type fiber optic connectors
  • Compatibility:
    Compatible with non-CE LCNE2; NOT compatible with XLCNE2
  • Weight:
    0.24 kg
  • Estimated shipping dimensions:
    2x13.5x23.8cm
  • Tariff Code:
    8517795000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals pecifications Application Protection Mechanisms Installation and Upgrade

Features:

  • Extends Honeywell TDC 3000 Local Control Network (LCN) to remote locations using fiber optic cables; supports long-distance communication with high noise immunity
  • Uses SMA Type fiber optic connectors for reliable optical signal transmission; typically deployed in sets of four boards for redundant A/B cable paths
  • Designed specifically for TDC 3000 DCS; critical spare part for existing installations since the replacement XLCNE2 is not backward compatible
The 51304540-200 (LCNE2 Paddle Board) is specifically designed to extend the Local Control Network (LCN) in Honeywell TDC 3000 Distributed Control Systems. In large industrial facilities such as oil refineries, chemical plants, and power stations, control cabinets may be physically separated by hundreds of meters. Standard copper-based LCN communication is limited in distance and susceptible to electrical noise. The 51304540-200 solves this by converting electrical LCN signals to optical signals for transmission over fiber optic cables. Optical fiber provides complete electrical isolation, immunity to electromagnetic interference (EMI) from motors, drives, and switchgear, and supports much longer cable runs.

The 51304540-200 uses SMA (SubMiniature version A) Type fiber optic connectors, a threaded standard known for its robust mechanical connection and low loss in industrial environments. A typical LCN extension configuration requires four boards: one for the A cable and one for the B cable at the local cabinet, and another pair at the remote cabinet. The A and B cables provide redundant communication paths – if one fiber is damaged, the other continues to operate. The SMA connectors ensure that the fiber optic cables remain securely attached, even in high-vibration areas near rotating machinery.

The 51304540-200 is a discontinued product, but it remains a critical spare part for the thousands of Honeywell TDC 3000 systems still in operation worldwide. Honeywell has introduced the XLCNE2 as a replacement, but crucially, the XLCNE2 is not compatible with existing LCNE2-based systems. This means that plants using the 51304540-200 cannot simply upgrade to the newer board; they must either maintain their existing LCNE2 spares or undertake a larger system migration. For plant operators, this compatibility lock-in makes the 51304540-200 an essential inventory item.

The 51304540-200 Honeywell LCNE2 Paddle Board may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL)by the manufacturer (OEM).

Honeywell 51304540-200 LCNE2 Paddle Board Manuals, Datasheets,Drivers,Link Important Notice:Other accessories,manuals,cables,calibration data,software,etc.are not included with this equipment unless listed in the above stock item description.All prices are shown in USD.
Honeywell 51304540-200 LCNE2 Paddle Board Specs

General

  • Manufacturer Honeywell
  • Model 51304540-200
  • Condition New Original ready stock
  • Product Family 51304540-100,51304540-150
Important Notice:Other accessories,manuals,cables,calibration data,software,etc.are not included with this equipment unless listed in the above stock item description.All prices are shown in USD.
  • Oil and Gas Refining: Used to connect central control rooms and field processing units located far apart.
  • Chemical and Petrochemical Plants: Utilizes fiber optics to extend communications in areas with electromagnetic interference or flammability risks to ensure signal isolation and safety.
  • Power Generation: Monitors generator units and grid equipment distributed throughout the plant area.
  • Remote Operating Station Connections: When the distance between the universal station and the LCN coaxial cable segment exceeds the 300-meter limit, LCNE2 is used to extend the communication distance to a maximum of 2 kilometers.
  • Fiber Optic Media Protection: Utilizes the inherent electromagnetic interference (EMI) immunity of fiber optic transmission to prevent damage to the control network from lightning strikes or high-voltage equipment.
  • Redundant Configuration: Typically used in pairs, automatically switching to a backup path when the primary path fails, ensuring uninterrupted communication.
  • Hardware Self-Diagnosis: Supports online status analysis via TDC 3000's system maintenance tools; LED indicators on the modules provide real-time feedback on communication health.
  • Electrical Protection: This version is CE certified, compliant with European electromagnetic compatibility directives, and offers superior electrical stability.
  • Installation Notes: The chassis power must be turned off before removing or installing the Paddle Board; otherwise, backplane wiring may be burned out.
  • Slot Restrictions: It must be installed in a specific numbered slot (e.g., a specific location in an LCN 10 slot chassis). Incorrect insertion may damage the device.
  • System Migration: For legacy systems, the existing LCN network can be integrated into a more modern management environment by installing the LCN Upgrade Kit.
Description
The 51304540-200 is an LCNE2 Paddle Board (CE version) designed for Honeywell’s TDC 3000 Distributed Control System (DCS). It functions as an LCN Extender, enabling the Local Control Network (LCN) to be extended to remote locations using fiber optic cables.

When using the 51304540-200, engineers typically deploy four boards for a complete extension: one for each of the A and B cables at both ends of the extension. The board uses SMA Type fiber optic connectors and is fully compatible with the non-CE version of the LCNE2.

The 51304540-200 has been discontinued by Honeywell and replaced by the XLCNE2. However, the XLCNE2 is not compatible with the LCNE2, making the original board a critical spare part for existing TDC 3000 installations.

For legacy Honeywell TDC 3000 system expansions or repairs, the 51304540-200 provides a direct solution for LCN extension. Its strong resistance to electromagnetic interference and built-in error-checking functions maintain signal integrity over long distances.

Alternative Names
51304540-100 XLCNE2 51304540-150
Technical notes
The 51304540-200 is an LCNE2 Paddle Board specifically designed for Honeywell TDC 3000 systems. It serves as an LCN Extender, allowing the Local Control Network to be extended to remote locations using fiber optic cables with SMA Type connectors.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How does 51304540-200 extend the LCN network?
The 51304540-200 (LCNE2) extends the Local Control Network via fiber optic cables using SMA connectors. Four boards are typically required – one for each A/B cable at both ends of the extension, enabling reliable communication between remote cabinets .
Is the 51304540-200 suitable for noisy industrial environments?
Yes. The 51304540-200 uses fiber optic communication, which provides strong resistance to electromagnetic interference. It also features built-in error-checking functions to maintain signal integrity over long distances in power plants, refineries, and chemical facilities.
How many 51304540-200 boards are needed for a complete extension?
A typical LCN extension requires four 51304540-200 boards – one for each of the A and B cables at the local end, and one for each of the A and B cables at the remote end. This provides redundant communication paths for high availability.
