MC-TDOR62 51309150-275

/ 4.9
1001 reviews | Need a Specific Revision?

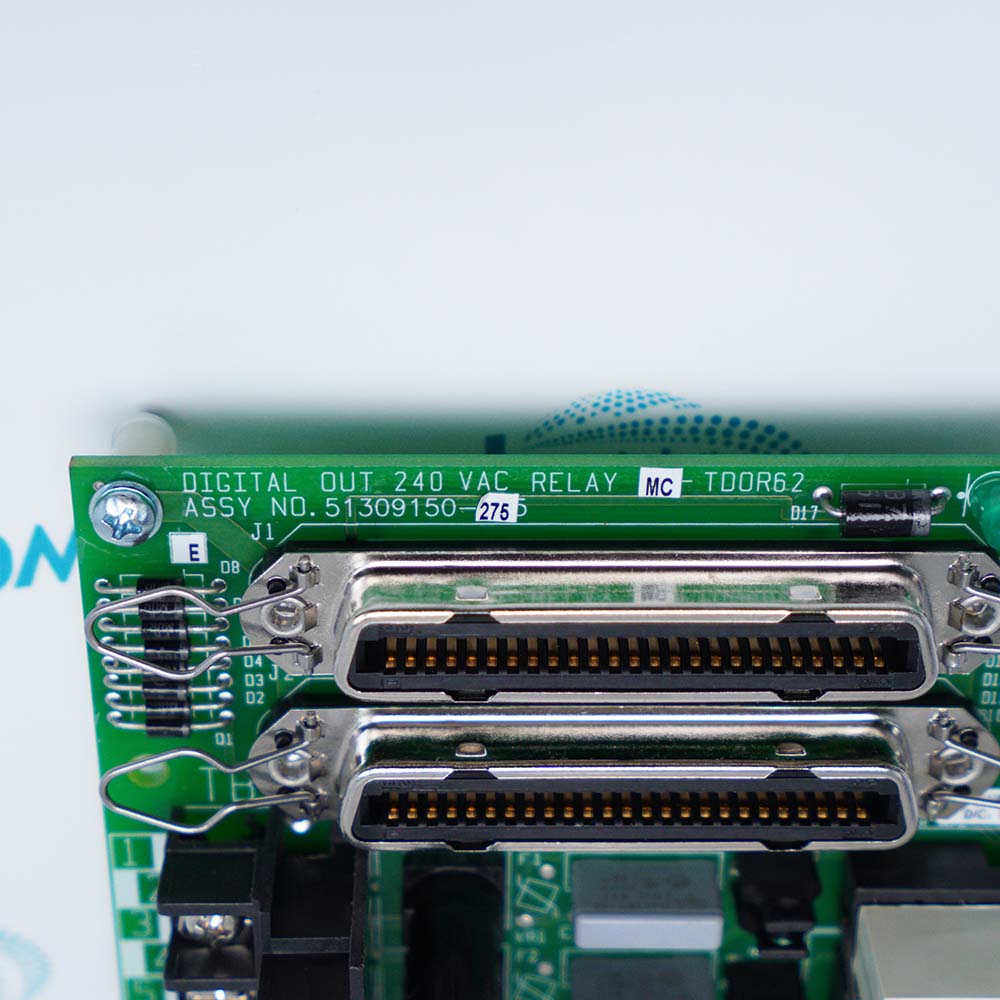

Honeywell MC-TDOR62 51309150-275 is a CE-compliant 16-channel relay digital output FTA for 240 Vac or 125 Vdc service. The Size B assembly uses screw terminals in HPM and APM I/O systems.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for MC-TDOR62 51309150-275
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for MC-TDOR62 51309150-275

  • Manufacturer:
    Honeywell
  • Part Number:
    MC-TDOR62 51309150-275
  • Product Family:
    Honeywell TPS Series
  • Product Type:
    Digital Output 240 Vac/125 Vdc Relay FTA
  • Stock:
    1
  • Terminal Type:
    S
  • Channels:
    16
  • Mounting Size:
    B
  • Voltage:
    Max 240 Vac / 125 Vdc
  • Current:
    Max 3 Amps per point
  • Power:
    Max 12 Watts total consumption
  • Compatibility:
    Honeywell HPM / APM DO IOP
  • Certification:
    CE Compliant
  • Weight:
    1.6755 lbs (0.76 kg)
  • Estimated shipping dimensions:
    30.6x12.5x2cm
  • Tariff Code:
    8461500090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Safety & Compliance Protection

Features:

  • 16-channel relay output structure designed for organized digital field termination
  • Supports high-voltage switching up to 240 Vac and 125 Vdc per system specification
  • Compatible with Honeywell HPM and APM DO IOP control architectures for structured integration
Honeywell MC-TDOR62 51309150-275 is designed to support structured relay-based digital output distribution in industrial automation environments. It provides 16 independent channels that allow controlled switching between control systems and field devices. The MC-TDOR62 51309150-275 is built to handle both AC and DC output requirements, making it suitable for diverse industrial electrical configurations. Its defined electrical limits ensure stable relay operation within specified system boundaries.

In control system integration, MC-TDOR62 51309150-275 serves as a termination interface that organizes signal routing between automation controllers and external loads. The relay-based structure allows clear separation between logic control and field execution layers. MC-TDOR62 51309150-275 maintains consistent channel distribution, supporting reliable signal handling in multi-loop industrial environments. Its standardized mounting format simplifies physical integration into Honeywell system racks.

From an application perspective, MC-TDOR62 51309150-275 contributes to structured control system design by providing predictable relay switching behavior. The unit supports compatibility with Honeywell HPM and APM DO IOP systems, ensuring alignment with established process control architectures. MC-TDOR62 51309150-275 is suitable for installations requiring organized wiring, controlled output distribution, and stable relay operation across multiple channels.

The MC-TDOR62 51309150-275 Honeywell Digital Output 240 Vac/125 Vdc Relay FTA may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Verified resources for Honeywell MC-TDOR62 51309150-275:Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Honeywell MC-TDOR62 51309150-275 Digital Output 240 Vac/125 Vdc Relay FTA Specs

General

  • Manufacturer Honeywell
  • Model MC-TDOR62 51309150-275
  • Condition New Original ready stock
  • Product Family MC-TDOD53 51304650-250,MC-TDOD54 51309153-275,MC-TDOD22 51304428-150
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Switches sixteen discrete field loads through isolated relay output points in HPM or APM installations.
  • Supports AC and DC actuator, alarm, and interposing-relay circuits within the published limits.
  • Provides a CE-compliant size-B field termination assembly for documented digital-output IOP arrangements.
  • The -275 configuration is the CE-listed version in the Honeywell Process Manager FTA selection tables.
  • Field power must be isolated before relay wiring or output cable connections are disturbed.
  • Load voltage, current, and cabinet protection must remain within the approved installation design.
  • Inductive loads require suppression selected for the actual coil and switching supply.
  • Circuit protection should coordinate with the relay contact rating and the connected field wiring.
  • A stuck or damaged output should be diagnosed together with the load, fuse, suppression, and IOP command.
Description
Honeywell MC-TDOR62 51309150-275 is a digital output relay field termination assembly engineered for industrial control signal handling. It supports 240 Vac and 125 Vdc output levels with a maximum of 3 Amps per point, enabling stable relay switching performance in distributed control environments. The MC-TDOR62 51309150-275 is configured with 16 channels and Terminal Type S, providing structured and organized signal termination for automation systems.

The MC-TDOR62 51309150-275 is designed in Mounting Size B, allowing integration into standardized Honeywell system architectures. With a total power consumption of up to 12 Watts, it maintains controlled energy usage while supporting multi-channel relay operations. Its compatibility with Honeywell HPM and APM DO IOP platforms ensures consistent electrical interfacing within established process control infrastructures.

In industrial automation environments, Honeywell MC-TDOR62 51309150-275 functions as a relay interface point between control logic and field devices. Its CE compliance supports standardized deployment requirements in regulated installations. The structure of the MC-TDOR62 51309150-275 ensures organized wiring termination and stable signal distribution across multiple output channels.
Alternative Names
MC-TDOR12 51309148-175 MC-TDOR52 51309148-275 MC-TDOR22 51309150-175 MC TDOY23 80366189-175 MC TDOY63 80366185-175 MC-TDOA12 51304408-150 MC-TDOA13 51304648-175 MC-TDOA52 51304408-250 MC-TDOA53 51304648-275
Technical notes
Isolate field power before servicing MC-TDOR62 51309150-275 and verify the relay-load suppression required by the connected circuit, especially with inductive loads.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which field circuits are suitable for MC-TDOR62 51309150-275?
It is a 16-point relay-output FTA for switched AC or DC loads within the documented 240 Vac and 125 Vdc limits.
How should inductive loads be prepared for MC-TDOR62 51309150-275?
Select suppression for the actual coil and supply so relay contacts are not exposed to uncontrolled switching transients.
What physical configuration identifies MC-TDOR62 51309150-275?
The -275 version is the CE-compliant size-B relay-output FTA with screw-terminal field connections.
Which control-system hardware works with MC-TDOR62 51309150-275?
Use it with the applicable Honeywell HPM or APM digital-output IOP and the documented FTA cable arrangement.
What must be preserved when replacing MC-TDOR62 51309150-275?
Keep the channel-to-relay wiring map, load voltage, fuse or protection scheme, suppression, cable identity, and mounting arrangement.
What should be included in a manual or quote request for MC-TDOR62 51309150-275?
Send the full 51309150-275 code, cabinet and terminal photos, IOP identity, load information, quantity, and destination.
