        • Lifecycle status

          OEM Lifecycle Status Not Confirmed
          Apter Power supports processor identity review, documentation, and sourcing for this high-level analog-input requirement.

        MC-PAIH03 51304754-150

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

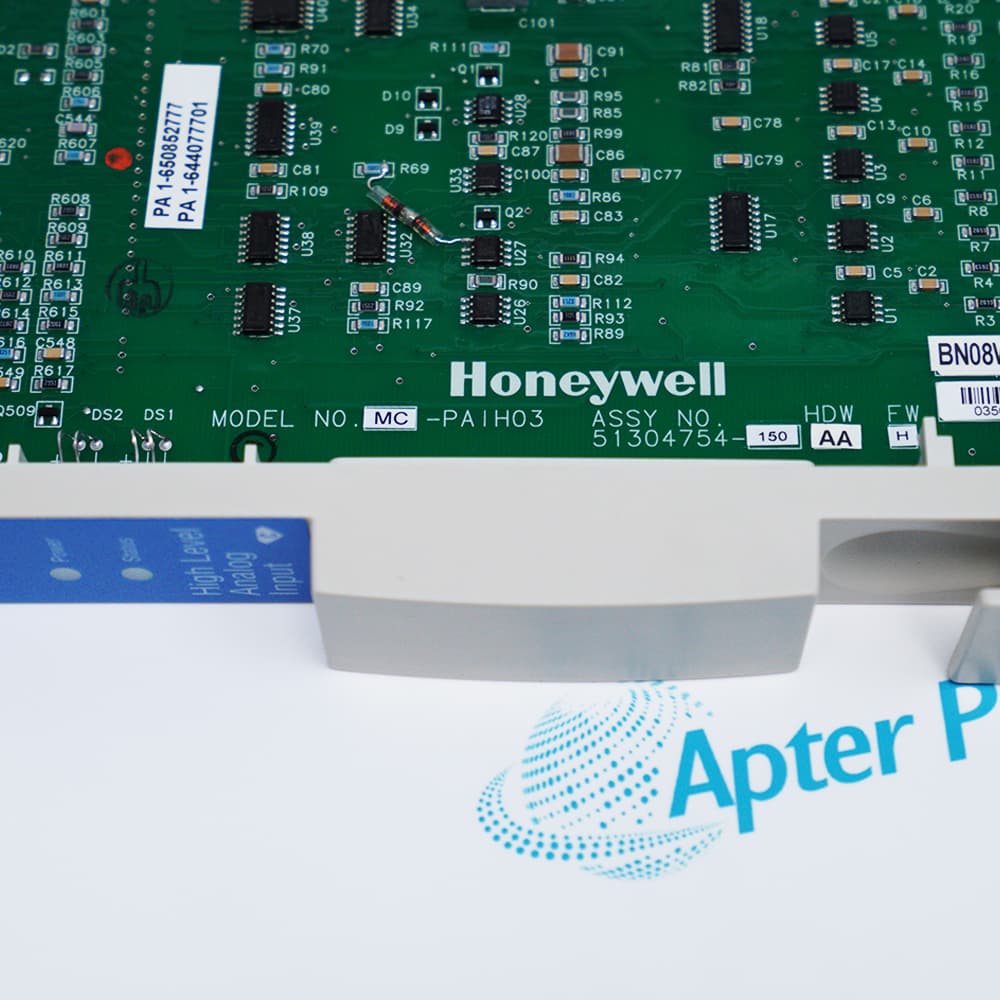

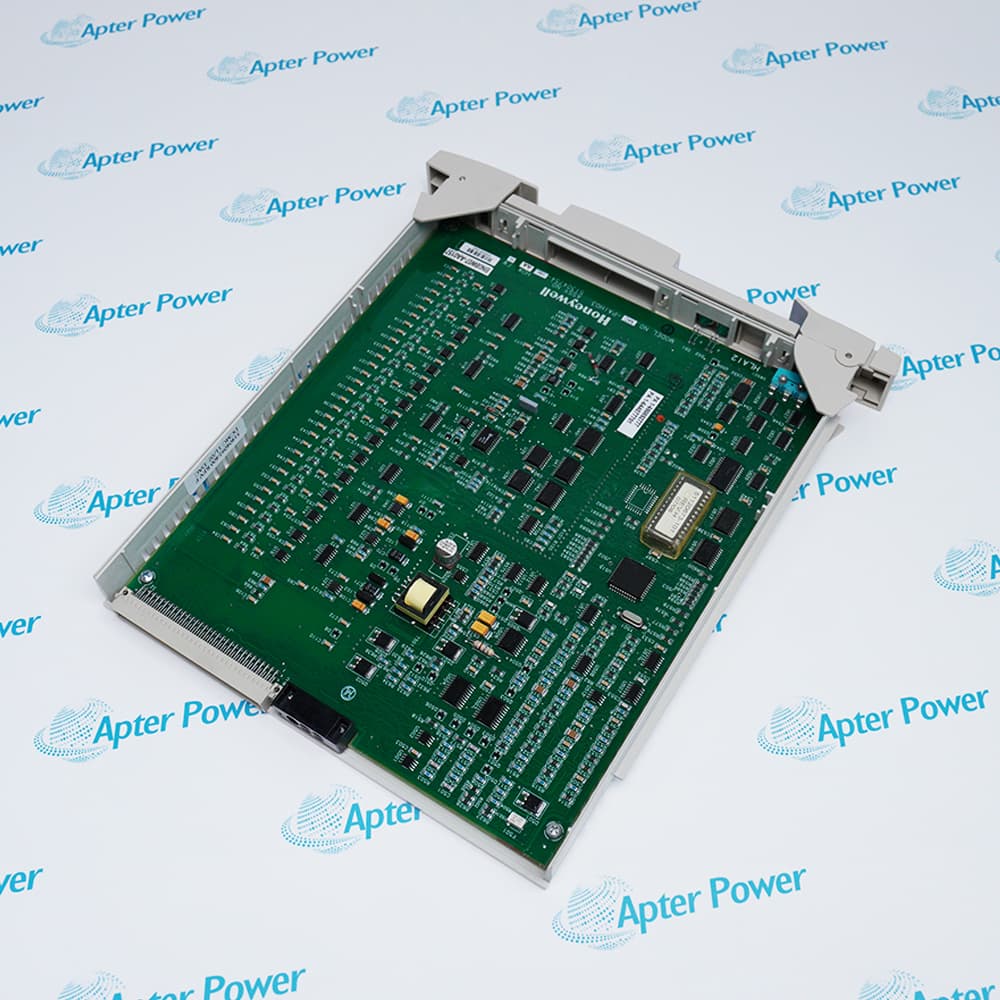

        Honeywell MC-PAIH03 51304754-150 is a 16-channel differential high-level analog input processor for HPM voltage and current signals.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for MC-PAIH03 51304754-150
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for MC-PAIH03 51304754-150

        • Manufacturer:
          Honeywell
        • Part Number:
          MC-PAIH03 51304754-150
        • Product Family:
          Honeywell TPS Series
        • Product Type:
          High Level Analog Input Processor (16 Inputs)
        • Stock:
          1
        • Compatible FTA Models:
          MU-TAIH02, TAIH12, TAIH52, TAIH03, TAIH13, TAIH23, TAIH53, TAIH22, TAIH62
        • Input Type:
          Voltage and current; two-wire or self-powered transmitters
        • Input Channels:
          16 differential
        • Common-Mode Rejection:
          70 dB, DC to 60 Hz
        • Common-Mode Voltage:
          −6 to +5 V peak
        • A/D Resolution:
          16 bits; 14 bits used
        • Input Ranges:
          0–5 V, 1–5 V, 0.4–2 V, 4–20 mA
        • Normal-Mode Rejection:
          32 dB at 60 Hz
        • Normal-Mode Filter:
          Single-pole RC, −3 dB at 1 Hz
        • Maximum Differential Input:
          30 V without damage
        • Channel Crosstalk:
          60 dB, DC to 60 Hz
        • Input Scan Rate:
          4 samples/s/channel; all channels within 250 ms
        • Weight:
          0.58 kg
        • Estimated shipping dimensions:
          3x31.3x27.8cm
        • Tariff Code:
          8537101190
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Input Channels Filtering and Rejection FTA and Revision Boundary Product Applications

        Features:

        • Sixteen differential inputs: Acquires supported voltage and 4–20 mA process signals.
        • HPM processing: Samples each channel four times per second within a 250 ms complete scan window.
        • FTA-based wiring: Uses a compatible Honeywell field termination assembly for field connections.
        MC-PAIH03 51304754-150 is a high-level analog input processor for an installed Honeywell HPM configuration.

        Its input ranges, filtering, rejection performance, FTA, grounding, and database setup define the measurement path.

        The exact -150 suffix should remain with the installed record and should not be merged with a -176 revision without Honeywell evidence.

        Apter Power supports MC-PAIH03 51304754-150 enquiries with sourcing, documentation, FTA review, and HPM configuration guidance.
        Honeywell MC-PAIH03 51304754-150 High Level Analog Input Processor Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Channel capacity: The processor handles 16 differential analog inputs.
        • Signal types: The installed configuration can use supported voltage ranges or 4–20 mA from two-wire or self-powered transmitters.
        • Conversion: A 16-bit A/D converter supplies 14 measurement bits to the process value.
        • FTA dependency: The usable signal range and transmitter power path depend on the matched field termination assembly and wiring.
        • Sampling: Each channel is sampled four times per second, with all channels scanned within 250 ms.
        • Rejection: Published performance includes 70 dB common-mode and 32 dB normal-mode rejection.
        • Filtering: The normal-mode path uses a single-pole RC filter with a −3 dB point near 1 Hz.
        • Noise review: Shielding, grounding, common-mode voltage, and the FTA wiring should be checked before attributing unstable values to the IOP.
        • FTA match: Confirm the exact compatible high-level analog input field termination assembly and terminal map from the installed drawings.
        • Revision control: Preserve part number 51304754-150 and do not assume another suffix is interchangeable.
        • Installed context: Retain HPM slot, ranges, channel assignments, wiring, grounding, cabling, and database configuration.
        • Commissioning evidence: Save loop checks, zero and span records, transmitter-power arrangement, and any channel-specific configuration.
        • Process measurement: Acquires voltage and current signals from compatible transmitters and signal sources.
        • HPM control: Supplies configured analog measurements to legacy High-Performance Process Manager strategies.
        • Signal conditioning: Applies the documented sampling, filtering, and rejection behavior before measurements reach the control database.
        • Maintenance replacement: Supports exact-model service where FTA, part suffix, ranges, and database records must be retained.
        Description
        MC-PAIH03 51304754-150 is a Honeywell high-level analog input processor for an HPM installation. It provides 16 differential input channels for supported voltage ranges and 4–20 mA signals from two-wire or self-powered transmitters.

        The conversion path in MC-PAIH03 51304754-150 uses a 16-bit converter with 14 bits applied to measurement data. Each channel is sampled four times per second, with all channels sampled within a 250 ms window, while common-mode, normal-mode, and channel-to-channel rejection limits define the supported signal environment.

        The processor is used with specified Honeywell field termination assemblies. MC-PAIH03 51304754-150 should be matched by exact part number, FTA model, hardware revision, input range, channel map, grounding, cabling, HPM slot, and database configuration; the -150 and -176 part-number suffixes should not be treated as interchangeable without Honeywell evidence.
        Alternative Names
        MC-PAIH03 51304754-150 MC PAIH03 51304754 150 MCPAIH0351304754150 Honeywell MC-PAIH03 Honeywell 51304754-150 MC-PAIH03-51304754-150 HPM MC-PAIH03
