MC-TSTX03 51309140-175

/ 4.9
1001 reviews | Need a Specific Revision?

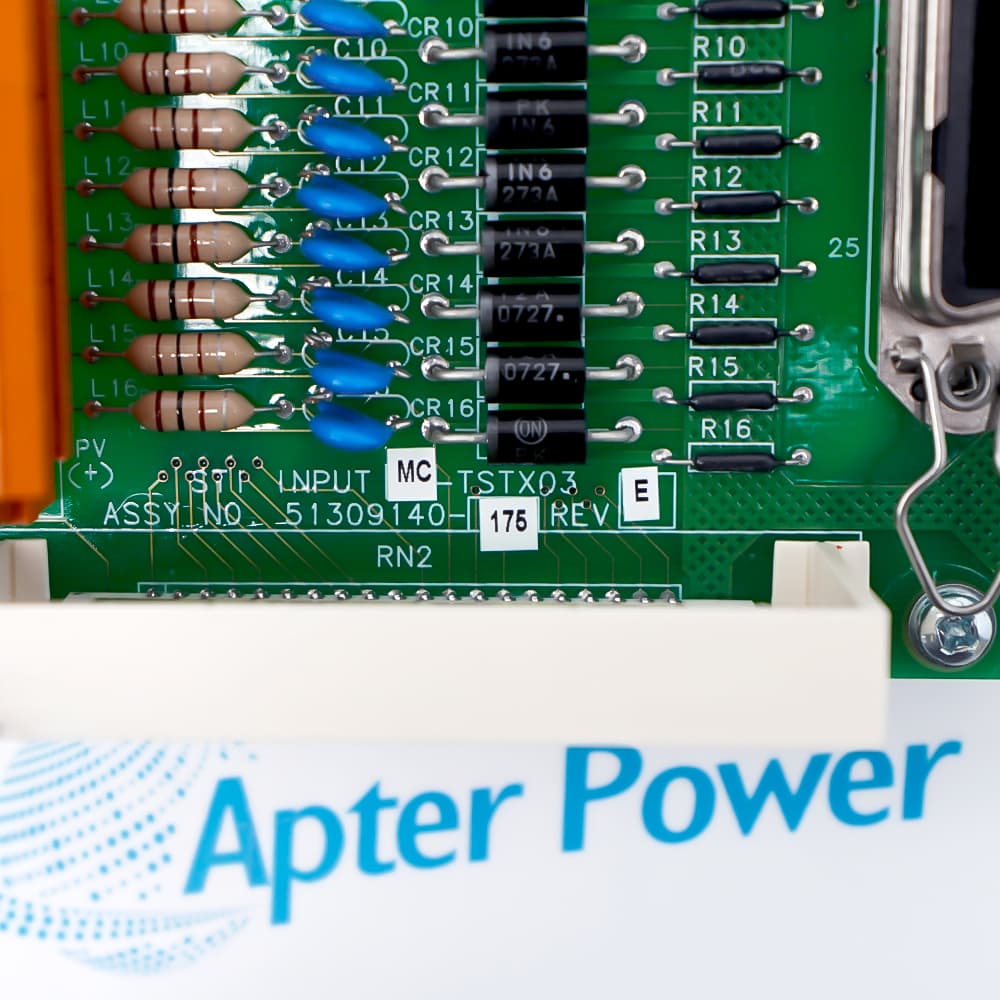

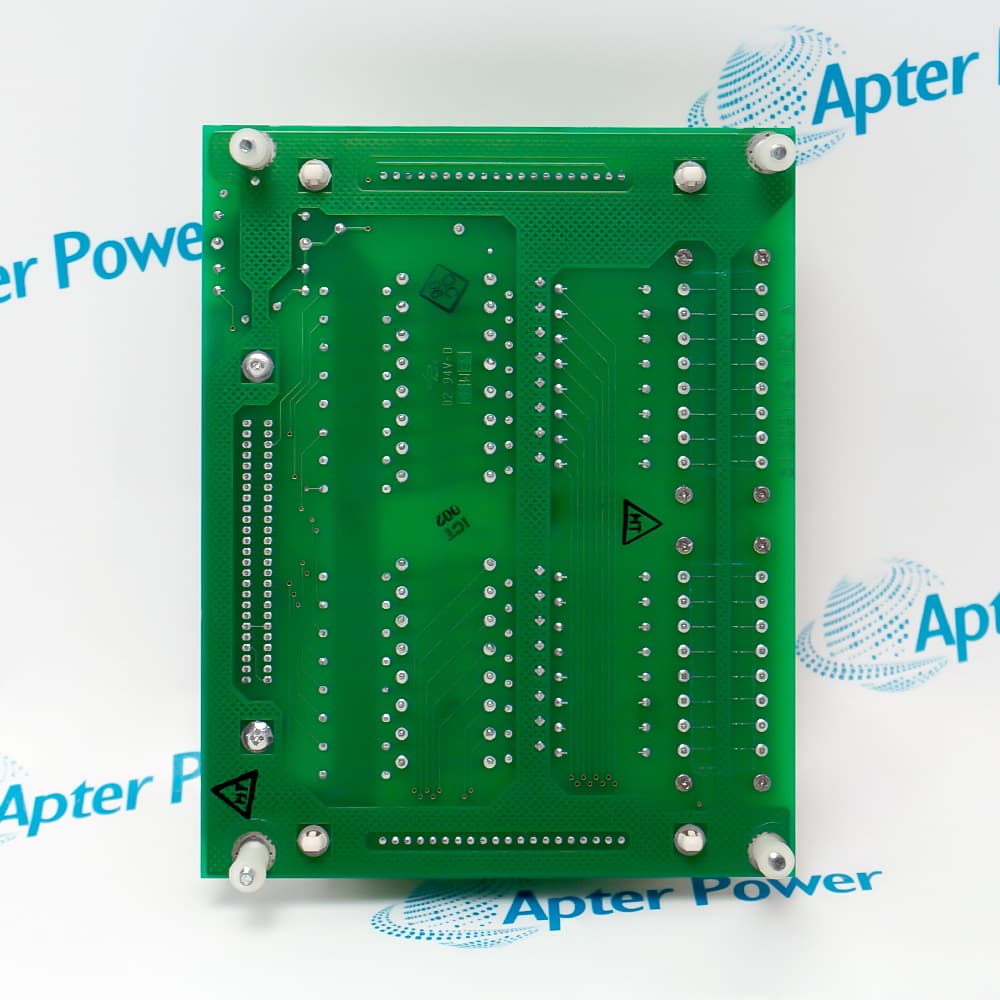

The Honeywell MC-TSTX03 51309140-175 Smart Transmitter Interface FTA connects sixteen Honeywell DE smart-transmitter inputs to TPS Process Manager I/O.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for MC-TSTX03 51309140-175
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for MC-TSTX03 51309140-175

  • Manufacturer:
    Honeywell
  • Part Number:
    MC-TSTX03 51309140-175
  • Product Family:
    Honeywell TPS Series
  • Product Type:
    Smart Transmitter Interface FTA (16 Inputs) (CE Mark)
  • Stock:
    1
  • Assembly Category:
    Field Termination Assembly (FTA)
  • Interface Function:
    Smart Transmitter Interface
  • Input Capacity:
    16 inputs
  • Communication:
    Honeywell DE bidirectional protocol
  • Signal Resolution:
    Passed from the instrument without degradation
  • Maximum Input Voltage:
    -10 V to +30 V
  • Compliance Marking:
    CE Mark
  • Tariff Code:
    8538900000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals DE Interface Input Channels Signal Fidelity Voltage Window

Features:

  • Sixteen Smart Transmitter Interface inputs
  • CE-marked field termination assembly
  • Conformally coated MC model with compression terminals
MC-TSTX03 51309140-175 is the standard STI FTA entry in the Process Manager I/O termination range.

The compression-terminal arrangement of MC-TSTX03 51309140-175 accepts sixteen field connections and passes them through the phone-connector-style system interface.

MC-TSTX03 51309140-175 is not the redundant FTA ordering code; the full model and 51309140-175 part number must remain together when matching installed hardware.

The Honeywell MC-TSTX03 51309140-175 Smart Transmitter Interface FTA (16 Inputs) (CE Mark) is listed as Discontinued / Obsolete by OEM. Apter Power can assist with sourcing, technical documentation, and order-code matching.
Honeywell MC-TSTX03 51309140-175 Smart Transmitter Interface FTA (16 Inputs) (CE Mark) Manuals, Datasheets, Links Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Bidirectional transmitter communications

  • Protocol: MC-TSTX03 51309140-175 supports Honeywell DE communication with compatible smart transmitters.
  • Direction: The interface exchanges information bidirectionally rather than receiving a one-way analog value only.
  • Process values: Sixteen transmitter process-variable inputs are carried through the associated I/O path.
  • FTA boundary: Communication enters through this termination assembly before reaching the Process Manager electronics.

Sixteen-point termination layout

  • Channel total: MC-TSTX03 51309140-175 provides sixteen Smart Transmitter Interface inputs.
  • Field position: Each input begins at the FTA field-connection side.
  • Shared code: All sixteen positions belong to the same MC-TSTX03 assembly identity.
  • Configuration limit: The catalog does not identify MC-TSTX03 as the separate redundant FTA code.

Instrument-resolution transfer

  • Resolution source: For MC-TSTX03 51309140-175, resolution is established by the connected smart instrument.
  • Pass-through behavior: The Process Manager specification states that instrument resolution passes without degradation.
  • Digital path: DE communication retains the transmitter-supplied process information through the interface.
  • Selection effect: Instrument capability, rather than a lower FTA conversion value, determines available resolution.

Published input-voltage boundary

  • Lower limit: MC-TSTX03 51309140-175 is published with a -10 V minimum input boundary.
  • Upper limit: The corresponding maximum input value is +30 V.
  • Signal context: This range describes the interface input limit, not the assembly part number or supply identification.
  • Channel application: The same published boundary applies to the documented sixteen-input Smart Transmitter Interface FTA.
Description
The MC-TSTX03 51309140-175 is a sixteen-input Smart Transmitter Interface Field Termination Assembly for Honeywell Process Manager I/O. The TSTX03 designation identifies the standard STI termination function rather than the combined HLAI/STI variant.

Field conductors land on compression terminals at MC-TSTX03 51309140-175, while its phone-connector-style system interface carries the terminated channels toward the corresponding I/O electronics. This arrangement consolidates the sixteen smart-transmitter connections at the cabinet boundary.

CE-marked construction and the coated MC hardware designation are part of the MC-TSTX03 51309140-175 configuration. Its complete model and part number therefore distinguish it from uncoated assemblies and from separately designated redundant STI FTAs.
Alternative Names
MC TSTX03 51309140 175 MCTSTX03 51309140175 MC-TSTX03 51309140175 MC TSTX03 51309140-175 Honeywell MC-TSTX03 51309140-175 TPS MC-TSTX03 51309140-175 MC-TSTXO3 513O914O-175 MC-TSTX03 5I3O9I4O-I75
Technical notes
MC-TSTX03 51309140-175 is the conformally coated, CE-marked 16-input smart-transmitter FTA with compression terminals; redundant service uses a separate FTA code.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How many smart-transmitter inputs are provided by Honeywell MC-TSTX03 51309140-175?
Honeywell MC-TSTX03 51309140-175 provides sixteen Smart Transmitter Interface input positions.
Which communication method is used with Honeywell MC-TSTX03 51309140-175?
Honeywell MC-TSTX03 51309140-175 supports Honeywell DE bidirectional communication with the connected smart transmitters.
Does Honeywell MC-TSTX03 51309140-175 reduce transmitter resolution?
Honeywell MC-TSTX03 51309140-175 passes instrument resolution through the termination path without degradation.
What maximum input-voltage range applies to Honeywell MC-TSTX03 51309140-175?
Honeywell MC-TSTX03 51309140-175 accepts input voltages from -10 V to +30 V.
Is Honeywell MC-TSTX03 51309140-175 the redundant FTA version?
No. Honeywell MC-TSTX03 51309140-175 is the listed sixteen-input CE-marked FTA; MC-TSTX13 is a separate redundant configuration code.
Where does Honeywell MC-TSTX03 51309140-175 sit in the signal path?
Honeywell MC-TSTX03 51309140-175 provides field termination before smart-transmitter signals enter the associated TPS I/O processing path.
Which identity should be matched when replacing Honeywell MC-TSTX03 51309140-175?
For Honeywell MC-TSTX03 51309140-175, match MC-TSTX03, PWA 51309140-175, the sixteen-input DE interface role, and the installed termination position.

Product Browsing History
