T8300C

/ 4.9
1001 reviews | Need a Specific Revision?

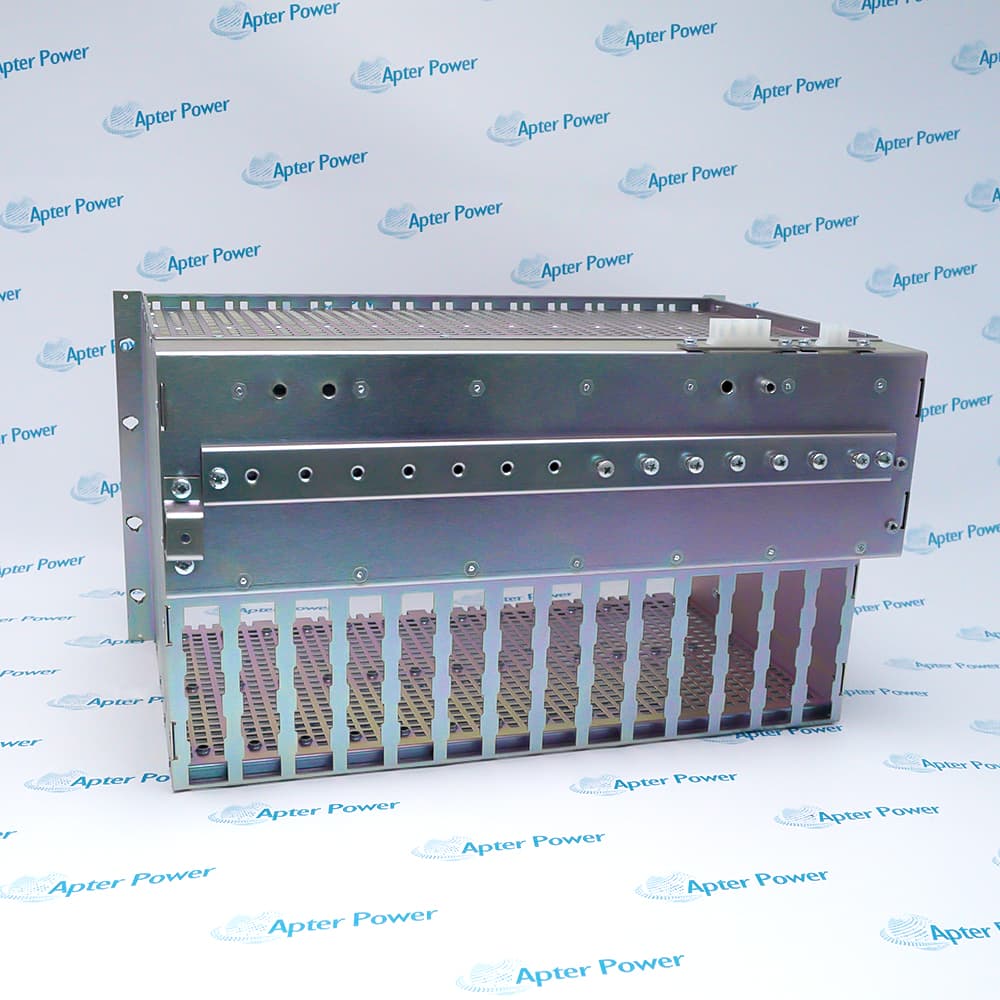

The ICS Triplex T8300C is a Trusted Expander Chassis designed to house expander processors and I/O modules within safety-critical control systems. It provides a reliable platform for system expansion with robust communication capability and flexible mounting options.
In Stock
Ships by Tuesday, September 29
Fast Shipping Available
Get a quick price for T8300C
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for T8300C

  • Manufacturer:
    ICS Triplex
  • Part Number:
    T8300C
  • Product Family:
    Trusted Triple Modular Redundant
  • Product Type:
    Expander Processor
  • Stock:
    1
  • Voltage Range:
    20 Vdc to 32 Vdc
  • Fusing External:
    20 A
  • Connectors:
    14 x DIN 41642, male
  • Expander Comms Max Distance:
    Using TC-301 copper cable: 30 m; Using fibre converters: 10 km.
  • Installation:
    PD-8300
  • Operating Temperature:
    0 °C to +60 °C (+32 °F to +140 °F)
  • Non-operating Temperature:
    -25 °C to +70 °C (-13°F to +158 °F)
  • Relative Humidity range (operating, storage & transport):
    10 % – 95 %, non-condensing
  • Weight:
    5.9 kg
  • Estimated shipping dimensions:
    48.3x33.8x26.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Environmental Compliance Connectivity Security

Features:

  • Supports up to 2 expander processors and 12 I/O modules for scalable system expansion
  • Provides long-distance communication capability up to 10 km via fibre converters
  • Utilizes convection cooling design with no internal serviceable parts
The ICS Triplex T8300C plays a critical role in expanding Trusted system architectures by providing a structured environment for processor and I/O module integration. Its modular design allows flexible system scaling while maintaining reliable interconnection through the built-in backplane. This makes it suitable for applications requiring structured and expandable control systems.

The ICS Triplex T8300C is engineered for stable operation under industrial conditions, supporting a wide voltage input range and maintaining consistent performance across defined temperature and humidity limits. Its communication flexibility allows both short-range and long-distance connections, making it adaptable to various installation layouts.

With its robust mechanical design, the ICS Triplex T8300C simplifies installation and maintenance processes. The chassis supports multiple mounting methods and ensures secure module placement through guided insertion and locking mechanisms. Combined with its passive cooling approach, it delivers reliable long-term operation without complex maintenance requirements.

The T8300C ICS Triplex Trusted Expander Chassis (Coated) may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ICS Triplex T8300C Trusted Expander Chassis (Coated) Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ICS Triplex T8300C Trusted Expander Chassis (Coated) Specs

General

  • Manufacturer ICS Triplex
  • Model T8300C
  • Condition New Original ready stock
  • Product Family T8300,T8153,T8231C
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Emergency Shutdown System (ESD): Used for critical safety interlocks on offshore oil and gas platforms or chemical plants to ensure safe shutdown in emergency situations.
  • Fire and Gas Monitoring System (F&G): Integrates detector signals to trigger alarm and fire suppression logic when a fire or gas leak is detected.
  • Turbine Control: Provides highly reliable monitoring and control for high-speed rotating machinery, preventing overspeed and mechanical damage.
  • Nuclear Power Plant Control: Performs process control tasks with extremely high safety requirements in nuclear power facilities.
  • Coating Protection: The circuit board surface has a conformal coating, effectively blocking the corrosion of moisture, salt spray, and corrosive gases.
  • Extreme Deep-Sea Environment: Employs pressure balancing technology, designed to support stable operation in environments up to 3000 meters deep or under extreme pressure conditions.
  • Fire and Explosion Resistance: Passes API 607 ​​fire resistance testing, meeting the stringent explosion-proof and high-temperature protection standards for oil platforms.
  • SIL3 Certification: TUV certified, compliant with IEC 61508 safety standards, suitable for high-risk industrial environments.
  • Triple Redundancy Architecture (TMR): Employs hardware-implemented 3-to-2 (3-2-0) fault-tolerant technology, maintaining continuous system operation even in the event of a single channel failure.
  • Hot-Swap Support: Supports online module replacement, allowing maintenance without downtime and ensuring uninterrupted production.
  • Automatic Fault Isolation: Built-in diagnostics automatically identify and isolate abnormal channels, preventing faults from spreading to the entire bus.
  • Gold Contact Interface: Connectors feature gold contact design, providing up to 10 years of maintenance-free life and reducing signal attenuation and poor contact.
Description
The ICS Triplex T8300C serves as a core expansion chassis within the Trusted system architecture, enabling the integration of expander processors and multiple I/O modules in a single structure. It supports up to two expander processors and twelve single-width I/O modules, forming a scalable hardware base for complex control systems. The inclusion of an Inter-Module Bus backplane ensures stable electrical interconnection and communication between all installed modules.

Designed for industrial environments, the ICS Triplex T8300C operates within a voltage range of 20 to 32 Vdc and requires external 20 A fusing. Its chassis structure incorporates 14 DIN 41642 male connectors, providing versatile I/O interfacing options. Communication between expanders can be achieved over copper cable up to 30 meters or extended up to 10 kilometers using fibre converters, allowing flexible deployment across distributed systems.

The ICS Triplex T8300C supports both swing frame and fixed frame mounting, with additional panel mounting available through the T8380 kit. Its mechanical design allows quick installation with minimal tooling, while secure mounting is ensured through multiple fixing points. Modules are inserted via guided channels and secured using ejector levers, ensuring proper alignment and reliable connections.

Thermal management in the ICS Triplex T8300C is achieved through natural convection cooling, eliminating the need for internal serviceable components. A spacing requirement of 90 mm between chassis units supports effective airflow and maintains operational stability across the full temperature range of 0°C to +60°C. The system also maintains performance under humidity conditions from 10% to 95% non-condensing.

The ICS Triplex T8300C includes configurable system identification via DIP switches, allowing system numbering from 0 to 15. This ensures proper addressing and communication within multi-chassis configurations. Correct alignment of ID settings is critical, as mismatched configurations will trigger system errors, reinforcing the importance of precise installation.
Alternative Names
T8300 T8110B T8311 T8403 T8431 T83OOC
Technical notes
The ICS Triplex T8300C operates within a voltage range of 20 Vdc to 32 Vdc with external 20 A fusing and input rated at 20–32 Vdc. It uses 14 DIN 41642 male connectors and supports expander communication distances of up to 30 m using TC-301 copper cable and up to 10 km using fibre converters. The installation type is PD-8300 and power is NIA. The ambient operating temperature range is 0°C to +60°C, with non-operating temperature from -25°C to +70°C, and relative humidity range from 10% to 95% non-condensing.
