T8800

/ 4.9
1001 reviews | Need a Specific Revision?
T8800 terminates 40 protected 24 V DC field inputs for a Trusted digital input module through dual field-power feeds and system cables.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for T8800
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for T8800

  • Manufacturer:
    ICS Triplex
  • Part Number:
    T8800
  • Product Family:
    Trusted Triple Modular Redundant
  • Product Type:
    Trusted 40-Channel 24 V DC Digital Input FTA
  • Stock:
    1
  • Power-feed protection:
    Diode combined
  • Assembly type:
    Field termination assembly
  • Input channels:
    40
  • Field voltage:
    24 V DC
  • Channel protection:
    40 individual 50 mA fuses
  • Field-power feeds:
    2, diode combined
  • Fuse dissipation:
    0.25 W each
  • Field connection:
    Screw terminals
  • System connectors:
    SK1 and SK2
  • Mounting role:
    Input field termination
  • Weight:
    0.9 kg
  • Estimated shipping dimensions:
    11.1 x 33.5 x 5.1 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Field Power Fuse Access Cable Interface Product Applications

Features:

  • Forty field terminations: screw terminals organize a complete 24 V DC input group
  • Per-channel protection: forty replaceable fuses isolate individual field paths
  • Dual power entry: diode-combined feeds support the assembly power architecture
T8800 is the wiring and protection boundary between field contacts and a Trusted digital input module.

Its service behavior is governed by dual power feeds, individual fuses, terminal allocation, and two system-cable connections rather than firmware or application logic.

A maintainable installation keeps fuse ratings, feed origins, channel schedule, connector identity, cable route, and continuity results with the cabinet drawing.
Apter Power can review T8800 fuse, feed, terminal, cable, paired-module, and condition evidence before sourcing.
ICS Triplex T8800 Trusted 40-Channel 24 V DC Digital Input FTA Manuals, Datasheets, Links
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Dual feeds: identify and measure both diode-combined 24 V DC sources.
  • Common reference: preserve the documented power return and grounding arrangement.
  • Load state: check voltage under real field conditions rather than relying on an unloaded reading.
  • Channel protection: map every 50 mA fuse to its field input.
  • Fault isolation: remove power and determine why a fuse opened before replacement.
  • Acceptance: confirm fuse rating, continuity, and channel state after service.
  • Connector identity: retain SK1 and SK2 assignment to the paired input module.
  • Mechanical seating: inspect latch, pins, strain relief, and cable route.
  • End-to-end proof: test each field terminal through the system cable before commissioning.
  • Safety-system input termination: land protected 24 V DC field contacts for Trusted processing.
  • Cabinet wiring consolidation: organize forty input channels with individual fuse access.
  • Maintenance fault isolation: separate field feed, fuse, termination, cable, and input-module causes.
Description
T8800 is a Trusted field termination assembly for 40 channels of 24 V DC digital input wiring. It forms the field-side interface to the corresponding Trusted input module through the documented system-cable connectors.

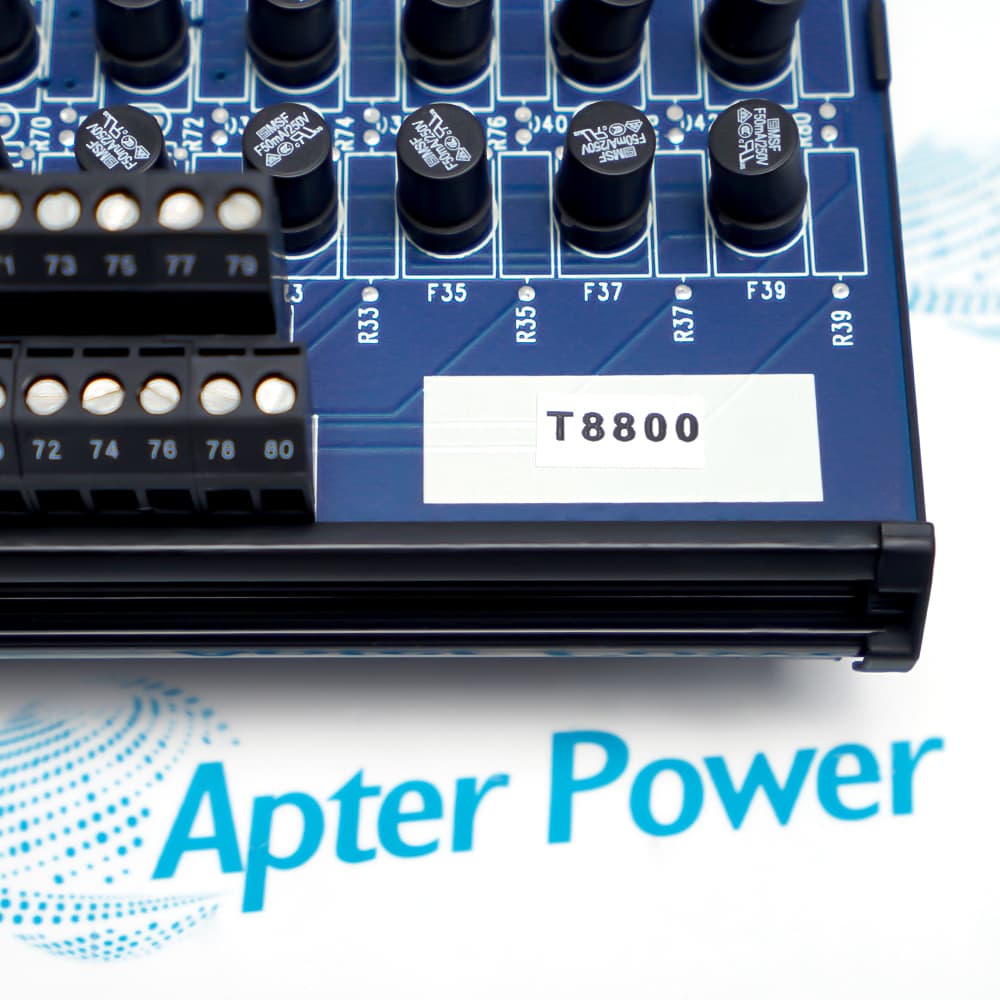

Each input path on T8800 includes individual fuse protection, while two diode-combined field-power feeds support the termination assembly. The layout provides screw terminals for field conductors and dedicated connectors for the module-side cables.

Before replacing T8800, identify both field-power sources, fuse allocation, terminal map, cable connector assignment, and paired input module. Photograph wiring and verify every channel because the FTA contains no application logic that can correct a misplaced field conductor.
Alternative Names
ICS Triplex T8800 Input FTA Trusted 40-Channel Digital Input Termination T8800 24 VDC Field Termination Assembly PD-T8800 Input FTA
Technical notes
T8800 has two diode-combined field-power feeds and forty individually fused input paths. A dead channel bank can therefore originate from feed, fuse, terminal, or system-cable faults rather than the paired input module; prove both supplies and trace the affected channel from field terminal to cable connector before replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why can several adjacent T8800 inputs fail at once while their individual fuses test good?
Check both field-power feeds, diode-combined distribution, the relevant SK1 or SK2 system cable, connector seating, and common references before replacing individual channel components.
What should be investigated after a T8800 channel fuse opens repeatedly?
Isolate the field circuit, measure current and insulation, inspect polarity and cable damage, verify the correct 50 mA fuse, and prove the connected device before energizing the channel again.
How should SK1 and SK2 be handled during T8800 replacement?
Label both connectors and cable destinations before removal, inspect pins and strain relief, seat them in the documented positions, and complete end-to-end channel tests before releasing the input module.
Can T8800 diagnostics be corrected through software configuration?
The assembly is a field termination and protection interface, not an application processor. Diagnose power, fuses, terminals, cables, and the paired input-module status instead of attempting to program the FTA.
What acceptance test is appropriate after T8800 field wiring is rebuilt?
Verify both power feeds, fuse continuity, terminal torque, cable assignments, and every used input from field contact to controller indication while comparing results with the approved channel schedule.
Which information should be included in a T8800 procurement request?
Send assembly and connector photographs, paired input-module catalog, channel and fuse schedule, power-feed arrangement, cable details, quantity, condition, destination, and outage date.
