SAC-SW217/EP SAC-SW217/E

/ 4.9
1001 reviews | Need a Specific Revision?

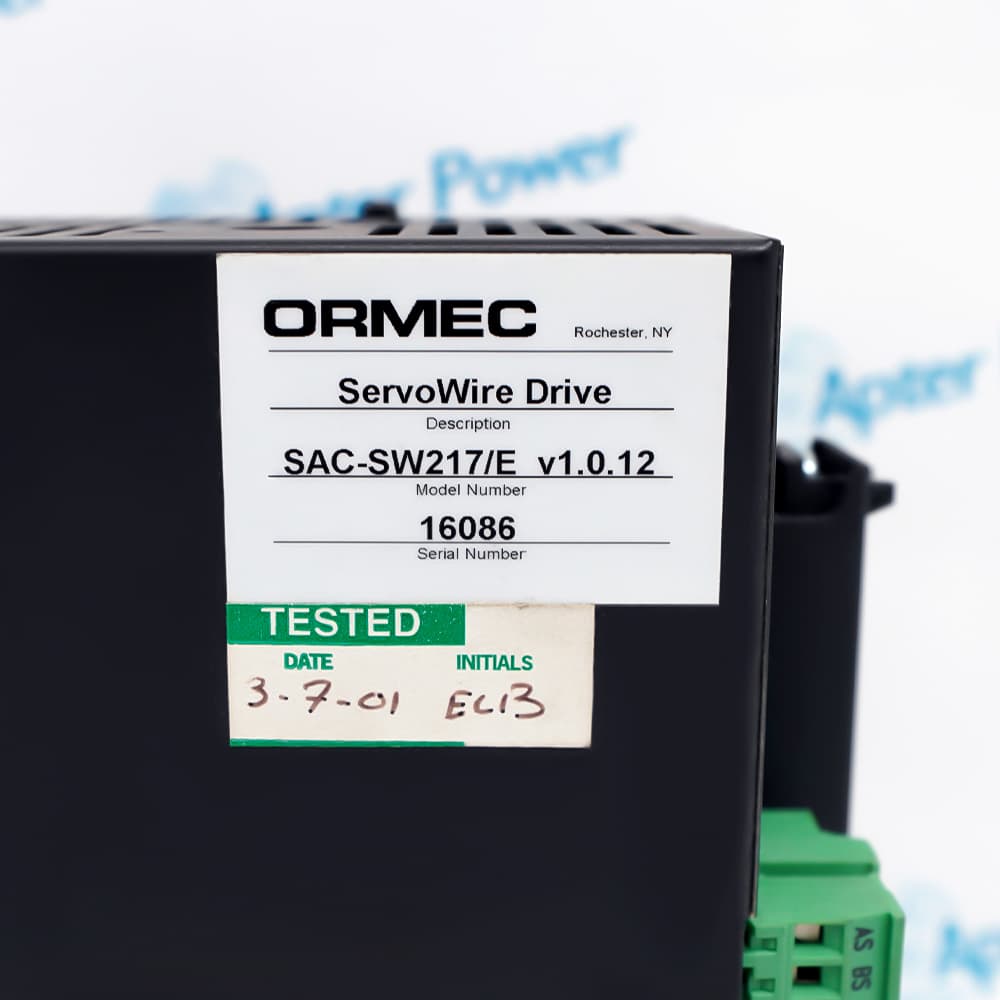

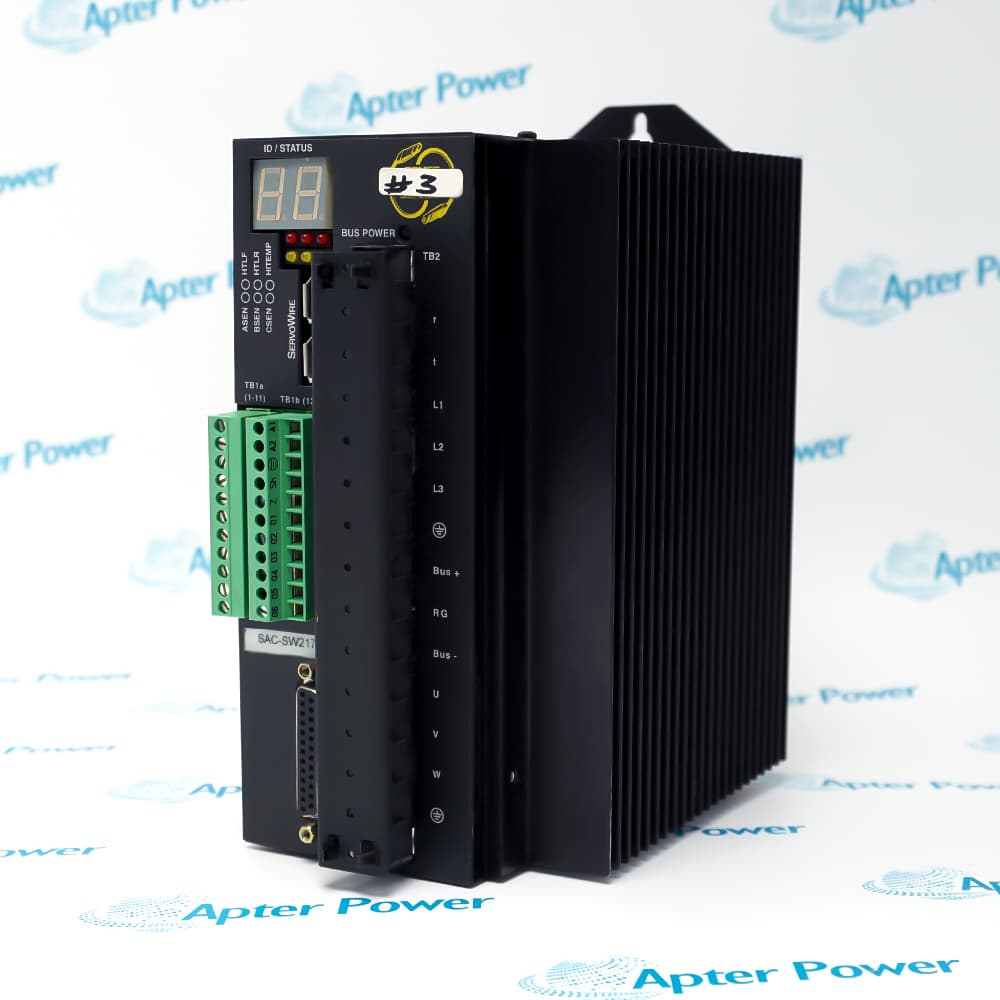

ORMEC SAC-SW217/EP SAC-SW217/E is a ServoWire servo drive for 115/230 VAC systems, with encoder interfaces, programmable limit-switch outputs and a 2.7 kg chassis.
In Stock
Ships by Sunday, October 18
Fast Shipping Available
Get a quick price for SAC-SW217/EP SAC-SW217/E
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SAC-SW217/EP SAC-SW217/E

  • Manufacturer:
    ORMEC
  • Part Number:
    SAC-SW217/EP SAC-SW217/E
  • Product Family:
    ServoWire Drives
  • Product Type:
    Servo drive
  • Stock:
    1
  • ServoWire family:
    ServoWire drive
  • Main circuit voltage:
    115 or 230 VAC +15% / −20%
  • Main circuit frequency:
    50/60 Hz
  • Main circuit phase:
    Single- or three-phase
  • Incoming service power:
    600–15,000 W
  • Control circuit voltage:
    115 or 230 VAC +15% / −20%
  • Control circuit frequency:
    50/60 Hz
  • Control circuit rating:
    56 W RMS, single phase
  • Encoder interface:
    Three differential input channels
  • Encoder supply:
    5.3 V encoder power
  • Absolute encoder:
    Supported when option is installed
  • Programmable outputs:
    Three limit-switch outputs
  • Standard interface:
    25-pin female D-sub
  • Auxiliary feedback:
    25-pin male D-sub
  • Ambient operating range:
    0–50 °C
  • Storage range:
    −20–70 °C
  • Humidity:
    Up to 90% RH, non-condensing
  • Control network:
    ServoWire
  • Weight:
    5.95 lbs (2.7 kg)
  • Tariff Code:
    Please confirm the destination before shipping.
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Communication Monitoring Safety

Features:

  • ServoWire drive for 115/230 VAC single- or three-phase motion power.
  • Separate 56 W RMS control circuit with optional absolute-encoder support.
  • Three programmable limit-switch outputs and dual 25-pin D-sub interfaces.
The SAC-SW217/E order is a legacy ServoWire drive with a 600–15,000 W incoming service-power window for distributed axis cabinets.

Its feedback and control interfaces support coordinated motion networks, while the separate control supply keeps the drive logic independent from the main motor circuit.

Provide panel cooling for the 0–50 °C operating range, confirm the installed encoder option and check the available cabinet wiring before integrating a replacement.

The SAC-SW217/E is documented by the manufacturer (OEM).
Verified resources for ORMEC SAC-SW217/E: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Distributed ServoWire axis cabinets for coordinated ORMEC motion control.
  • Machine builders using 115 or 230 VAC motor-power infrastructure.
  • Legacy installations that retain programmable limit-switch sequencing.
  • ServoWire provides the drive-side interface for coordinated multi-axis motion.
  • The standard cabinet connection is a 25-pin female D-sub interface.
  • A separate 25-pin male D-sub connector carries auxiliary feedback signals.
  • Three differential encoder input channels accept feedback from the connected axis.
  • Encoder power is supplied at 5.3 V for the supported interface.
  • Three programmable limit-switch outputs support motion sequence monitoring.
  • Main and control circuits require the published 115/230 VAC supply class and protective isolation.
  • Operate the drive only within 0–50 °C ambient and up to 90% non-condensing humidity.
  • Confirm the legacy status and approved replacement path before removing an installed unit.
Description
ORMEC SAC-SW217/EP SAC-SW217/E is a ServoWire servo drive for motion cabinets using 115 or 230 VAC main power. The published power stage accepts single- or three-phase input and covers incoming service power from 600 to 15,000 W, making the unit suitable for coordinated axis installations with different machine power levels.

Its control circuit is separately rated at 115 or 230 VAC, 50/60 Hz and 56 W RMS single phase. Three differential encoder channels with 5.3 V encoder power support the standard feedback interface, while an absolute encoder can be used when the option is installed.

A 25-pin female D-sub provides the standard interface, a 25-pin male D-sub carries auxiliary feedback and three programmable outputs support limit-switch functions. Allow for the 0–50 °C operating range, non-condensing humidity, panel ventilation and legacy replacement checks before commissioning this ServoWire drive.
Alternative Names
SAC-SW217/E SACSW217E SAC-SW217 SAC-SW217/EP ServoWire SAC-SW217/E SAC-SW217 ServoWire drive SAC-SW217/EP SAC-SW217/E ServoWire SW217
Technical notes
SAC-SW217/EP SAC-SW217/E is an ORMEC legacy ServoWire drive; confirm encoder option, control wiring and replacement compatibility before purchase.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What input supply arrangement does ORMEC SAC-SW217/EP SAC-SW217/E accept?
ORMEC SAC-SW217/EP SAC-SW217/E accepts 115 or 230 VAC main power, with single- or three-phase operation and a 50/60 Hz supply.
How much incoming service power is assigned to ORMEC SAC-SW217/EP SAC-SW217/E?
The ServoWire drive is specified for 600 to 15,000 W of incoming service power.
What control-circuit rating is required by ORMEC SAC-SW217/EP SAC-SW217/E?
The control circuit uses 115 or 230 VAC at 50/60 Hz and is rated 56 W RMS, single phase.
Which feedback connections are available on ORMEC SAC-SW217/EP SAC-SW217/E?
ORMEC SAC-SW217/EP SAC-SW217/E provides three differential encoder inputs with 5.3 V encoder power and supports an absolute encoder when the option is installed.
Which connectors identify ORMEC SAC-SW217/EP SAC-SW217/E in a cabinet?
The drive uses a 25-pin female D-sub standard interface and a 25-pin male D-sub for auxiliary feedback.
Is ORMEC SAC-SW217/EP SAC-SW217/E still produced and what should replace it?
ORMEC lists the SAC-SW series as legacy and no longer in production; ask Apter Power to check the official SAC-S2D replacement and system compatibility.
How can I obtain an ORMEC SAC-SW217/EP SAC-SW217/E manual and quotation?
Apter Power can provide the available technical documentation, procurement support and a quotation for ORMEC SAC-SW217/EP SAC-SW217/E.
