MVI46-ADMNET

/ 4.9
1001 reviews | Need a Specific Revision?

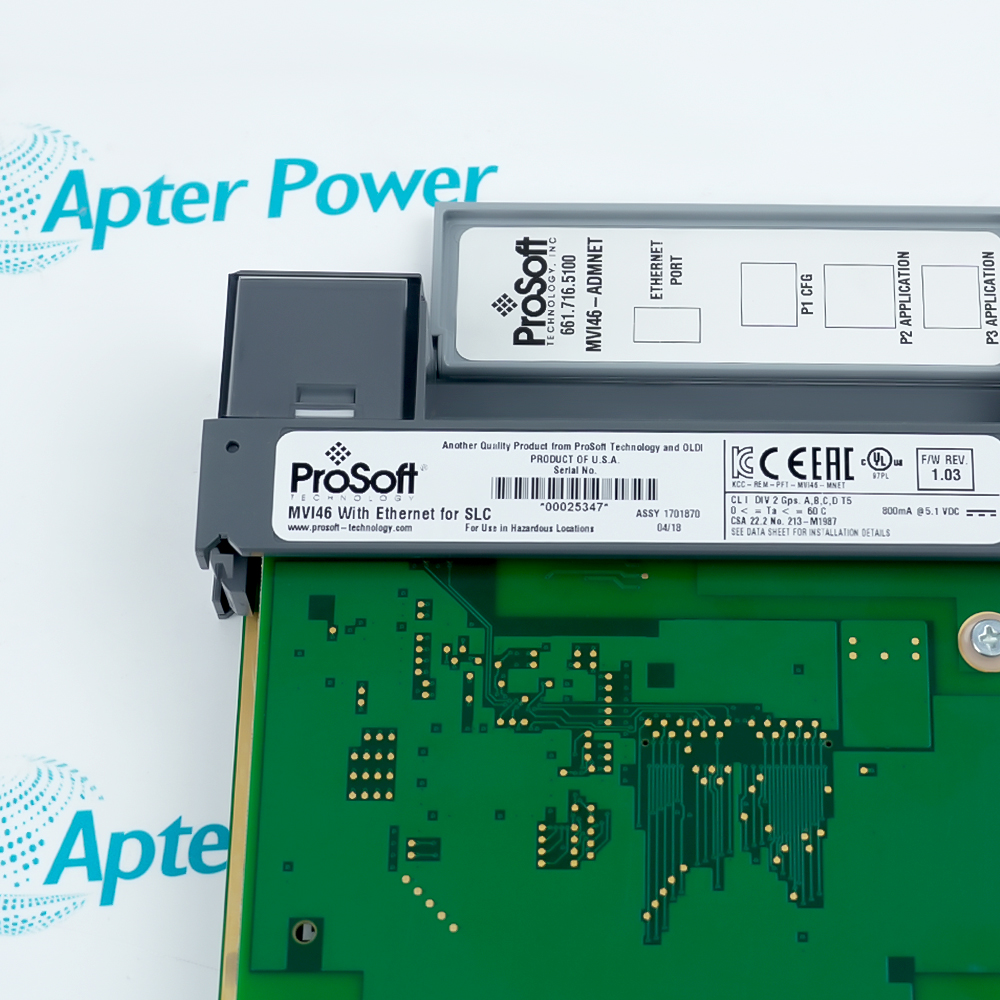

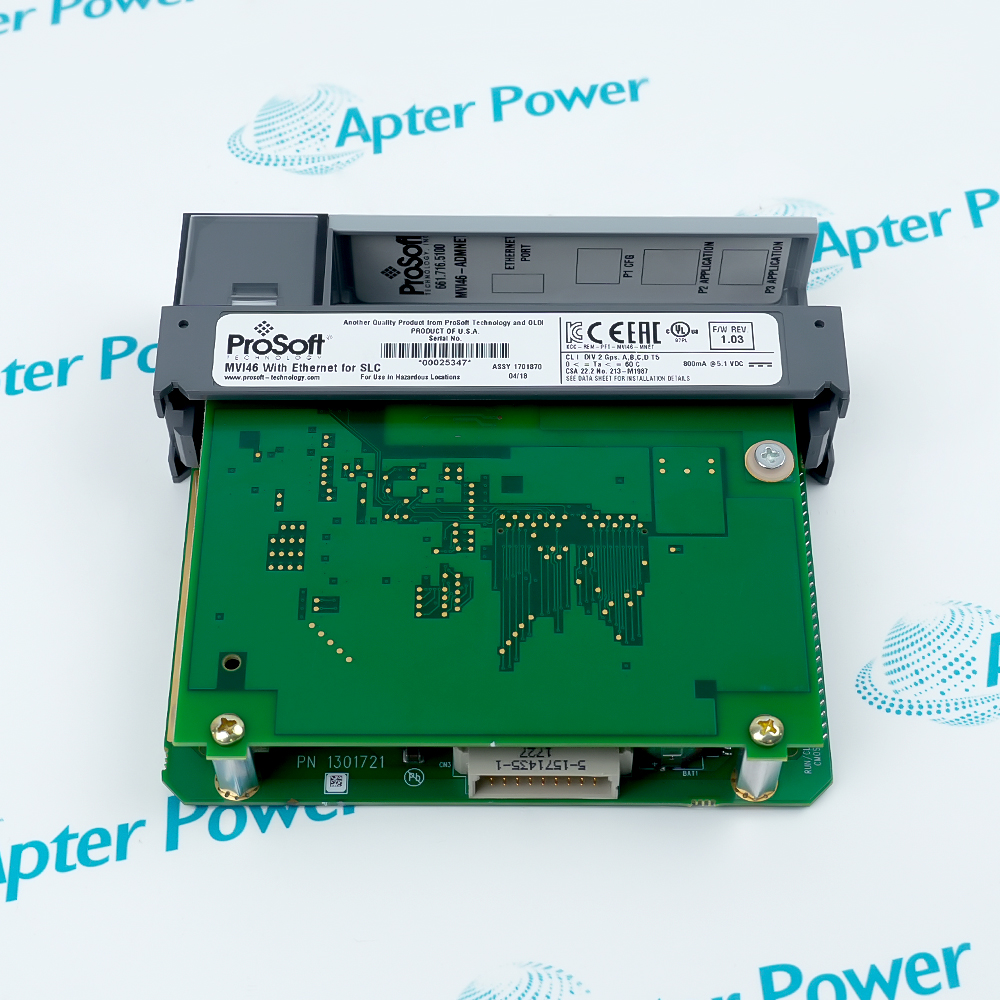

ProSoft MVI46-ADMNET is an SLC backplane application-development module with Ethernet and three configurable serial interfaces.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for MVI46-ADMNET
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for MVI46-ADMNET

  • Manufacturer:
    ProSoft
  • Part Number:
    MVI46-ADMNET
  • Product Family:
    ProSoft
  • Product Type:
    SLC C Programmable Application Development Module with Ethernet
  • Stock:
    1
  • Backplane platform:
    Rockwell Automation SLC
  • Rack placement:
    Local or extended rack; remote rack not supported
  • Ethernet:
    1 × 10/100Base-T RJ45
  • Serial ports:
    1 configuration port and 2 application ports
  • Application-port modes:
    RS-232, RS-422 or RS-485
  • Backplane current:
    800 mA at 5 VDC
  • Flash memory:
    896 KB
  • RAM:
    640 KB
  • Operating temperature:
    0 to 60°C
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals SLC Platform Fit Communication Ports Development Environment Applications

Features:

  • Programmable communications: Runs a C application that exchanges data with the SLC processor and connected devices.
  • Mixed interfaces: Provides one Ethernet port and three serial interfaces in a single SLC slot.
  • Field isolation: Both application serial ports are isolated from the module electronics.
MVI46-ADMNET is intended for projects that need custom data handling rather than a fixed communication protocol.

The application can move data between the SLC backplane, serial instruments and Ethernet hosts under user-written logic.

Retaining the source program and its configuration files is part of spare-module planning because the hardware alone does not reproduce the installed function.

Apter Power supports the ProSoft MVI46-ADMNET SLC C Programmable Application Development Module with Ethernet through quotations, official documentation and installed-application review.
ProSoft Technology MVI46-ADMNET SLC C Programmable Application Development Module with Ethernet Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Backplane: Single-slot module for the Rockwell Automation SLC platform.
  • Allowed racks: Install in a local rack or an extended I/O rack.
  • Remote-rack limit: ProSoft does not support this module in a remote I/O rack.
  • Processor exchange: Backplane logic transfers data between the user application and SLC processor.
  • Ethernet: One RJ45 10/100Base-T interface supports network communication by the user application.
  • CFG port: RS-232 configuration and debugging interface.
  • PRT1 and PRT2: Each application port supports RS-232, RS-422 or RS-485.
  • Isolation: Both application ports are isolated for field-device connections.
  • Operating environment: General-purpose DOS 6-XL supports the onboard application.
  • Programming interface: The ADM API supplies backplane, serial, Ethernet, timer and file functions.
  • Storage: 896 KB flash, 640 KB RAM and CompactFlash support up to 16 GB.
  • Compiler support: ProSoft lists compatible Digital Mars C++ and Borland C++ toolchains.
  • Custom protocol handling: Implement a plant-specific serial or Ethernet message exchange in C.
  • Legacy equipment links: Connect barcode scanners, printers or other serial devices to an SLC application.
  • Data concentration: Collect device data and present selected values to the SLC processor.
  • Application limit: This is not a preconfigured protocol gateway; the deployed program defines its behavior.
Description
MVI46-ADMNET gives a Rockwell Automation SLC processor a programmable communications slot. It runs a user-developed C application that can exchange data with the backplane while serving serial or Ethernet-connected devices.

MVI46-ADMNET combines one 10/100 Ethernet port with three serial interfaces. The configuration port is RS-232, while PRT1 and PRT2 can be set for RS-232, RS-422 or RS-485 and are isolated for field connections.

MVI46-ADMNET belongs in a local or extended SLC rack, not a remote rack. A service or development project should confirm the chassis position, application source, API version, port mode and field wiring before the module is released.
Alternative Names
MVI46 ADMNET ProSoft MVI46-ADMNET MVI46ADMNET
Technical notes
MVI46-ADMNET is a programmable development platform rather than a fixed-protocol gateway. Preserve the installed C application and confirm SLC backplane placement, serial electrical mode and Ethernet addressing before replacement.
