VT5013-37/R5E

/ 4.9
1001 reviews | Need a Specific Revision?

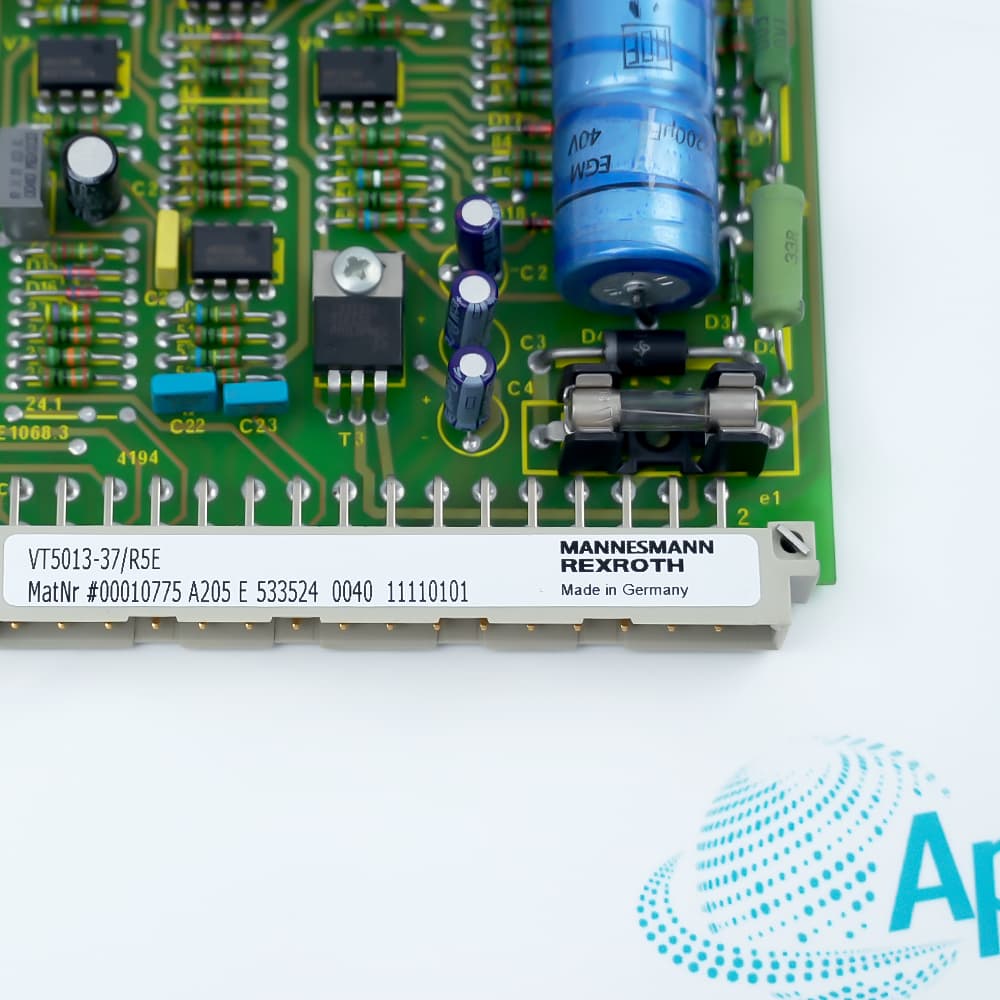

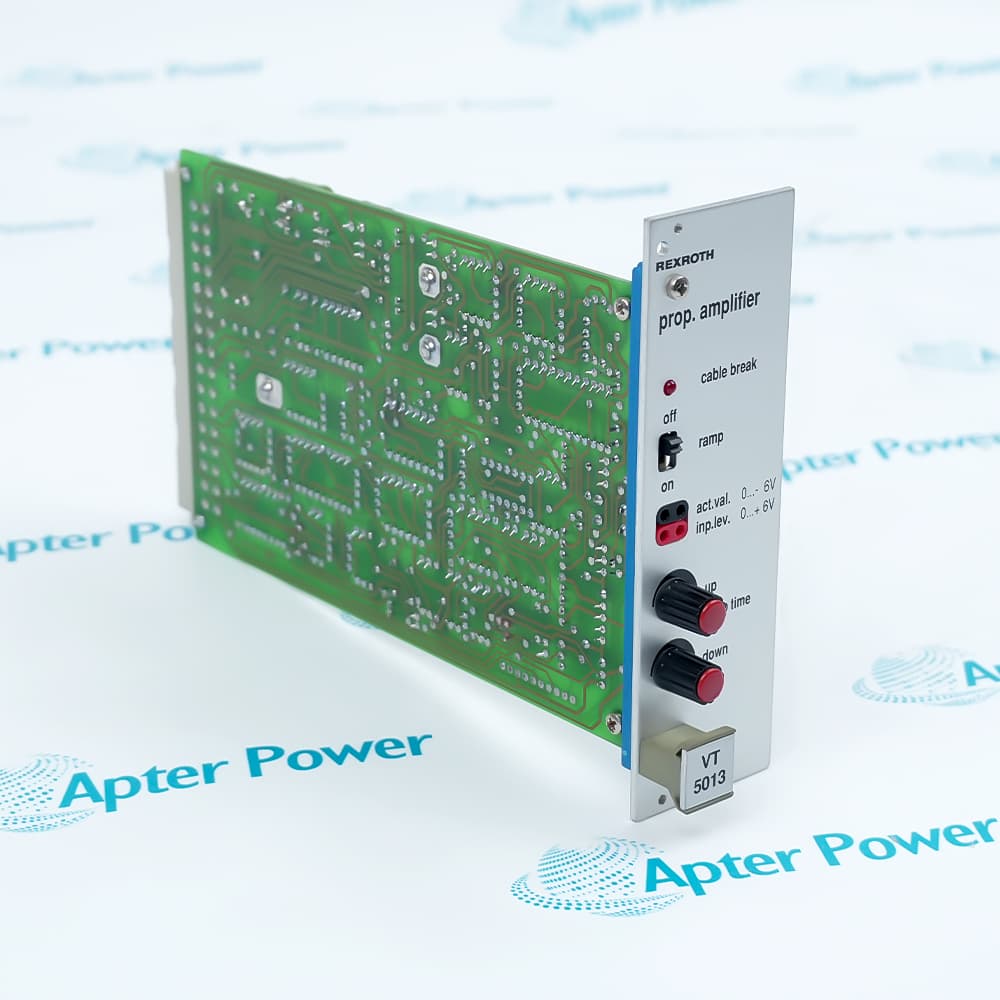

Bosch Rexroth VT5013-37/R5E is an analog Eurocard amplifier for FE 32 C proportional throttle valves with inductive electrical spool-position feedback.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for VT5013-37/R5E
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for VT5013-37/R5E

  • Manufacturer:
    Rexroth
  • Part Number:
    VT5013-37/R5E
  • Product Family:
    Rexroth
  • Product Type:
    Electrical Amplifier for Proportional Throttle Valve
  • Stock:
    1
  • Component Series:
    3X; version 37
  • Valve Assignment:
    FE 32 C proportional throttle valve
  • Faceplate Language:
    English (E)
  • Ramp Version:
    R5, adjustable up to 5 s
  • Supply Voltage:
    24 VDC, +40% / -5%
  • Supply Limits:
    22 to 35 VDC
  • Current Consumption:
    Less than 1.5 A
  • Fuse:
    2.5 A medium time-lag
  • Differential Command Input:
    0 to ±10 V
  • Ramp Time:
    Approximately 30 ms to 5 s
  • Maximum Solenoid Current:
    0.8 A ±20%
  • Solenoid Resistance:
    24.6 Ω at 20 °C
  • Output-Stage Clock Frequency:
    Free-running up to approximately 250 Hz
  • Position-Transducer Oscillator:
    2.5 kHz ±10%
  • Regulated Voltage:
    ±9 V with raised zero; 50 mA external load
  • Measuring Sockets:
    +6 V command value and -6 V actual value; 5 mA maximum load
  • Connector:
    32-pin blade connector, DIN 41612 form D
  • Card Format:
    Eurocard 100 × 160 mm
  • Front Panel:
    3 U high; 7 HP component-side width
  • Operating Temperature:
    0 to 50 °C
  • Storage Temperature:
    -25 to +85 °C
  • Feedback Cable Monitoring:
    Cable-break detection for the position-transducer circuit
  • Weight:
    0.15 kg
  • Estimated shipping dimensions:
    16x10x12.84cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Configuration Safety

Features:

  • Controls an FE 32 C proportional throttle valve with inductive spool-position feedback.
  • Combines differential command processing, PID regulation and a clocked solenoid output stage.
  • Includes adjustable ramp shaping and cable-break detection for the feedback circuit.
The current ordering configuration is VT5013-37/R5E, a series-3X amplifier with version 37 hardware, a five-second ramp range and an English faceplate.

It closes the electrical position loop around the valve spool and converts the analog command into regulated solenoid current for hydraulic flow control.

Before replacement, match the complete ordering code, valve type, card rack, connector wiring, ramp settings, feedback transducer and raised reference potential.

Availability is subject to Apter Power inventory and sourcing confirmation.
Rexroth VT5013-37/R5E R900010775 Electric amplifier Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

General

  • ManufacturerBosch Rexroth
  • ModelVT5013-37/R5E
  • ConditionNew Original ready stock
  • Product FamilyVT 5011 to VT 5018 Analog Amplifiers

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Controls FE 32 C proportional throttle valves in closed-loop hydraulic flow applications.
  • Shapes acceleration and deceleration commands where abrupt spool movement would disturb the hydraulic process.
  • Supports legacy machine controls that use a 19-inch subrack and analog valve-position feedback.
  • Front adjustments set ramp-up, ramp-down and controller response for the commissioned hydraulic axis.
  • The differential command path and external potentiometer connections follow the documented terminal assignment.
  • Command and actual-value sockets provide separate measurement points during zero, gain and dynamic-response checks.
  • The card is inserted or removed only after the amplifier supply has been switched off.
  • The raised measuring zero is kept isolated from supply 0 V to prevent reference faults and circuit damage.
  • Command, feedback and solenoid wiring are shielded and routed away from high-power conductors and radio-frequency sources.
Description
Bosch Rexroth VT5013-37/R5E is a series 3X analog Eurocard amplifier developed for FE 32 C proportional throttle valves with inductive spool-position feedback. It accepts a differential command signal and converts the requested operating point into controlled solenoid current for hydraulic systems that require repeatable valve positioning.

The card compares the incoming command with the demodulated feedback signal and regulates the difference through its controller and clocked output stage. Closing the electrical loop around spool position improves command tracking and gives the hydraulic machine a stable interface between low-level analog control signals and the proportional valve actuator.

Its R5 circuitry shapes acceleration and deceleration commands over an adjustable range of up to five seconds, reducing abrupt changes in hydraulic response. Front measuring sockets, controller adjustments and feedback-cable monitoring support commissioning and fault isolation, while the standard Eurocard construction fits the documented 19-inch subrack environment.
Alternative Names
VT5013-37/R5E R900010775 VT5013-37 R5E R900010775 VT5013-37-R5E R900010775 VT3013-37 VT5013-37/R1E VT-5011-S31-R1
Technical notes
VT5013-37/R5E must be unplugged only with supply off; its M0 measuring zero is raised +9 V and must not be bonded to 0 V.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What does R5E identify on VT5013-37/R5E?
R5 denotes the five-second ramp version and E identifies the English faceplate in the Bosch Rexroth ordering code.
Which valve assignment is documented for VT5013-37/R5E?
The VT5013 version is assigned to the FE 32 C proportional throttle valve family with inductive position feedback.
Why must M0 on VT5013-37/R5E remain separate from 0 V?
M0 is intentionally raised by +9 V relative to the supply reference; bonding it to 0 V defeats the designed measuring reference and can damage the circuit.
What must be matched before replacing VT5013-37/R5E?
Confirm the full ordering code, valve type, 32-pin wiring, ramp settings, feedback transducer, rack slot and front-panel adjustments.
Can VT5013-37/R5E be removed from a powered subrack?
No. Bosch Rexroth instructs that the amplifier be inserted or removed only with the electrical supply switched off.
Which official data sheet covers VT5013-37/R5E?
Use Bosch Rexroth data sheet RE 29 956 for the VT 5011/VT 5013 and VT 5012 to VT 5018 amplifier family.
What information should be provided for a VT5013-37/R5E quotation?
Send a clear nameplate photo, the complete code, valve model, required condition, quantity, destination and any rack or connector constraints.
