SRB-NA-R-C.33-24V

/ 4.9
1001 reviews | Need a Specific Revision?
ELAN SRB-NA-R-C.33-24V safety relay with verified 24 VAC/DC nameplate ratings.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for SRB-NA-R-C.33-24V
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SRB-NA-R-C.33-24V

  • Manufacturer:
    SCHMERSAL
  • Part Number:
    SRB-NA-R-C.33-24V
  • Product Family:
    SCHMERSAL
  • Product Type:
    ELAN Safety Relay
  • Stock:
    1
  • Rated Current:
    125 mA
  • Operating Voltage:
    24 VAC/DC at terminals A1/A2
  • Rated Insulation Voltage:
    250 VAC; 4 kV/2
  • DC-13 Rating:
    24 VDC / 6 A
  • AC-15 Rating:
    230 VAC / 6 A
  • Terminal Protection:
    IP20
  • Housing Protection:
    IP40
  • Electrical Life:
    10^6 switching cycles
  • Fuse F2:
    T0.125 A / 250 V
  • Internal Fuse F1:
    T0.25 A / 250 V
  • UL Main Output AC:
    230 VAC / 4 A
  • UL Main Output DC:
    24 VDC / 4 A
  • Weight:
    0.3 kg
  • Estimated shipping dimensions:
    4.6 x 14 x 8 cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Nameplate Ratings Terminal Layout Circuit Validation Applications

Features:

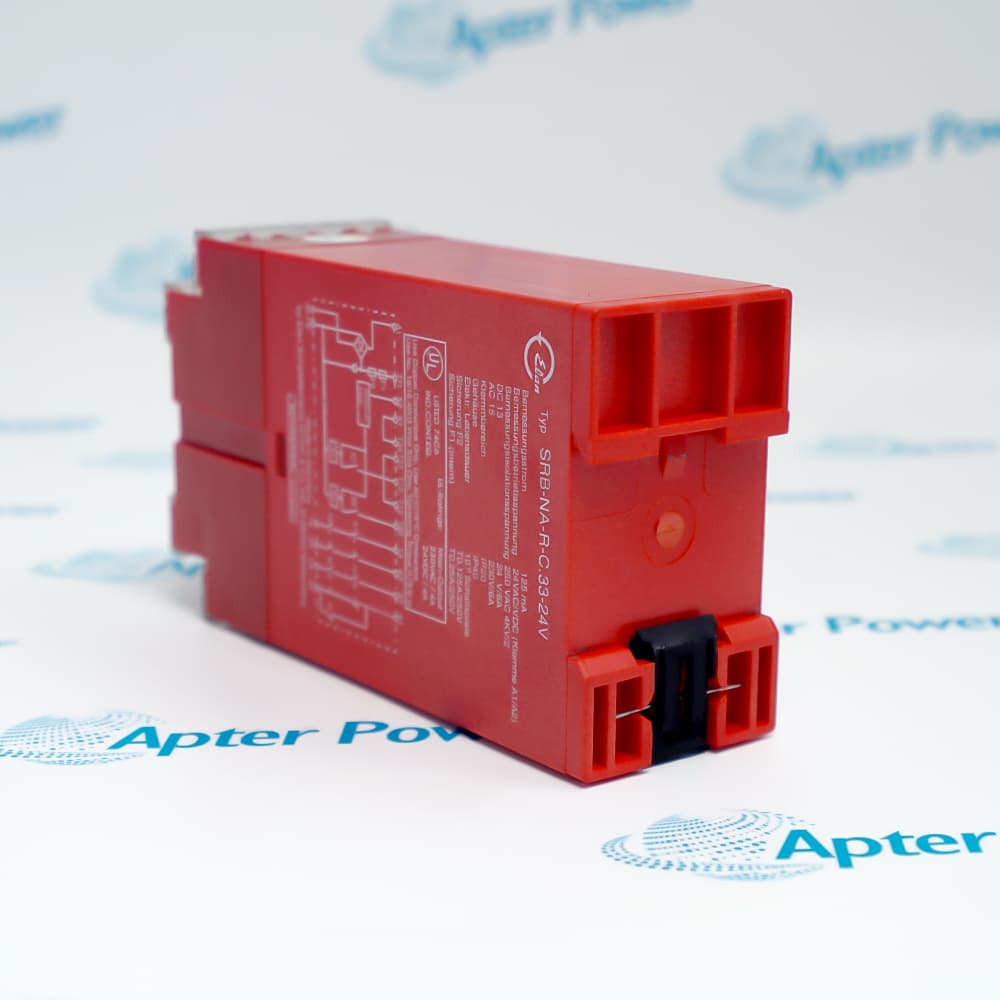

  • ELAN-branded safety relay identified by the complete SRB-NA-R-C.33-24V nameplate.
  • Control supply is 24 VAC/DC at terminals A1 and A2.
  • The label separates IP20 terminal protection from the IP40 housing rating.

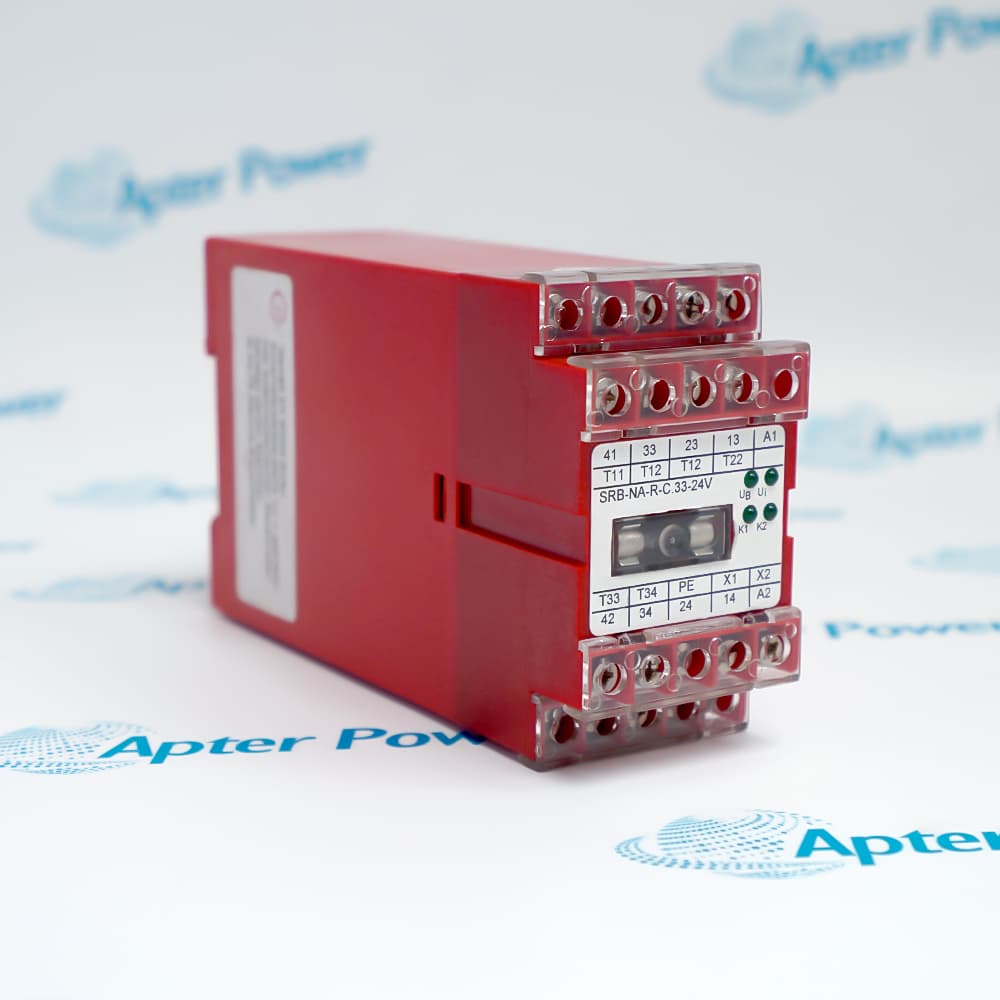

The full suffix and front terminal diagram define the wiring arrangement that must be retained during legacy safety-circuit service.

Nameplate contact and fuse ratings establish electrical limits for the connected outputs rather than a general rating for any replacement relay.

Commissioning remains a functional safety task covering inputs, feedback, reset behavior, connected loads, and the expected safe-state response.

For SCHMERSAL SRB-NA-R-C.33-24V ELAN Safety Relay inquiries, Apter Power can help review the complete nameplate and installed circuit records.
SCHMERSAL SRB-NA-R-C.33-24V ELAN Safety Relay Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, and related items are not included unless identified in the stock item description.
  • Rated control current is marked 125 mA with a 24 VAC/DC operating supply.

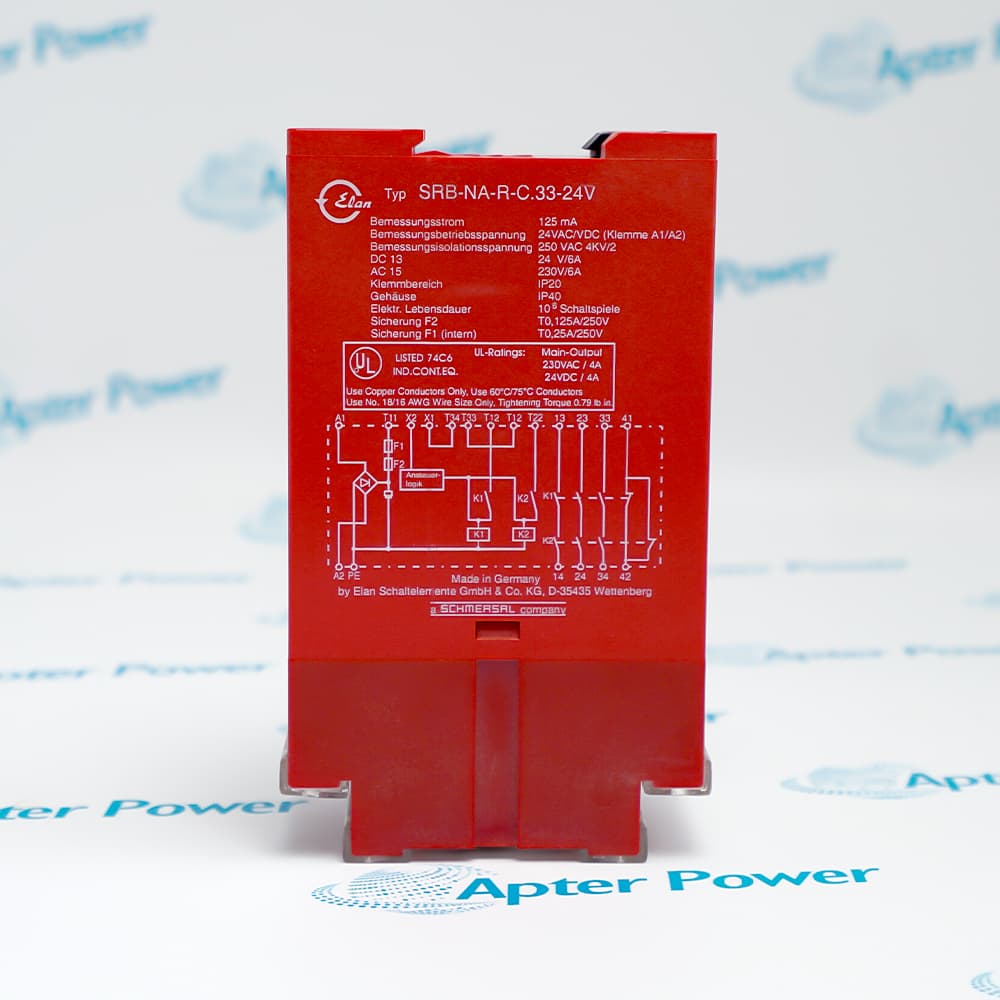

  • Rated insulation is 250 VAC with a 4 kV/2 marking on the front label.
  • Contact ratings include DC-13 24 VDC/6 A and AC-15 230 VAC/6 A.
  • UL main-output ratings are stated as 230 VAC/4 A and 24 VDC/4 A.
  • Apply the 24 VAC/DC control supply at the labeled A1/A2 terminals.
  • Map each safety input and jumper exactly from the installed front circuit diagram.
  • Retain the feedback and reset arrangement before disconnecting the existing relay.
  • Keep output-terminal assignments and connected loads tied to the recorded channel functions.
  • Retain fuse F2 T0.125 A/250 V and internal fuse F1 T0.25 A/250 V in the service record.
  • Use IP20 for terminal protection and IP40 only for the housing boundary.
  • Compare connected output loads with the applicable contact-rating category before energization.
  • Test the safety inputs, feedback, reset path, and safe-state response under the approved site procedure.
  • Maintenance of installed safety circuits built around the exact .33-24V terminal arrangement.
  • Legacy relay replacement where the 24 VAC/DC supply and nameplate contact limits remain unchanged.
  • Machine-safety service requiring documented feedback, reset, and safe-state functional validation.
Description
SRB-NA-R-C.33-24V is the ELAN-branded safety relay identified by its complete front nameplate, with a 24 VAC/DC control supply at A1/A2 and separately stated output-contact ratings.

SRB-NA-R-C.33-24V uses the full .33-24V suffix, terminal diagram, and fuse information to define the installed circuit; the label also distinguishes IP20 terminal protection from the IP40 housing.

SRB-NA-R-C.33-24V belongs in a replacement plan that preserves the safety inputs, feedback and reset paths, and connected output loads before site-approved functional validation.
Technical notes
SRB-NA-R-C.33-24V separates IP20 terminal protection from the IP40 housing rating; IP40 does not apply to exposed terminals. This distinction affects enclosure selection and touch protection. The full .33-24V suffix, A1/A2 supply, contact ratings, fuse values, and terminal diagram must therefore be checked against the installed safety circuit.
