SKKH570/16E

/ 4.9
1001 reviews | Need a Specific Revision?

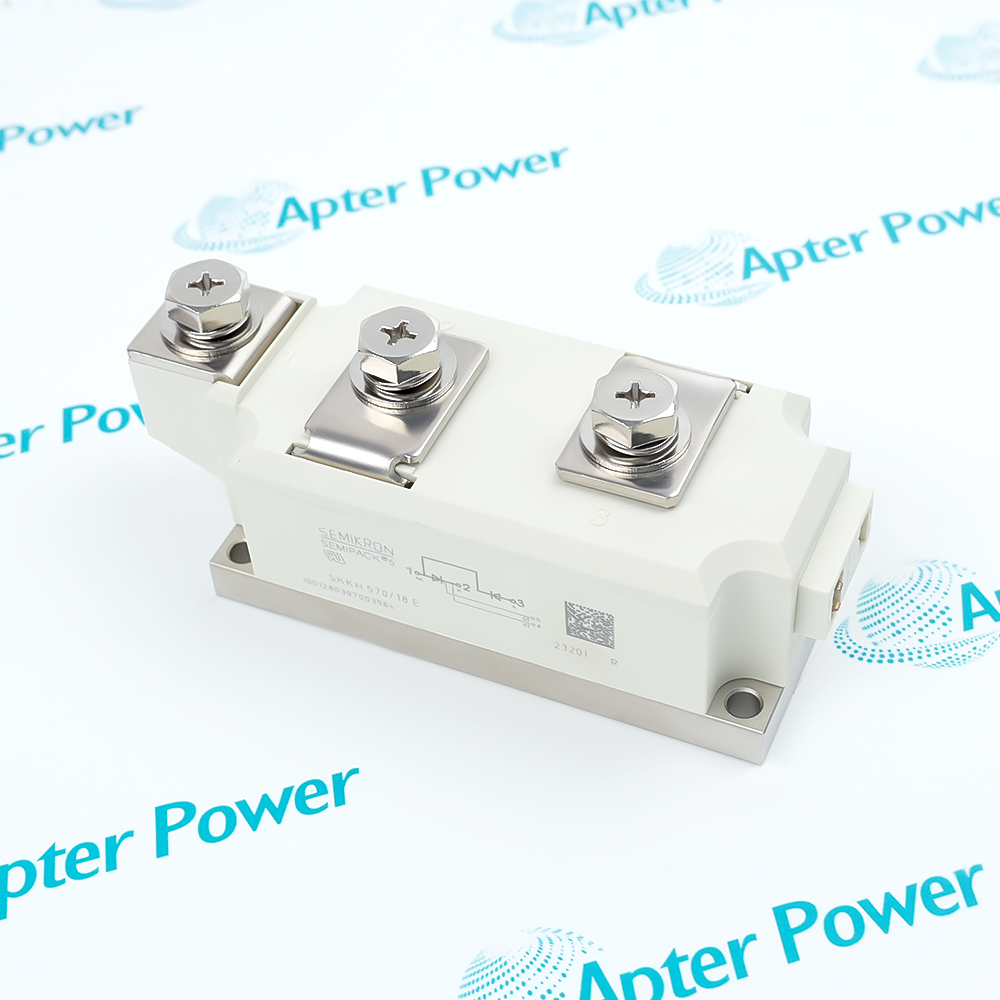

SEMIKRON DANFOSS SKKH570/16E is a SEMIPACK 5 thyristor/diode rectifier module rated for 570 A and 1600 V, with an isolated aluminium-nitride baseplate and pressure contacts.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for SKKH570/16E
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SKKH570/16E

  • Manufacturer:
    SEMIKRON
  • Part Number:
    SKKH570/16E
  • Product Family:
    SEMIKRON
  • Product Type:
    SEMIPACK 5 Thyristor / Diode Module
  • Stock:
    1
  • Housing:
    SEMIPACK 5
  • Topology:
    Rectifier
  • Average On-State Current:
    570 A at Tc 85 °C
  • Continuous RMS Current:
    1000 A
  • Repetitive Peak Voltage:
    1600 V
  • Non-Repetitive Surge Current:
    19,000 A at Tj 25 °C; 15,500 A at Tj 135 °C
  • Critical dv/dt:
    1000 V/µs
  • Turn-Off Time:
    200 µs max.
  • Isolation Test Voltage:
    3000 V AC, 50 Hz, 1 min
  • Junction Temperature:
    -40 to 135 °C
  • Storage Temperature:
    -40 to 125 °C
  • Overall Dimensions:
    15×6×5.2 cm
  • UL Recognition:
    File E 63 532
  • Weight:
    3.09 lbs (1.4 kg)
  • Tariff Code:
    85413000
  • Country of origin:
    Slovakia / Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Circuit Arrangement Mounting Limits Gate Control Documented Uses

Features:

  • Module identity: SEMIPACK 5 thyristor/diode rectifier assembly.
  • Electrical class: 570 A average current with 1600 V repetitive blocking.
  • Thermal path: Aluminium-nitride isolation transfers heat to the metal baseplate.
SKKH570/16E is identified by both the SKKH circuit family and the complete 570/16 E rating code.

The pressure-contact construction and isolated baseplate define how the module carries current while coupling thermally to a heatsink.

Before fitting, compare the circuit symbol, terminal hardware and SEMIPACK 5 footprint with the installed assembly.

Apter Power can help verify the SEMIKRON DANFOSS SKKH570/16E voltage class, housing and terminal arrangement before quotation.
SEMIKRON DANFOSS SKKH570/16E Thyristor Diode Module Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Controlled path: The thyristor portion provides the gated conduction element within the rectifier topology.
  • Diode path: The companion diode completes the SKKH circuit arrangement rather than the dual-thyristor layout used by SKKT variants.
  • Voltage boundary: Repetitive off-state and reverse ratings are both 1600 V.
  • Current boundary: Continuous RMS operation is limited to 1000 A even though surge values are higher and time-limited.
  • Baseplate interface: The isolated aluminium-nitride ceramic layer carries heat toward the mounting surface.
  • Heatsink hardware: M6 mounting screws use a 4.25–5.75 Nm tightening range.
  • Main terminals: M10 connections use 10.2–13.8 Nm.
  • Temperature ceiling: Junction temperature is limited to 135 °C and storage to 125 °C.
  • Gate threshold: Maximum trigger voltage is 3 V at 25 °C.
  • Trigger current: Maximum gate trigger current is 200 mA at 25 °C.
  • Commutation interval: Maximum turn-off time is 200 µs at 135 °C.
  • Voltage rise: The critical dv/dt rating is 1000 V/µs at the specified junction temperature.
  • Motor-drive rectifiers: The module is listed for rectifier stages feeding motor-drive power converters.
  • Process control: Controlled power conversion is included among the documented operating contexts.
  • Power supplies: High-current rectification for power-supply equipment is an identified role.
  • Selection check: Each use still requires coordination of heatsink, gate drive, voltage class and current duty.
Description
SEMIKRON DANFOSS SKKH570/16E is a SEMIPACK 5 thyristor/diode rectifier module. It combines a gate-controlled thyristor path and a diode path in one isolated power-semiconductor assembly.

Inside SKKH570/16E, the semiconductor chips transfer heat through aluminium-nitride ceramic to the isolated metal baseplate, while pressure contacts carry the high-current connection. This construction links electrical loading directly to heatsink contact and mounting quality.

The rating of SKKH570/16E combines a 570 A current class with 1600 V repetitive blocking capability, but usable current remains dependent on case temperature and cooling. Its surge value describes short-duration events and cannot replace the continuous-current limit during selection.

For installation, SKKH570/16E uses the SEMIPACK 5 footprint with separate heatsink fasteners, main power terminals and a thyristor gate connection. Its documented rectifier roles include motor drives, process control and power-supply conversion.
Alternative Names
SKKH 570/16 E SKKH570-16E SKKH 570 16 E 230B1784 07898725 SEMIKRON SKKH 570/16 E SKKH570/16E SEMIPACK 5 SKKH570-16E thyristor-diode module
Technical notes
SEMIKRON DANFOSS SKKH570/16E is a SEMIPACK 5 thyristor/diode rectifier module with a 570 A average-current rating, 1600 V blocking class and isolated baseplate.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which identifiers should be matched before ordering SKKH570/16E?
Match the complete SKKH 570/16 E marking, SEMIPACK 5 housing and product code 230B1784. The former part number 07898725 can support identification, but the electrical and mechanical identity must still agree.
How can SKKH570/16E be distinguished from the similarly rated SKKT module?
Check the circuit designation, not only the current and voltage class. SKKH570/16E uses a thyristor/diode arrangement, while an SKKT designation refers to a different internal topology.
What mechanical details should be compared before fitting SKKH570/16E?
Compare the SEMIPACK 5 outline, mounting-hole pattern, main-terminal hardware and heatsink interface with the installed assembly. A matching current rating alone does not confirm mechanical fit.
Why does heatsink condition matter when selecting SKKH570/16E?
The rated current is tied to case temperature, and heat leaves the chips through the isolated baseplate. Heatsink contact, mounting pressure and cooling therefore affect the usable current boundary.
What should be checked in the gate circuit before energizing SKKH570/16E?
Confirm that the gate drive matches the documented trigger requirements and that wiring follows the thyristor/diode circuit diagram. Do not infer gate compatibility from the SEMIPACK 5 housing alone.
Can the SKKH570/16E surge-current value be treated as a continuous rating?
No. The surge figure applies to a short specified event and changes with junction temperature. Continuous operation must be based on the average and RMS current limits together with the cooling conditions.
