NHA75769_02

/ 4.9
1001 reviews | Need a Specific Revision?

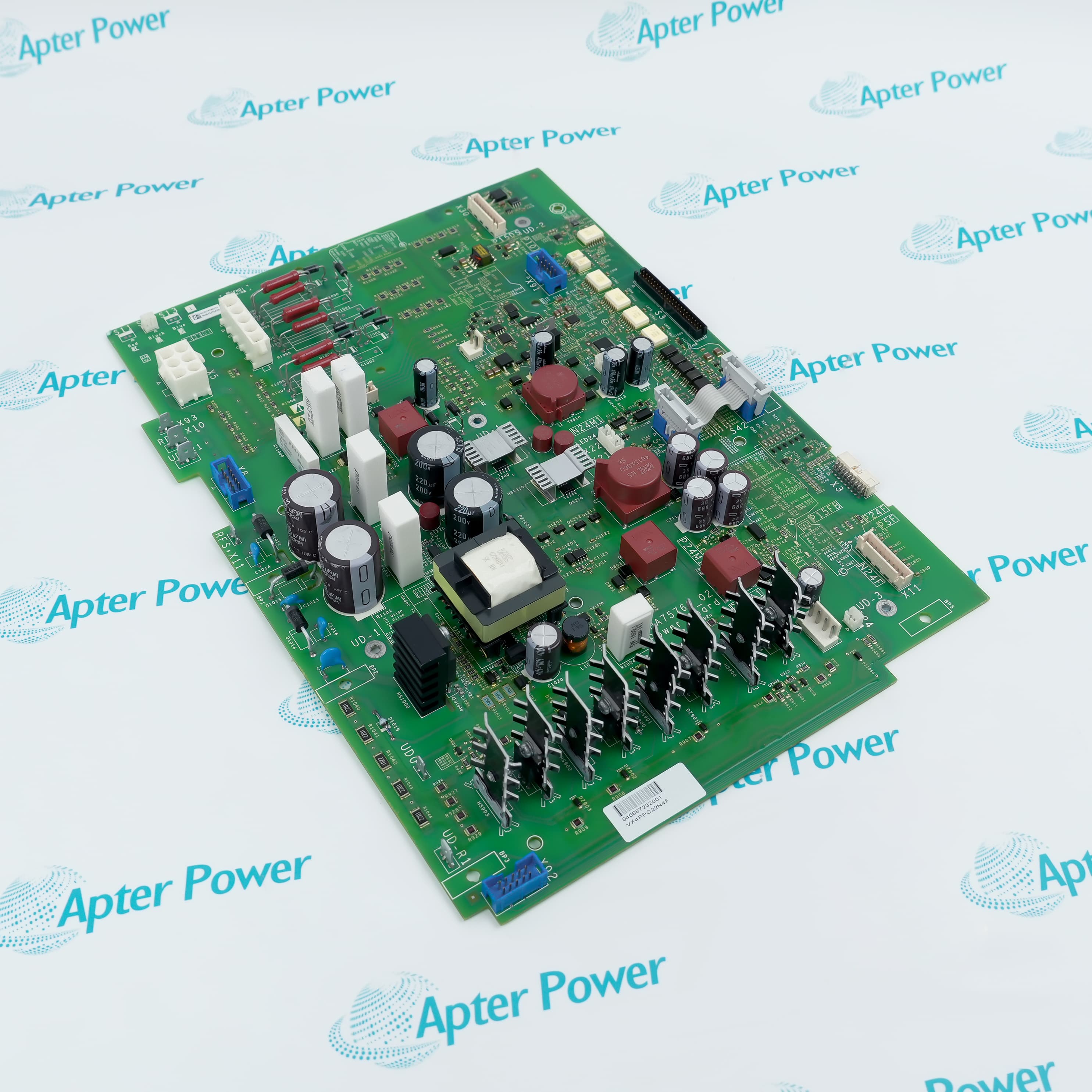

Schneider Electric NHA75769_02 is a service power board identified by the exact NHA75769.02 assembly marking. It is intended for replacement only after the host drive and hardware revision are verified.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for NHA75769_02
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for NHA75769_02

  • Manufacturer:
    Schneider Electric
  • Part Number:
    NHA75769_02
  • Product Family:
    Altivar Process
  • Product Type:
    Power Board
  • Stock:
    1
  • Board Marking:
    NHA75769.02
  • Component Category:
    Internal service power board
  • Identification Method:
    Exact PCB marking and host-equipment record
  • Compatibility Requirement:
    Host drive model and hardware revision must be confirmed
  • Tariff Code:
    8537101190
  • Country of origin:
    France
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Compatibility Installation Safety

Features:

  • The exact NHA75769.02 marking identifies the installed service-board reference.
  • The assembly is used only within a compatible Schneider drive configuration.
  • Replacement requires host model, hardware revision and connector verification.
The current ordering configuration is the service power board carrying the complete NHA75769.02 assembly marking.

It is supplied for maintenance of a compatible installed drive where the same documented board reference is already present.

Before fitting the board, compare the host nameplate, drive rating, connector layout and hardware revision; appearance alone does not establish interchangeability.

Availability is subject to Apter Power's current inventory and sourcing confirmation.
Verified resources for Schneider Electric NHA75769_02: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Schneider Electric NHA75769_02 Power Board Specs

General

  • ManufacturerSchneider Electric
  • ModelNHA75769_02
  • ConditionNew Original ready stock
  • Product FamilySchneider Electric Drive Service Components
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Compatibility is established by the exact NHA75769.02 board marking together with the complete host-drive record.
  • The host nameplate, power rating, hardware revision and connector arrangement must agree with the removed assembly.
  • No direct interchange with a visually similar or shortened board reference should be assumed without documented confirmation.
  • Isolate the mains supply and allow the drive DC bus to discharge according to the host-equipment service procedure.
  • Record every connector position and verify cable orientation before transferring the replacement board into the installed drive.
  • Use ESD-safe handling and inspect the board, mounting points and connectors for damage or contamination before energizing.
  • Only qualified service personnel should access the drive because hazardous voltage can remain after the incoming supply is removed.
  • Lockout, discharge verification and protective-earth continuity must be completed before the power board is handled.
  • Commissioning must stop if the board marking, host rating or connector layout differs from the documented original assembly.
Description
NHA75769_02 is a Schneider Electric service power board identified by the NHA75769.02 marking on the installed assembly. The board reference alone does not define a complete drive rating or host configuration.

The board is supplied as an internal service assembly for compatible Schneider drive equipment. Its allowable operating role and electrical limits remain those of the documented host unit.

Before installation, verify the host drive model, power rating, board marking, connector layout and hardware revision from the original equipment. Do not infer compatibility from visual similarity or a shortened reference.
