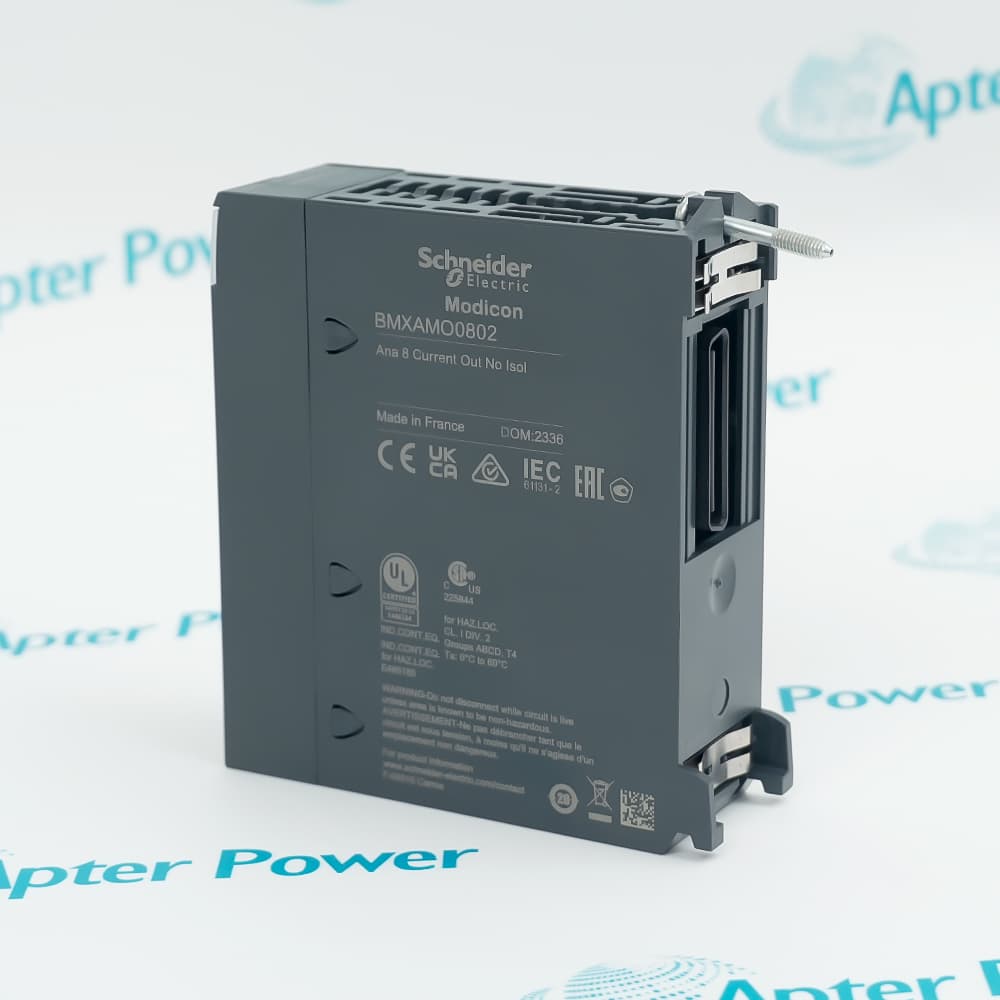

        Schneider BMXAMO0802
        Schneider BMXAMO0802

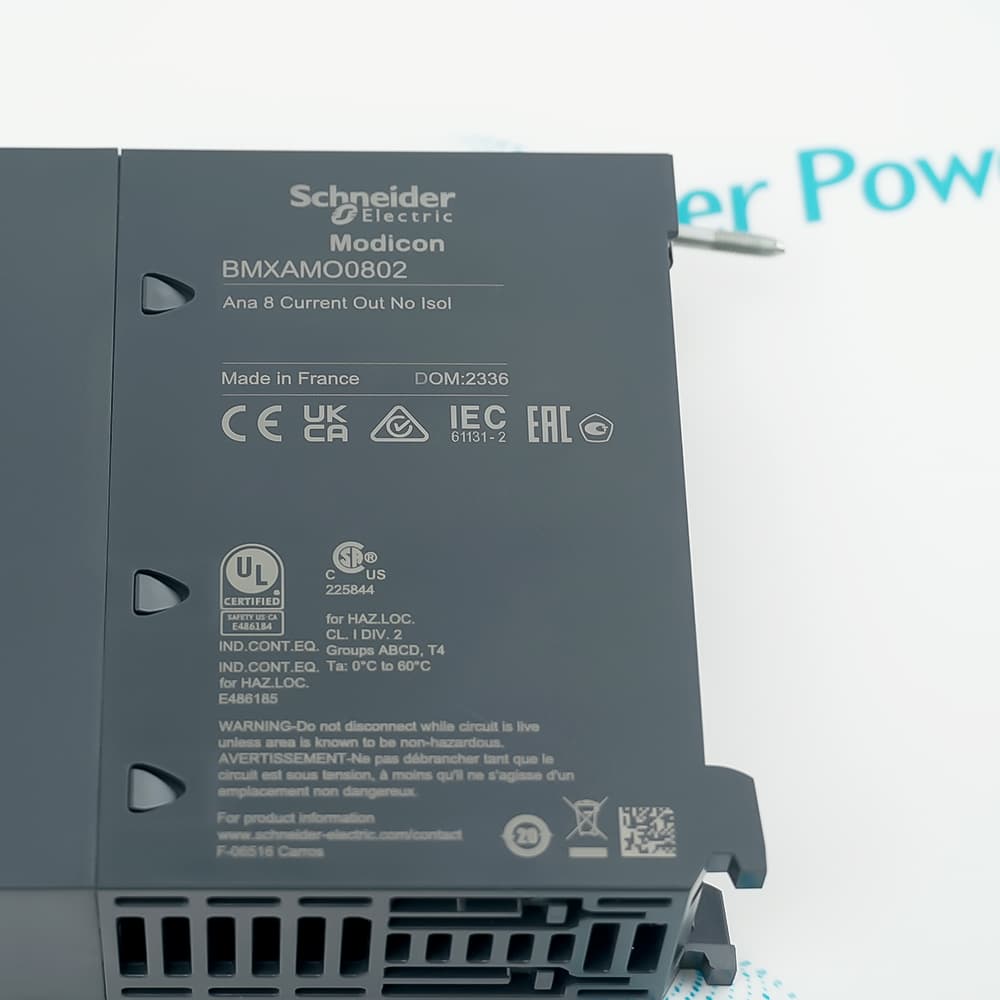

        BMXAMO0802
        Schneider BMXAMO0802
        Schneider BMXAMO0802
        BMXAMO0802
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle status

          Active / Available from OEM
          Apter power guarantees premium quality Schneider automation hardware, delivering highly efficient networking modules for heavy industrial PLC systems.

        BMXAMO0802

        / 4.9
        1001 reviews ｜ Need a Specific Revision?
        The Model BMXAMO0802 is a Modicon M340 automation platform analog output module featuring 8 high-level output channels configurable for 0-20 mA or 4-20 mA current signals.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for BMXAMO0802
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for BMXAMO0802

        • Manufacturer:
          Schneider Electric
        • Part Number:
          BMXAMO0802
        • Product Family:
          Modicon M340 automation platform
        • Product Type:
          Analog Output Module
        • Stock:
          2
        • Platform:
          Modicon M340 Automation Platform
        • Analogue Output Number:
          8
        • Output Types - Current:
          0-20 mA, 4-20 mA
        • Analogue Output Resolution:
          15 bits + sign
        • Conversion Time:
          ≤4 ms
        • Maximum Conversion Value:
          0-21 mA (both ranges)
        • Measurement Error (0-60°C):
          ≤0.25% of full scale
        • Common Mode Rejection:
          ≥80 dB
        • Weight:
          0.18 kg
        • Estimated shipping dimensions:
          3.1x9.7x10.2cm
        • Tariff Code:
          8517795000
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Application Operating Environment Monitoring and Control

        Features:

        • 8 analog output channels for 0-20 mA or 4-20 mA with 15-bit resolution
        • ≤4 ms conversion time, ±0.1% accuracy, and 1400 V DC isolation
        • Open/short circuit detection, configurable fallback modes, IP20 protection
        The BMXAMO0802 provides essential signal output functions critical to the entire control path, serving as the primary interface between the control system and field actuators, directly affecting the proper, normal operation of the overall automation system. One BMXAMO0802 module can handle up to eight analog output channels, with each channel independently configurable for the required current range.

        For applications requiring precise control across temperature variations, the BMXAMO0802 delivers exceptional accuracy with 0.1% of full scale at 25°C reference temperature and ≤0.25% across the full 0-60°C operating range. The module features temperature drift of only 45 ppm/°C for both output ranges, ensuring stable performance in varying environmental conditions.

        The BMXAMO0802's robust diagnostic and protection features ensure reliable operation in demanding industrial environments. The module provides 1400 V DC isolation between channels and ground, as well as between channels and the bus. Comprehensive fault detection on the BMXAMO0802 includes open circuit detection for 4-20 mA outputs and short circuit detection for 0-20 mA outputs, with configurable fallback modes for safe operation during communication loss.

        The BMXAMO0802 Schneider Analog output module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

        Schneider BMXAMO0802 Analog output module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        Schneider BMXAMO0802 Universal Analog output module Specs

        General

        • Manufacturer Schneider
        • Model BMXAMO0802
        • Condition New Original ready stock
        • Product Family BMXDAI0805,BMXDDO1602,BMXAMO0805
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Water and Wastewater Management: Controls proportional dosing pumps, chlorine injection systems, and regulates the positioning of automated main water valves.
        • HVAC and Building Automation: Regulates large fan speeds in air handling units (AHUs) via Variable Frequency Drives (VFDs) and modulates chilled/hot water valves for temperature control.
        • Chemical & Petrochemical Processing: Manages continuous flow rates by driving electronic control valves and regulates heating elements via SCR power controllers.
        • Standard Version (BMXAMO0802): Operates efficiently from 0°C to +60°C (32°F to 140°F).
        • Ruggedized Version (BMXAMO0802H): Extends the thermal range from -25°C to +70°C (-13°F to 158°F) for extreme outdoor enclosures or desert/arctic deployments.
        • Humidity Limits: Operates within 10% to 95% relative humidity (RH), non-condensing.
        • Isolation Specs: It is a non-isolated module between channels. This means all 8 channels share a common internal ground. Users must ensure that field devices are either properly isolated externally or share the same ground potential to prevent ground loops from skewing the signal.
        • Digital-to-Analog Scaling: The module features built-in internal conversion. Engineers can configure scaling directly in the software (e.g., mapping a raw PLC internal variable of 0 to 10000 or -32768 to 32767 directly to a physical 4–20 mA signal).
        • Output Ramping: Supports software-configured output ramp limits to prevent sharp, sudden current spikes from hammering mechanical valves or tripping motor drives.
        • Open-Circuit Detection (Wire-Break): When configured in the 4–20 mA operating range, the module actively monitors loop resistance. If a field wire snaps or a terminal loosens, the module detects a drop below 4 mA, triggers an Open Loop Error, logs a system bit in the PLC register, and illuminates the ERR LED.
        Description
        The Model BMXAMO0802 is a precision analog output module designed for the Modicon M340 automation platform, offering eight independent output channels for current signals. Each channel of the BMXAMO0802 supports field-configurable 0-20 mA or 4-20 mA output ranges, providing flexibility for driving various industrial actuators, valves, and recording devices.

        Measurement accuracy is a key feature of the BMXAMO0802, with exceptional performance across its operating range. At 25°C reference temperature, the BMXAMO0802 achieves ±0.1% of full scale accuracy, maintaining ≤0.25% of full scale across the full 0-60°C operating temperature range.

        Diagnostic capabilities enhance the reliability of the BMXAMO0802 in critical applications. The module features open circuit detection for 4-20 mA outputs and short circuit detection for 0-20 mA outputs, enabling rapid identification of field wiring issues. Configurable fallback modes on the BMXAMO0802 allow predefined output states to be set for safe operation in the event of communication loss or processor halt.

        Electrical isolation and environmental robustness are prominent features of the BMXAMO0802. The module provides 1400 V DC isolation between channels and ground, as well as between channels and the bus, ensuring signal integrity and personnel safety. Load impedance for the BMXAMO0802 is specified at ≤350 Ohm for both current output ranges.
        Alternative Names
        BMXAMO0410 BMXAMO0210 BMXAMM0600 BMXAMO0802H BMXAMO0805 BMXAMO0810 BMXDAI0805 BMXDDO1602
        Technical notes
        The Schneider Electric BMXAMO0802 is an analog output module for the Modicon M340 and Modicon X80 I/O platforms, providing 8 isolated analog output channels for precise control of field devices.
