    Expand your Modicon Quantum system with this reliable Schneider Electric backplane expander, sourced by Apter Power to ensure seamless integration and system stability.

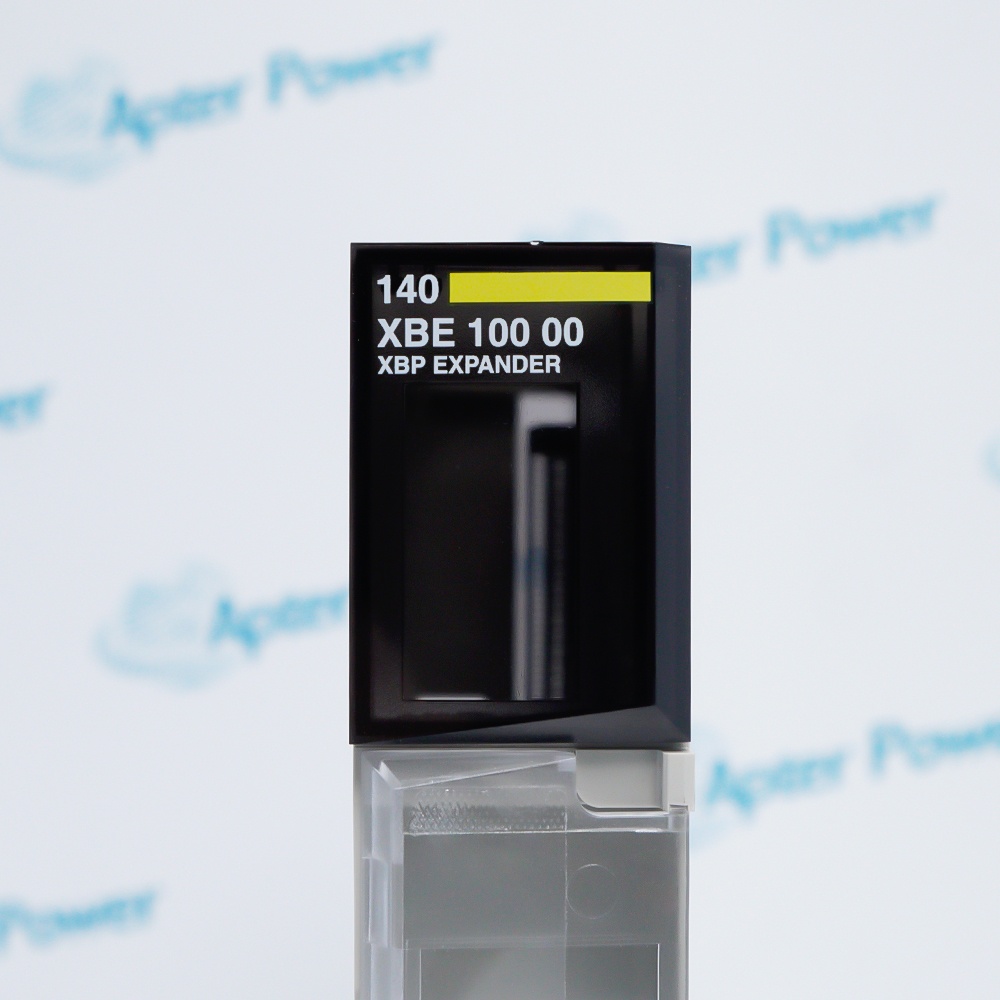

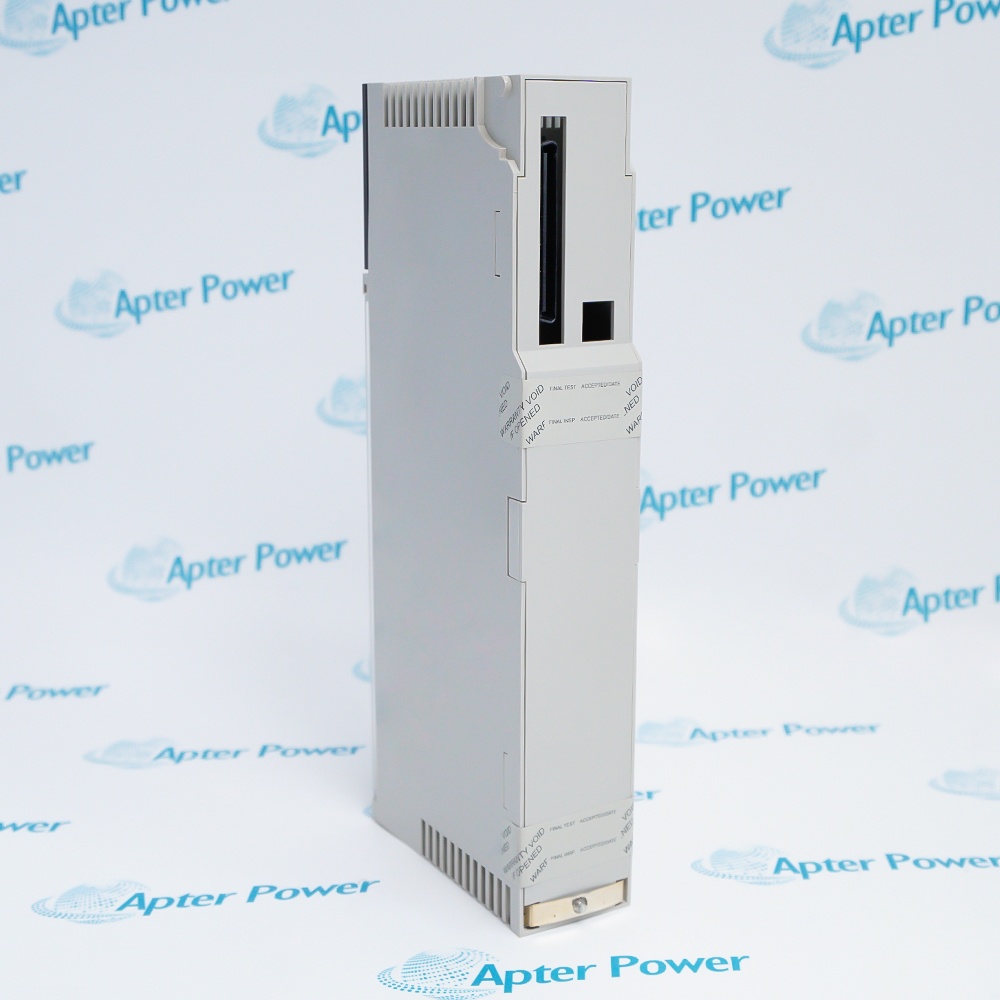

140XBE10000

/ 4.9
1001 reviews | Need a Specific Revision?
The Schneider Electric 140XBE10000 backplane expander extends a Quantum local or remote I/O drop by connecting two racks through a communication cable, enabling flexible I/O expansion without requiring an additional remote I/O drop.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 140XBE10000
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 140XBE10000

  • Manufacturer:
    Schneider Electric
  • Part Number:
    140XBE10000
  • Product Family:
    Modicon Quantum
  • Product Type:
    Backplane Expander
  • Stock:
    3
  • Number of connected racks:
    2
  • Maximum distance:
    3 m
  • rack requirements:
    For rack sizes (3-, 4-, 6-, 10- and 16-slot)
  • Slots used:
    1
  • Number of rack expander modules allowed:
    1/rack
  • LEDs:
    None
  • Required addressing:
    The rack expander looks like an unfilled slot in the PLC I/O map.
  • Power consumption:
    2.5 W
  • Bus current required:
    500 mA
  • Connector:
    3-pin D-type
  • Primary rack:
    No restrictions
  • Secondary rack:
    Quantum I/O modules can be used in the secondary rack, unless otherwise noted in the I/O documentation.
  • Local I/O:
    64 in / 64 out
  • Remote I/O:
    64 in / 64 out
  • Weight:
    0.32 kg
  • Estimated shipping dimensions:
    4x10.5x25cm
  • Tariff Code:
    8467210000
  • Country of origin:
    France
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Scenarios Firmware Certifications & Environment

Features:

  • Connects two Quantum racks within a single local or remote drop using a communication cable up to 3 m long.
  • Supports multiple rack sizes, allows installation in any rack slot, and enables different Quantum power supply types for each rack.
  • Reduces additional remote I/O hardware while providing capacity for future module installation and higher discrete I/O density.
The Schneider Electric 140XBE10000 provides a practical solution for expanding Quantum automation systems without increasing the number of remote I/O drops. By linking two racks within the same drop, it helps maximize available I/O capacity while keeping system architecture straightforward. This approach is particularly valuable for applications expecting future expansion.

As a data signal repeater, 140XBE10000 establishes reliable communication between the primary and secondary racks through a dedicated cable. Each rack operates with its own power supply, allowing independent power distribution while maintaining data exchange. The module itself occupies only one slot and requires no additional addressing because it appears as an empty slot in the PLC I/O map.

The Schneider Electric 140XBE10000 is suitable for Quantum installations that require additional local or remote I/O while maintaining efficient CPU performance. It supports a broad range of rack sizes and accommodates Quantum I/O modules in the secondary rack, helping engineers build scalable control systems. Combined with support for up to 27,648 discrete I/O, the module offers a flexible expansion method for industrial automation environments.

The 140XBE10000 Schneider Electric Backplane Expander may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Schneider Electric 140XBE10000 Backplane Expander Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Schneider Electric 140XBE10000 Backplane Expander Specs

General

  • Manufacturer Schneider Electric
  • Model 140XBE10000
  • Condition New Original ready stock
  • Product Family 140XBE10000C,140XCA71703,140XCA71706
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Multi-Rack Expansion: Used to centrally expand the CPU data stream or RIO (Remote I/O) on the main control baseboard to adjacent secondary slave baseboards.
  • High-capacity I/O clusters: Used in continuous process control, for ultra-large control cabinet clusters requiring the centralized installation of more than 16 input/output modules.
  • Mixed-signal acquisition: In large infrastructures, low-latency local interconnection of digital, analog, and complex communication modules via dedicated hardware-level extension cables.
  • Legacy system maintenance: Specifically designed for in-situ expansion and parts replacement of existing large-scale Quantum automation platforms in petrochemical and heavy industries.
  • Pure Hardware Transmission: As a passive expansion device for the baseboard, it has no independent firmware and directly and transparently transmits baseboard bus signals.
  • Slot Positioning: Factory defaults to adapting to large master/slave baseboards with 12 to 16 slots in Modicon Quantum systems.
  • Hardware Alignment: Natively and seamlessly matches and aligns with the physical slot positions and electrical impedance of the 140XBP01600 baseboard.
  • Lifecycle Evolution: After commercial discontinuation of this hardware, the recommended official firmware/hardware replacement kit for system upgrades is BMXXBE2005 for the Modicon M340 platform.
  • Green Label: Complies with Green Premium sustainability ecolabel standards.
  • Environmental Compliance: Fully compliant with EU RoHS (from batch 0845 onwards) and REACH (Relevant Authorities for Very High Concern) certifications.
  • Safety Procedures: Meets CE safety certification and UL global electrical safety standards, core to industrial control automation.
  • Environmental Endurance: Passes standard testing for environmental endurance, supporting stable operation in harsh industrial environments ranging from -25°C to +60°C.
Description
The Schneider Electric 140XBE10000 is a backplane expander that allows a second Quantum rack to be added to either a local or remote drop. Acting as a repeater for data signals from the primary rack, it transfers communication over a custom cable with a maximum length of 3 m while requiring separate power supplies for both racks. The module occupies one slot and appears as an unfilled slot in the PLC I/O map, simplifying system configuration.

A primary rack contains the CPU or RIO drop adapter, while the adjacent secondary rack accommodates additional Quantum I/O modules. The 140XBE10000 supports rack sizes of 3, 4, 6, 10, and 16 slots, with one rack expander module permitted per rack. Up to 64 input words and 64 output words are supported for both local and remote I/O, providing expanded capacity without increasing remote I/O drops.

The 140XBE10000 improves overall system efficiency by reducing the number of remote I/O drops the CPU must service. It allows a Quantum CPU to handle up to 27,648 discrete I/O while offering a cost-effective approach to future expansion. Empty I/O slots can be reserved for later module installation, making long-term system planning more convenient and reducing additional infrastructure requirements.

Installation guidelines allow rack expander modules to be placed in any slot rather than matching positions between racks. Each rack may use any Quantum power supply, including different power supply types. Option modules such as NOMs, NOEs, and CHSs must remain in the primary rack, while most Quantum I/O modules may be installed in the secondary rack. The 140XBE10000 has no status LEDs; instead, the active LEDs and diagnostic status bits of modules installed in the secondary rack indicate proper operation. Executive firmware cannot be downloaded to modules located in the secondary rack, and output behavior may vary if power conditions differ between the two racks.
Alternative Names
I40XBEI0000 14OXBE1OOOO 140 XBE 100 00 140XBE10000C 140XBP00600 140XBP00400 140XBP00300 140XBP00200
Technical notes
The Schneider Electric 140XBE10000 functions as a high-capacity backplane expander optimized for Modicon Quantum automation platforms. It provides direct hardware bus bridging to seamlessly extend capabilities across standard 12 to 16 slot backplanes like the 140XBP01600.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What does Schneider Electric 140XBE10000 do in a Quantum system?
Schneider Electric 140XBE10000 connects a primary and a secondary Quantum rack, repeating data signals between them so additional I/O modules can be installed without adding another remote I/O drop.
Why does 140XBE10000 require separate power supplies for both racks?
The communication cable transfers data only. Since power is not supplied through the cable, each rack must have its own Quantum power supply.
How far apart can racks be when using 140XBE10000?
140XBE10000 supports a maximum communication cable length of 3 m between the primary and secondary racks.
Can 140XBE10000 be installed in any rack slot?
Yes. 140XBE10000 may be installed in any slot within each rack, and the modules do not need to occupy matching slot positions.
Does 140XBE10000 include LED indicators for diagnostics?
No. 140XBE10000 does not include LEDs. Module LEDs and diagnostic status bits in the secondary rack provide operational status information.
