    Apter Power supports 140DSI35300 quotations, product manuals, and system matching.

140DSI35300

/ 4.9
1001 reviews | Need a Specific Revision?

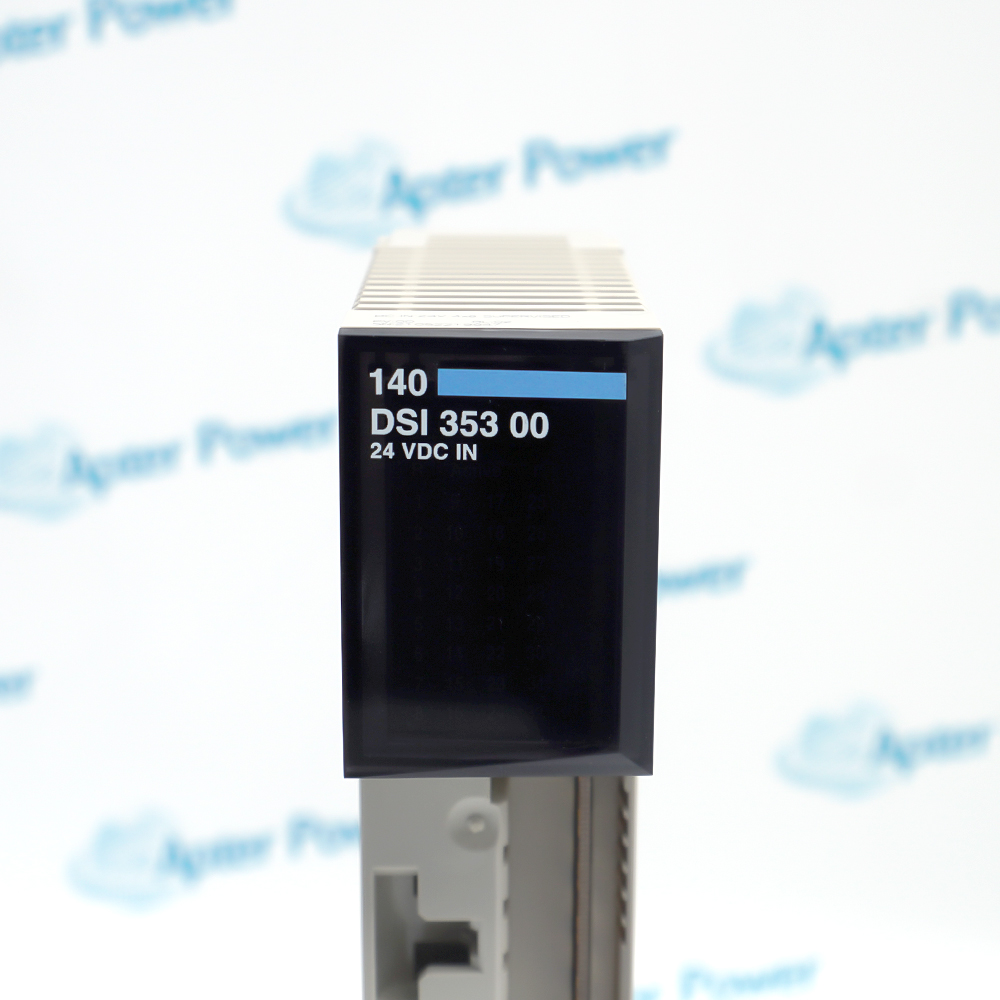

Schneider Electric 140DSI35300 is a Modicon Quantum 32-point 24 V DC supervised discrete input module.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 140DSI35300
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 140DSI35300

  • Manufacturer:
    Schneider Electric
  • Part Number:
    140DSI35300
  • Product Family:
    Modicon Quantum
  • Product Type:
    Modicon Quantum 32-Point 24 V DC Supervised Input Module
  • Stock:
    1
  • Group of Channels:
    4
  • Logic Input:
    Positive (sink)
  • Input Voltage Limits:
    20...30 VDC
  • State 1 Threshold:
    >=11 VDC; >=2.5 mA
  • State 0 Threshold:
    <=5 VDC; <=1.2 mA
  • Addressing Requirement:
    4 input words
  • Absolute Maximum Input:
    45 V during 10 ms decaying pulse
  • Response Time:
    2.2 ms OFF-to-ON; 3.3 ms ON-to-OFF
  • Isolation:
    500 Vrms group-to-group; 1780 Vrms group-to-bus for 1 minute
  • Bus Current Requirement:
    250 mA
  • Weight:
    0.661 lbs (0.3 kg)
  • Estimated shipping dimensions:
    31.2x16.3x4.5cm
  • Tariff Code:
    8538900000
  • Country of origin:
    France
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Input Groups Wire Supervision Diagnostics Rack Installation

Features:

  • Thirty-two supervised 24 V DC inputs
  • Four positive-logic groups of eight channels
  • Broken-wire reporting through diagnostic registers
Schneider Electric 140DSI35300 places thirty-two supervised field inputs into one Modicon Quantum rack slot.

Four groups of eight channels organize the 24 V DC input wiring on 140DSI35300 and keep group connections distinct.

A shunt-resistor path lets 140DSI35300 distinguish an open field switch from a broken conductor and route that fault to diagnostic registers.

The Schneider Electric 140DSI35300 Modicon Quantum Supervised Input Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Schneider Electric 140DSI35300 Modicon Quantum Supervised Input Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Input Groups

  • Channel Count: 140DSI35300 accepts thirty-two discrete inputs.
  • Grouping: Channels are divided into four groups of eight.
  • Logic: Each group uses positive 24 V DC input logic.

Wire Supervision

  • Open Switch: A shunt resistor maintains supervision current while the field switch is open.
  • Current Threshold: At least 0.15 mA indicates an intact open circuit.
  • Broken Conductor: Current below the threshold is treated as a field-wire interruption.

Diagnostics

  • Normal Data: Input states remain available in the ordinary mapped input words.
  • Fault Data: Broken-wire information is mapped separately.
  • Registers: 140DSI35300 uses diagnostic registers 3 and 4 for the fault bits.

Rack Installation

  • Slot Width: 140DSI35300 occupies one 40.34 mm Quantum slot.
  • Module Height: The single-slot housing is 250 mm high.
  • Module Depth: The installed depth is 103.85 mm.
Description
Schneider Electric 140DSI35300 is a Modicon Quantum supervised discrete input module that brings thirty-two 24 V DC field signals into the Quantum controller as four groups of eight positive-logic inputs.

Each field switch connected to 140DSI35300 uses a shunt-resistor path that maintains at least 0.15 mA when the switch is open. The module interprets current below that threshold as an interrupted field connection instead of a normal open input.

Broken-wire states from 140DSI35300 are mapped into dedicated diagnostic registers 3 and 4, keeping wiring supervision separate from the normal input-state data. Its single-slot Quantum housing fixes the module footprint at 250 mm high, 40.34 mm wide and 103.85 mm deep.
Alternative Names
Schneider 140DSI35300 Input Module Modicon Quantum 140DSI35300 140DSI35300 Supervised Input 140 DSI 353 00 Module Schneider Quantum 32-Input Module 140DSI35300 24 VDC Input Quantum Supervised Input 140DSI35300 Schneider Electric DSI35300
Technical notes
Schneider Electric 140DSI35300 groups 32 supervised 24 V DC inputs as four banks of eight. Broken-wire conditions are reported separately from normal input states.
