140NOE77111

/ 4.9
1001 reviews | Need a Specific Revision?

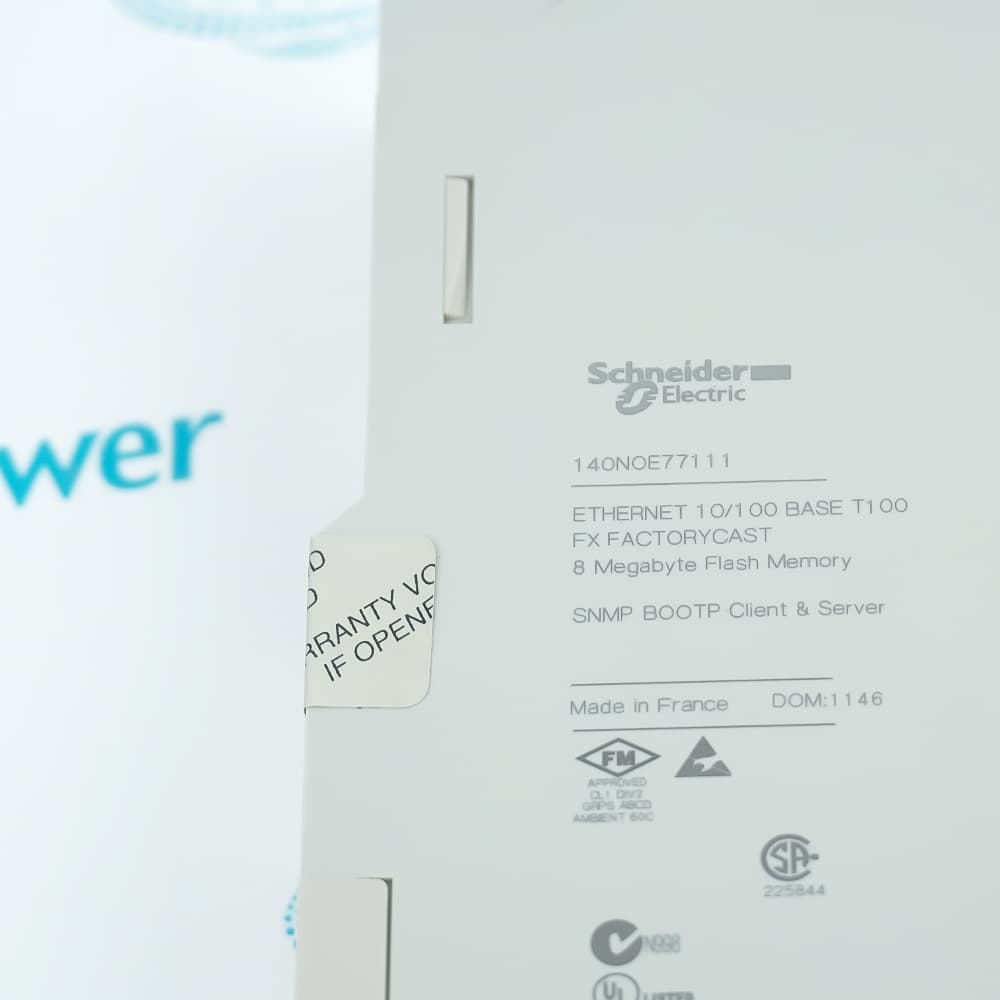

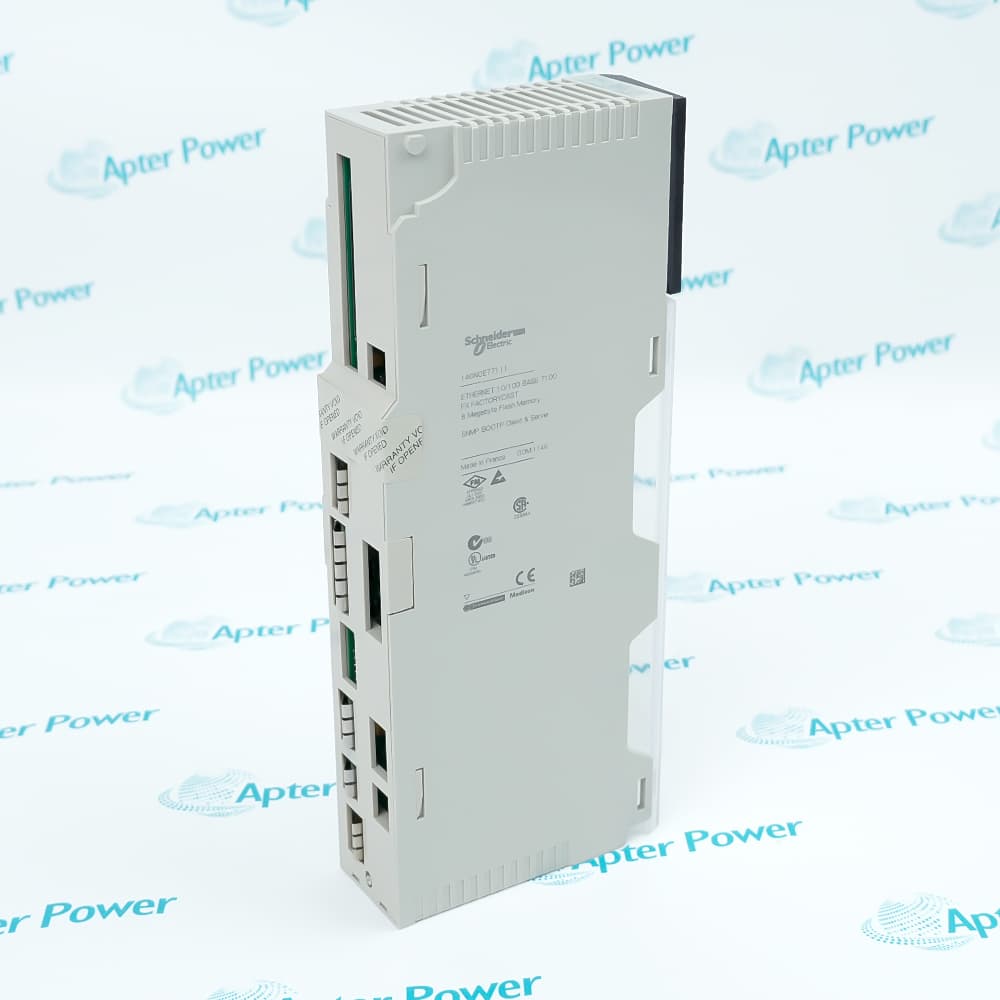

The Schneider Electric 140NOE77111 is an Ethernet Network TCP/IP module designed for the Modicon Quantum automation platform, enabling reliable industrial network communication through Modbus TCP/IP.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 140NOE77111
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 140NOE77111

  • Manufacturer:
    Schneider Electric
  • Part Number:
    140NOE77111
  • Product Family:
    Modicon Quantum
  • Product Type:
    Ethernet Network TCP/IP Module
  • Stock:
    1
  • Range of product:
    Modicon Quantum automation platform
  • Product or component type:
    Ethernet network TCP/IP module
  • Concept:
    Transparent Ready
  • Web server:
    Class C30
  • Web services:
    Data editor, FactoryCast configurable, Rack viewer.
  • Communication port protocol:
    Ethernet Modbus TCP/IP
  • Physical interface:
    MT/RJ 100BASE-FX fiber optic, RJ45 10BASE-T/100BASE-TX twisted pair.
  • Transmission rate:
    10/100 Mbit/s
  • Current consumption:
    750 mA 5 V DC
  • Module format:
    Standard
  • IP degree of protection:
    IP20
  • Resistance to electromagnetic fields:
    10 V/m 80...1000 MHz IEC 801-3
  • Ambient air temperature for operation:
    0...60 °C
  • Ambient air temperature for storage:
    -40...85 °C
  • Relative humidity:
    95 % without condensation
  • Operating altitude:
    <= 4500 m
  • Weight:
    0.36 kg
  • Estimated shipping dimensions:
    4x10.4x25cm
  • Tariff Code:
    8467210000
  • Country of origin:
    France
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Diagnostics Application Scenarios Configuration

Features:

  • Integrated Ethernet Modbus TCP/IP communication for industrial automation networks
  • Transparent Ready concept with Class C30 web services for system visibility and configuration
  • Dual physical interfaces supporting fiber optic and twisted pair Ethernet connections
The 140NOE77111 module is designed to integrate into Modicon Quantum automation systems, providing structured Ethernet communication capabilities for industrial control environments. It supports standardized Modbus TCP/IP networking, enabling stable data exchange across distributed systems. The inclusion of web-based services allows users to access system information and configuration tools efficiently.

In industrial automation setups, the 140NOE77111 helps streamline communication between controllers and networked devices. Its support for both fiber optic and copper Ethernet connections ensures adaptability to different infrastructure requirements. The module is engineered to maintain consistent operation under varying environmental and electrical conditions.

The 140NOE77111 also enhances system transparency through embedded web functionalities, allowing monitoring and configuration without direct hardware intervention. This contributes to improved operational oversight in complex automation architectures. Its design supports long-term deployment in demanding industrial environments.

The 140NOE77111 Schneider Electric Ethernet Network TCP/IP Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Schneider Electric 140NOE77111 Ethernet Network TCP/IP Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Schneider Electric 140NOE77111 Ethernet Network TCP/IP Module Specs

General

  • Manufacturer Schneider Electric
  • Model 140NOE77111
  • Condition New Original ready stock
  • Product Family 140NOE77100,140NOE77101,140NOE77110
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Embedded Web Server: Real-time diagnostic data and rack status can be viewed by accessing the built-in Class C30 webpage via a browser.
  • Multi-functional LED Indicators: The panel provides multi-dimensional status indicators such as RUN, Fault, Ready, and network connectivity/conflict.
  • SNMP Management: Supports the standard SNMP network management protocol, allowing third-party IT network management software to monitor the module's operational health.
  • Rack Viewer: Remotely and intuitively view the physical status of each module within the rack through the Rack Viewer function in the web interface.
  • Industrial Process Control: Used in industrial fields requiring continuous or semi-continuous control, such as petrochemicals, metallurgy, and cement.
  • Large-Scale Infrastructure: Suitable for distributed monitoring and automation of large sites such as tunnels, airports, and water treatment plants.
  • Energy Management System: Integrated into hydropower stations or energy storage systems to achieve remote data acquisition and equipment scheduling.
  • High Availability Architecture: Works with a Hot Standby redundancy system to ensure uninterrupted communication in critical production environments.
  • IP Address Assignment: Supports statically assigning or dynamically obtaining IP addresses via Concept or Unity Pro software.
  • I/O Scan Definition: Quickly define the I/O Scanning list in the configuration software for efficient data exchange with other controllers.
  • FDR Service: Supports Faulty Device Replacement (FDR) functionality; after replacing a module, the original configuration can be automatically downloaded from the server.
  • Firmware Management: Firmware updates and upgrades can be performed online or offline using the Unity Loader dedicated tool.
Description
The Schneider Electric 140NOE77111 is an Ethernet network TCP/IP module developed for integration within the Modicon Quantum automation platform, providing stable industrial communication through Modbus TCP/IP protocol. The Schneider Electric 140NOE77111 is designed to ensure flexible network connectivity while maintaining consistent data exchange performance in automation environments. It also incorporates the Transparent Ready concept, allowing easier access to system data and diagnostics.

This module features a built-in web server of Class C30, offering multiple web services including data editor functionality, FactoryCast configurable tools, and rack viewer access. These functions support efficient system monitoring and configuration without requiring direct controller interaction. The Schneider Electric 140NOE77111 is structured to enhance operational transparency within industrial control systems.

For communication flexibility, the Schneider Electric 140NOE77111 supports Ethernet Modbus TCP/IP protocol with both MT/RJ 100BASE-FX fiber optic interface and RJ45 10BASE-T/100BASE-TX twisted pair connections. This dual-interface design allows adaptation to different industrial network infrastructures while maintaining stable transmission performance. The module operates at transmission rates of 10/100 Mbit/s, ensuring consistent data flow across network layers.

From an electrical and environmental perspective, the Schneider Electric 140NOE77111 consumes 750 mA at 5 V DC and is built in a standard module format with IP20 protection rating. It is designed to operate in ambient temperatures from 0 to 60 °C and storage conditions from -40 to 85 °C, with relative humidity tolerance up to 95% without condensation. Additionally, it can operate at altitudes up to 4500 m and withstand electromagnetic fields of 10 V/m within the 80–1000 MHz range according to IEC 801-3.
Alternative Names
140NOE211x0 140NOE251x0 140NOE31100 140NOE35100 140NOE77100 140NOE77101 140NOE77110
Technical notes
Designed for robust control architectures, the Schneider Electric 140NOE77111 Ethernet TCP/IP module provides reliable flash memory management and native Modbus TCP protocol support to connect your Quantum PLC with up to 64 simultaneous devices.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What communication protocols does Schneider Electric 140NOE77111 support?
Schneider Electric 140NOE77111 supports Ethernet Modbus TCP/IP communication for reliable industrial network connectivity.
How does Schneider Electric 140NOE77111 connect to industrial networks?
Schneider Electric 140NOE77111 offers both RJ45 10/100BASE-TX twisted-pair and MT/RJ 100BASE-FX fiber-optic interfaces to accommodate different network infrastructures.
Can Schneider Electric 140NOE77111 support remote diagnostics and monitoring?
Yes. Schneider Electric 140NOE77111 includes a Class C30 web server with Rack Viewer, Data Editor, and FactoryCast configurable web services for convenient remote access.
Does Schneider Electric 140NOE77111 operate in demanding industrial environments?
Schneider Electric 140NOE77111 is designed to operate from 0°C to 60°C, withstand 95% non-condensing humidity, and meet IP20 protection requirements.
