6ED1052-1FB00-0BA8

/ 4.9
1001 reviews | Need a Specific Revision?

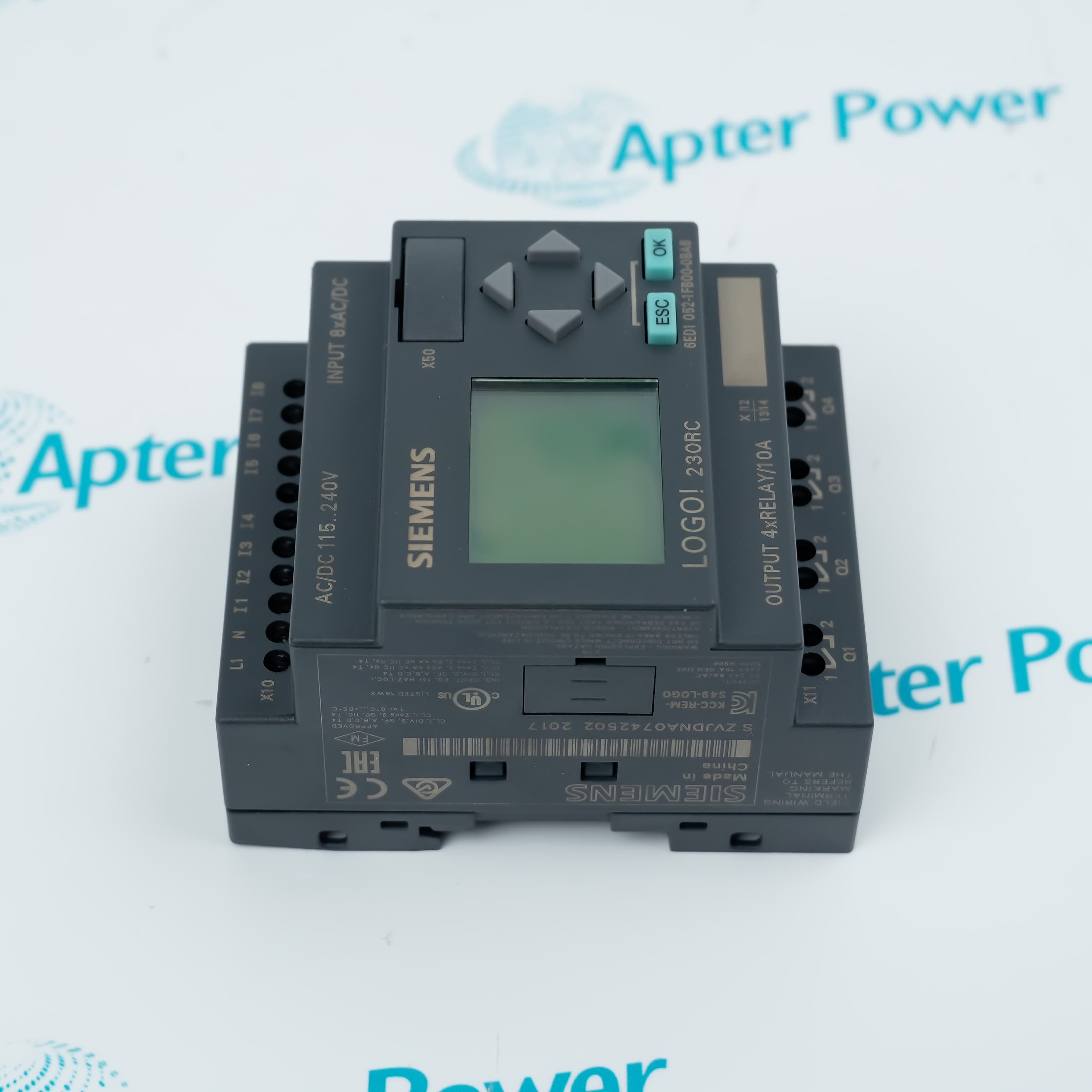

With its display and Ethernet interface, Siemens 6ED1052-1FB00-0BA8 is a LOGO! 230RCE controller that reads eight digital inputs and operates four relay outputs for programmed logic.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6ED1052-1FB00-0BA8
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ED1052-1FB00-0BA8

  • Manufacturer:
    Siemens
  • Part Number:
    6ED1052-1FB00-0BA8
  • Product Family:
    Siemens LOGO
  • Product Type:
    LOGO! 230RCE Logic Module
  • Stock:
    1
  • Supply Range:
    85–265 V AC; 100–253 V DC
  • AC Frequency:
    47–63 Hz
  • Digital Inputs:
    8; arranged in groups I1–I4 and I5–I8
  • Relay Outputs:
    4
  • Relay Contact Rating:
    Up to 240 V AC/DC; 10 A resistive
  • Program Capacity:
    400 function blocks
  • Expansion:
    Modular expansion supported
  • Network Interface:
    Ethernet
  • Web Functions:
    Integrated web server and user-defined web pages
  • Data Storage:
    Data log and standard microSD support
  • Mounting:
    35 mm DIN rail or wall mounting
  • Protection Rating:
    IP20
  • Operating Temperature:
    -20–55°C
  • Weight:
    0.5269 lbs (0.239 kg)
  • Estimated shipping dimensions:
    10.3×8.4×7.6cm
  • Tariff Code:
    85371091
  • Country of origin:
    China
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Input Logic Relay Outputs Program Memory Ethernet Services

Features:

  • A local display and 400-block program memory are integrated into the LOGO! 8 basic module.
  • Eight mains-voltage digital inputs drive four electrically isolated relay outputs.
  • Ethernet, web-server, data-log, and microSD functions are built into the controller.
The 230RCE supply design accepts either AC or DC within the documented mains-voltage ranges and keeps that wiring class distinct from 24 V LOGO! units.

Relay contacts allow different field-load circuits to be switched without assigning transistor-output polarity, but each load still requires the specified protection.

Network and removable-memory functions complement the front display by providing programming, web access, and recorded operating data.

The Siemens 6ED1052-1FB00-0BA8 LOGO! 230RCE Logic Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ED1052-1FB00-0BA8 LOGO! 230RCE Logic Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Interpreting the mains-voltage inputs

  • Two groups: Inputs are arranged as I1–I4 and I5–I8 within the basic module.
  • AC or DC: The 230RCE input circuits accept the documented mains-voltage supply class rather than 24 V sensor signals.
  • State timing: Defined transition delays determine when a changed terminal level is accepted by the program.
  • Program use: The logic diagram reads the input states by their assigned I-addresses.

Switching the connected loads

  • Four contacts: The Q outputs are electromechanical relay channels rather than transistor outputs.
  • Load type: Resistive and inductive loads have different permitted contact currents.
  • External protection: Output fusing is required because the relay paths are not internally short-circuit protected.
  • Circuit separation: The relay contacts can switch field circuits separately from the internal logic supply.

Keeping the LOGO! program and records

  • Logic capacity: The module stores a program containing up to 400 function blocks.
  • microSD path: A standard microSD card supports program transfer and storage functions.
  • Data logging: Configured values can be written to the integrated data-log function.
  • Software generation: LOGO! Soft Comfort V8 or later addresses the functions of this 0BA8 generation.

Using the integrated network interface

  • Programming link: Ethernet provides the connection for transferring and monitoring the LOGO! program.
  • Web server: The built-in server exposes authorized operating information through a browser.
  • User pages: Configured web pages present project-specific values without changing the relay wiring.
  • Station role: Network communication supplements the local display and does not alter the eight-input/four-output hardware.
Description
The Siemens LOGO! 230RCE 6ED1052-1FB00-0BA8 is a display-equipped logic module for 115/230 V AC or DC supply. It runs user logic with a 400-block capacity while reading eight digital inputs and switching four relay outputs.

Input terminals on 6ED1052-1FB00-0BA8 are organized as I1–I4 and I5–I8, with transition delays defined for the mains-voltage input circuits. The relay contacts provide isolated switching and must be protected according to the connected load.

Ethernet communication in 6ED1052-1FB00-0BA8 supports networked programming and its integrated web functions. Data logging and standard microSD storage provide separate paths for runtime records and program handling.

Mechanical installation of 6ED1052-1FB00-0BA8 is supported on 35 mm DIN rail or by wall mounting. Expansion modules extend the LOGO! station within the documented supply-class and module-count rules.
Alternative Names
6ED10521FB000BA8 6ED1052 1FB00 0BA8 6ED1 052-1FB00-0BA8 Siemens 6ED1052-1FB00-0BA8 6ED1052-1FB00-0BA8 LOGO 230RCE LOGO 8 230RCE 400-block 6ED1052-1FBOO-OBA8 Siemens LOGO 6ED1052 1FB00 0BA8
Technical notes
Siemens 6ED1052-1FB00-0BA8 is the 115/230 V AC/DC relay-output LOGO! 8 basic module. The complete 1FB00-0BA8 code distinguishes its supply and generation from 24 V and later BA2 variants.
