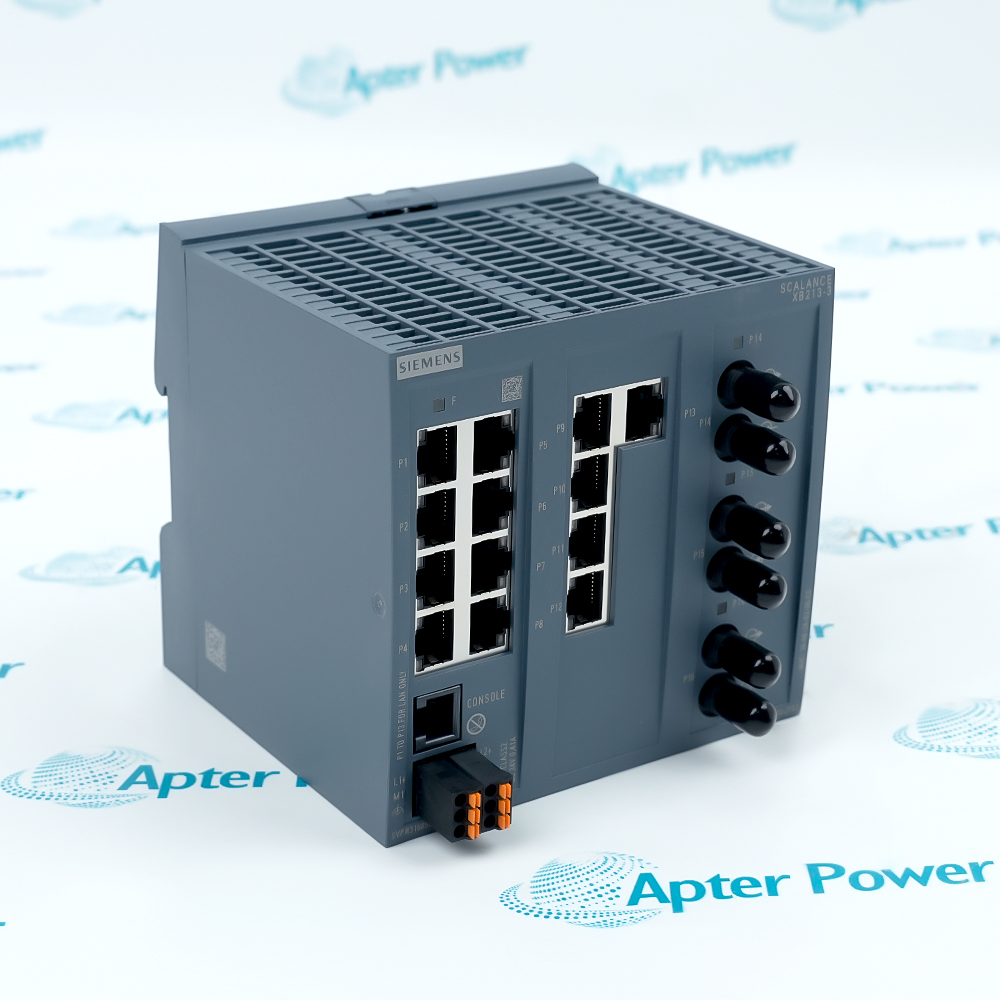

Siemens 6GK5213-3BB00-2TB2 is a SCALANCE XB213-3 managed Layer 2 switch with thirteen 10/100 RJ45 ports and three multimode ST fiber ports. It provides managed industrial Ethernet functions with redundant 24 V DC supply inputs.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6GK5213-3BB00-2TB2
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6GK5213-3BB00-2TB2

  • Manufacturer:
    Siemens
  • Part Number:
    6GK5213-3BB00-2TB2
  • Product Family:
    Siemens SCALANCE
  • Product Type:
    Managed Industrial Ethernet Switch
  • Stock:
    1
  • Copper ports:
    13 x 10/100 Mbit/s RJ45
  • Optical ports:
    3 x 100 Mbit/s multimode BFOC/ST
  • Console interface:
    1 serial console port
  • Total Ethernet ports:
    16
  • Rated supply voltage:
    24 V DC
  • Permissible supply range:
    19.2 to 28.8 V DC
  • Redundant supply inputs:
    Supported
  • Maximum current consumption:
    0.41 A
  • Power loss:
    9.8 W
  • Operating temperature:
    0 to 60 °C
  • Storage and transport temperature:
    -40 to 70 °C
  • Relative humidity:
    Up to 95%, non-condensing
  • Degree of protection:
    IP20
  • Switching layer:
    Managed Layer 2
  • Default industrial profile:
    EtherNet/IP
  • Security standard:
    IEC 62443-4-2 product capability
  • Product type designation:
    SCALANCE XB213-3
  • Transfer rates:
    10 and 100 Mbit/s
  • Operator-console connection:
    RJ11
  • Management connection:
    RJ45
  • Power connection:
    6-pole terminal block
  • Supply-input fusing:
    Integrated
  • Enclosure material:
    Polycarbonate PC-GF10
  • Mounting method:
    35 mm DIN rail
  • Maximum ring cascading:
    50 switches with reconfiguration below approximately 0.3 s
  • Maximum Ethernet frame length:
    1,632 bytes
  • PROFINET conformity class:
    Class B
  • PROFINET network load class:
    Class 3
  • Management interfaces:
    CLI, web-based management and STEP 7 configuration
  • Management protocols:
    Telnet, HTTP, HTTPS, TFTP, FTP, DCP and LLDP
  • Network-management protocols:
    SNMP v1, SNMP v2, SNMP v3 and RMON
  • Multicast management:
    IGMP snooping and querier
  • Diagnostics:
    Port, packet-size, packet-type, error, SysLog and loopback diagnostics
  • Port mirroring:
    Single-port and multiport mirroring supported
  • VLAN capacity:
    Up to 257 VLANs
  • DHCP function:
    DHCP client
  • Ring protocols:
    HRP and MRP, including MRP Interconnection
  • Spanning-tree protocols:
    STP, RSTP and RSTP+
  • Link aggregation:
    LACP supported
  • Access control:
    MAC-based and port/MAC-based ACLs
  • Port authentication:
    IEEE 802.1X with RADIUS
  • Traffic limiting:
    Broadcast, multicast and unicast limiting with broadcast blocking
  • Secure management:
    SSH and SSL supported
  • Time synchronization:
    NTP client, SNTP client and SICLOCK support
  • MTBF:
    45 years
  • EMC emission standard:
    EN 61000-6-4 Class A
  • EMC immunity standard:
    EN 61000-6-2
  • Industrial cybersecurity certification:
    IEC 62443-4-2:2019
  • Weight:
    1.102 lbs (0.5 kg)
  • Estimated shipping dimensions:
    12 x 11.7 x 10.9 cm
  • Tariff Code:
    Please confirm the destination before shipping.
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Communication Diagnostics Standards

Features:

  • Combines thirteen copper and three multimode fiber Fast Ethernet ports.
  • Supports managed Layer 2 segmentation, redundancy and diagnostic functions.
  • Accepts dual 24 V DC feeds for power redundancy in industrial cabinets.
The ordered XB213-3 execution uses ST-style multimode optical interfaces alongside RJ45 ports.

It switches cell traffic while management functions control paths, segmentation and recovery behavior.

A replacement must reproduce the saved network configuration and the exact optical media used on site.

Apter Power can review sourcing, documentation and system matching for 6GK5213-3BB00-2TB2.
Verified resources for Siemens 6GK5213-3BB00-2TB2: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Automation cells can aggregate controllers, HMIs and drives while fiber uplinks cross electrically noisy areas.
  • Redundant ring or line topologies use the managed recovery functions to improve plant-network availability.
  • Segmented production networks apply VLAN and access controls at the industrial edge.
  • Thirteen RJ45 ports provide 10/100 Mbit/s electrical Ethernet connections.
  • Three 100 Mbit/s multimode optical ports use BFOC/ST connectors.
  • A separate console interface supports local commissioning and recovery access.
  • Managed port statistics and status information support link and traffic fault isolation.
  • Network alarms can identify loss of a configured path or redundancy partner.
  • Configuration records preserve VLAN, port and management settings for maintenance.
  • Management access should use controlled credentials and the documented industrial security functions.
  • Unused services and ports can be restricted according to the plant cybersecurity design.
  • IEC 62443-4-2 capabilities support integration into a defense-in-depth network architecture.
Description
6GK5213-3BB00-2TB2 combines thirteen Fast Ethernet copper connections with three optical multimode ports in a compact managed switch. The BFOC/ST fiber interfaces extend network segments where electrical isolation or longer plant links are required.

Layer 2 management provides VLAN, redundancy, diagnostics and access-control functions for automation cells. The switch supports industrial protocols and browser or network-management access while remaining focused on 10/100 Mbit/s edge connectivity.

Fiber type, connector style, VLAN plan, redundancy role and power-feed separation must match the existing topology. Cybersecurity settings should be backed up before replacement so the new device does not join the plant with default credentials or addresses.
Alternative Names
6GK5213-3BB00-2TB2 Siemens 6GK5213-3BB00-2TB2 6GK5213 3BB00 2TB2 6GK52133BB002TB2 6GK5213-3BB00-2TB2 Managed Industrial Ethernet Switch Siemens SCALANCE XB-200 Managed Siemens 6GK5213-3BB00-2TB2 Managed Industrial Ethernet Switch
Technical notes
Back up the active configuration before replacing 6GK5213-3BB00-2TB2; default network settings can disrupt VLAN, redundancy and access-control behavior.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which media mix is built into Siemens 6GK5213-3BB00-2TB2?
It provides thirteen copper Fast Ethernet ports plus three multimode BFOC/ST optical ports.
Can Siemens 6GK5213-3BB00-2TB2 participate in a managed industrial ring?
Yes, its Layer 2 management and redundancy functions support engineered resilient topologies.
Where does Siemens 6GK5213-3BB00-2TB2 add value in a plant network?
It aggregates automation devices while using fiber for isolated or extended links between cabinet areas.
What lifecycle check is needed when sourcing Siemens 6GK5213-3BB00-2TB2?
Confirm the exact article status and available firmware-support path at quotation time.
What must be migrated before exchanging Siemens 6GK5213-3BB00-2TB2?
Preserve VLANs, port settings, redundancy parameters, IP management data and security credentials.
Which network records should accompany a Siemens 6GK5213-3BB00-2TB2 enquiry?
Provide topology, fiber connector and wavelength details, firmware level, configuration backup and destination.
