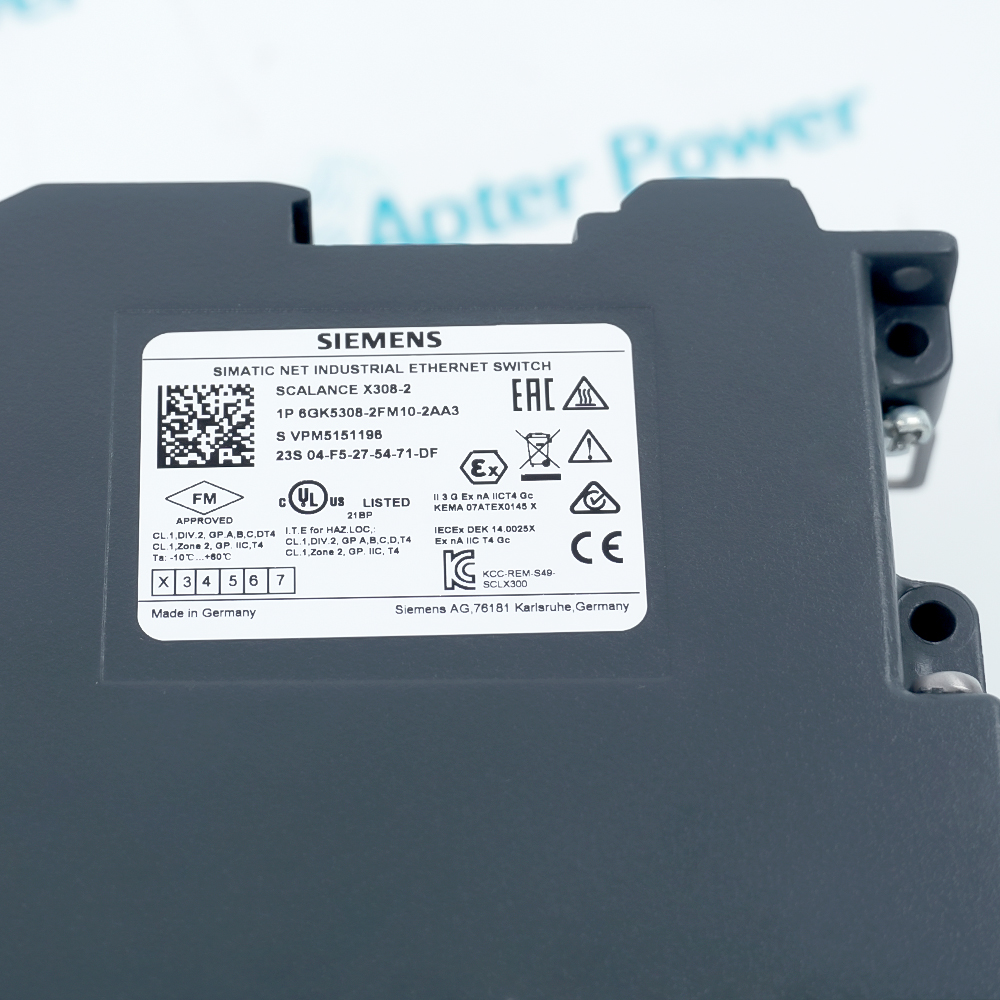

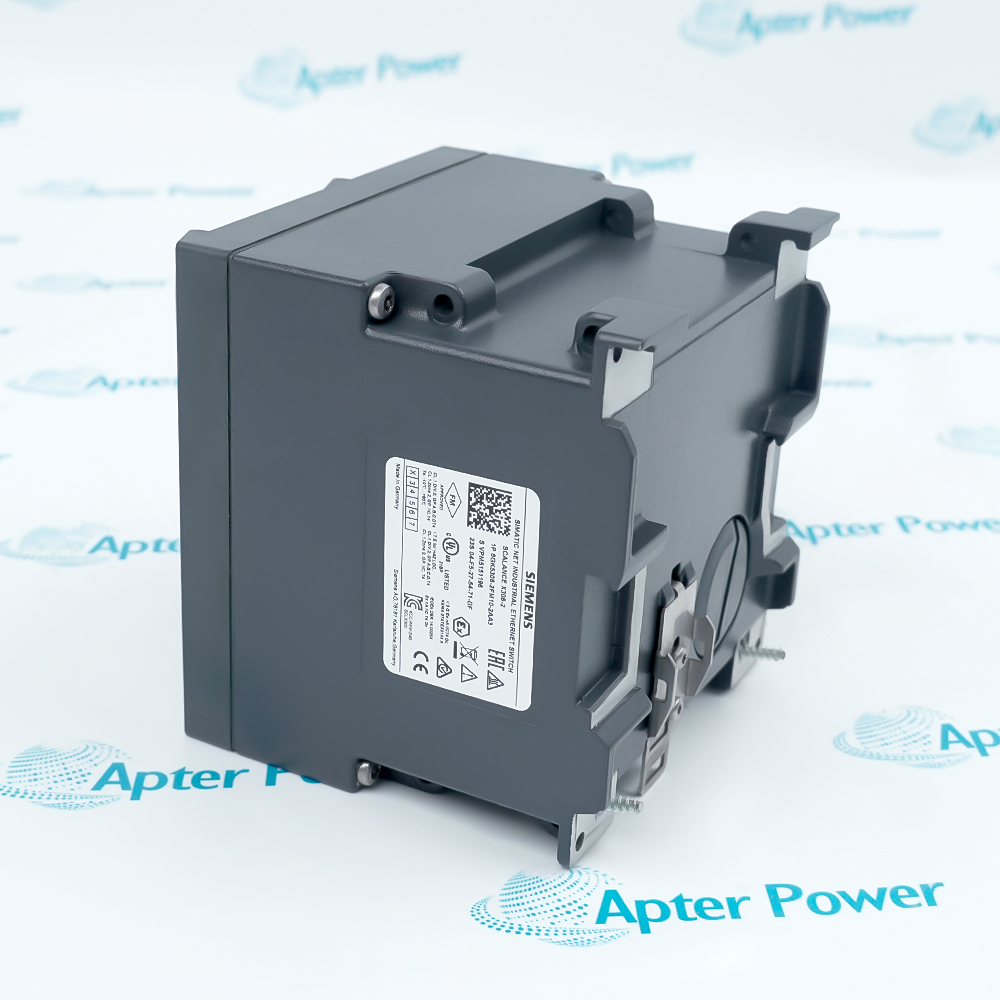

Siemens 6GK5308-2FM10-2AA3 is a SCALANCE X308-2LD managed Industrial Ethernet switch that combines two long-distance single-mode fiber ports with eight electrical network ports.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6GK5308-2FM10-2AA3
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6GK5308-2FM10-2AA3

  • Manufacturer:
    Siemens
  • Part Number:
    6GK5308-2FM10-2AA3
  • Product Family:
    Siemens SCALANCE
  • Product Type:
    SCALANCE X308-2LD Managed Industrial Ethernet Switch
  • Stock:
    1
  • Electrical RJ45 Ports:
    8 total
  • Gigabit RJ45 Ports:
    1 x 10/100/1000 Mbit/s
  • Fast Ethernet RJ45 Ports:
    7 x 10/100 Mbit/s
  • Optical Ports:
    2 x 1000 Mbit/s single-mode SC
  • Optical Fiber Type:
    Single-mode
  • Supply Voltage:
    24 V DC
  • Permissible Supply Range:
    18-32 V DC
  • Maximum Current Consumption:
    0.4 A
  • Power Loss:
    9.6 W
  • Signaling Contact:
    24 V DC / 0.1 A
  • PROFINET Role:
    PROFINET IO device
  • Configuration Storage:
    C-PLUG included
  • Network Management:
    Web, CLI, SNMP, RMON, and STEP 7
  • Redundancy Protocols:
    HRP, MRP, STP, RSTP, and MSTP
  • VLAN Capacity:
    Up to 255 VLANs
  • Mounting:
    DIN rail, S7-300 rail, or wall
  • Degree of Protection:
    IP30
  • Operating Temperature:
    -40 to +60 °C
  • Relative Humidity:
    Up to 95%, non-condensing
  • Weight:
    3.219 lbs (1.46 kg)
  • Estimated shipping dimensions:
    18x12.3x12.5cm
  • Tariff Code:
    85176200
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Port Layout Optical Path Ring Recovery Management Access

Features:

  • Two 1000 Mbit/s single-mode SC interfaces provide the long-distance optical network path.
  • One Gigabit and seven Fast Ethernet RJ45 interfaces collect local copper connections.
  • PROFINET diagnostics, ring management, and a removable C-PLUG support managed operation.
The 6GK5308-2FM10-2AA3 combines fixed fiber and copper interfaces in one SCALANCE X300 platform.

Its management functions separate traffic control, fault reporting, and configuration storage from ordinary forwarding.

Multiple mounting methods allow the switch to follow the mechanical arrangement of the control enclosure.

The Siemens 6GK5308-2FM10-2AA3 SCALANCE X308-2LD Managed Industrial Ethernet Switch may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6GK5308-2FM10-2AA3 SCALANCE X308-2LD Managed Industrial Ethernet Switch Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Fixed Copper and Fiber Interfaces

  • Fiber pair: Two SC ports operate at 1000 Mbit/s over single-mode fiber.
  • Gigabit copper: One RJ45 port negotiates 10, 100, or 1000 Mbit/s.
  • Fast Ethernet: Seven RJ45 ports provide 10/100 Mbit/s device connections.
  • Port grouping: The fixed layout joins long-distance uplinks and local access ports without media modules.

Single-Mode Link Boundary

  • Optical medium: The LD interfaces are specified for single-mode fiber.
  • Connector type: Each optical channel terminates on an SC connection.
  • Line speed: Both optical interfaces use Gigabit Ethernet transmission.
  • Topology role: The fiber pair can form long-distance backbone or ring connections while copper ports serve local devices.

Redundant Ethernet Operation

  • Ring manager: Integrated HRP and MRP functions support managed ring arrangements.
  • Spanning trees: STP, RSTP, and MSTP provide alternate loop-control methods.
  • Link grouping: LACP can combine supported Ethernet links into an aggregated path.
  • Fault reporting: Network diagnostics and the signaling contact expose failures outside normal packet traffic.

Configuration and Diagnostic Channels

  • Browser access: Web management provides graphical configuration and status pages.
  • Command access: CLI and SSH support text-based administration.
  • Supervision: SNMP, RMON, port mirroring, and PROFINET diagnostics expose network behavior.
  • Configuration carrier: The supplied C-PLUG stores device configuration independently of the switch memory.
Description
Siemens 6GK5308-2FM10-2AA3 is the SCALANCE X308-2LD managed Industrial Ethernet switch for mixed optical and copper networks. Its fixed interface set places two Gigabit single-mode SC links beside one Gigabit RJ45 port and seven Fast Ethernet RJ45 ports.

Long-distance fiber communication defines the optical side of 6GK5308-2FM10-2AA3. The two SC ports carry 1000 Mbit/s single-mode links, while the electrical ports connect local devices without converting the complete switch to an optical-only topology.

Network control in 6GK5308-2FM10-2AA3 includes PROFINET IO diagnostics, VLAN and IGMP handling, spanning-tree functions, and integrated ring management. Web management, CLI, SNMP, RMON, port mirroring, and a supplied C-PLUG provide separate paths for supervision, commissioning, and configuration retention.

A 24 V DC input powers 6GK5308-2FM10-2AA3, and a signaling contact reports faults independently of Ethernet traffic. DIN rail, S7-300 rail, and wall mounting are documented, with IP30 protection and an operating range extending from -40 to +60 °C.
Alternative Names
6GK53082FM102AA3 6GK5308 2FM10 2AA3 Siemens 6GK5308-2FM10-2AA3 SCALANCE X308-2LD 6GK5308-2FM10-2AA3 Siemens X308-2LD 6GK53082FM102AA3 6GK5308-2FM1O-2AA3 X308 2LD Managed IE Switch SCALANCE X308 Long-Distance Fiber Switch
Technical notes
Siemens 6GK5308-2FM10-2AA3 provides two 1000 Mbit/s single-mode SC uplinks, eight RJ45 ports, and a supplied C-PLUG in the SCALANCE X308-2LD configuration.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which ports on Siemens 6GK5308-2FM10-2AA3 require single-mode fiber?
The two 1000 Mbit/s SC interfaces on Siemens 6GK5308-2FM10-2AA3 are the single-mode optical ports; the remaining eight interfaces are RJ45 copper ports.
Can Siemens 6GK5308-2FM10-2AA3 replace a multimode optical switch without checking the fiber plant?
No. Siemens 6GK5308-2FM10-2AA3 uses single-mode SC optics, so fiber type, connectors, attenuation, and the remote transceiver must be verified.
What should be transferred when replacing Siemens 6GK5308-2FM10-2AA3?
If the installation uses it, move the documented C-PLUG from Siemens 6GK5308-2FM10-2AA3 only after isolating power and confirming that its stored configuration belongs to the replacement position.
Which redundancy methods can be configured on Siemens 6GK5308-2FM10-2AA3?
Siemens 6GK5308-2FM10-2AA3 supports HRP, MRP, STP, RSTP, MSTP, and LACP functions within their documented network designs.
Why might the signaling contact on Siemens 6GK5308-2FM10-2AA3 change state while Ethernet traffic is still present?
Siemens 6GK5308-2FM10-2AA3 can report configured fault states through the contact independently of packet forwarding, so power, port, ring, and diagnostic settings should be reviewed.
Where can Siemens 6GK5308-2FM10-2AA3 be mounted?
Siemens 6GK5308-2FM10-2AA3 supports DIN rail, S7-300 rail, and wall mounting under the documented orientation and environmental limits.
