    Apter Power delivers genuine Siemens 6ES7417-5HT06-0AB0 replacement hardware, offering industrial facilities a trusted source for critical control components to maintain peak performance and uninterrupted production.

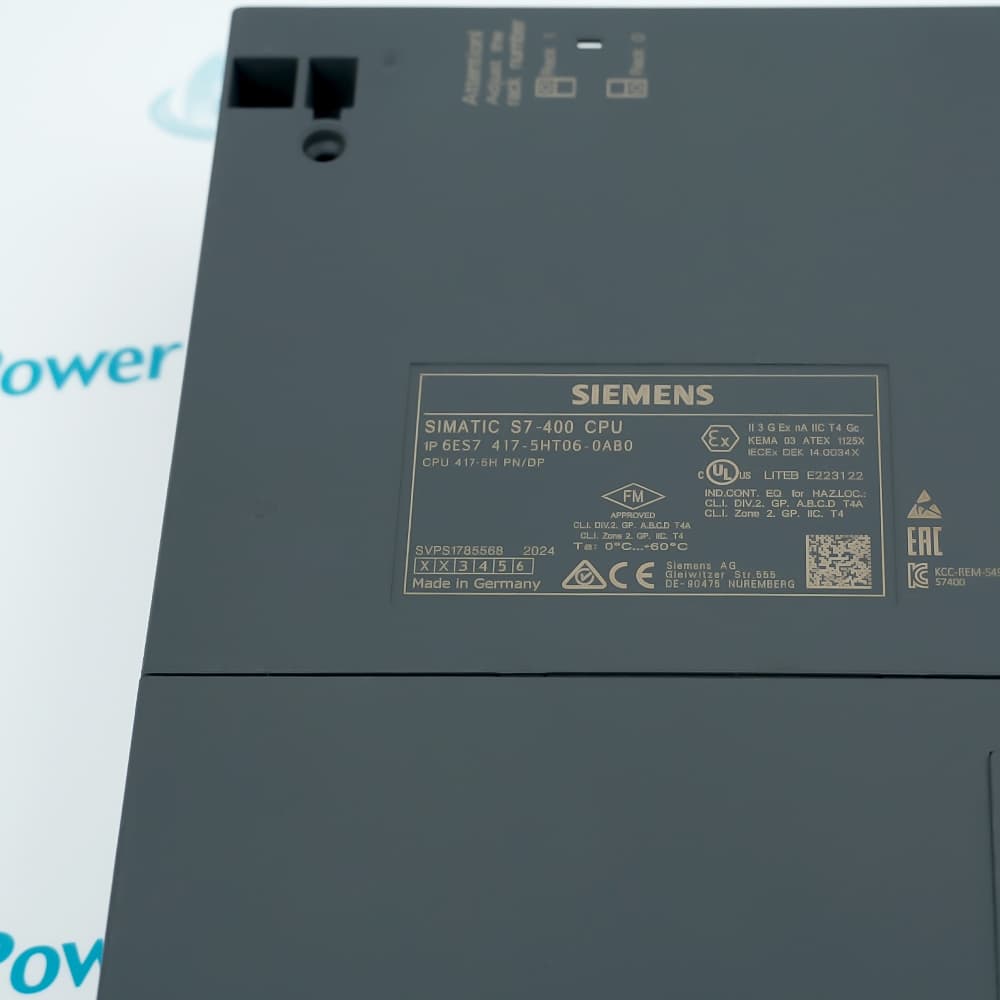

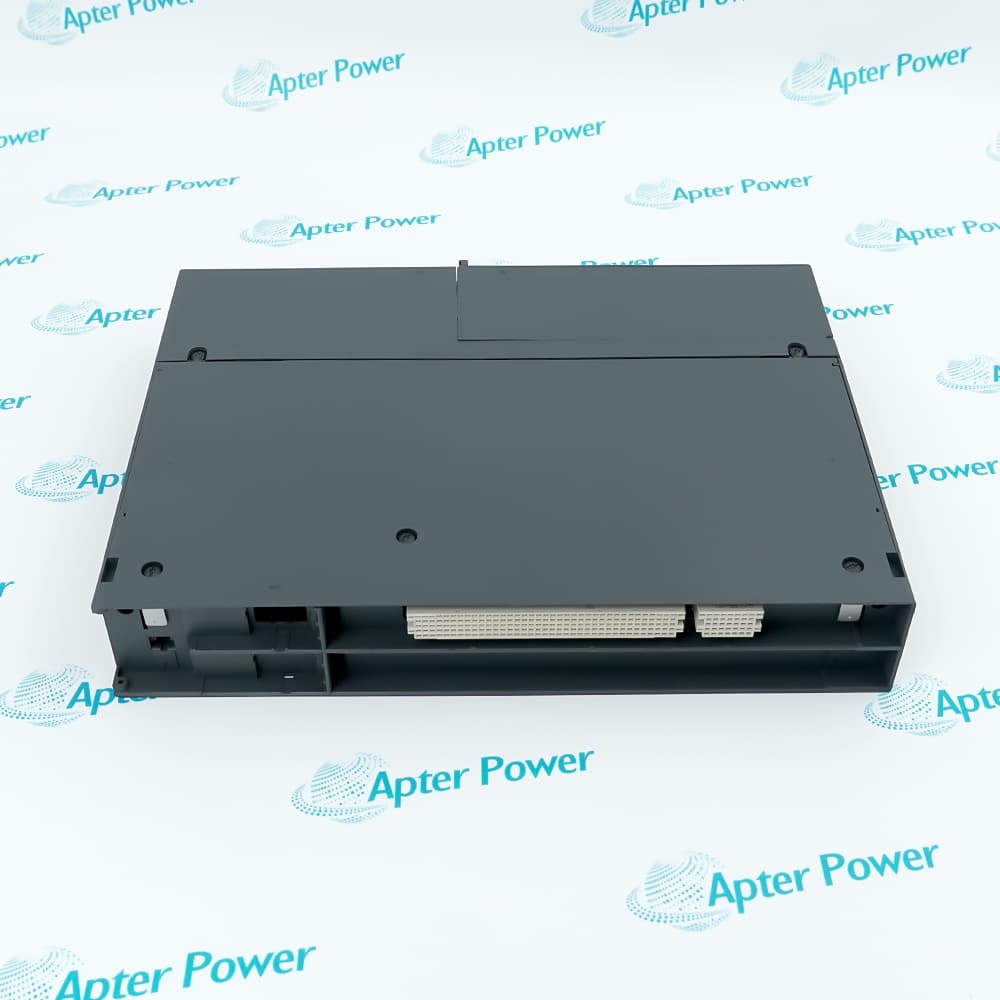

6ES7417-5HT06-0AB0

/ 4.9
1001 reviews | Need a Specific Revision?
This 6ES7417-5HT06-0AB0 CPU 417-5H PN/DP is specifically designed for high-availability and fail-safe applications in process industries, manufacturing plants, and infrastructure systems where uninterrupted operation is paramount.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 6ES7417-5HT06-0AB0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7417-5HT06-0AB0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7417-5HT06-0AB0
  • Product Family:
    Siemens SIMATIC S7-400H
  • Product Type:
    CPU Module
  • Stock:
    1
  • CiR synchronization time, basic load:
    60 ms
  • CiR synchronization time, time per I/O byte:
    0 µs
  • Input current from backplane bus 5 V DC, typ.:
    1.6 A
  • Input current from backplane bus 5 V DC, max.:
    1.9 A
  • Input current from backplane bus 24 V DC, max:
    150 mA; 150 mA per DP interface
  • Input current from interface 5 V DC, max.:
    90 mA; At each DP interface
  • Power loss, typ.:
    7.5 W
  • Rated value (DC):
    Power supply via system power supply
  • Weight:
    1.1 kg
  • Estimated shipping dimensions:
    4.8x22.3x28.8cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Compatibility & Interoperability Environmental Ratings

Features:

  • Central Processing Core for SIMATIC S7-400H and S7-400F/FH Rack Architectures
  • Integrates 32 MB Work Memory with Five Communication Interfaces for Distributed Control
  • Functions with Synchronization Modules and Standard S7-400 I/O Modules
The SIEMENS 6ES7417-5HT06-0AB0 CPU Module operates as the CPU 417-5H PN/DP central processing unit in a S7-400H rack, providing reliable program execution and data processing for all modules within the system. It continuously processes automation programs using its integrated 32 MB work memory—equally allocated as 16 MB for program storage and 16 MB for data storage—and distributes control commands through the rack backplane to support steady state operation of all connected I/O and communication modules. Seamless program execution is standard with the 6ES7417-5HT06-0AB0, however utilizing its redundant H-system configuration will allow seamless switchover to a backup CPU in the event of a primary processor failure. The 6ES7417-5HT06-0AB0 has made improvements in several areas over previous CPU designs in addition to incorporating five communication interfaces including one MPI/DP port, one PROFIBUS DP port, one PROFINET port, and two dedicated synchronization module interfaces within the S7-400H rack.

The 6ES7417-5HT06-0AB0 provides essential control functions common to the entire rack, and is a critical component of the automation path, directly affecting the proper, normal operation of the overall control system. One or two 6ES7417-5HT06-0AB0 CPUs are required per rack depending on the desired redundancy level. The 6ES7417-5HT06-0AB0 occupies a dedicated slot position in the central rack and is always installed in the CPU slot for master or standby configuration.

For Dual Redundant CPU applications, the S7-400H system requires a second 6ES7417-5HT06-0AB0 CPU module installed in the redundant rack. In addition to standard single CPU operation, the redundant configuration also performs automatic bumpless switchover. The S7-400H dual CPU configuration executes failover using the internal synchronization circuitry specified in the sync module options. Using this method, the redundant CPU system continually monitors the health of both processors through the dedicated sync module interfaces. If the system detects that the primary 6ES7417-5HT06-0AB0 is no longer providing stable program execution (outside configured fault tolerance levels), it will automatically transfer control to the secondary CPU and maintain process continuity without interruption.

The 6ES7417-5HT06-0AB0 SIEMENS CPU Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
SIEMENS 6ES7417-5HT06-0AB0 CPU Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
SIEMENS 6ES7417-5HT06-0AB0 CPU Module Specs

General

  • Manufacturer SIEMENS
  • Model 6ES7417-5HT06-0AB0
  • Condition New Original ready stock
  • Product Family 6ES7960-1AA06-0XA0,6ES7400-0HR04-4AB0
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Process Industry: Chemical, pharmaceutical, and oil & gas plants where continuous operation is critical.
  • Safety-Critical Systems: Fail-safe applications requiring SIL 3 compliance (per IEC 61508).
  • Infrastructure & Manufacturing: Used in large-scale manufacturing, building technologies, and power generation systems.
  • Specialized Machinery: Application in cranes and modular automation systems.
  • Software Requirements: Requires STEP 7 V5.5 SP2 with HF1 or higher for engineering and configuration.
  • Connectors: Utilizes gold-plated ClickLoc™ connectors that require only finger-tight torque; they "click" when properly secured.
  • System Redundancy: Fully compatible with SIMATIC S7-400H/F/FH racks and standard S7-400 components.
  • Interfaces: Equipped with 5 total interfaces: 1x MPI/DP and 1x DP (PROFIBUS DP) for master/slave communication. 1x PROFINET (PN) interface with 2 ports for TCP/IP, industrial Ethernet, and Profisafe. 2x Synchronization slots for pluggable FO synchronization submodules to connect redundant CPUs.
  • Operating Temperature: 0 °C to +60 °C. Protection Class: IP20 (requires installation in a control cabinet or enclosure).
  • Humidity: 5% to 95% relative humidity, non-condensing.
  • Atmospheric Pressure: 860 hPa to 1080 hPa (suitable for altitudes up to 2000m).
  • Regulatory Standards: Carries ATEX and IECEx certifications for use in potentially explosive atmospheres when installed correctly.
  • Electromagnetic Compatibility (EMC): Complies with EN 61000-6-2 (interference immunity) and EN 61000-6-4 (emitted interference).
Description
The SIEMENS 6ES7417-5HT06-0AB0 is a high-performance central processing unit designed specifically for the SIMATIC S7-400H and S7-400F/FH automation systems. This CPU 417-5H PN/DP module serves as the core controller for demanding industrial applications requiring exceptional reliability and processing power.

The 6ES7417-5HT06-0AB0 features a robust hardware functional status of 1 and operates on firmware version V6.0, ensuring stable and consistent performance across critical operations. With its substantial integrated work memory of 32 Mbyte—equally divided into 16 Mbyte for program storage and 16 Mbyte for data storage—this processor is engineered to handle complex control algorithms and large-scale automation tasks without requiring memory expansion. The 6ES7417-5HT06-0AB0 is equipped with five communication interfaces, including one MPI/DP interface, one PROFIBUS DP interface, one PROFINET interface, and two dedicated interfaces for synchronization modules, enabling seamless integration into diverse network architectures and redundant system configurations.

The 6ES7417-5HT06-0AB0 addresses the critical challenge of system downtime in continuous production environments by supporting hot-standby redundancy through its dual synchronization module interfaces, ensuring that if one CPU fails, the backup unit takes over instantaneously without process interruption.

In chemical processing plants, the 6ES7417-5HT06-0AB0 manages complex reactor controls and safety interlocks, solving the problem of maintaining precise temperature and pressure monitoring while ensuring compliance with stringent safety standards. For power generation and distribution facilities, this processor handles turbine control systems and grid synchronization tasks, resolving issues related to load balancing and emergency shutdown procedures that require absolute reliability. The 6ES7417-5HT06-0AB0 also excels in water treatment and wastewater management applications, where it coordinates pump stations, filtration processes, and chemical dosing systems, effectively addressing the need for 24/7 operational continuity in essential public infrastructure.
Alternative Names
6ES7417 5HT06 0AB0 6ES74I7-5HT06-0AB0 6ES7417-5HTO6-OABO 6ES7417-5HT06-0A80 6ES7417-4XL04-0AB0 6ES7414-1XG02-0AB0 6ES7315-1AF03-0AB0
Technical notes
The 6ES7417-5HT06-0AB0 includes comprehensive backup capabilities with battery support, maintaining all data integrity during power interruptions. The backup system operates with a typical current consumption of 180 µA at temperatures up to 40°C, with a maximum backup current of 1000 µA, and supports external backup voltage feeding ranging from 5 V DC to 15 V DC, ensuring data preservation during extended outages.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What software is required to configure the 6ES7417-5HT06-0AB0?
The CPU requires STEP 7 V5.5 SP2 with HF1 or later versions for programming and configuration, ensuring compatibility with established SIMATIC engineering environments.
What backup and data protection capabilities does the 6ES7417-5HT06-0AB0 provide?
The module includes battery-backed memory to maintain data integrity during power loss. It supports external backup voltage from 5 V to 15 V DC and operates with low backup current consumption, ensuring long-term data retention even during extended outages.
What are the engineering software and firmware requirements for the Siemens 6ES7417-5HT06-0AB0?
The Siemens 6ES7417-5HT06-0AB0 ships with firmware V6.0 and requires STEP 7 V5.5 SP2 with Hotfix 1 (HF1) or higher for hardware configuration. If you plan to deploy the Siemens 6ES7417-5HT06-0AB0 within safety-related fail-safe architectures, you must also install the option package S7 F Systems V6.1 SP1 or later.
Which communication protocols are natively supported by the Siemens 6ES7417-5HT06-0AB0?
The Siemens 6ES7417-5HT06-0AB0 features 5 onboard interfaces, enabling native support for PROFINET IO (with RT communication), PROFIBUS DP, MPI, and TCP/IP or ISO-on-TCP via standard communication loadable blocks (FBs). Additionally, the Siemens 6ES7417-5HT06-0AB0 reserves two dedicated slots for insertable fiber-optic synchronization submodules to link redundant pairs.
How do engineers wire the power and submodules for the Siemens 6ES7417-5HT06-0AB0?
The Siemens 6ES7417-5HT06-0AB0 does not feature direct point-to-point I/O wiring terminals on its body; all power and local bus communications are drawn directly via the S7-400 backplane bus. External field I/O connections for the Siemens 6ES7417-5HT06-0AB0 must be handled through the 9-pin Sub-D connectors for PROFIBUS networks or standard RJ45 ports for PROFINET networks.
