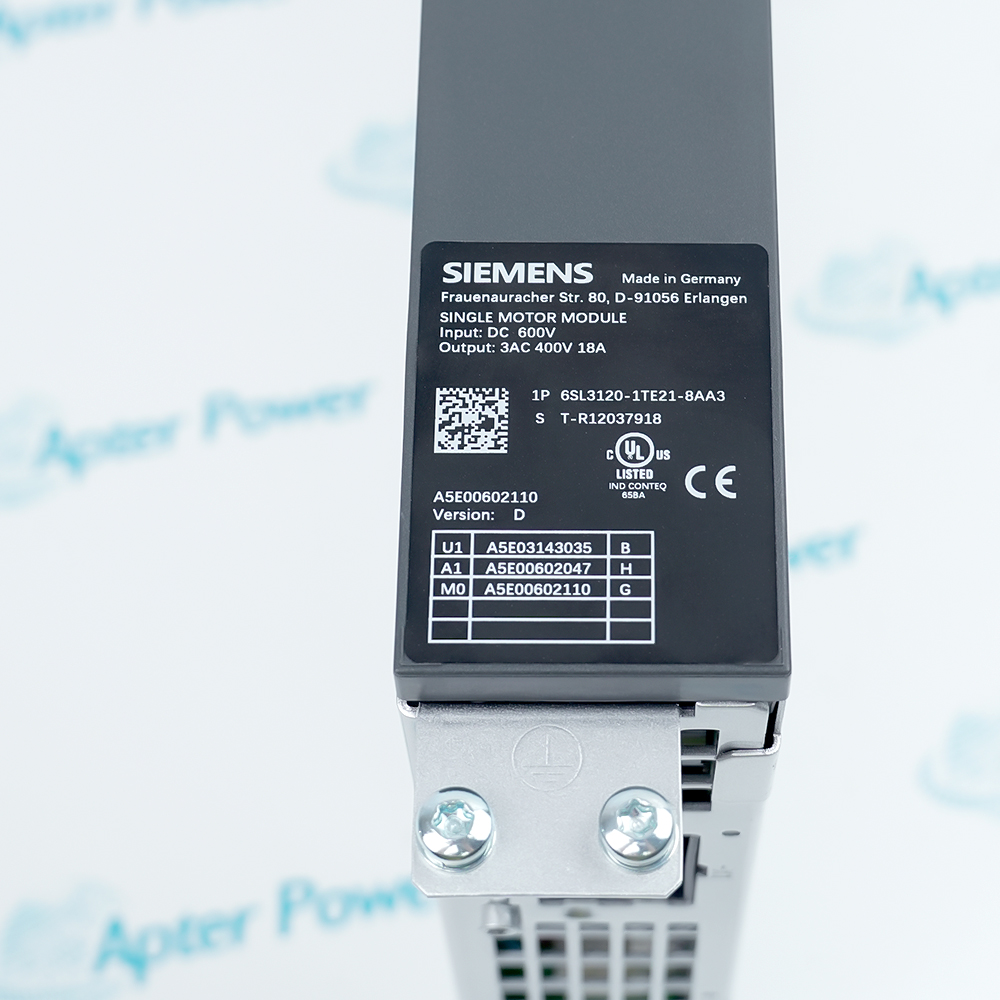

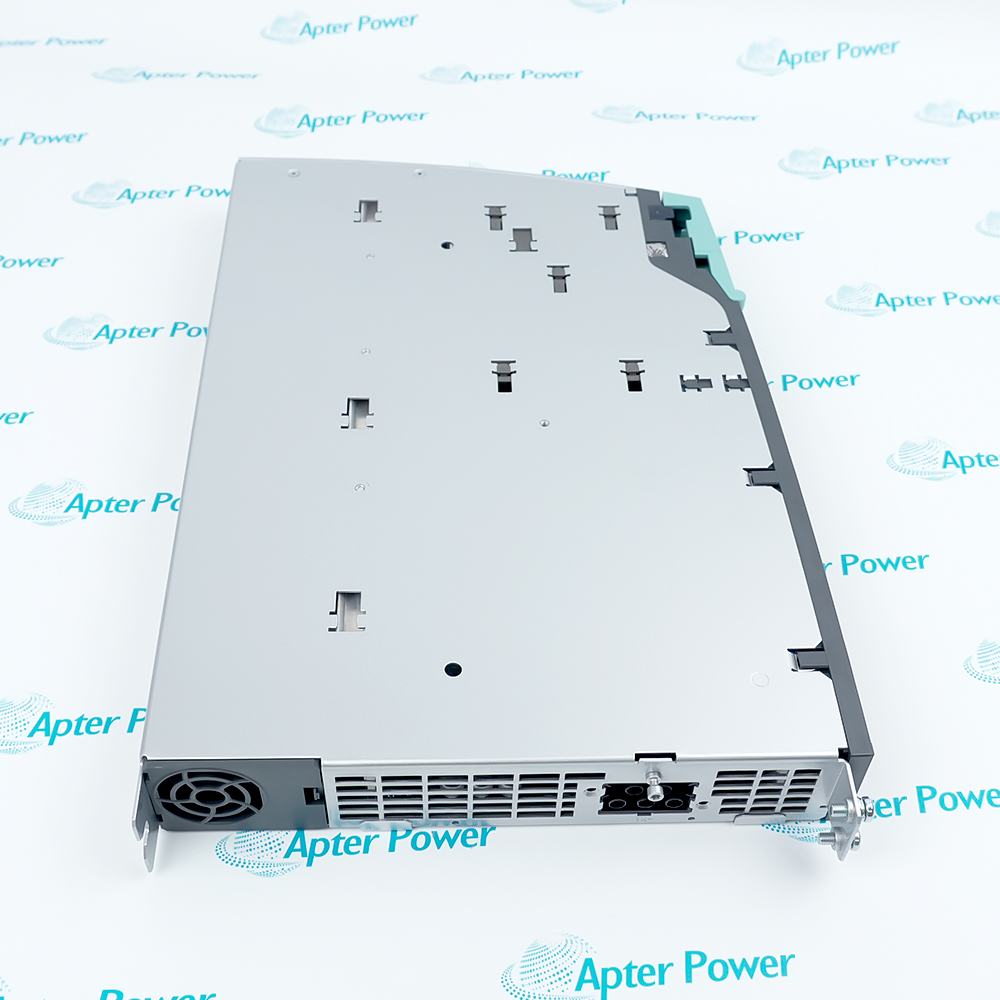

Siemens 6SL3120-1TE21-8AA3 is a SINAMICS S120 booksize Single Motor Module with 600 VDC input and 400 V three-phase, 18 A output.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6SL3120-1TE21-8AA3
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6SL3120-1TE21-8AA3

  • Manufacturer:
    Siemens
  • Part Number:
    6SL3120-1TE21-8AA3
  • Product Family:
    Siemens SINAMICS
  • Product Type:
    SINAMICS S120 Single Motor Module
  • Stock:
    1
  • Product Line:
    SINAMICS S120
  • Module Format:
    Booksize
  • DC Input Voltage:
    600 VDC
  • AC Output Voltage:
    400 V, 3-phase
  • Rated Output Current:
    18 A
  • Cooling Method:
    Internal air cooling
  • Pulse Pattern:
    Optimized pulse patterns
  • Safety Functions:
    Extended Safety Integrated
  • Included Cable:
    DRIVE-CLiQ cable
  • Weight:
    6.54 kg
  • Estimated shipping dimensions:
    10 x 27 x 40.8 cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Drive Matching Safety Review Ordering Review

Features:

  • Rated output: 400 V three-phase output at 18 A.
  • Booksize cooling: Internal air cooling in booksize format.
  • System functions: Optimized pulse patterns and extended Safety Integrated.

6SL3120-1TE21-8AA3 is an 18 A SINAMICS S120 Single Motor Module for a 600 VDC link.

Motor data, DC-link design, cooling and safety parameters should be verified as one system.

The complete MLFB and included DRIVE-CLiQ cable requirement must be checked before ordering.

Availability is subject to Apter Power's current inventory and sourcing confirmation.

Verified resources for Siemens 6SL3120-1TE21-8AA3:

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

General

  • ManufacturerSiemens
  • Model6SL3120-1TE21-8AA3
  • ConditionNew Original ready stock
  • Product FamilySINAMICS S120 Single Motor Modules

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Drive Matching

  • DC link: Confirm the 600 VDC system design.
  • Motor current: Match the required 18 A output rating.
  • Format: Verify the booksize installation.

Safety Review

  • Safety scope: Use the approved Safety Integrated design.
  • Validation: Repeat the required safety validation after replacement.
  • Configuration: Do not copy unverified parameters from another MLFB.

Ordering Review

  • MLFB: Match 6SL3120-1TE21-8AA3 exactly.
  • Cooling: Confirm internal air cooling and cabinet airflow.
  • Cable scope: Verify whether the DRIVE-CLiQ cable is included.
Description
The 6SL3120-1TE21-8AA3 is a Siemens SINAMICS S120 booksize Single Motor Module rated for a 600 VDC input and a 400 V three-phase, 18 A output.

Official Siemens data for 6SL3120-1TE21-8AA3 specifies internal air cooling, optimized pulse patterns, extended Safety Integrated functions, and an included DRIVE-CLiQ cable.

Before ordering 6SL3120-1TE21-8AA3, confirm the complete MLFB, DC-link arrangement, motor current, cooling format, and safety configuration against the installed SINAMICS S120 system.
Alternative Names
Siemens 6SL3120-1TE21-8AA3 Siemens SINAMICS 6SL3120-1TE21-8AA3 motor module 6SL3120 1TE21 8AA3 6SL31201TE218AA3 SINAMICS S120 6SL3120-1TE21-8AA3 6SL3120-1TE21-8AA3 Single Motor Module Siemens S120 18 A Motor Module
Technical notes
6SL3120-1TE21-8AA3 is a SINAMICS S120 booksize Single Motor Module with an 18 A three-phase output and internal air cooling. Confirm the DC-link arrangement, motor current, cooling clearance, DRIVE-CLiQ connection, Safety Integrated configuration, and stored commissioning data before replacement; a similar current rating alone does not establish drop-in compatibility.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Where does the booksize format of 6SL3120-1TE21-8AA3 fit within a SINAMICS S120 line-up?
Confirm the complete MLFB, 600 VDC link design, booksize mechanical arrangement, 18 A motor requirement, control-unit topology, and approved SINAMICS project documentation.
Can another 18 A motor module directly replace 6SL3120-1TE21-8AA3?
No. Equal current does not prove compatibility; compare DC-link design, booksize format, pulse pattern, extended Safety Integrated scope, connectors, cooling, and project configuration.
What motor-side checks are required before energizing 6SL3120-1TE21-8AA3?
Verify the motor ratings, 400 V three-phase output wiring, shielding, grounding, DC-link condition, motor data, and approved drive configuration before enabling pulses.
Which cooling conditions apply to 6SL3120-1TE21-8AA3?
Maintain the specified internal-air-cooling path, booksize clearances, clean airflow, and approved cabinet ambient conditions; investigate restricted ventilation before attributing an overtemperature fault to the module.
Replacement of 6SL3120-1TE21-8AA3 affects extended Safety Integrated functions; what must be preserved?
Preserve the validated safety design and parameters, back up the project, verify the replacement hardware scope, and repeat the required safety validation before returning the axis to service.
Which commissioning records must be preserved before changing 6SL3120-1TE21-8AA3?
Save motor data, drive parameters, safety settings, DRIVE-CLiQ topology, fault history, DC-link information, and the verified SINAMICS project backup.
The documented scope for 6SL3120-1TE21-8AA3 includes a DRIVE-CLiQ cable; how should it be handled?
Confirm that the documented included cable is present, inspect its connectors and condition, and compare the required topology and routing with the installed SINAMICS S120 design.
