    Apter Power supports sourcing the exact 6DD1606-2AC0 for documented legacy SIMADYN D maintenance requirements.

6DD1606-2AC0

/ 4.9
1001 reviews | Need a Specific Revision?

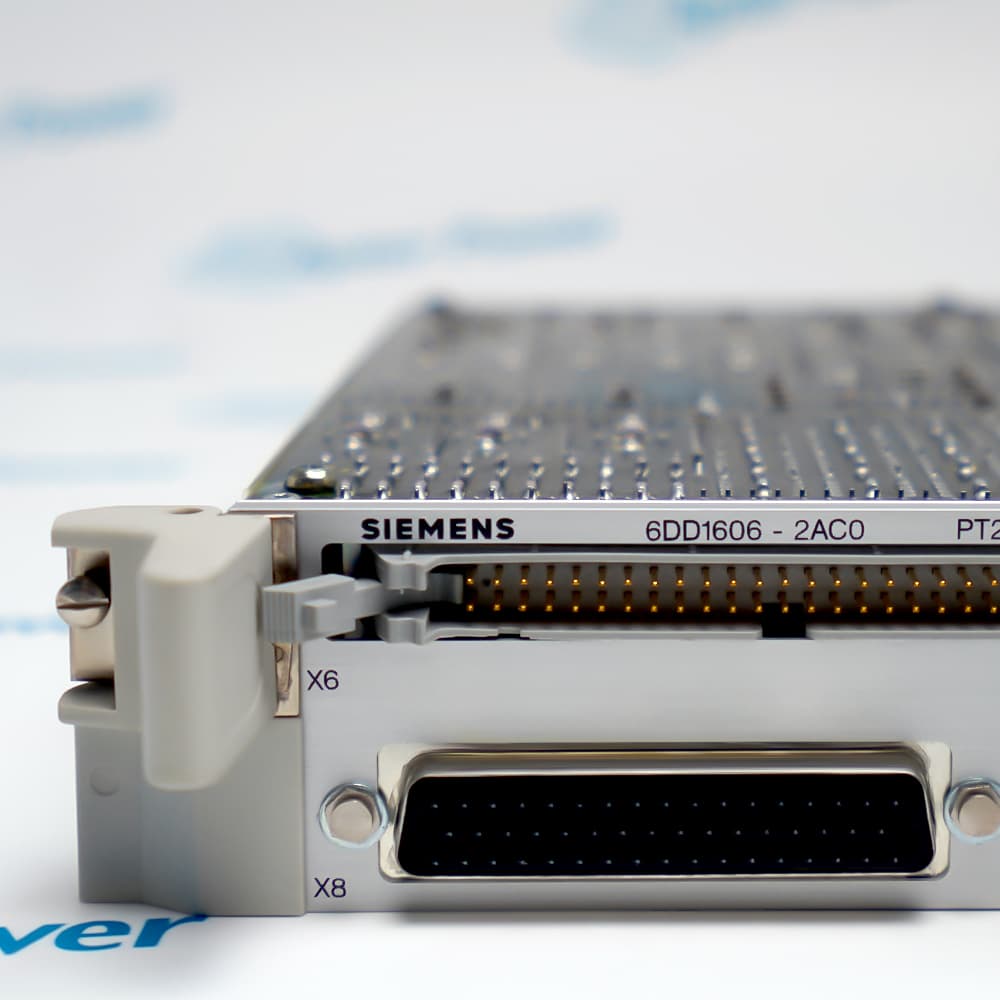

The Siemens 6DD1606-2AC0 is a SIMADYN D PT20G processor module for technological control, drive-related processing and line-commutated converter applications.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6DD1606-2AC0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6DD1606-2AC0

  • Manufacturer:
    Siemens
  • Part Number:
    6DD1606-2AC0
  • Product Family:
    Siemens Simadyn
  • Product Type:
    PT20G 16-bit Processor Module
  • Stock:
    1
  • Binary Inputs:
    24, non-floating, interrupt-capable
  • Rated Input Voltage:
    24 V DC
  • Signal “0”:
    −1 V to +6 V or open circuit
  • Signal “1”:
    +13 V to +33 V
  • Input Current for Signal “1”:
    Approximately 5 mA
  • Input Delay:
    500 µs
  • Binary Outputs:
    16, non-floating
  • Weight:
    0.849 kg
  • Estimated shipping dimensions:
    27.5 x 27.5 x 4.5 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Signal Integration Interface Configuration Product Applications

Features:

  • PT20G architecture: One processor combines technological control and drive-related processing.
  • Mixed-signal paths: Analog, binary, speed and serial functions share the board.
  • Service indication: Watchdog monitoring and the front display expose processor faults.

PT20G hardware brings measurement, command and communication paths into the same real-time application.

The installed plug-in memory and interface selection remain part of the processor configuration, not optional replacement details.

Fault-code indication gives service teams a direct starting point before reset or board exchange.

Availability is subject to Apter Power inventory and sourcing confirmation.
Siemens 6DD1606-2AC0 PT20G Processor Module Manuals,Datasheets,Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Siemens 6DD1606-2AC0 PT20G Processor Module Specs

General

  • ManufacturerSiemens
  • Model6DD1606-2AC0
  • ConditionNew Original ready stock
  • Product FamilySIMADYN D

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Mixed-signal processing: Analog, binary and speed-feedback paths participate in the same PT20G control program.
  • Converter timing: The dedicated SITOR path supports applications that depend on synchronized converter firing control.
  • Project continuity: Restoring the original signal map avoids an external I/O redesign during processor replacement.
  • Serial choice: X01 and X02 operation depends on the installed TTY, V.24 or RS-485 interface arrangement.
  • Memory identity: The MS4x plug-in memory carries the operating system and application program used by the processor.
  • Wiring boundary: An interface change is not valid until the project configuration and field wiring are engineered together.
  • Technological control: Executes open-loop and closed-loop tasks within SIMADYN D systems.
  • Drive-related processing: Handles arithmetic and control functions associated with industrial drive applications.
  • Line-commutated converters: Supports engineered converter-control applications using the PT20G SITOR interface.
Description

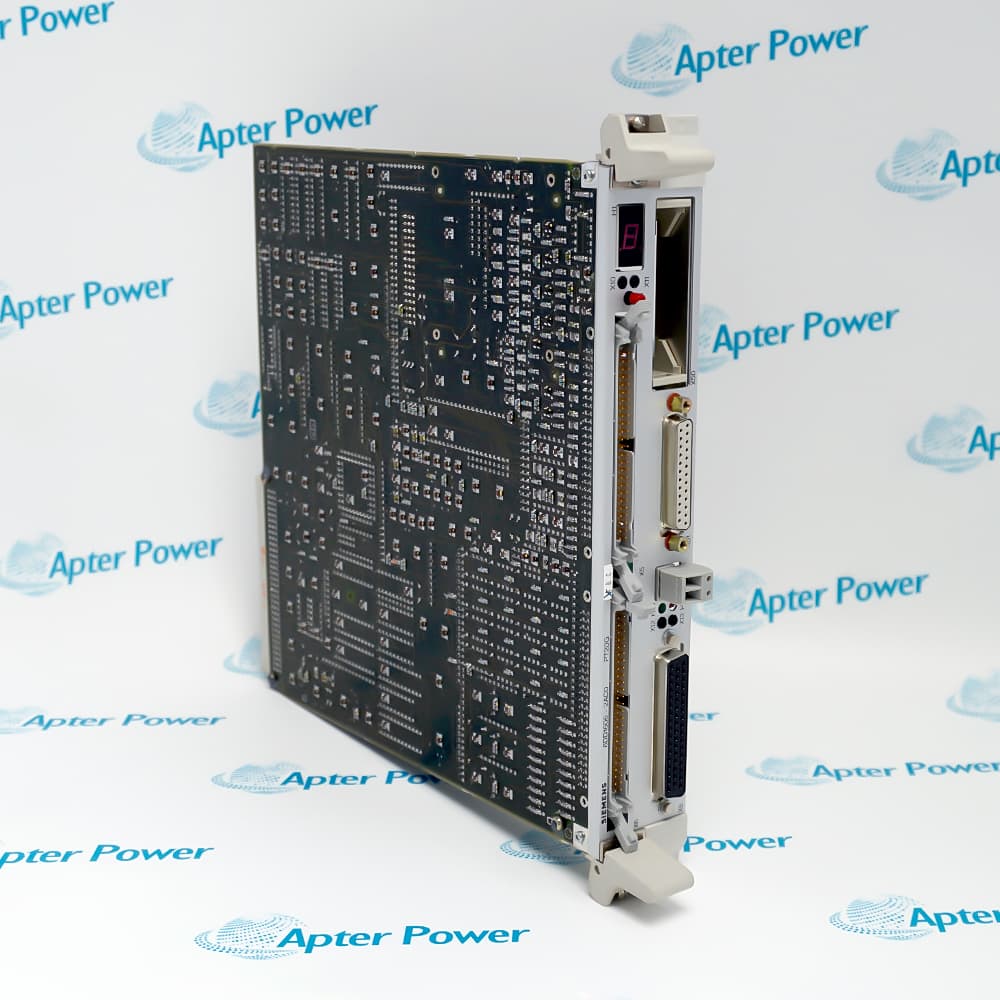

6DD1606-2AC0 is the Siemens SIMADYN D PT20G processor module for technological open-loop and closed-loop control, arithmetic tasks, drive-related functions and line-commutated converter control.

6DD1606-2AC0 brings analog, binary, speed-sensing and serial signal paths onto one processor board. In an application engineered around PT20G, this integrated structure lets feedback, command and communications data participate in the same real-time control program.

6DD1606-2AC0 also provides watchdog monitoring and front-panel fault-code indication for service diagnosis. Siemens lists the article at end of product lifecycle without a replacement, so the exact order code, rack arrangement, plug-in memory and interface configuration should be preserved during spare-part planning.
Alternative Names
6DD1606 2AC0 6DD16062AC0 6DD 1606-2AC0
Technical notes
The 6DD1606-2AC0 must not be inserted or withdrawn while voltage is present. It occupies two subrack slots and relies on the installed SIMADYN D configuration, plug-in memory and interface arrangement. Before replacement, isolate power and stop if the existing rack, connector map, memory module or SITOR/serial configuration does not match the documented PT20G installation.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What must match before 6DD1606-2AC0 replaces an installed PT20G board?
The complete 6DD1606-2AC0 article number, subrack arrangement, plug-in memory, connector assignments and application documentation must match the installed PT20G configuration. Stop the replacement if any of these identity or configuration points differ.
Can 6DD1606-2AC0 be inserted or removed while the SIMADYN D rack is energized?
No. The Siemens PT20G manual states that 6DD1606-2AC0 must not be inserted or withdrawn under voltage. Isolate the equipment and follow qualified-personnel procedures before handling the board.
How should the serial interface be selected when reinstalling 6DD1606-2AC0?
Match the interface hardware and existing wiring documented for 6DD1606-2AC0. The PT20G supports 20 mA TTY or V.24 through X01 and RS-485 through X02; an unverified interface change can prevent communication.
What should a technician do when the 6DD1606-2AC0 front display flashes a fault code?
Record the displayed code and system context before resetting 6DD1606-2AC0. The PT20G watchdog and monitoring functions use the seven-segment display to signal detected faults, so the code should guide the documented SIMADYN D diagnostic path.
When is the SITOR interface on 6DD1606-2AC0 relevant to a replacement decision?
It is relevant when the installed PT20G application controls a line-commutated converter through X8. Confirm the existing cable, signal assignment and synchronizing-voltage source before approving 6DD1606-2AC0 for that service position.
Does Siemens provide a direct successor for 6DD1606-2AC0?
No. Siemens lists 6DD1606-2AC0 at end of product lifecycle and states that it is cancelled without a replacement product. Use the exact spare or treat modernization as a separately engineered migration.
