Features:
- Transfers safety-related AS-i data through the ET 200SP backplane and PROFIsafe.
- STEP 7 Safety assigns process image, safety parameters, and code sequences.
- SIL 3, PL e, Category 4, and dedicated status LEDs define the safety role.

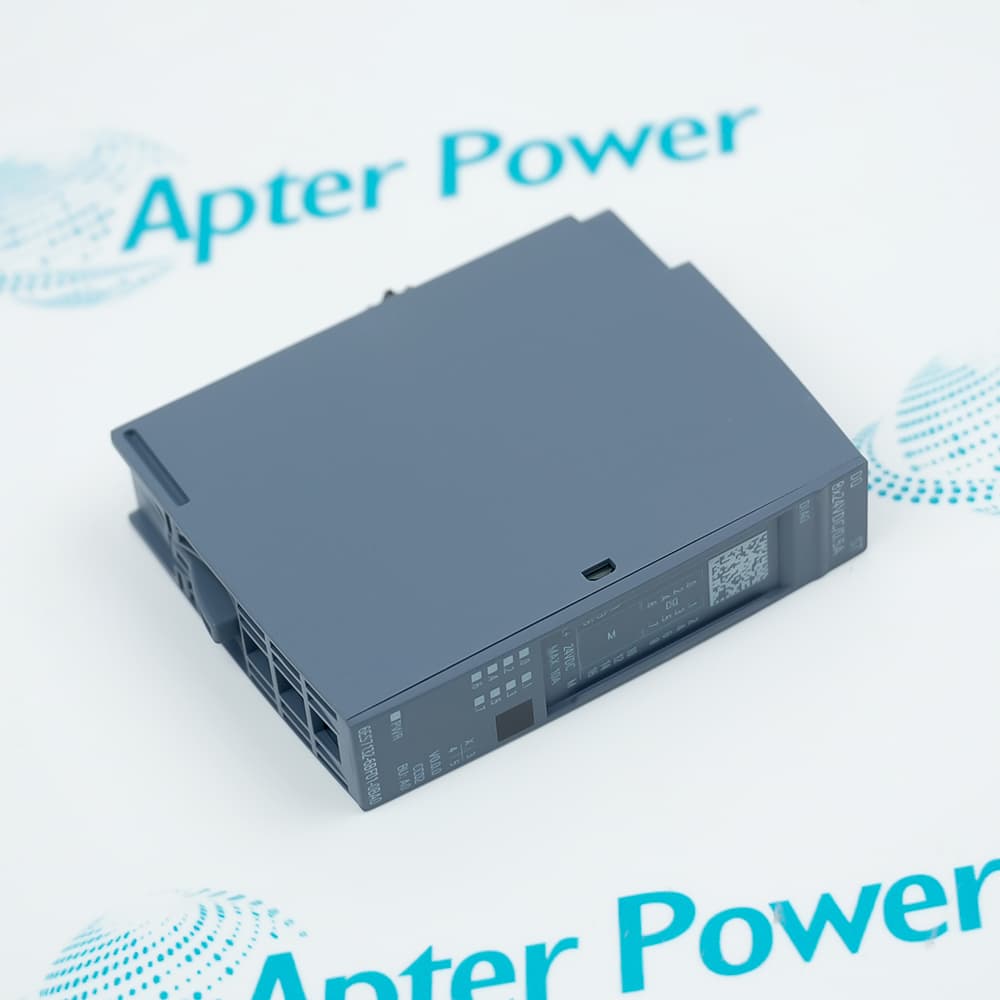

Siemens 3RK7136-6SC00-0BC1 evaluates AS-i safety code sequences inside an ET 200SP station.
The process image of 3RK7136-6SC00-0BC1 carries evaluated safety data to the configured F-controller.
Status indicators on 3RK7136-6SC00-0BC1 separate configuration, PROFIsafe, teaching, addressing, and device faults.
Verify the complete Siemens 3RK7136-6SC00-0BC1 ET 200SP F-CM AS-i Safety ST Module article number and documented interface before matching the installed unit.
Siemens 3RK7136-6SC00-0BC1 ET 200SP F-CM AS-i Safety ST Module Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Safe Slave Code Evaluation
- Network input: The AS-i line carries safety-related slave code sequences and network power.
- Code evaluation: The module checks the received sequences before updating the safe process image.
- Output groups: Configured safe output groups follow the assigned AS-i safety parameters.
- Teaching: The teach procedure must correspond to the installed safe-slave addresses.
F-Controller Data Path
- Backplane transfer: Evaluated data reaches the ET 200SP station through the module backplane connection.
- F-address: The PROFIsafe address must match the safety program and hardware configuration.
- Process image: Input and output bytes are reserved according to the selected module configuration.
- Fault reaction: Communication faults drive the configured safety response rather than ordinary process control.
Configuration and Fault Indication
- Power: The PWR indication confirms the documented module supply path.
- Configuration: CFG and ADDR states identify configuration and AS-i address conditions.
- Safety path: PSF and PROFIsafe indications isolate faults in the safety communication chain.
- Device error: DIAG, STATUS, and ERROR states guide the next diagnostic-buffer check.
ET 200SP Installation Boundaries
- Terminal module: The F-CM plugs onto the specified ET 200SP BaseUnit type.
- Module width: The 20 mm module occupies its documented station position.
- Temperature: Horizontal and vertical rail orientations use different maximum temperatures.
- Enclosure: The IP20 module remains inside a cabinet suitable for the site conditions.
