6ES7132-6BF01-0BA0
6ES7132-6BF01-0BA0
6ES7132-6BF01-0BA0
6ES7132-6BF01-0BA0
6ES7132-6BF01-0BA0
6ES7132-6BF01-0BA0
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Active / Available from OEM
    Apter Power provides quotations, datasheets, sourcing, and ET 200SP configuration guidance for this output module.

6ES7132-6BF01-0BA0

/ 4.9
1001 reviews | Need a Specific Revision?

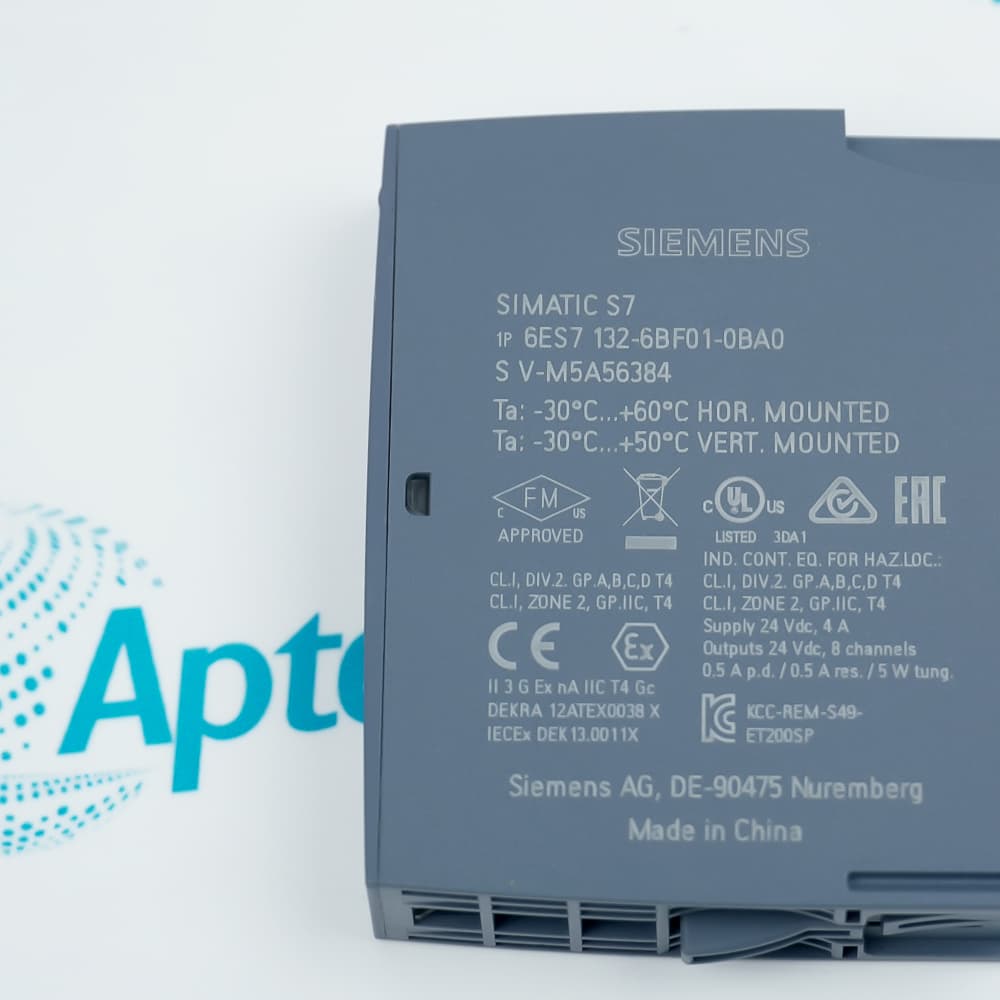

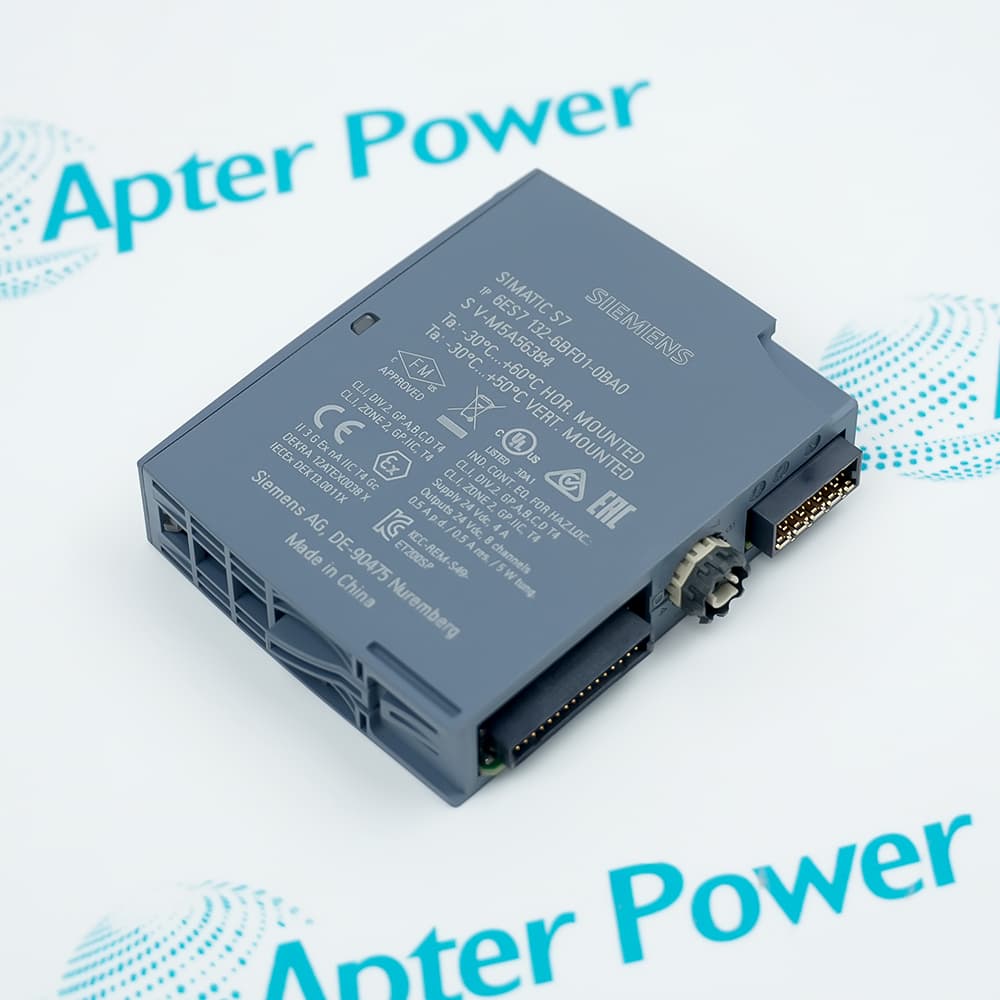

Siemens 6ES7132-6BF01-0BA0 is a SIMATIC ET 200SP DQ 8x24VDC/0.5A Standard module with eight PNP outputs and channel diagnostics.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6ES7132-6BF01-0BA0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7132-6BF01-0BA0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7132-6BF01-0BA0
  • Product Family:
    Siemens Simatic ET 200SP
  • Product Type:
    SIMATIC ET 200SP Digital Output Module
  • Stock:
    1
  • Output Channels:
    8
  • Output Type:
    24 VDC, 0.5 A, PNP
  • BaseUnit Type:
    A0
  • Coding Unit:
    CC02
  • Substitute Values:
    Supported
  • Channel Diagnostics:
    Short circuit to L+, short circuit to ground, wire break
  • Supply Diagnostics:
    Missing supply voltage
  • Module Family:
    DQ 8x24VDC/0.5A Standard
  • Weight:
    0.034 kg
  • Estimated shipping dimensions:
    6.8 x 7.8 x 2.4 cm
  • Tariff Code:
    85389091
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications BaseUnit Fit Diagnostics Output Test

Features:

  • Eight PNP digital outputs rated at 24 VDC and 0.5 A
  • BaseUnit type A0 interface for SIMATIC ET 200SP stations
  • Channel and supply diagnostics with configurable substitute values
Siemens 6ES7132-6BF01-0BA0 provides eight sourcing outputs for distributed control tasks in a SIMATIC ET 200SP station.

The module’s diagnostic coverage helps the controller distinguish load-side wiring faults from a missing field supply when the corresponding project functions are enabled.

Correct operation depends on the A0 BaseUnit, CC02 hardware state, PNP field wiring, load-current limits, and a matching TIA Portal hardware configuration.

Availability of Siemens 6ES7132-6BF01-0BA0 is subject to Apter Power inventory and sourcing confirmation.
Verified resources for Siemens 6ES7132-6BF01-0BA0: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Siemens 6ES7132-6BF01-0BA0 ET 200SP Digital Output Module Specs

General

  • ManufacturerSiemens
  • Model6ES7132-6BF01-0BA0
  • ConditionNew Original ready stock
  • Product FamilySIMATIC ET 200SP
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Mechanical and potential-group checks

  • Required type: Use an ET 200SP BaseUnit type A0 with the correct coding.
  • Potential group: Confirm whether the module starts or continues the intended load-voltage group.
  • Field supply: Verify the 24 VDC load supply and return path before inserting the module.
  • Label control: Match the complete order number and CC02 marking to the project BOM.

Fault-handling design

  • Short circuit: Coordinate channel diagnostics with field protection and the controller alarm strategy.
  • Wire break: Enable and interpret wire-break detection according to the connected load circuit.
  • Supply loss: Distinguish missing load voltage from an individual output fault.
  • Substitute value: Test the configured output response during a controlled station or communication interruption.

Commissioning sequence

  • Wiring review: Confirm PNP polarity, common returns, channel labels, and load ratings.
  • Project match: Compile and download the correct hardware configuration before energizing outputs.
  • Channel proving: Exercise each output with the intended load and compare feedback where available.
  • Record results: Save diagnostic messages, substitute-value behavior, and measured load conditions.
Description
The 6ES7132-6BF01-0BA0 is a Siemens SIMATIC ET 200SP digital output module providing eight 24 VDC, 0.5 A PNP channels. It uses BaseUnit type A0 and is intended for distributed-output tasks within an ET 200SP station.

Beyond switching field loads, 6ES7132-6BF01-0BA0 supports channel diagnostics for short circuit to L+, short circuit to ground, wire break, and missing supply voltage. Substitute-value behavior helps the automation program place outputs in a defined state when the configured response is required.

Before installing 6ES7132-6BF01-0BA0, match the catalog number, CC02 product state, BaseUnit coding, PNP load wiring, and project configuration. The connected devices must remain within the channel rating, and diagnostic reactions should be tested in the approved TIA Portal project.
Alternative Names
6ES7132 6BF01 0BA0 6ES71326BF010BA0 6ES7132-6BF01 0BA0 6ES7132 6BF01-0BA0 Siemens 6ES7132 6BF01 0BA0
Technical notes
Use 6ES7132-6BF01-0BA0 only with an ET 200SP BaseUnit type A0 and PNP field wiring. Confirm the approved TIA Portal hardware catalog entry, CC02 product state, 24 VDC load supply, channel protection, substitute-value response, and diagnostic handling before commissioning the eight 0.5 A outputs.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which field loads should be reviewed before assigning 6ES7132-6BF01-0BA0 to an ET 200SP station?
Use supported 24 VDC PNP loads within the 0.5 A channel rating, and review inrush current, load-supply grouping, protection, and diagnostic behavior before assigning field devices.
Can 6ES7132-6BF01-0BA0 operate with different engineering software versions?
Yes. Siemens documents support through specific TIA Portal, STEP 7, and PCS 7 versions or hardware support packages; match the installed engineering release to the approved catalog entry.
Which communication systems work with Siemens 6ES7132-6BF01-0BA0?
The module is engineered within ET 200SP stations whose official device data supports PROFIBUS GSD revisions and PROFINET GSDML integration. Use the file version approved for the installed interface module.
Does 6ES7132-6BF01-0BA0 require a specific BaseUnit?
Yes. It fits BaseUnit type A0 and uses the CC02 coding unit; confirm both physical coding and the hardware catalog entry before inserting the module.
Which checks reduce commissioning delays for 6ES7132-6BF01-0BA0?
Verify the hardware catalog, channel labels, 24 VDC load supply, common wiring, substitute-value configuration, diagnostics, and each connected load under the approved project test.
What fault evidence should be captured before replacing 6ES7132-6BF01-0BA0?
Record short-circuit-to-L+, short-circuit-to-ground, wire-break, and missing-supply diagnostics with the affected channel, then test load wiring and supply voltage before condemning the module.
