        6ES7132-4BD02-0AA0
        6ES7132-4BD02-0AA0
        6ES7132-4BD02-0AA0
        6ES7132-4BD02-0AA0
        6ES7132-4BD02-0AA0
        6ES7132-4BD02-0AA0
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle status

          Discontinued / Obsolete by OEM
          Apter Power supports 6ES7132-4BD02-0AA0 spare sourcing, repair review and migration-scope planning.

        6ES7132-4BD02-0AA0

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

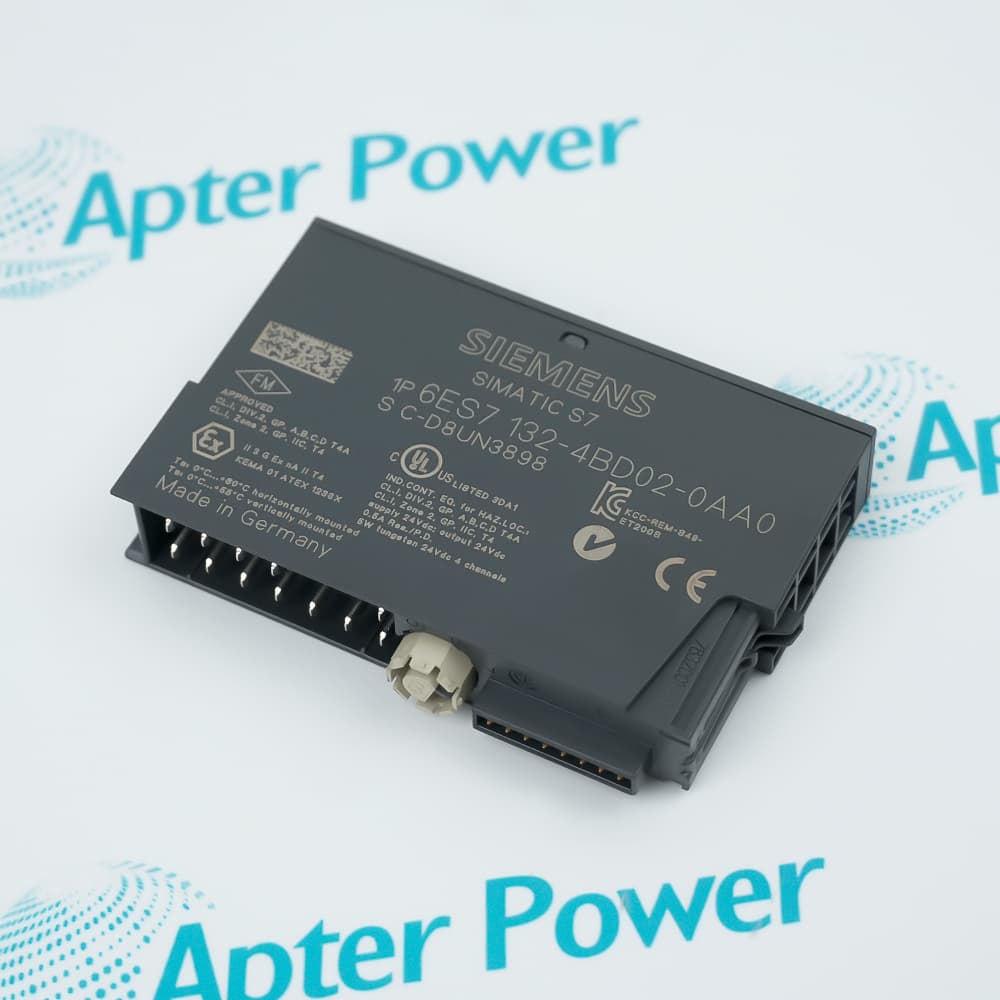

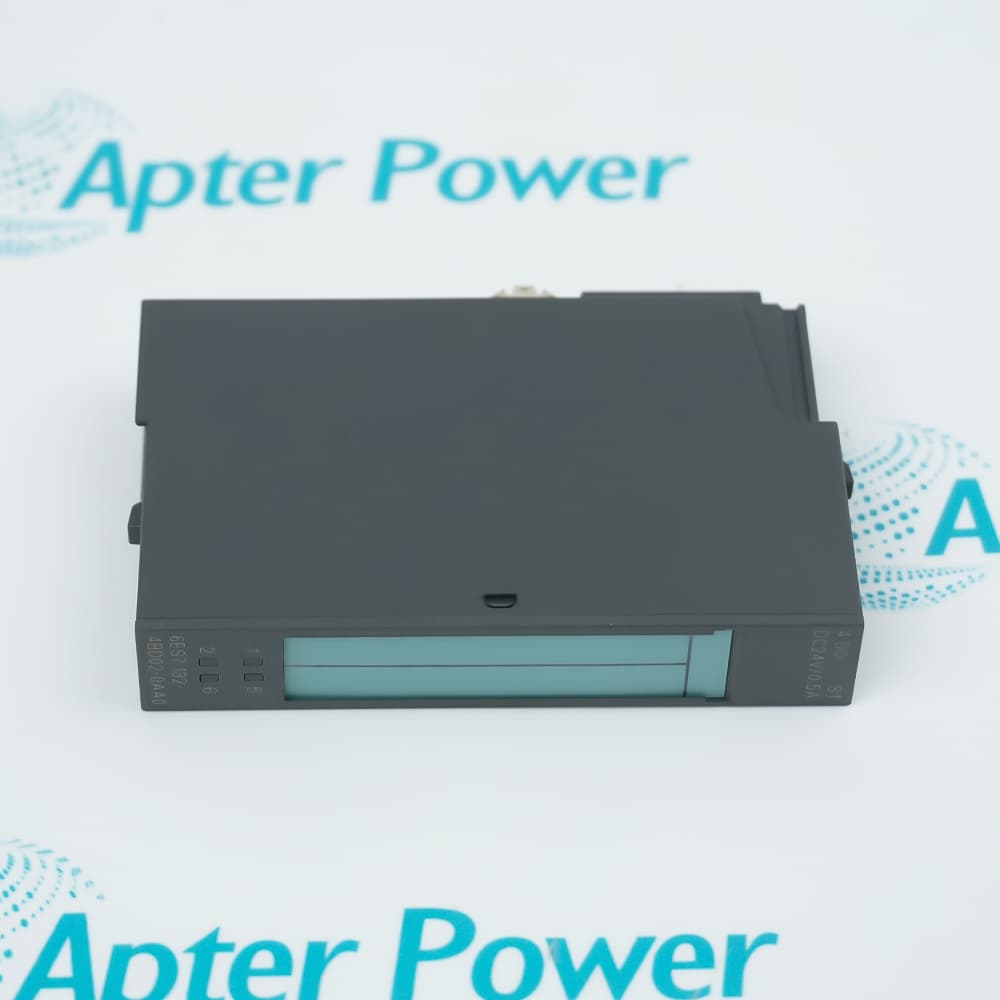

        Siemens 6ES7132-4BD02-0AA0 is a 15 mm SIMATIC ET 200S electronic module with four 24 VDC, 0.5 A standard digital outputs.
        In Stock
        Ships by Wednesday, October 28
        Fast Shipping Available
        Get a quick price for 6ES7132-4BD02-0AA0
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 6ES7132-4BD02-0AA0

        • Manufacturer:
          Siemens
        • Part Number:
          6ES7132-4BD02-0AA0
        • Product Family:
          Siemens Simatic ET 200SP
        • Product Type:
          SIMATIC ET 200S 4-Channel Digital Output Electronic Module
        • Stock:
          1
        • Outputs:
          4 standard digital outputs
        • Output Voltage:
          24 VDC
        • Output Current:
          0.5 A per channel
        • Module Width:
          15 mm
        • Ordering Unit:
          1 package
        • Packaging Quantity:
          5 modules
        • Weight:
          0.181 kg
        • Estimated shipping dimensions:
          8.3 x 9.1 x 6.5 cm
        • Tariff Code:
          85389091
        • Country of origin:
          China
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Output Role Station Fit Spare Planning Applications

        Features:

        • Four standard outputs: One electronic module controls four 24 VDC loads within an ET 200S station.
        • Narrow ET 200S format: The 15 mm width preserves the established terminal layout and station pitch.
        • Five-piece order unit: Siemens identifies the commercial package as five electronic modules.
        6ES7132-4BD02-0AA0 is an ET 200S electronic module, not an ET 200SP device.

        Its service role is four standard 24 VDC digital outputs at one 15 mm station position.

        Product cancellation and the five-piece package quantity both affect how a replacement order should be evaluated.

        Apter Power can help confirm the Siemens 6ES7132-4BD02-0AA0 SIMATIC ET 200S Digital Output Module, package quantity and station fit before quotation.
        Siemens 6ES7132-4BD02-0AA0 SIMATIC ET 200S 4-Channel Digital Output Electronic Module Manuals,Datasheets,Link
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Four load channels: The module provides four independently addressed standard digital outputs.
        • 24 VDC field circuits: Loads must use the documented DC supply and channel-current boundary.
        • Short-circuit diagnosis: A failed load or conductor is separated from an electronic-channel fault before replacement.
        • Channel mapping: Software addresses and terminal conductors remain aligned with the original station record.
        • ET 200S platform: The module belongs to the earlier ET 200S distributed-I/O family.
        • Terminal-module dependency: Electrical function and potential group depend on the installed terminal position.
        • Fifteen-millimetre pitch: The narrow module width is part of the mechanical station arrangement.
        • ET 200SP exclusion: Similar naming does not make the electronic module compatible with ET 200SP base units.
        • Five-module package: The Siemens order contains five pieces even when the outage needs one.
        • Cancelled lifecycle: Spares, repair and exchange availability must be checked for the actual destination.
        • Stored-spare identity: Complete order code and package count are recorded separately.
        • Acceptance test: Each affected output is exercised with its real load after the station returns online.
        • Valve and relay outputs: Switches compatible 24 VDC solenoids, interposing relays and indicators.
        • Distributed-machine I/O: Adds four narrow digital-output points within an ET 200S station.
        • Legacy station maintenance: Restores an exact electronic-module position without redesigning healthy terminal wiring.
        • Spare consolidation: The five-piece package supports multiple identical ET 200S positions when that quantity is intentional.
        Description
        6ES7132-4BD02-0AA0 is a four-channel standard digital-output electronic module for the SIMATIC ET 200S distributed I/O system. Each channel switches a 24 VDC load up to the documented current rating, while the 15 mm format lets the module occupy one narrow terminal position.

        The order scope for 6ES7132-4BD02-0AA0 is a package of five modules rather than one loose unit. Siemens has cancelled the product, so maintenance planning should separate the installed module identity from package quantity and confirm the available spare, repair or exchange route.
        Alternative Names
        6ES71324BD020AA0
        Technical notes
        6ES7132-4BD02-0AA0 is an ET 200S electronic module supplied in a package of five, not an ET 200SP module. Preserve the terminal-module and potential-group design when replacing it. The four outputs are standard 24 VDC channels rated for 0.5 A loads; investigate field voltage, wiring and load faults before exchanging electronics.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        The station is labeled ET 200SP. Can 6ES7132-4BD02-0AA0 be installed because the order number starts with the same SIMATIC prefix?
        No. This module belongs to ET 200S and must match the installed terminal-module architecture. ET 200SP uses a different mechanical and electrical system.
        A quotation for 6ES7132-4BD02-0AA0 shows quantity one. Does that mean one electronic module?
        Not on the Siemens commercial data. The quantity unit is one package and the packaging quantity is five modules, so the supplier must state whether the offer covers the manufacturer pack or a split unit.
        One load connected to 6ES7132-4BD02-0AA0 does not energize while the other outputs work. What should be tested first?
        Measure field voltage and the channel command, then inspect the conductor, fuse and load. Healthy neighboring channels make a single field circuit or channel fault more likely than a station-wide failure.
        Can a higher-current 24 VDC load be connected directly to 6ES7132-4BD02-0AA0 for a temporary test?
        No. The documented standard output rating is 0.5 A per channel. Use an appropriately rated interposing device when the load exceeds the module boundary.
        Siemens has cancelled 6ES7132-4BD02-0AA0. Must the ET 200S station be replaced immediately?
        Not automatically. Maintain the exact spare and evaluate repair, exchange or an engineered migration according to availability and plant risk; do not treat a different module as a direct drop-in.
        A spare 6ES7132-4BD02-0AA0 is recognized but outputs drive the wrong devices. Where should the investigation focus?
        Compare the software addresses with the physical terminal positions and conductor map. Module recognition proves identity, but it does not prove that each channel remained aligned during the exchange.
