6AV6642-0EA01-3AX0

/ 4.9
1001 reviews | Need a Specific Revision?

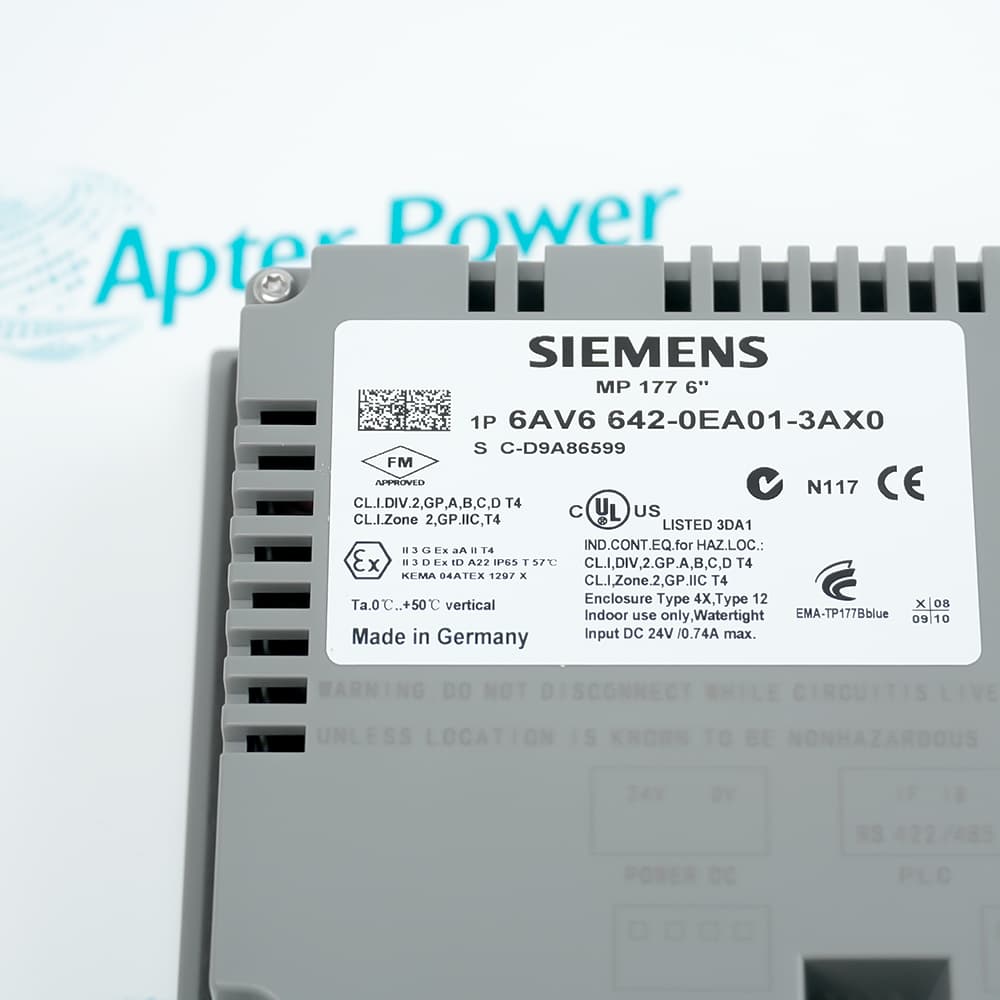

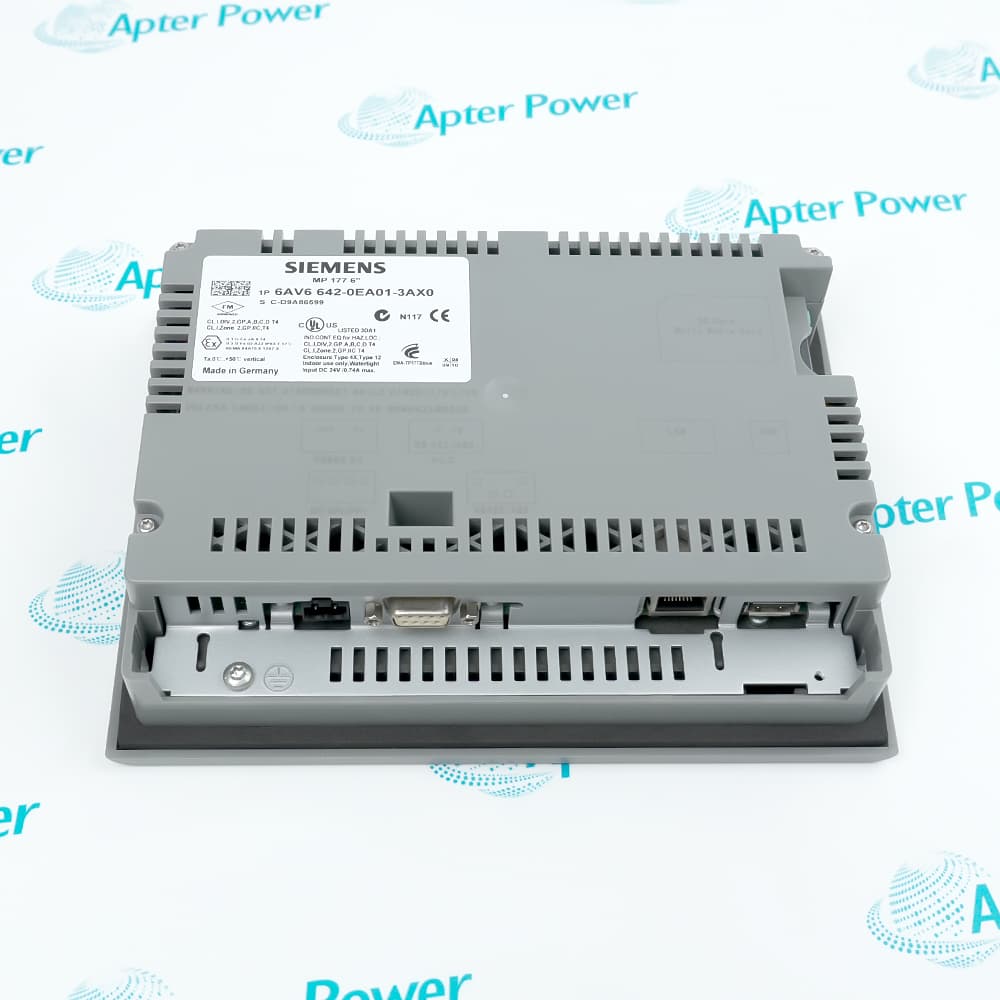

Siemens 6AV6642-0EA01-3AX0 is a SIMATIC MP 177 6-inch touch Multi Panel with a 5.7-inch TFT display, 2 MB configuration memory, and industrial network interfaces.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 6AV6642-0EA01-3AX0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6AV6642-0EA01-3AX0

  • Manufacturer:
    Siemens
  • Part Number:
    6AV6642-0EA01-3AX0
  • Product Family:
    Siemens Simatic HMI
  • Product Type:
    MP 177 6-inch Touch Multi Panel
  • Stock:
    2
  • Display:
    5.7
  • Backlight MTBF:
    50,000 hours at 25°C
  • Touch Technology:
    Analog resistive
  • Processor:
    RISC 32-bit, 520 MHz
  • Configuring Memory:
    2 MB
  • Main Memory:
    128 MB
  • Operating System:
    Windows CE Version 5
  • Interfaces:
    RS422, RS485 (12 Mbit/s), Ethernet (RJ45), USB, MMC/SD slot
  • Protocols:
    PROFINET IO, PROFIBUS, MPI, TCP/IP
  • Messages:
    2,000 (bit/analog)
  • Images:
    500 configurable
  • Recipes:
    100
  • Variables:
    1,000
  • Project Languages:
    32
  • Weight:
    2.2597 lbs (1.025 kg)
  • Estimated shipping dimensions:
    19.50 x 25.60 x 8.90 cm
  • Tariff Code:
    85371098
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Communication Configuration Safety & Compliance

Features:

  • Provides a 5.7-inch TFT touch display with 65,536 colors and 320 x 240 pixel resolution.
  • Stores the HMI project in 2 MB of configuration memory with retentive device functions.
  • Supports WinCC flexible 2008 Compact or higher for the documented engineering configuration.
The current ordering configuration is 6AV6642-0EA01-3AX0, the Siemens SIMATIC MP 177 6-inch Touch Multi Panel with retentive memory.

It provides local operator control and visualization through a resistive touch display, industrial controller connections, alarm handling, process values, and recipe functions.

Before commissioning a replacement, verify the 198 x 142 mm mounting cutout, existing WinCC project, interface and protocol selection, storage-card status, and controller connection.

Availability is subject to Apter Power inventory and sourcing confirmation.
Verified resources for Siemens 6AV6642-0EA01-3AX0:

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Siemens 6AV6642-0EA01-3AX0 Touch Multi Panel Specs

General

  • Manufacturer Siemens
  • Model 6AV6642-0EA01-3AX0
  • Condition New Original ready stock
  • Product Family 6AV6640-0CA01-0AX0,6AV6644-0AB01-2AX0,6AV6648-0CE11-3AX0
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Provides one RS422, one combined RS485 connection, one Ethernet RJ45 port, and one USB interface.
  • Supports PROFINET IO, PROFIBUS, MPI, TCP/IP, EtherNet/IP, and Modbus communications.
  • Transfers configurations through MPI/PROFIBUS DP, serial, USB, or Ethernet with automatic transfer recognition.
  • Uses WinCC flexible Compact version 2008 SP1 or higher as the documented configuration tool.
  • Supports WinCC flexible Standard and Advanced engineering software for compatible HMI projects.
  • Provides five online languages and up to 32 project languages for multilingual operator interfaces.
  • Carries CE, GL, FM Class I Division 2, cULus, C-TICK, NEMA 4, NEMA 4x, and NEMA 12 certifications or ratings.
  • Provides IP65 protection at the front and IP20 at the rear when the panel is installed as specified.
  • Siemens records RoHS compliance from 2009-11-25 for article number 6AV6642-0EA01-3AX0.
Description
Siemens 6AV6642-0EA01-3AX0 is the SIMATIC MP 177 6-inch Touch Multi Panel with retentive memory. It combines a 5.7-inch, 65,536-color TFT display, 320 x 240 resolution, and 2 MB of configuration memory.

The panel provides RS422, RS485, Ethernet, and USB interfaces, with PROFINET IO, PROFIBUS, MPI, TCP/IP, EtherNet/IP, and Modbus support. Its HMI functions include process-value display and input, alarms, messages, recipes, and configurable visualization objects.

Siemens cancelled the product on 2023-10-01 and lists it as a spare part available on request. Before replacement or migration, verify the full article number, panel cutout, project backup, WinCC engineering version, interface requirements, and controller connection.
Alternative Names
6AV6642-0EA01-3AX0 6AV6642 0EA01 3AX0 6AV66420EA013AX0 Siemens 6AV6642-0EA01-3AX0 Siemens SIMATIC MP 177 6-inch Touch Siemens MP177 6-inch Touch SIMATIC MP 177 6AV6642-0EA01-3AX0 Siemens Touch Multi Panel 6AV6642-0EA01-3AX0
Technical notes
6AV6642-0EA01-3AX0 is the MP 177 6-inch touch panel configured with WinCC flexible 2008 Compact or higher.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What display is fitted to Siemens 6AV6642-0EA01-3AX0?
It has a 5.7-inch TFT display with 65,536 colors and 320 x 240 pixel resolution.
Which software configures the MP 177 6-inch Touch panel?
Siemens specifies WinCC flexible Compact 2008 SP1 or higher; Standard and Advanced editions are also supported.
Which interfaces are available on 6AV6642-0EA01-3AX0?
The panel provides RS422, RS485, Ethernet RJ45, USB, and a combined MMC/SD card slot.
What controllers can the Siemens MP 177 connect to?
The datasheet lists SIMATIC S5 and S7 families, SINUMERIK, SIMOTION, and supported third-party drivers; confirm the project protocol before replacement.
Is Siemens 6AV6642-0EA01-3AX0 still an active new product?
No. Siemens states that the new part was blocked from delivery in 2015 and the product was cancelled on 2023-10-01; spare-part service remains on request.
What information is needed to quote a replacement MP 177?
Provide the full article number, project backup, firmware or E-status, panel cutout, controller protocol, and required quantity.
