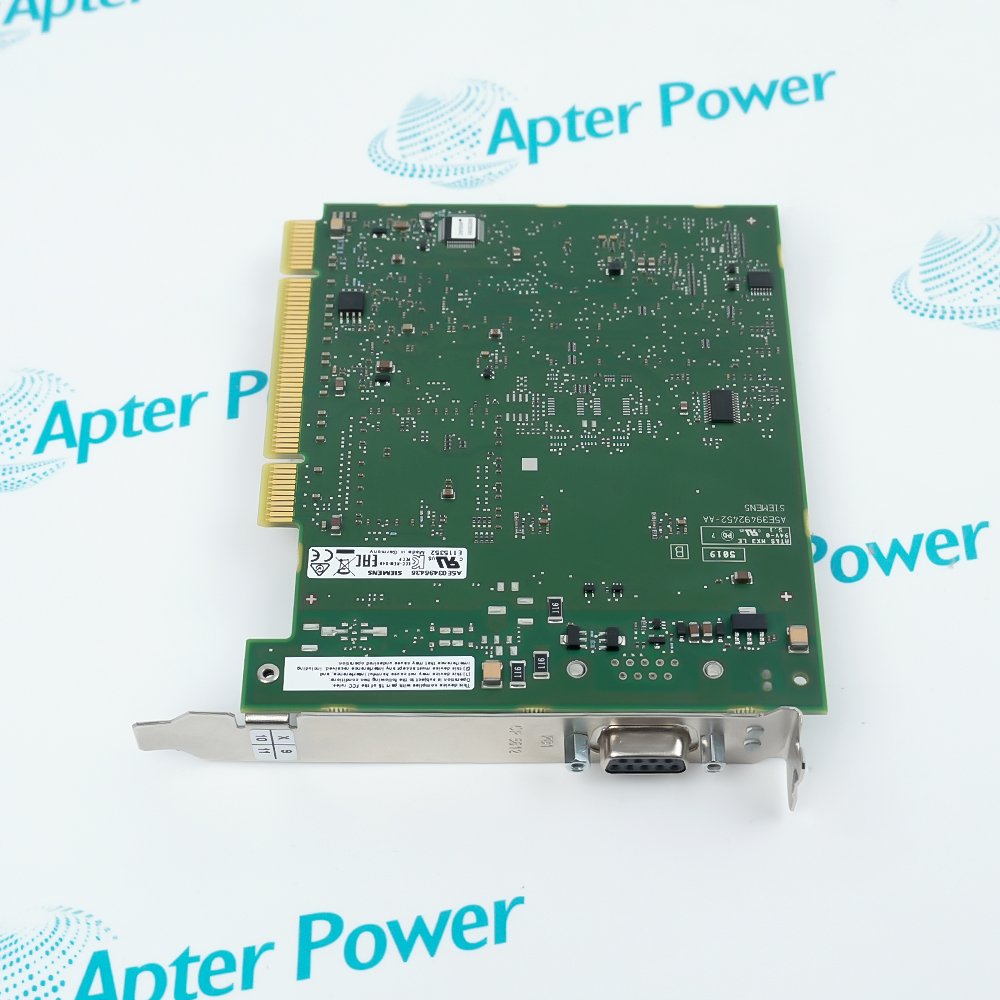

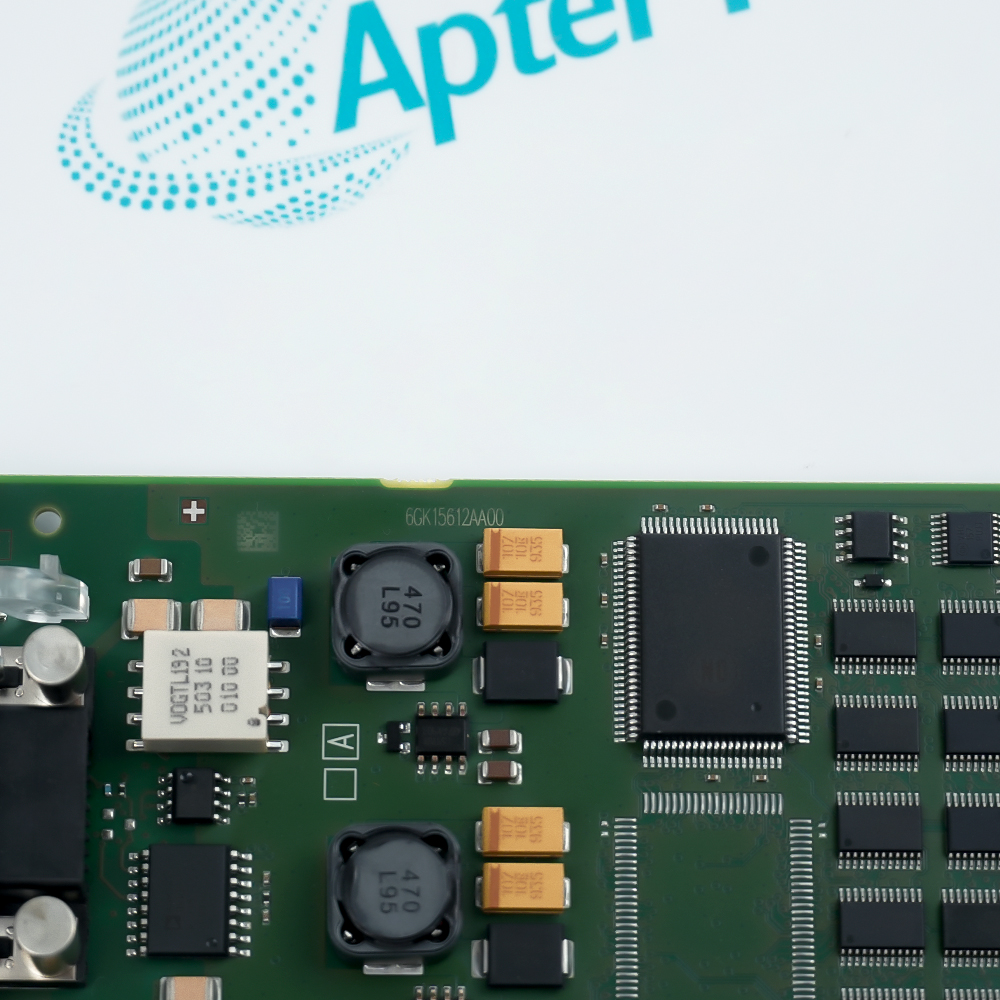

Siemens 6GK1561-2AA00 is a SIMATIC NET CP 5612 PCI communications processor for connecting a PG or PC to PROFIBUS or MPI.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6GK1561-2AA00
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6GK1561-2AA00

  • Manufacturer:
    Siemens
  • Part Number:
    6GK1561-2AA00
  • Product Family:
    Siemens Simatic Net
  • Product Type:
    CP 5612 Communications Processor
  • Stock:
    1
  • Hardware interface:
    PCI card
  • Industrial network:
    PROFIBUS or MPI
  • Host platform:
    PG or PC with PCI bus
  • Operating-system scope:
    32-bit and 64-bit variants; verify current SIMATIC NET support
  • EAN:
    4019169252478
  • Weight:
    0.098 kg
  • Estimated shipping dimensions:
    1.8x10.7x12.5cm
  • Tariff Code:
    85176200
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Host Interface Network Access Software Scope Applications

Features:

  • Processor: SIMATIC NET CP 5612 communications card.
  • Network: one RS-485 interface for PROFIBUS or MPI.
  • Host bus: 32-bit conventional PCI with 3.3 V/5 V Universal Key.
The card adds an internal industrial-network path to a compatible programming device or PC.

PROFIBUS communication supports documented transmission rates from 9.6 kbit/s to 12 Mbit/s.

Host-slot compatibility and the installed SIMATIC NET software release must be confirmed together.

Apter Power supports exact-article and host-compatibility review for the Siemens 6GK1561-2AA00 CP 5612 Communications Processor.
Siemens 6GK1561-2AA00 CP 5612 Communications Processor Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • 6GK1561-2AA00 uses a 32-bit PCI interface with a 3.3 V/5 V Universal Key for integration in a compatible programming device or industrial PC.
  • The host-side PCI connection operates at 33 MHz or 66 MHz, supporting the conventional PCI bus implementations specified for CP 5612.
  • The processor occupies one internal card position and uses the computer as its communication platform rather than operating as a standalone network appliance.
  • SIMATIC NET software provides the PC communication environment that exposes the installed card to engineering and automation applications.
  • The card provides one RS485 industrial-network interface through a 9-pin Sub-D socket.
  • PROFIBUS transmission rates span 9.6 kbit/s to 12 Mbit/s, covering common low- and high-speed PROFIBUS network settings.
  • The same CP 5612 hardware connects the host programming device or PC to either PROFIBUS or MPI according to the configured network.
  • Because the card has one field-side interface, the required PROFIBUS or MPI connection must be planned as its single industrial communication path.
  • 6GK1561-2AA00 operates within the SIMATIC NET PC software environment rather than as an unmanaged plug-in card.
  • Siemens identifies 32-bit and 64-bit operating-system variants, while the supported combination still depends on the installed SIMATIC NET release.
  • Engineering or automation applications reach PROFIBUS or MPI after the host recognizes the card and the matching software components are installed.
  • A replacement host must preserve both the conventional PCI hardware path and an operating-system/software combination that supports CP 5612.
  • Programming-device access to PROFIBUS stations from a Siemens PG or compatible PC-based engineering station.
  • MPI communication between a host computer and SIMATIC automation equipment for commissioning or service work.
  • PC-based PROFIBUS communication where industrial software exchanges data through a dedicated internal PCI card.
  • Maintenance replacement in an installed CP 5612 architecture whose host slot, SIMATIC NET environment and field network are retained.
Description
A conventional PCI host can join PROFIBUS or MPI through 6GK1561-2AA00, the Siemens SIMATIC NET CP 5612 communications processor. It gives a compatible programming device or industrial PC an internal network interface for engineering, diagnostics and process communication.

On the field side, 6GK1561-2AA00 provides one RS-485 connection on a 9-pin Sub-D socket and supports PROFIBUS rates from 9.6 kbit/s to 12 Mbit/s. The same card can serve MPI when the SIMATIC NET configuration and connected network are set accordingly.

Successful replacement depends on the host computer as well as the network, so 6GK1561-2AA00 must be matched to a 32-bit conventional PCI slot and a supported SIMATIC NET software environment. A PCI Express system is not a direct hardware fit.
Alternative Names
6GK1561 2AA00 6GK15612AA00 Siemens 6GK1561-2AA00 Siemens 6GK1561 2AA00 6GK156I-2AA00 6GK1561-2AAO0
Technical notes
6GK1561-2AA00 uses a conventional 32-bit PCI host interface, not a PCI Express form factor. A replacement computer therefore needs a compatible 3.3 V or 5 V Universal Key PCI slot together with a SIMATIC NET software release that supports its operating system; otherwise the card cannot restore the intended PROFIBUS or MPI communication path.
